600.04.sm (XNEX 0403..)

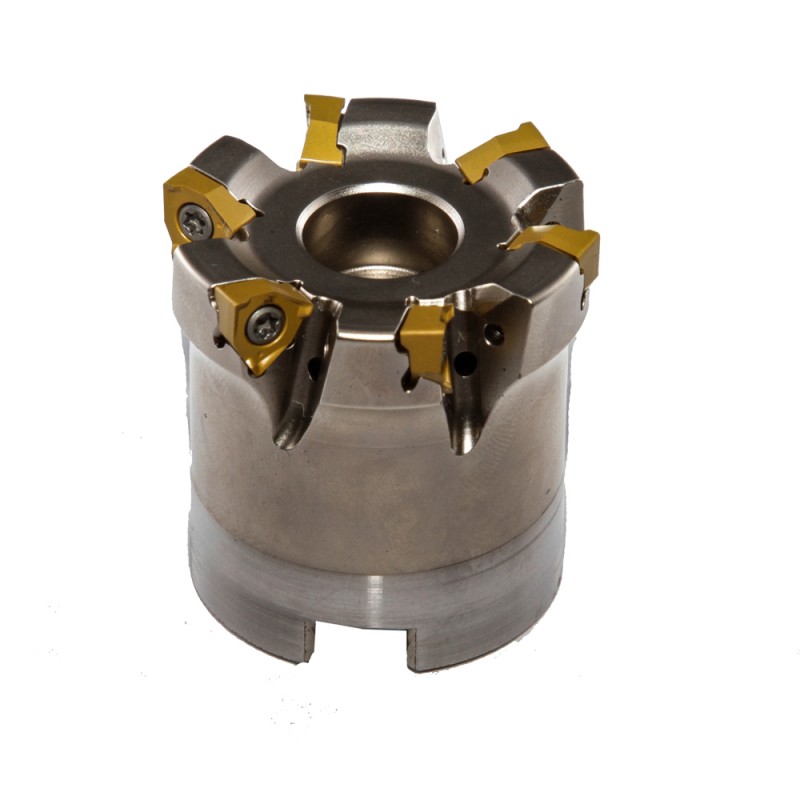

600.04.SM Shoulder shell milling cutter utilizes negative inserts and very positive chipbreaker:
- XNEX 040304
It has 90° approach angle, 0° relief angle but positive geometry to reduced the cutting force. Coolant thru capability.
This particular insert allows extreme value with 6 cornered inserts.
It is suggested for face milling, slotting, shouldering, ramping and high feed milling operations.
Spare parts:
- TX 25 (screws)
- CT 08 (screwdriver)
Notes: This product includes screws and the screwdriver. Inserts are not included.
- XNEX 040304
It has 90° approach angle, 0° relief angle but positive geometry to reduced the cutting force. Coolant thru capability.
This particular insert allows extreme value with 6 cornered inserts.
It is suggested for face milling, slotting, shouldering, ramping and high feed milling operations.
Spare parts:
- TX 25 (screws)
- CT 08 (screwdriver)
Notes: This product includes screws and the screwdriver. Inserts are not included.
Video
Product Name
D
T
A
B
C
F
G
H
SFM
600.15.04.SM
D:1.500
T:6
A:1.480
B:.750
C:.320
F:.390
G:.580
H:1.750
Only for registered users
Related Products
600.20.04.SM
D:2.000
T:8
A:1.730
B:.750
C:.320
F:.390
G:.580
H:1.750
Only for registered users
Related Products
600.25.04.SM
D:2.500
T:9
A:1.730
B:.750
C:.320
F:.390
G:.580
H:1.750
