600.08.sm (XNEX 0806..)

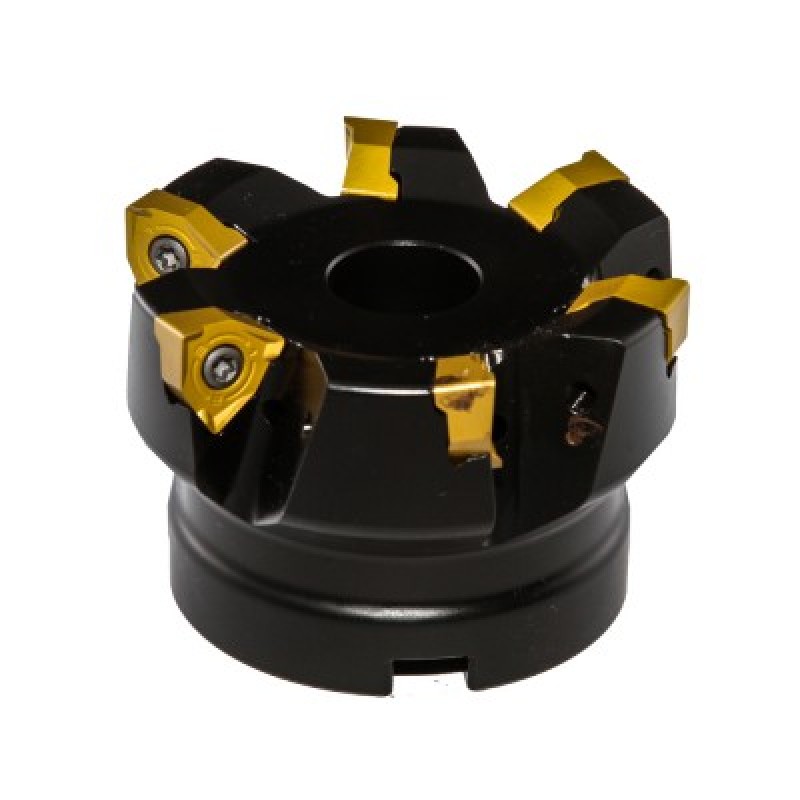

600.08.SM Shoulder shell milling cutter utilizes negative inserts and very positive chipbreaker:
- XNEX 080608
It has 90° approach angle, 0° relief angle but positive geometry to reduce the cutting force. Coolant thru capability.
This particular insert allows extreme value with 6 cornered inserts.
It is suggested for face milling, slotting, shouldering, ramping and general purpose operations.
Spare parts:
- TX 40G (screws)
- CT 15 (screwdriver)
Notes: This product includes screws and the screwdriver. Inserts are not included.
- XNEX 080608
It has 90° approach angle, 0° relief angle but positive geometry to reduce the cutting force. Coolant thru capability.
This particular insert allows extreme value with 6 cornered inserts.
It is suggested for face milling, slotting, shouldering, ramping and general purpose operations.
Spare parts:
- TX 40G (screws)
- CT 15 (screwdriver)
Notes: This product includes screws and the screwdriver. Inserts are not included.
Video

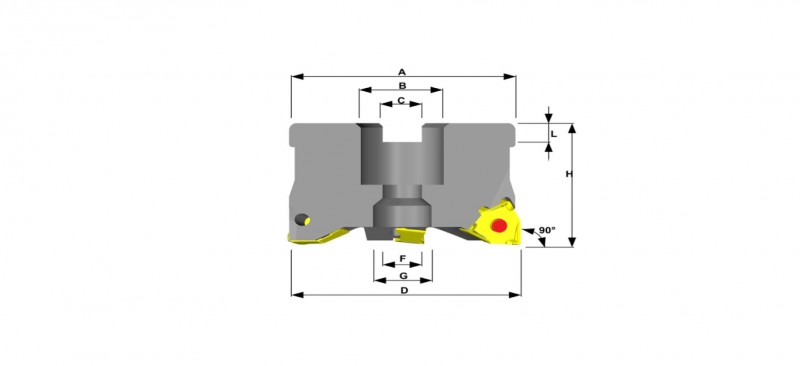

Product Name
D
T
A
B
C
F
G
H
SFM
600.20.08.SM
D:2.000
T:4
A:1.730
B:.750
C:.320
F:.390
G:.580
H:1.750
Only for registered users
Related Products
600.25.08.SM
D:2.500
T:5
A:1.730
B:.750
C:.320
F:.390
G:.580
H:1.750
Only for registered users
Related Products
600.30.08.SM
D:3.000
T:6
A:2.000
B:1.000
C:.380
F:.540
G:.780
H:2.000
Only for registered users
Related Products
600.40.08.SM
D:4.000
T:7
A:3.000
B:1.500
C:.630
F:.780
G:2.280
H:2.000
Only for registered users
Related Products
600.50.08.SM
D:5.000
T:8
A:4.000
B:1.500
C:.630
F:-
G:2.280
H:2.000
Only for registered users
Related Products
600.60.08.SM
D:6.000
T:10
A:4.800
B:2.000
C:.760
F:-
G:2.810
H:2.000
Only for registered users
