600.08.W (XNEX 0806..)

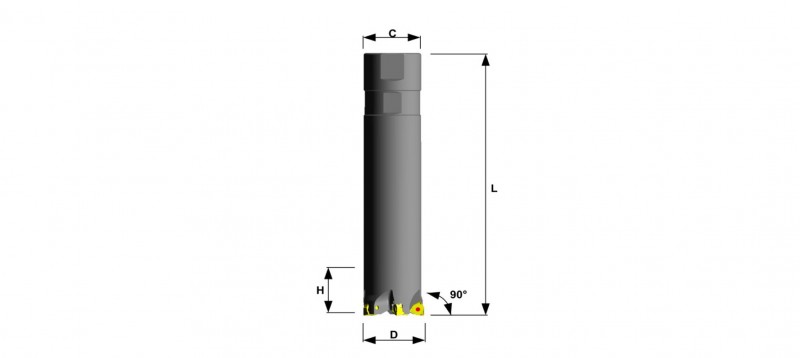

600.08.W Shoulder cylindrical milling cutter utilizes negative inserts and very positive chipbreaker:

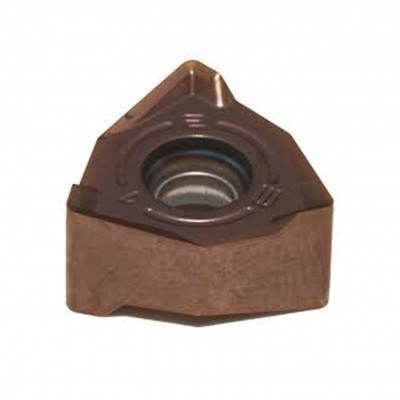

- XNEX 080608
It has 90° approach angle, 0° relief angle but positive geometry to reduced the cutting force. Coolant thru capability. This particular insert allows extreme value with 6 cornered inserts.
It is suggested for face milling, slotting, shouldering, ramping and general purpose operations.
Spare parts:
- TX 40G (screws)
- CT 15 (screwdriver)
Notes: This product includes screws and the screwdriver. Inserts are not included.
- XNEX 080608
It has 90° approach angle, 0° relief angle but positive geometry to reduced the cutting force. Coolant thru capability. This particular insert allows extreme value with 6 cornered inserts.
It is suggested for face milling, slotting, shouldering, ramping and general purpose operations.
Spare parts:
- TX 40G (screws)
- CT 15 (screwdriver)
Notes: This product includes screws and the screwdriver. Inserts are not included.
Video
Product Name
D
T
C
L
H
SFM
