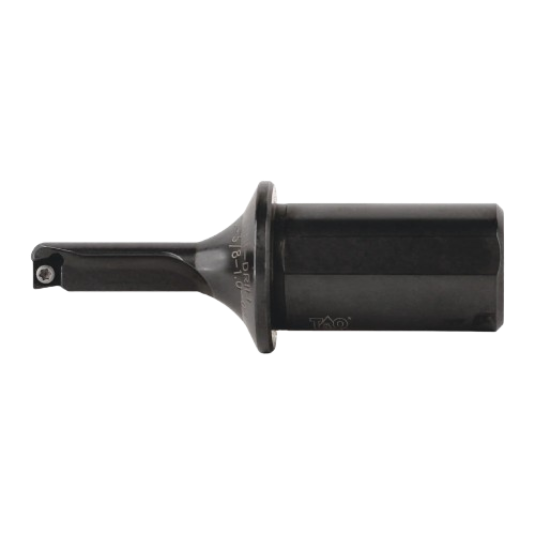

INDEXABLE MULTI-TOOL.
Perform Boring, Turning, Facing & Drilling Operation, With Standard CCMT Insert.
It utilizes the following inserts:
CCMT/CCGT 21.5.
CCMT/CCGT 32.5
Spare parts:
TX 25 (screws for CCMT 21.5.)
TX 35 (screws for CCMT 32.5)
CT 08 (screwdriver for TX 25)
CT 15 (screwdriver for TX 35)
*DOWNLOAD the .STP file in the SFM column of every size*
Notes: This product includes screws and one screwdriver. Inserts are not included
INDEXABLE MULTI-TOOL.
Perform Boring, Turning, Facing & Drilling Operation, With Standard CCMT Insert.
It utilizes the following inserts:
CCMT/CCGT 21.5.
CCMT/CCGT 32.5
Spare parts:
TX 25 (screws for CCMT 21.5.)
TX 35 (screws for CCMT 32.5)
CT 08 (screwdriver for TX 25)
CT 15 (screwdriver for TX 35)
*DOWNLOAD the .STP file in the SFM column of every size*
Notes: This product includes screws and one screwdriver. Inserts are not included
Product Name
DRILL SIZE
D2
D1
LT
L1
L2
L3
SFM

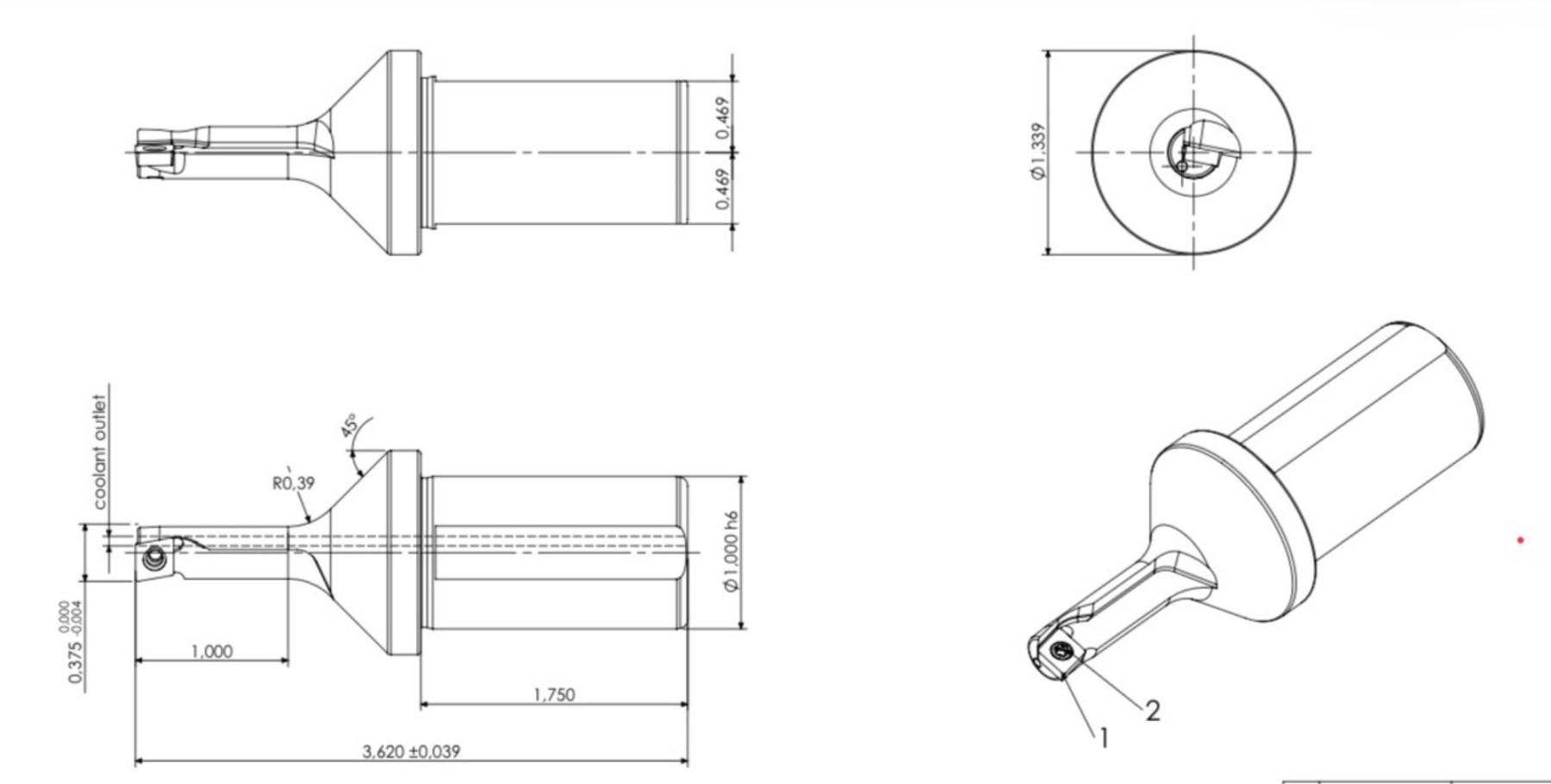

754.03.i
DRILL SIZE :.375
D2:1.000
D1:1.380
LT:3.620
L1:1.000
L2:1.870
L3:1.750
File SFM
Only for registered users
Related Products
754.05.i
DRILL SIZE :.500
D2:1.000
D1:1.380
LT:3.620
L1:1.200
L2:2.070
L3:1.750
File SFM
Only for registered users
Related Products
754.06.i
DRILL SIZE :.625
D2:1.000
D1:1.380
LT:4.600
L1:2.000
L2:2.850
L3:1.750
File SFM
Only for registered users
