846

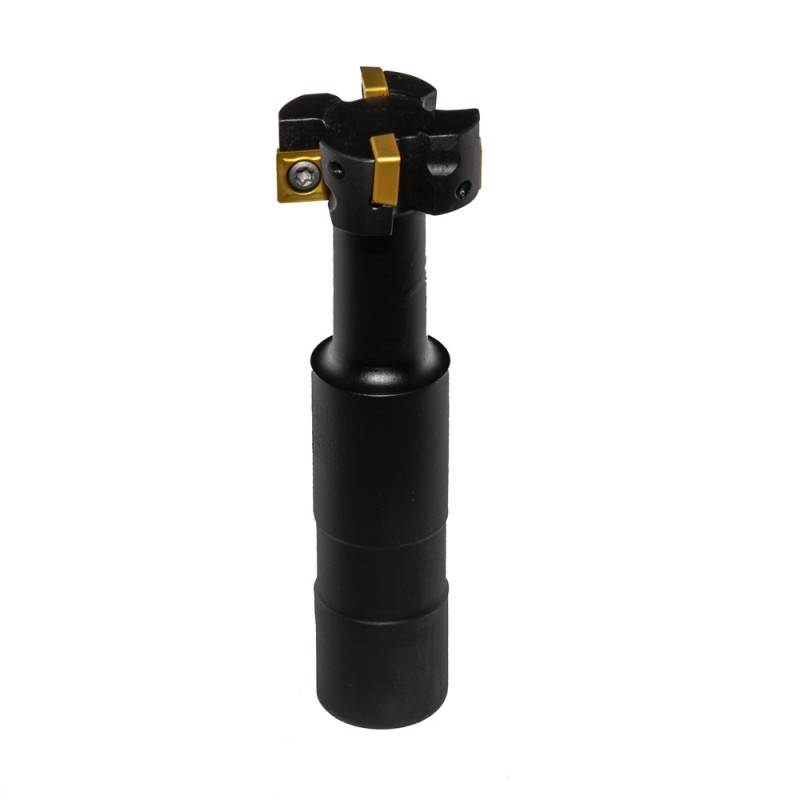

846 It is a "T" slot milling cutter : to mill a t-slot, a normal slot must be machined first as a t-slot milling cutter will only mill on the bottom flutes
(and not up the length of a tool).
846 cutters are available in 3 different ddiameters and flute thickness, enabling a wide range of t-slot forms to be produced.
It can be milling in a single pass or in multiple passes; it can also be used for groove milling.
It utilizes the following inserts:

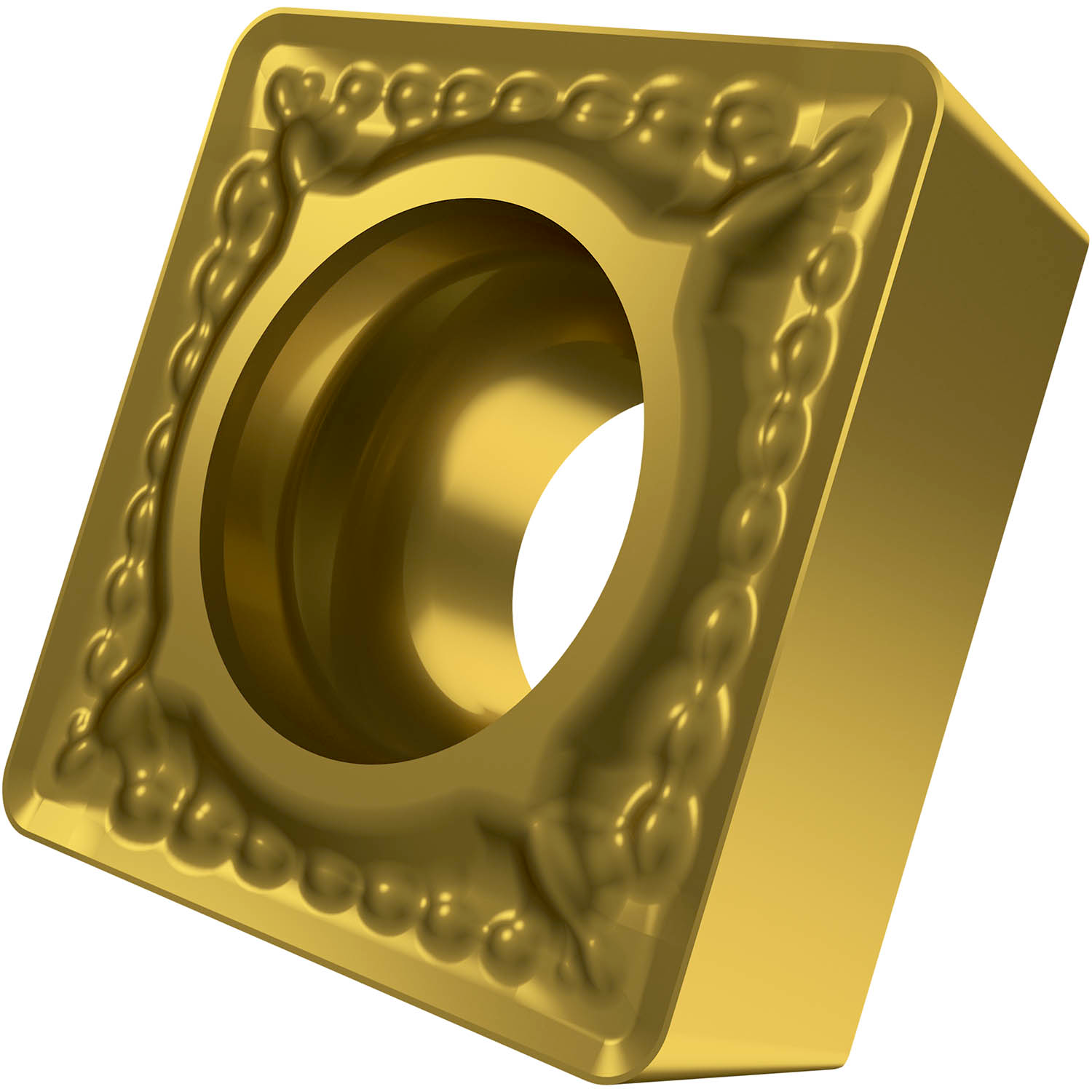

SCET 060204
SCET 09T308
Spare parts:
TX 25 (screws for SCET 060204)
TX 35 (screws for SCET 09T308)
CT 08 (screwdriver for TX 25)
CT 15 (screwdriver for TX 35)
Notes: this product contains screws and a screwdriver; inserts are not included.
(and not up the length of a tool).
846 cutters are available in 3 different ddiameters and flute thickness, enabling a wide range of t-slot forms to be produced.
It can be milling in a single pass or in multiple passes; it can also be used for groove milling.
It utilizes the following inserts:
SCET 060204
SCET 09T308
Spare parts:
TX 25 (screws for SCET 060204)
TX 35 (screws for SCET 09T308)
CT 08 (screwdriver for TX 25)
CT 15 (screwdriver for TX 35)
Notes: this product contains screws and a screwdriver; inserts are not included.
Product Name
D.
C
T
L
H
H1
SFM
