847-S (SEEN 42)

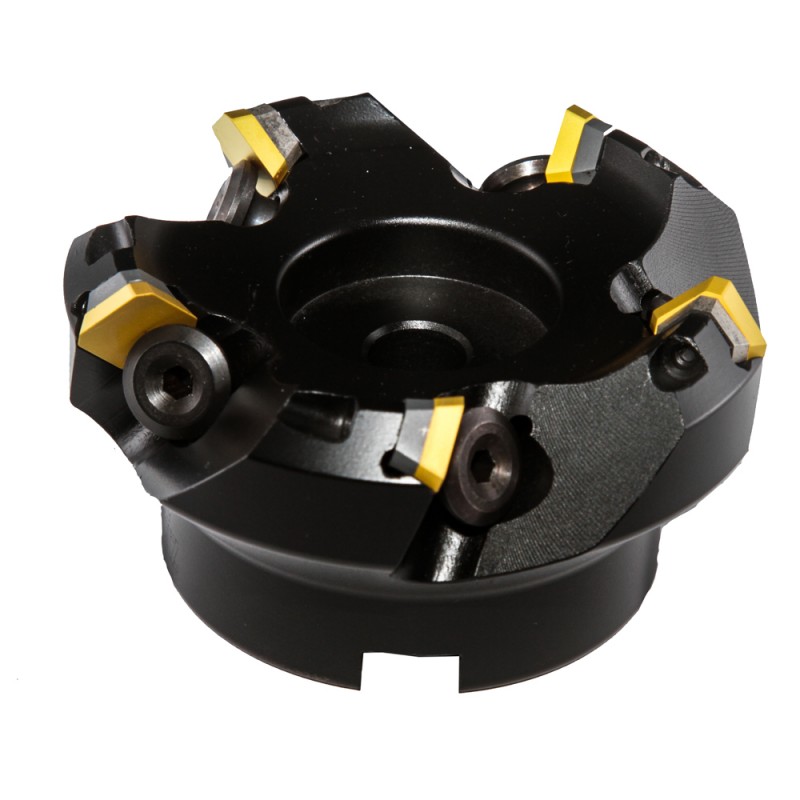

847.S Face shell milling cutter utilizes standard inserts:

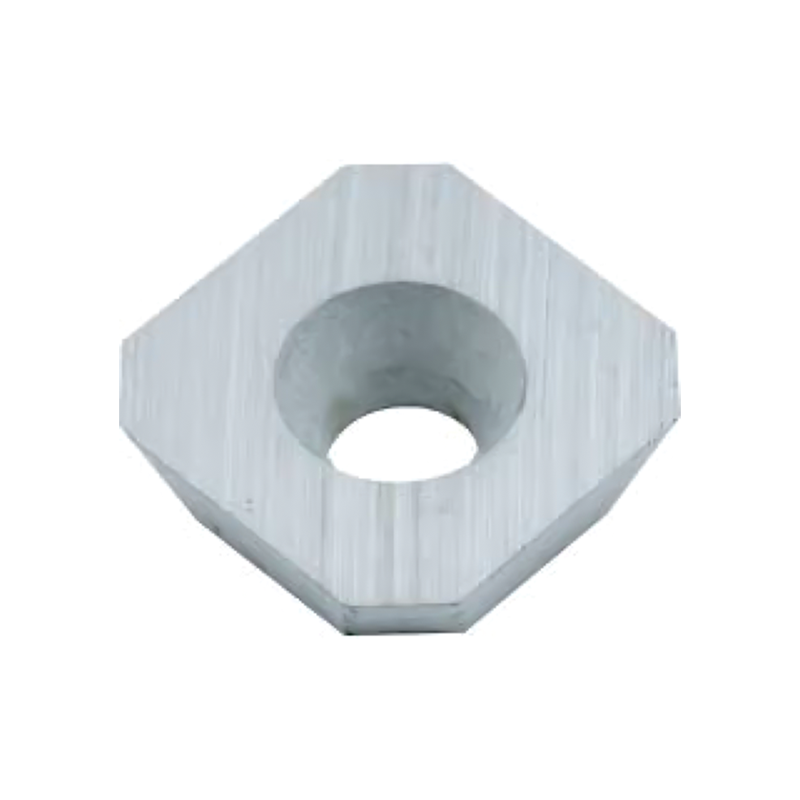

- SEKN 42

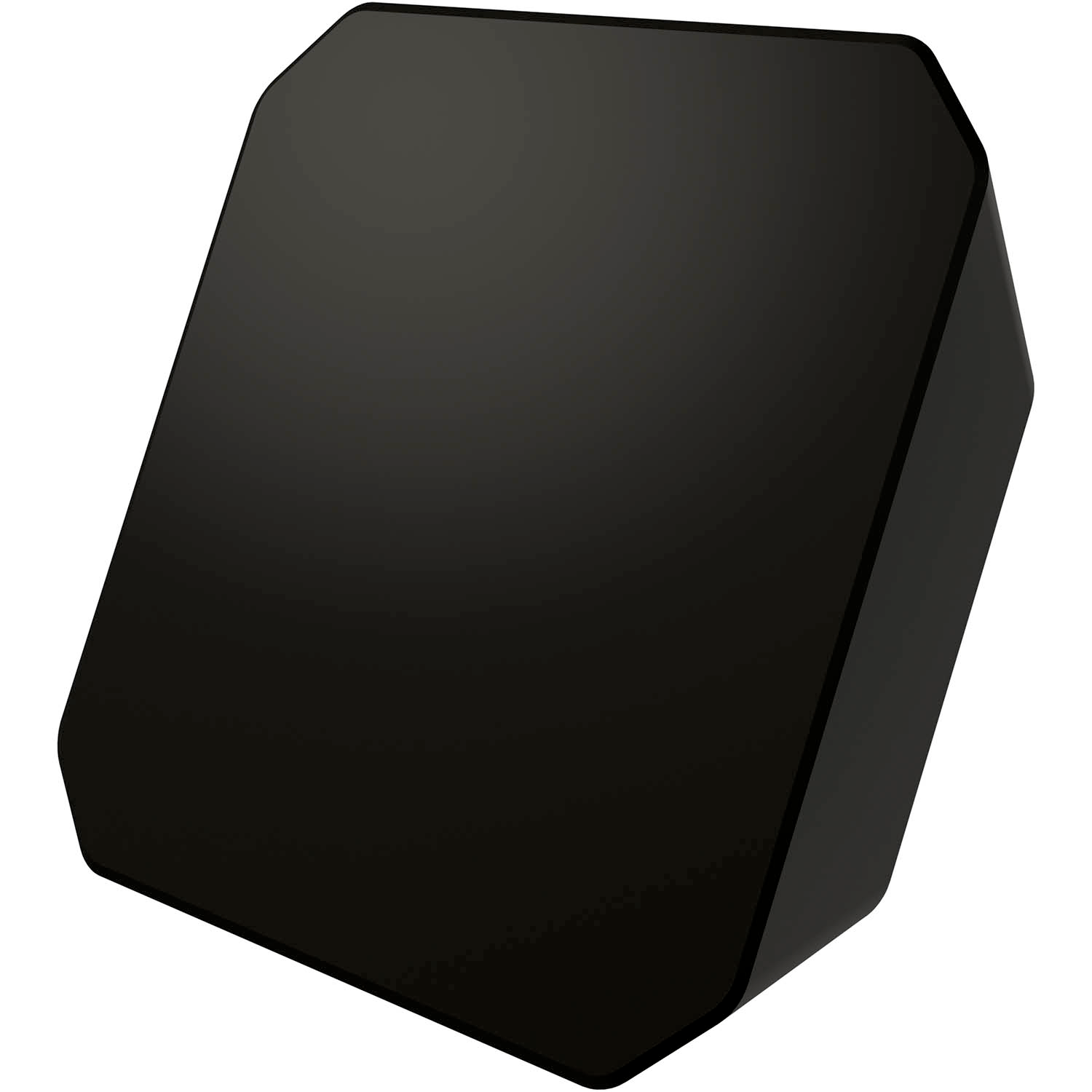

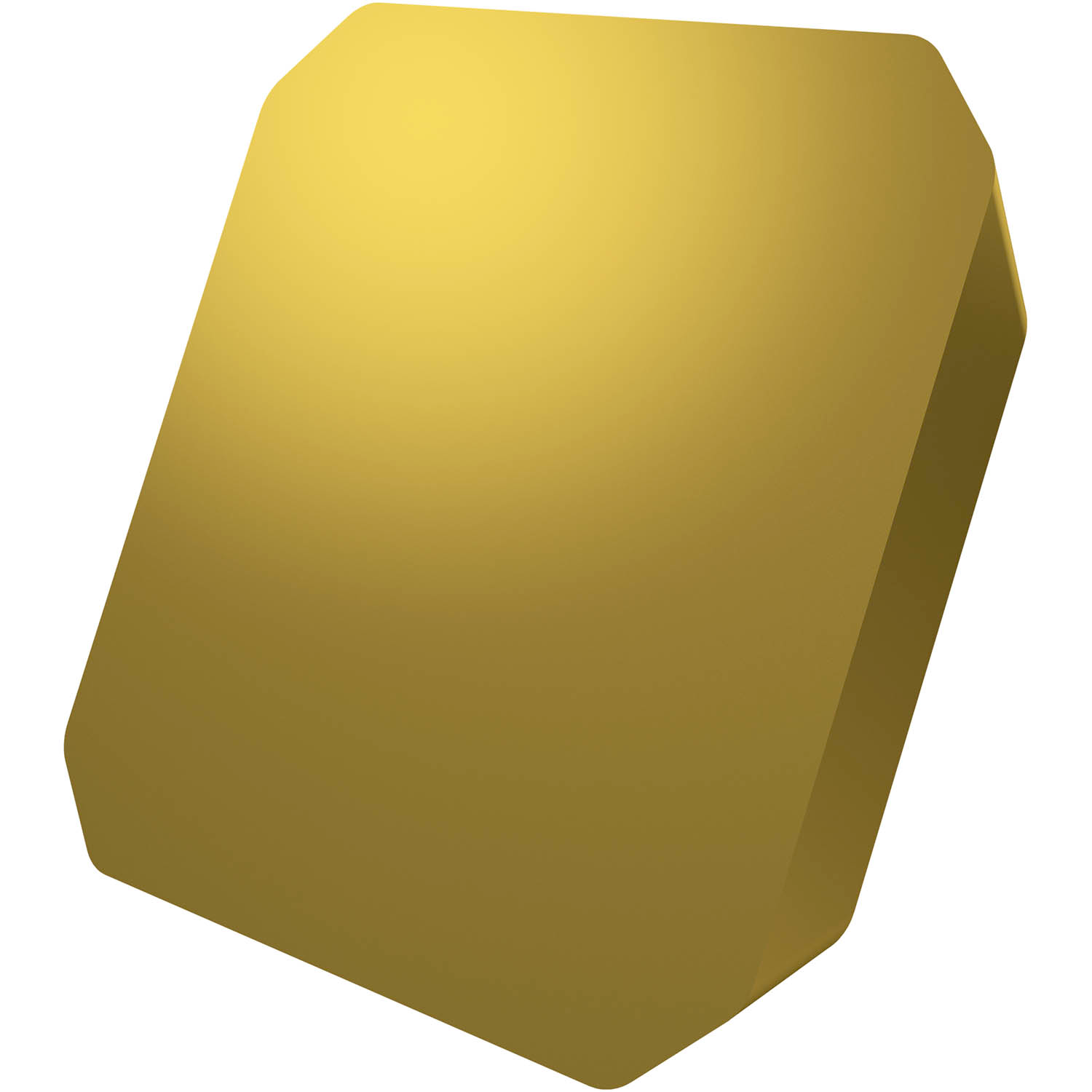

- SEEN 42

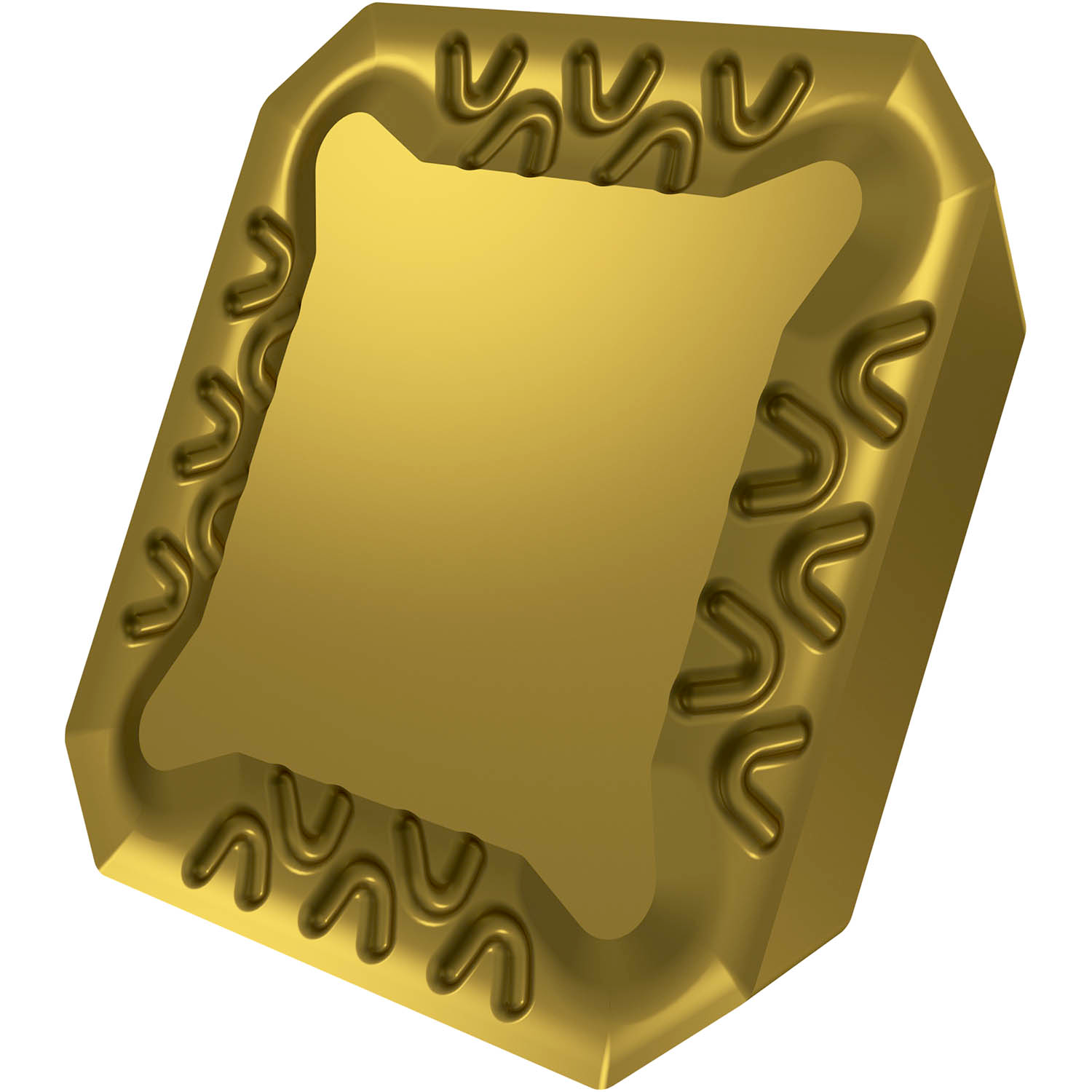

- SEER 42
It has 45° approach angle and 20° relief angle permits high cutting speed with limited power machines.
It is suggested for surface milling of steel, alloyed steel, stainless steel, cast irons and aluminum alloys.
The clamping system allows a quick and eays insert mounting and removal; the body is fitted with shims to protect it in case of insert breakage.
Spare parts:
- SSE 10.3 (shim)
- VF3 (screw shim)
- VS 12 (clamp)
- CHT4 (screwdriver)
Notes: This product includes shims, clamps, screws and one screwdriver. Inserts are not included.
- SEKN 42
- SEEN 42
- SEER 42
It has 45° approach angle and 20° relief angle permits high cutting speed with limited power machines.
It is suggested for surface milling of steel, alloyed steel, stainless steel, cast irons and aluminum alloys.
The clamping system allows a quick and eays insert mounting and removal; the body is fitted with shims to protect it in case of insert breakage.
Spare parts:
- SSE 10.3 (shim)
- VF3 (screw shim)
- VS 12 (clamp)
- CHT4 (screwdriver)
Notes: This product includes shims, clamps, screws and one screwdriver. Inserts are not included.
Product Name
D.
T
A
B
C
F
G
H
SFM
847S.20.i
D.:2.000
T:4
A:1.930
B:.750
C:.320
F:.390
G:.580
H:1.970
Only for registered users
Related Products
847S.25.i
D.:2.500
T:5
A:2.130
B:.750
C:.320
F:.390
G:.580
H:1.970
Only for registered users
Related Products
847S.30.i
D.:3.000
T:5
A:2.640
B:1.000
C:.380
F:.540
G:1.490
H:1.970
Only for registered users
Related Products
847S.40.i
D.:4.000
T:6
A:3.260
B:1.500
C:.630
F:.780
G:2.360
H:1.970
Only for registered users
Related Products
847S.50.i
D.:5.000
T:7
A:4.430
B:1.500
C:.630
F:-
G:2.360
H:1.970
Only for registered users
Related Products
847S.60.i
D.:6.000
T:8
A:4.920
B:2.000
C:.760
F:-
G:3.150
H:1.970
Only for registered users
