849 (SEET)

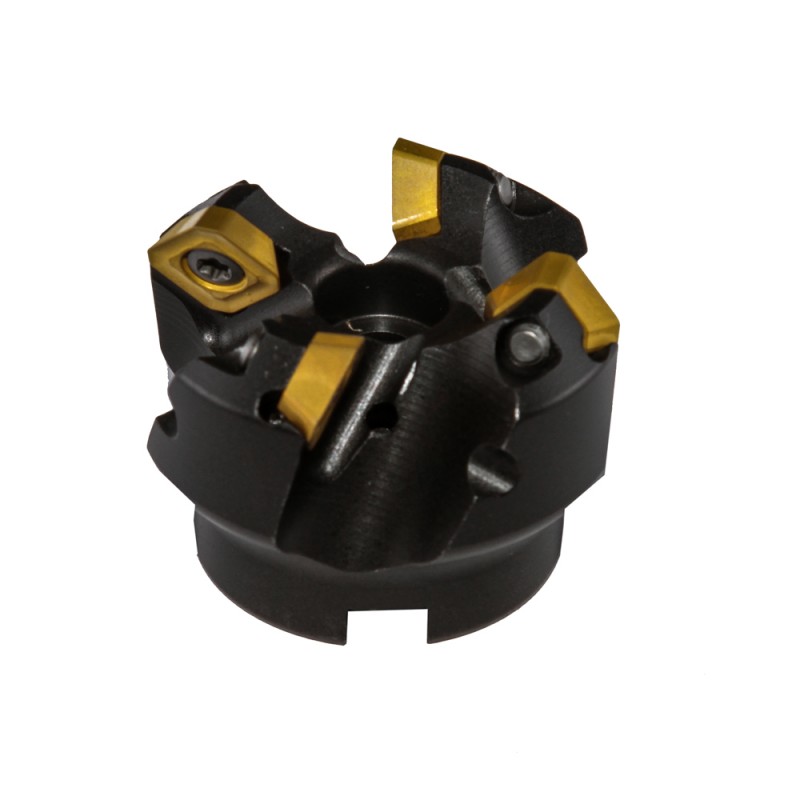

849 Face shell milling cutter utilizes standard inserts:

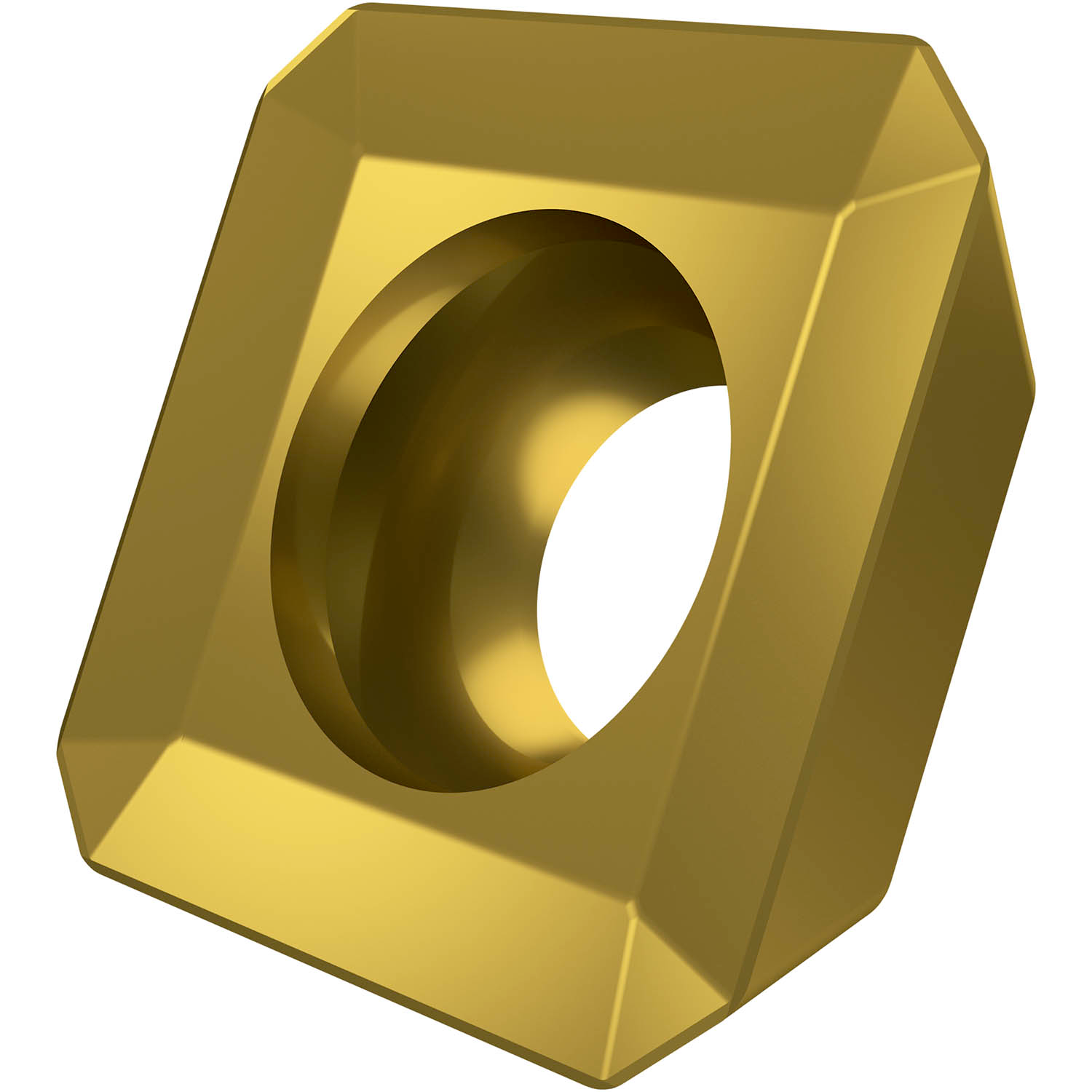

- SEET 32.5.
- SEHX 43

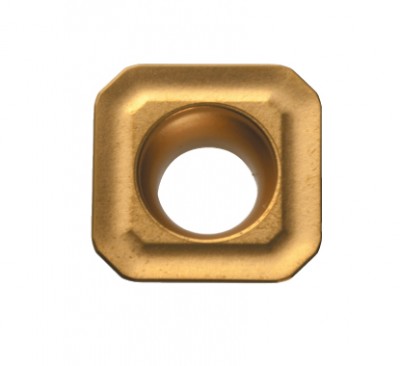

- SEHT 43

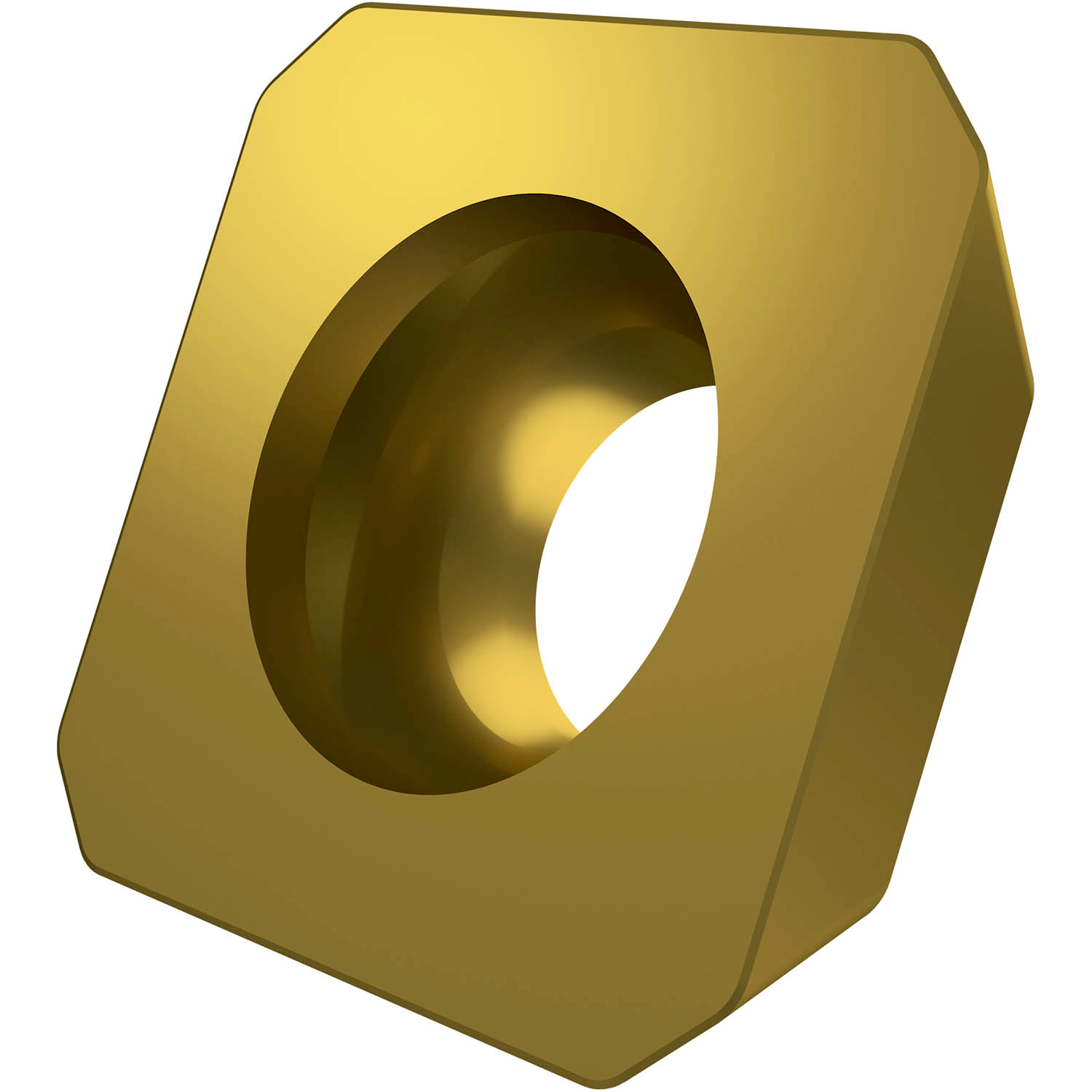

- SEEW/T 43
It has 45° approach angle and 20° relief angle permits high cutting speed with limited power machines.
It is suggested for surface milling of steel, alloyed steel, stainless steel, cast irons and aluminum alloys.
Spare parts:
- TX 30 (screws)
- CT 09 (screwdriver)
- TX 50 (screws)
- CT 20 (screwdriver)
Notes: This product includes screws and the screwdriver. Inserts are not included.
- SEET 32.5.
- SEHX 43
- SEHT 43
- SEEW/T 43
It has 45° approach angle and 20° relief angle permits high cutting speed with limited power machines.
It is suggested for surface milling of steel, alloyed steel, stainless steel, cast irons and aluminum alloys.
Spare parts:
- TX 30 (screws)
- CT 09 (screwdriver)
- TX 50 (screws)
- CT 20 (screwdriver)
Notes: This product includes screws and the screwdriver. Inserts are not included.

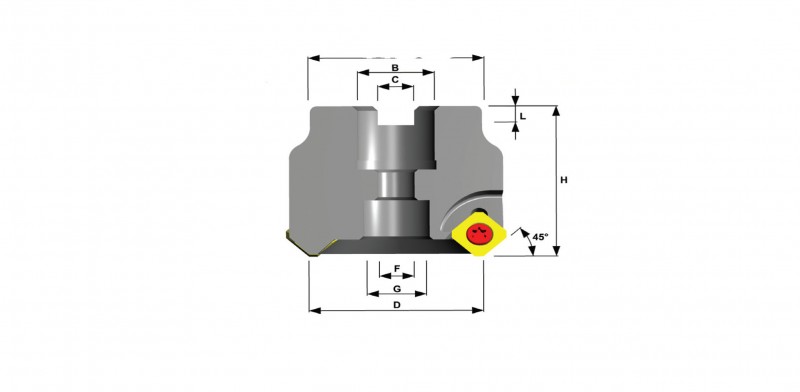

Product Name
D.
T
A
B
C
F
G
H
SFM
849.15.i
D.:1.500
T:4
A:1.610
B:.750
C:.320
F:.390
G:.580
H:1.570
Only for registered users
Related Products
849.20.i
D.:2.000
T:4
A:1.930
B:.750
C:.320
F:.390
G:.580
H:1.570
Only for registered users
Related Products
849.25.i
D.:2.500
T:5
A:2.130
B:.750
C:.320
F:.390
G:.580
H:1.570
Only for registered users
Related Products
849.30.i
D.:3.000
T:6
A:2.640
B:1.000
C:.380
F:.540
G:1.490
H:1.970
Only for registered users
Related Products
849.40.i
D.:4.000
T:7
A:3.260
B:1.500
C:.630
F:.780
G:2.360
H:1.970
Only for registered users
Related Products
849.50.i
D.:5.000
T:7
A:4.430
B:1.500
C:.630
F:-
G:2.360
H:1.970
Only for registered users
