923 (APKT 1003)

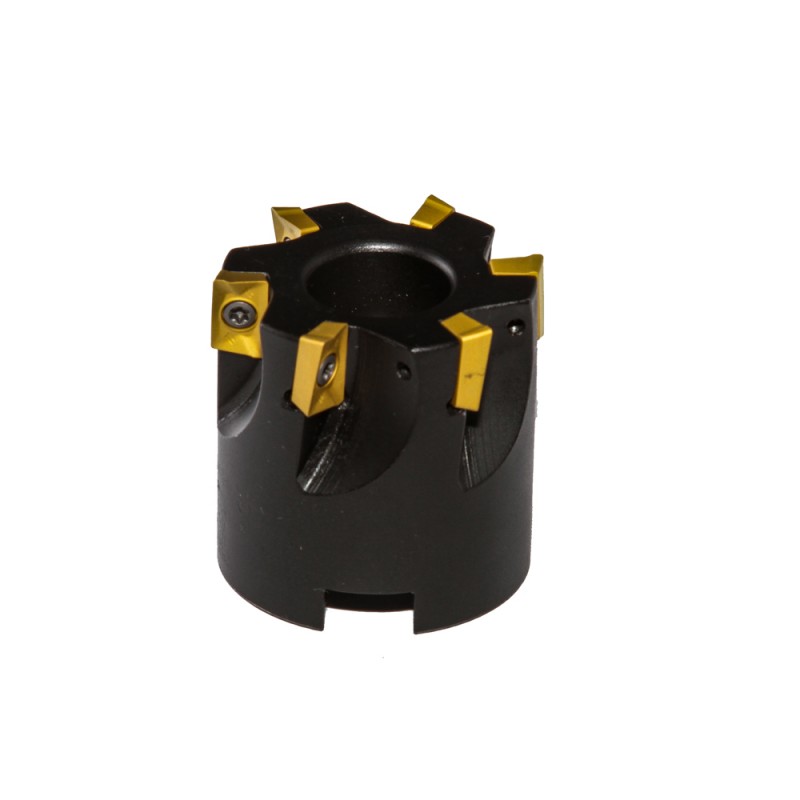

923 Shoulder shell milling cutter utilizes standard inserts:
- APKT 1003
- APET 1003
It has 90° approach angle and 11° relief angle to reduce tool pressure.
It is suggested for face milling, slotting, shouldering, ramping and high feed milling operations because a high number of stations.
Spare parts:
- TX 25C (screws)
- CT 08 (screwdriver)
Notes: This product includes screws and the screwdriver. Inserts are not included.
- APKT 1003
- APET 1003
It has 90° approach angle and 11° relief angle to reduce tool pressure.
It is suggested for face milling, slotting, shouldering, ramping and high feed milling operations because a high number of stations.
Spare parts:
- TX 25C (screws)
- CT 08 (screwdriver)
Notes: This product includes screws and the screwdriver. Inserts are not included.

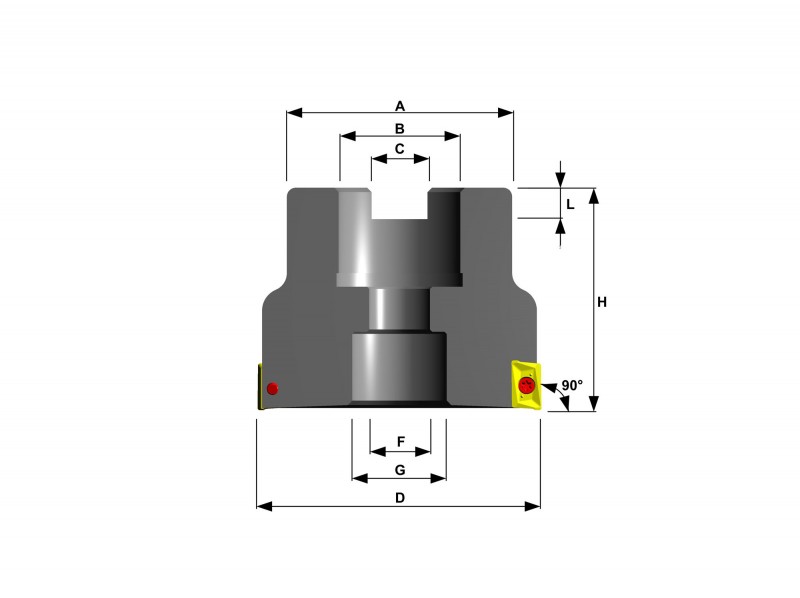

Product Name
D.
T
A
B
C
F
G
H
SFM
923.15.i
D.:1.500
T:6
A:1.480
B:.750
C:.320
F:.390
G:.580
H:1.570
Only for registered users
Related Products
923.20.i
D.:2.000
T:7
A:1.730
B:.750
C:.320
F:.390
G:.580
H:1.570
Only for registered users
Related Products
923.25.i
D.:2.500
T:9
A:1.730
B:.750
C:.320
F:.390
G:.580
H:1.570
Only for registered users
Related Products
923.30.i
D.:3.000
T:11
A:2.000
B:1.000
C:.380
F:.540
G:.780
H:1.970
