937.SM (ADMX 11T3..)
937.SM

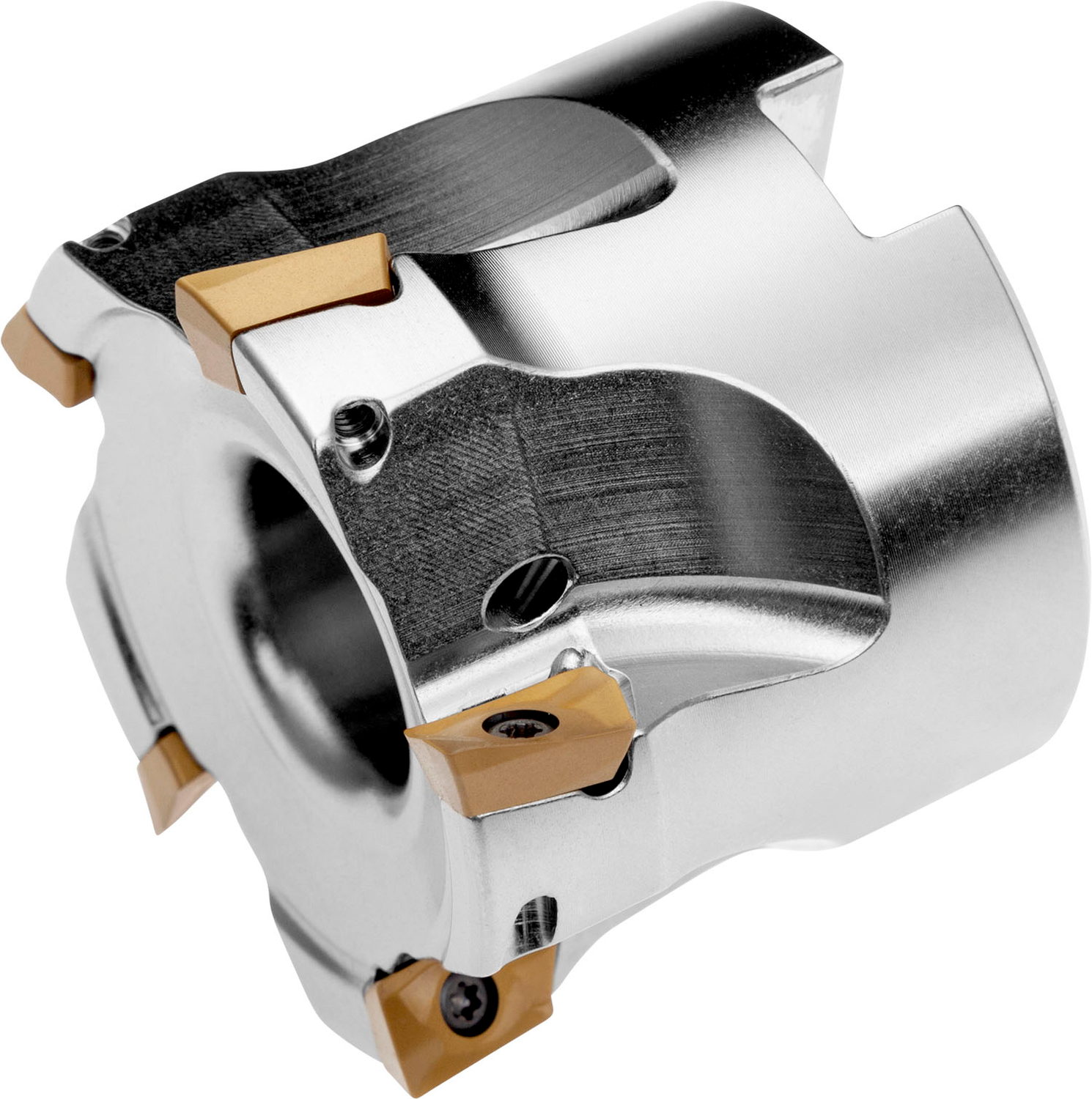

937.SM Shoulder shell milling cutter utilizes standard inserts:
- ADMX 11T3..
- ADEX 11T3
It has 90° approach angle and 11° relief angle to reduce tool pressure.
It is suggested for face milling, slotting, shouldering, ramping and high feed milling operations because a high number of stations.
Spare parts:
- TX 25 (screws)
- CT 08 (screwdriver)
DOWNLOAD the .STP file in the SFM column of every size
Notes: This product includes screws and the screwdriver. Inserts are not included.
937.SM Shoulder shell milling cutter utilizes standard inserts:
- ADMX 11T3..
- ADEX 11T3
It has 90° approach angle and 11° relief angle to reduce tool pressure.
It is suggested for face milling, slotting, shouldering, ramping and high feed milling operations because a high number of stations.
Spare parts:
- TX 25 (screws)
- CT 08 (screwdriver)
DOWNLOAD the .STP file in the SFM column of every size
Notes: This product includes screws and the screwdriver. Inserts are not included.

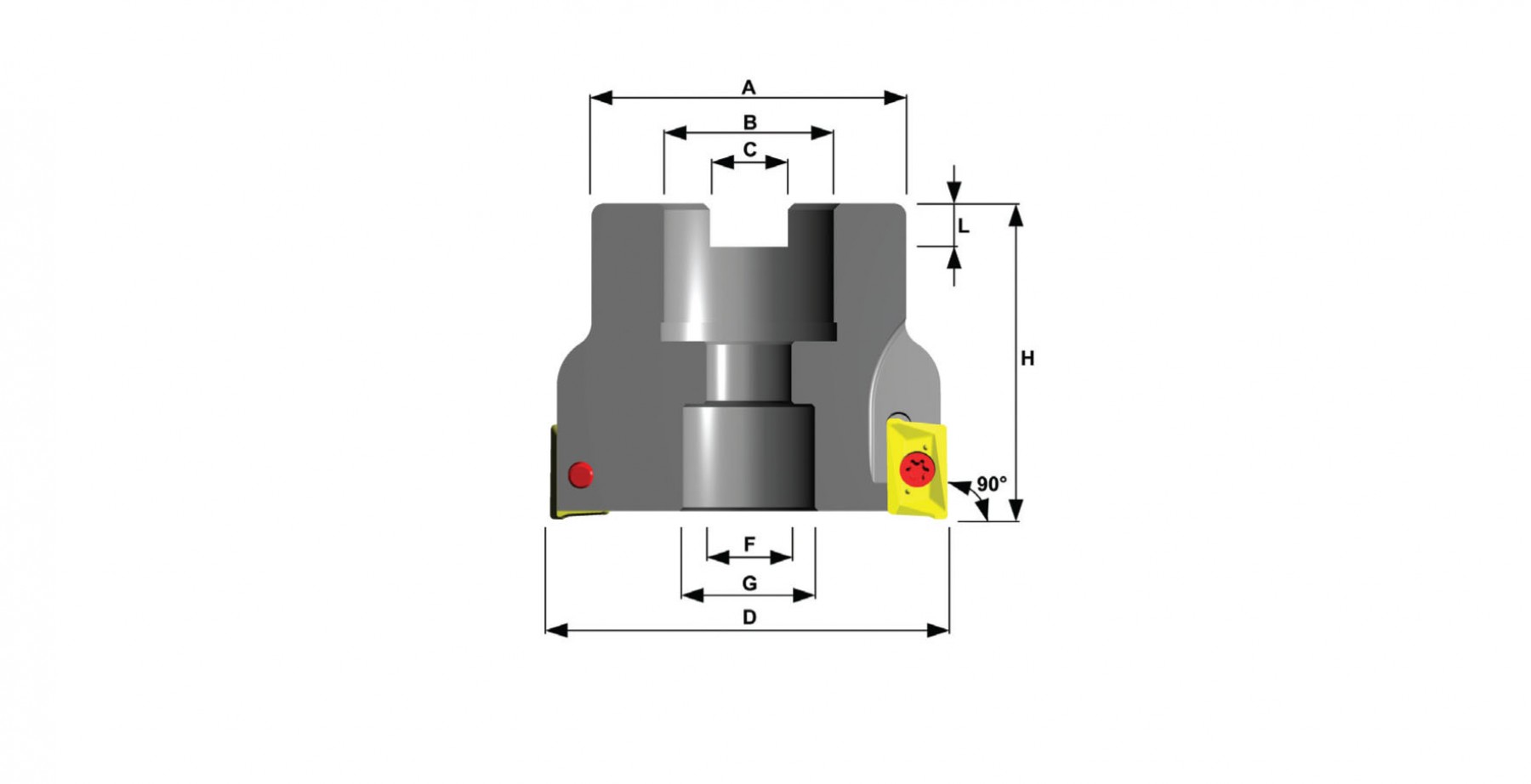

Product Name
D
T
H
B
C
F
G
L
SFM
937.15.4.SM
D:1.500
T:4
H:1.575
B:.500
C:.321
F:.390
G:.630
L:.193
File SFM
Only for registered users
Related Products
937.20.5.SM
D:2.000
T:5
H:1.575
B:.750
C:.321
F:.390
G:.630
L:.193
File SFM
Only for registered users
Related Products
937.25.6.SM
D:2.500
T:6
H:1.575
B:.750
C:.321
F:.390
G:.630
L:.193
File SFM
Only for registered users
Related Products
937.30.10.SM
D:3.000
T:10
H:1.969
B:1.000
C:.382
F:.540
G:.827
L:.224
File SFM
Only for registered users
