Indexable Milling Cutters
|
Side / Face|Disc
|
938

938

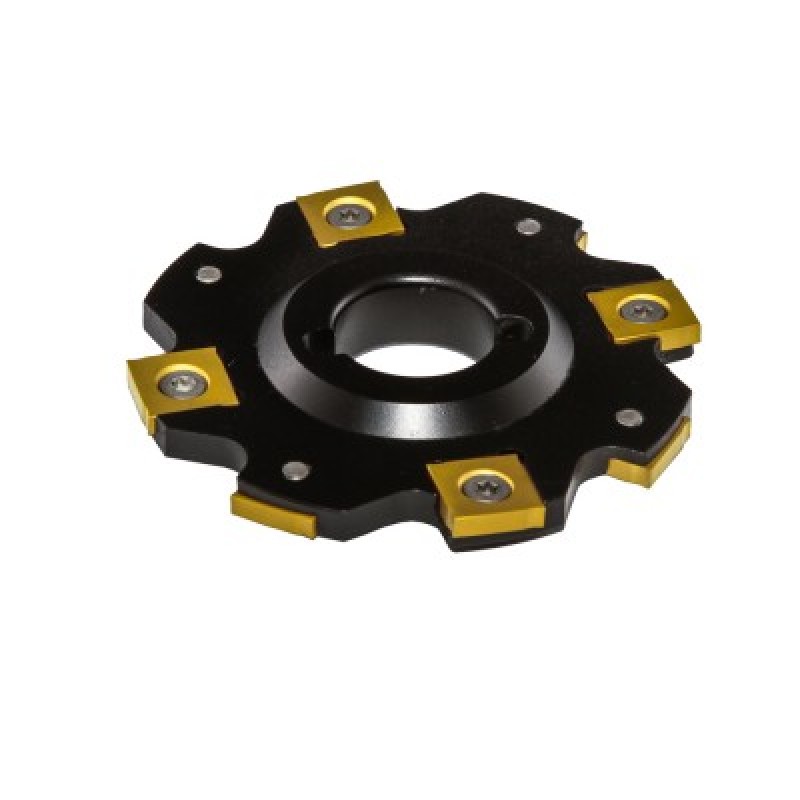

938  It is a  disc type grooving and slitting cutters carryng tangentially clamped inserts with 4 cutting edges;
        938 cutters are available in a range of 7 diameters and 6 different thickness;
        It mounts the following inserts, they change for each different thickness:
        SNHX
          Spare parts:
          TX 3504 (screws for SNHX 11023)
          TX 3505 (screws for SNHX 11027)
          TX 4006 (screws for SNHX 12032)
          TX 4008 (screws for SNHX 12045)
          TX 4010  (screws for SNHX 12054)
          TX 4012  (screws for SNHX 12070)
         CT 09 (screwdriver for TX 35..)
         CT 15 (screwdriver for TX 40..)
         Notes: this product contains screws and  a screwdriver; inserts are not included.

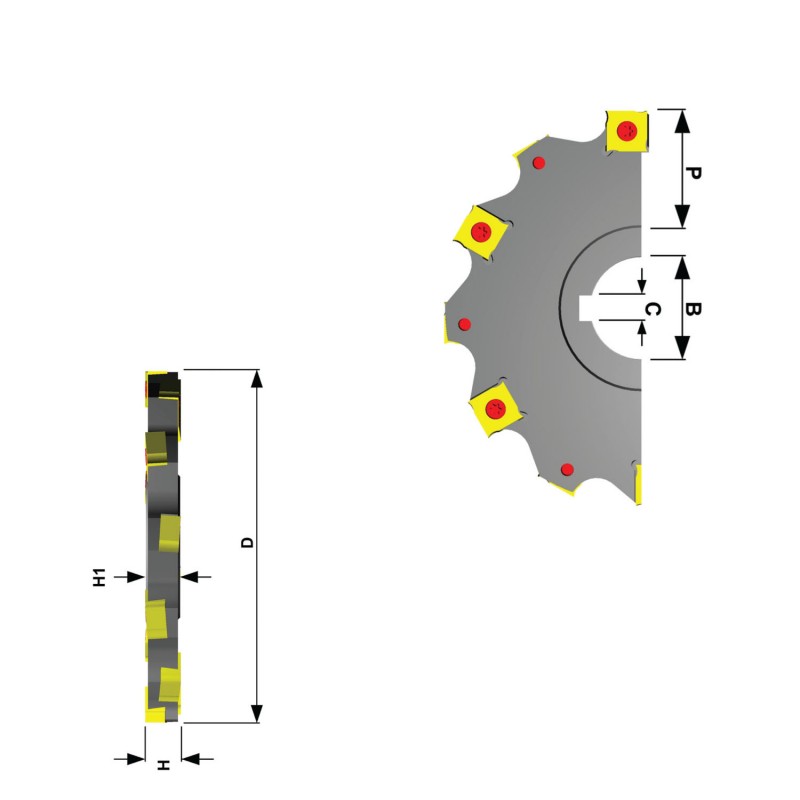

Product Name D. T B C H H1 P SFM
938.25x.161.i D.:2.500 T:3+3 B:.750 C:.320 H:.161 H1:.500 P:.390 Only for registered users
Related Products
938.25x.187.i D.:2.500 T:3+3 B:.750 C:.320 H:.187 H1:.500 P:.390 Only for registered users
Related Products
938.25x.250.i D.:2.500 T:3+3 B:.750 C:.320 H:.250 H1:.500 P:.390 Only for registered users
Related Products
938.30x.161.i D.:3.000 T:4+4 B:.750 C:.320 H:.161 H1:.500 P:.550 Only for registered users
Related Products
938.30x.187.i D.:3.000 T:4+4 B:.750 C:.320 H:.187 H1:.500 P:.550 Only for registered users
Related Products
938.30x.250.i D.:3.000 T:4+4 B:.750 C:.320 H:.250 H1:.500 P:.550 Only for registered users
Related Products
938.40x.161.i D.:4.000 T:5+5 B:1.000 C:.380 H:.161 H1:.500 P:1.000 Only for registered users
Related Products
938.40x.187.i D.:4.000 T:5+5 B:1.000 C:.380 H:.187 H1:.500 P:1.000 Only for registered users
Related Products
938.40x.250.i D.:4.000 T:5+5 B:1.000 C:.380 H:.250 H1:.500 P:1.000 Only for registered users
Related Products
938.40x.312.i D.:4.000 T:5+5 B:1.000 C:.380 H:.312 H1:.500 P:1.000 Only for registered users
Related Products
938.40x.375.i D.:4.000 T:5+5 B:1.000 C:.380 H:.375 H1:.500 P:1.000 Only for registered users
Related Products
938.50x.161.i D.:5.000 T:6+6 B:1.250 C:.540 H:.161 H1:.500 P:1.460 Only for registered users
Related Products
938.50x.187.i D.:5.000 T:6+6 B:1.250 C:.540 H:.187 H1:.500 P:1.460 Only for registered users
Related Products
938.50x.250.i D.:5.000 T:6+6 B:1.250 C:.540 H:.250 H1:.500 P:1.460 Only for registered users
Related Products
938.50x.312.i D.:5.000 T:6+6 B:1.250 C:.540 H:.312 H1:.500 P:1.460 Only for registered users
Related Products
938.50x.375.i D.:5.000 T:6+6 B:1.250 C:.540 H:.375 H1:.500 P:1.460 Only for registered users
Related Products
938.50x.500.i D.:5.000 T:6+6 B:1.250 C:.540 H:.500 H1:.500 P:1.460 Only for registered users
Related Products
938.60x.161.i D.:6.000 T:8+8 B:1.250 C:.540 H:.161 H1:.500 P:1.900 Only for registered users
Related Products
938.60x.187.i D.:6.000 T:8+8 B:1.250 C:.540 H:.187 H1:.500 P:1.900 Only for registered users
Related Products
938.60x.250.i D.:6.000 T:8+8 B:1.250 C:.540 H:.250 H1:.500 P:1.900 Only for registered users
Related Products
938.60x.312.i D.:6.000 T:8+8 B:1.250 C:.540 H:.312 H1:.500 P:1.900 Only for registered users
Related Products
938.60x.375.i D.:6.000 T:8+8 B:1.250 C:.540 H:.375 H1:.500 P:1.900 Only for registered users
Related Products
938.60x.500.i D.:6.000 T:8+8 B:1.250 C:.540 H:.500 H1:.500 P:1.900 Only for registered users
Related Products
938.80x.250.i D.:8.000 T:9+9 B:1.500 C:.630 H:.250 H1:.500 P:2.500 Only for registered users
Related Products
938.80x.312.i D.:8.000 T:9+9 B:1.500 C:.630 H:.312 H1:.500 P:2.500 Only for registered users
Related Products
938.80x.375.i D.:8.000 T:9+9 B:1.500 C:.630 H:.375 H1:.500 P:2.500 Only for registered users
Related Products
938.80x.500.i D.:8.000 T:9+9 B:1.500 C:.630 H:.500 H1:.500 P:2.500 Only for registered users
Related Products
938.100x.312.i D.:10.000 T:11+11 B:2.000 C:.760 H:.312 H1:.500 P:3.380 Only for registered users
Related Products
938.100x.375.i D.:10.000 T:11+11 B:2.000 C:.760 H:.375 H1:.500 P:3.380 Only for registered users
Related Products
938.100x.500.i D.:10.000 T:11+11 B:2.000 C:.760 H:.500 H1:.500 P:3.380 Only for registered users
Related Products
