966 (ADMX 1606..)
966 Shoulder Shell milling cutter utilizes standard inserts:
- ADMX 1606..
- ADEX 1606..
It has 90° approach angle and 15° relief angle to reduce tool pressure.
It is through coolant for shallow shoulder milling, plunge milling, shallow slot milling, ramping, progressive plunge milling and helical milling
Related inserts with a Wide range of corner radius available, making it a must have for mold & die shops (range: .016" - .200")
Spare parts:
- TX 40G (screws) - CT 15 (screwdriver)
- ADMX 1606..
- ADEX 1606..
It has 90° approach angle and 15° relief angle to reduce tool pressure.
It is through coolant for shallow shoulder milling, plunge milling, shallow slot milling, ramping, progressive plunge milling and helical milling
Related inserts with a Wide range of corner radius available, making it a must have for mold & die shops (range: .016" - .200")
Spare parts:
- TX 40G (screws) - CT 15 (screwdriver)
Notes: This product includes screws and the screwdriver. Inserts are not included

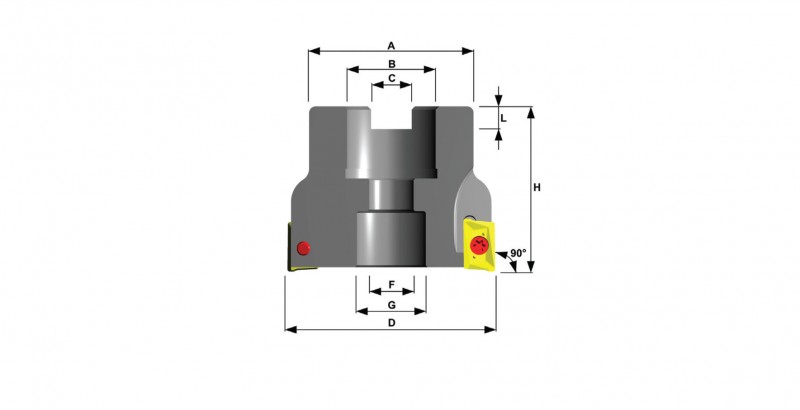

Product Name
D
T
B
H
SFM
