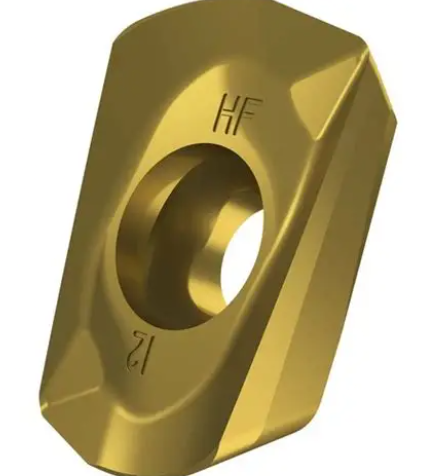

ADEX.HF 11
The ADMX.HF 11 insert fits into the 937 milling cutters.

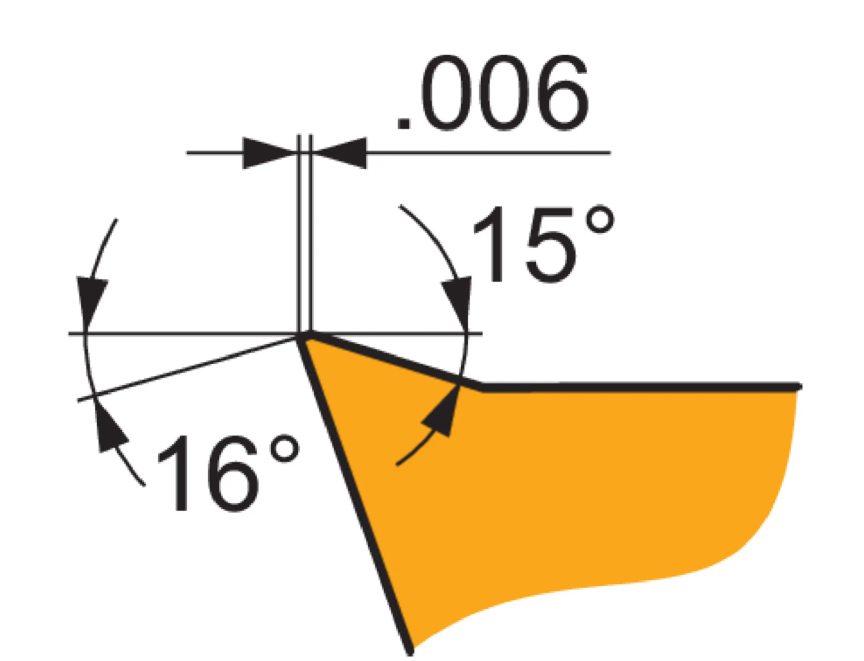

Single-sided milling insert AD.. 11.., 85° parallelogram and high-feed design for a maximum depth of cut of .0236 inch, an indexing accuracy according to ISO-tolerance class-E and HF geometry with rounded cutting edges and facet, it is suggested for machining of stainless-steel with shoulder 937 cutters.
Available with 0.032" corner radius and different grades.
For Feed and Speed info please consult any single insert file below (SFM). Single-sided milling insert AD.. 11.., 85° parallelogram and high-feed design for a maximum depth of cut of .0236 inch, an indexing accuracy according to ISO-tolerance class-E and HF geometry with rounded cutting edges and facet, it is suggested for machining of stainless-steel with shoulder 937 cutters.
Available with 0.032" corner radius and different grades.
Note: This product is in a package of 10 Inserts. If you order 1, you will receive 10 Carbide Inserts ADEX.HF 11.
The price you see in the table is the single item price.
The price you see in the table is the single item price.

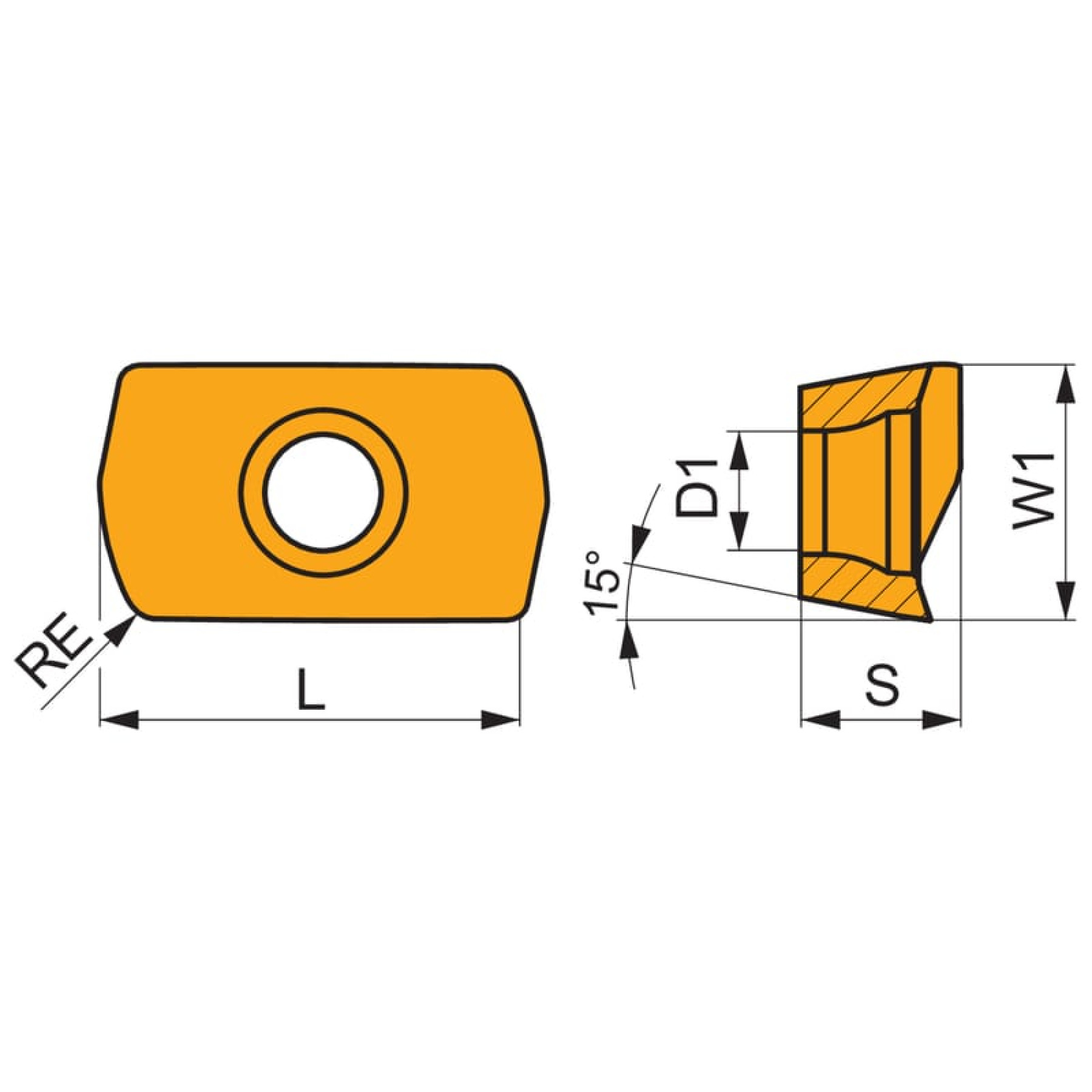

Product Name
I.C.
L
α
S
D1
RADIUS
SFM
ADEX.HF 11T308 Z4
I.C.:.257
L:.433
α:15°
S:.156
D1:.114
RADIUS:.032
Only for registered users
Related Products
ADEX.HF 11T308 Z6P
I.C.:.257
L:.433
α:15°
S:.156
D1:.114
RADIUS:.032
Only for registered users
