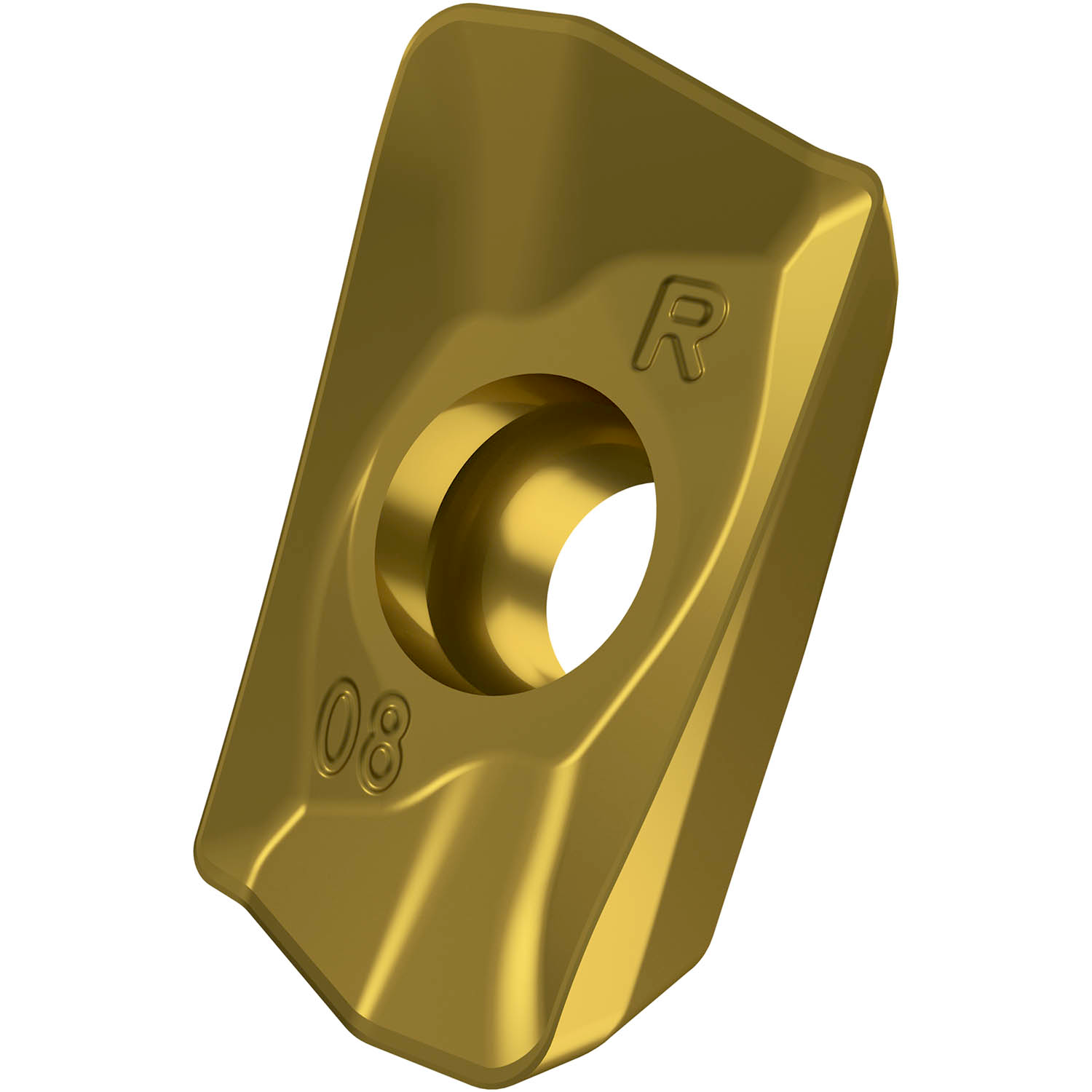

ADMX
This insert is available in three different dimensions.
ADMX 07, ADMX 11 and ADMX 16.
The ADMX 07 insert fits into the 937..07 milling cutters. Its chipbreaker is suitable to work any kind of steel as P, K, M, S.
It can used for shoulder light milling operations, ramping and slotting.
Available with 2 different corner radius and different grades.
The ADMX 11 insert fits into the 937 milling cutters. Its chipbreaker is suitable to work any kind of steel as P, K, M, S.
It can used for shoulder milling operations, ramping and slotting.
Available with 9 different corner radius and different grades.
ADMX 07, ADMX 11 and ADMX 16.
The ADMX 07 insert fits into the 937..07 milling cutters. Its chipbreaker is suitable to work any kind of steel as P, K, M, S.
It can used for shoulder light milling operations, ramping and slotting.
Available with 2 different corner radius and different grades.
The ADMX 11 insert fits into the 937 milling cutters. Its chipbreaker is suitable to work any kind of steel as P, K, M, S.
It can used for shoulder milling operations, ramping and slotting.
Available with 9 different corner radius and different grades.
The ADMX 16 insert fits into the 967 and 966 milling cutters. Its chipbreaker is suitable to work any kind of steel as P, K, M, S.
It can used for shoulder milling operations, ramping and slotting.
Available with 6 different corner radius and different grades.
For Feed and Speed info please consult any single insert file below (SFM).
Note: This product is in a package of 10 Inserts. If you order 1, you will receive 10 Carbide Inserts ADMX.
The price you see in the table is the single item price.
The price you see in the table is the single item price.

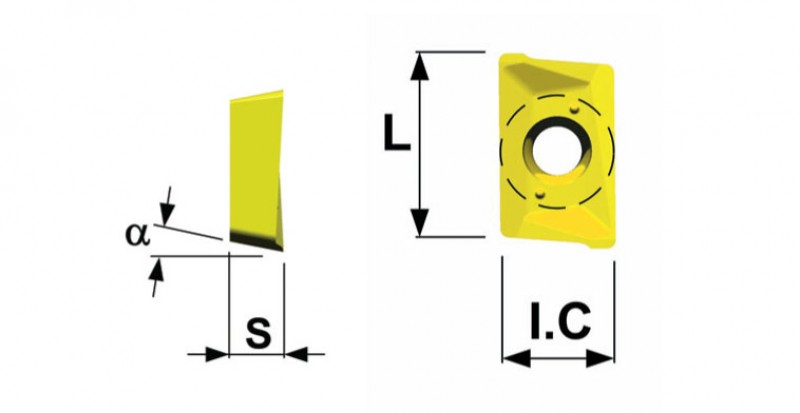

Product Name
I.C.
L
α
S
D1
RADIUS
SFM
ADMX 070202 Z6P
I.C.:.176
L:.274
α:15°
S:.098
D1:.114
RADIUS:.008
File SFM
Only for registered users
Related Products
ADMX 070204 Z6P
I.C.:.176
L:.274
α:15°
S:.098
D1:.114
RADIUS:.016
File SFM
Only for registered users
Related Products
ADMX 070208 Z6P
I.C.:.176
L:.274
α:15°
S:.098
D1:.114
RADIUS:.032
File SFM
Only for registered users
Related Products
ADMX 070216 Z7P
I.C.:.176
L:.274
α:15°
S:.098
D1:.114
RADIUS:.064
File SFM
Only for registered users
Related Products
ADMX 11T302 Z6P
I.C.:.257
L:.433
α:15°
S:.156
D1:.114
RADIUS:.008
File SFM
Only for registered users
Related Products
ADMX 11T304 Z6P
I.C.:.257
L:.433
α:15°
S:.156
D1:.114
RADIUS:.016
File SFM
Only for registered users
Related Products
ADMX 11T308 Z6P
I.C.:.257
L:.433
α:15°
S:.156
D1:.114
RADIUS:.032
File SFM
Only for registered users
Related Products
ADMX 11T310 Z6P
I.C.:.257
L:.433
α:15°
S:.156
D1:.114
RADIUS:.040
File SFM
Only for registered users
Related Products
ADMX 11T312 Z6P
I.C.:.257
L:.433
α:15°
S:.156
D1:.114
RADIUS:.048
File SFM
Only for registered users
Related Products
ADMX 11T316 Z6P
I.C.:.257
L:.433
α:15°
S:.156
D1:.114
RADIUS:.064
File SFM
Only for registered users
Related Products
ADMX 11T320 Z6P
I.C.:.257
L:.433
α:15°
S:.156
D1:.114
RADIUS:.080
File SFM
Only for registered users
Related Products
ADMX 11T325 Z6P
I.C.:.257
L:.433
α:15°
S:.156
D1:.114
RADIUS:.100
File SFM
Only for registered users
Related Products
ADMX 11T330 Z6P
I.C.:.257
L:.433
α:15°
S:.156
D1:.114
RADIUS:.120
File SFM
Only for registered users
Related Products
ADMX 160604 Z6P
I.C.:.392
L:.630
α:15°
S:.246
D1:.177
RADIUS:.016
File SFM
Only for registered users
Related Products
ADMX 160608 Z6P
I.C.:.392
L:.630
α:15°
S:.246
D1:.177
RADIUS:.032
File SFM
Only for registered users
Related Products
ADMX 160616 Z6P
I.C.:.392
L:.630
α:15°
S:.246
D1:.177
RADIUS:.064
File SFM
Only for registered users
