APET.CN

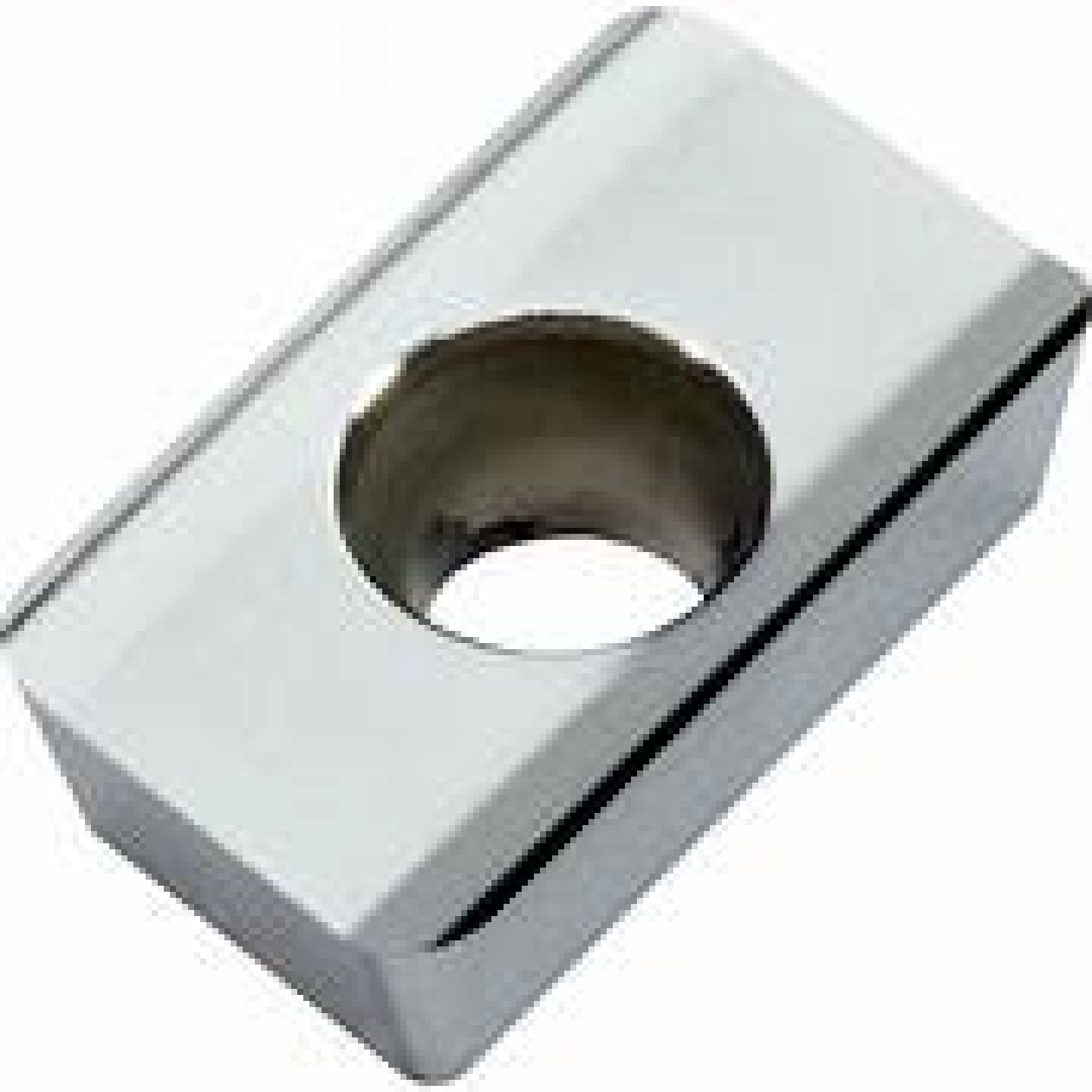

This insert fits into the 924 & 923 (APET 10), 920 & 921(APET 16) milling cutters. Its chipbreaker is suitable to work non ferrous material, expecially aluminum.
It can used for shoulder milling operations but you can recover the 2 unusued edges with our facing shell milling cutter 974(APET.VM 1003) and 970(APET.VM 1604).
APET.VM is a medium chipbreaker with a polished surface. ECO LINE
For Feed and Speed info please consult any single insert file below (SFM).
It can used for shoulder milling operations but you can recover the 2 unusued edges with our facing shell milling cutter 974(APET.VM 1003) and 970(APET.VM 1604).
APET.VM is a medium chipbreaker with a polished surface. ECO LINE
For Feed and Speed info please consult any single insert file below (SFM).
Note: This product is in a package of 10 Inserts. If you order 1, you will receive 10 Carbide Inserts APET.CN.
The price you see in the table is the single item price.
The price you see in the table is the single item price.

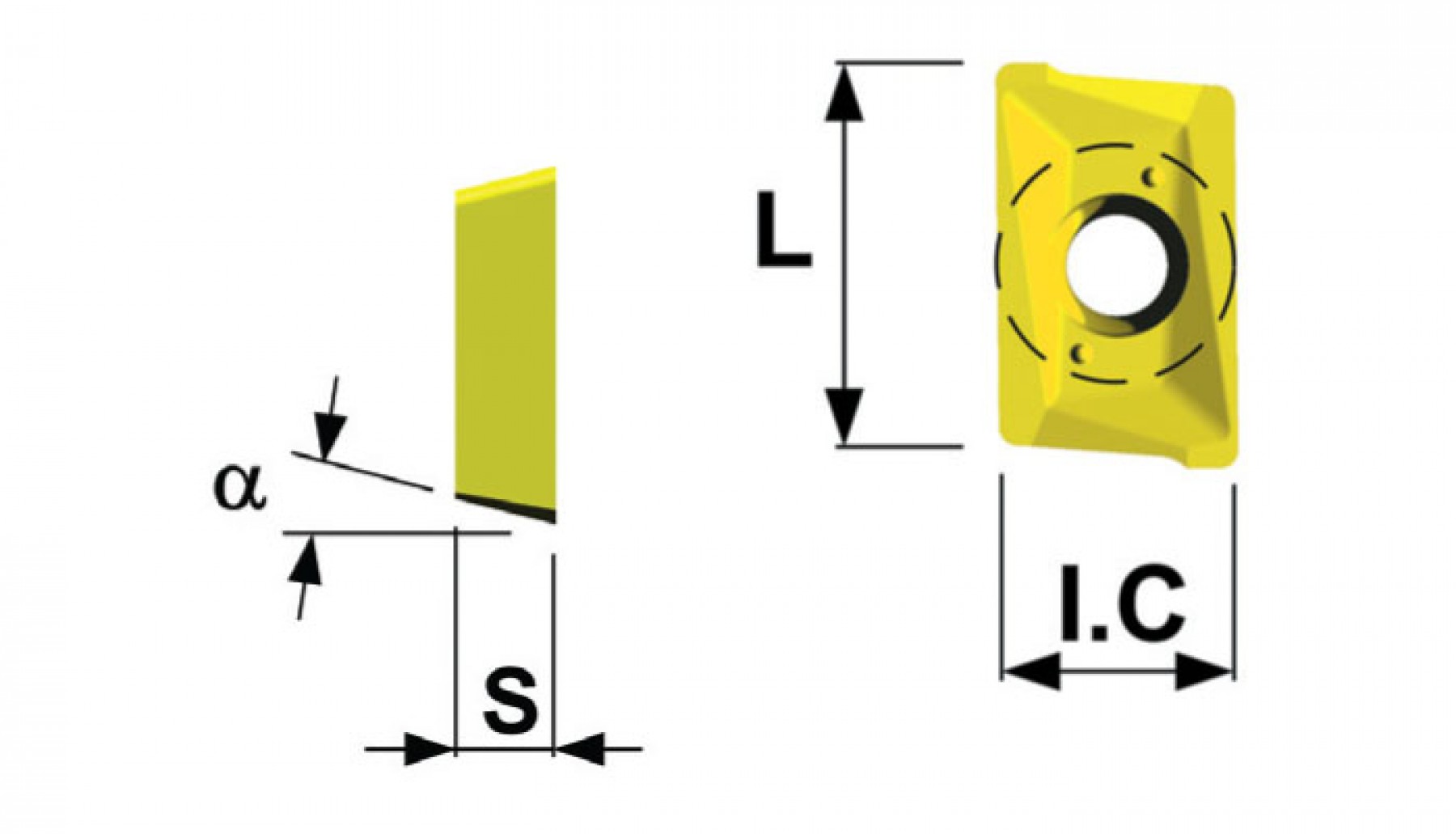

Product Name
I.C.
L
α
S
D1
RADIUS
SFM
APET.CN 1003 ZKX
I.C.:.264
L:.394
α:11°
S:.138
D1:.110
RADIUS:.020
File SFM
Only for registered users
Related Products
APET.CN 1604 ZKX
I.C.:.375
L:.630
α:11°
S:.187
D1:.177
RADIUS:.032
File SFM
Only for registered users
