Rotary Tool Holder
|
End Mill Holders|ISO 40
|
BT40W

BT40W

BT40W

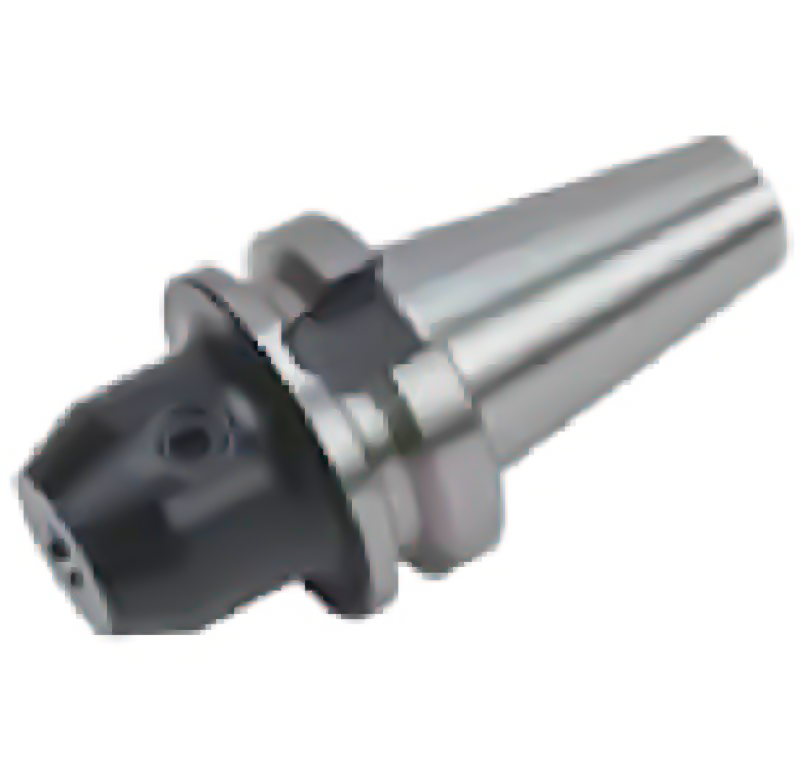

MAS-BT40 End Mill Holders are manufactured to meet or exceed the H5 specification. H5 is an extremely accurate bore I.D. and provides improved T.I.R. for extended cutting tool life. When machining in tight areas make sure to try our Rigid Reach End Mill holders. It’s tapered design  make its body more rigid, which is extremely important when milling at extended lengths.
Product Name D D1 L ISO SFM
BT40W-0125 D:1/8 D1:.690" L:2.370" ISO:40 Only for registered users
KBT40W-1/8 D:1/8 D1:.690" L:2.500" ISO:40 Only for registered users
BT40W-0187 D:3/16 D1:.690" L:2.500" ISO:40 Only for registered users
KBT40W-3/16 D:3/16 D1:.690" L:2.500" ISO:40 Only for registered users
BT40W-0250 D:1/4 D1:.780" L:3" ISO:40 Only for registered users
KBT40W-1/4 D:1/4 D1:.780" L:2.500" ISO:40 Only for registered users
BT40W-0312 D:5/16 D1:.880" L:3" ISO:40 Only for registered users
KBT40W-5/16 D:5/16 D1:.880" L:2.500" ISO:40 Only for registered users
BT40W-0375 D:3/8 D1:1" L:3" ISO:40 Only for registered users
KBT40W-3/8 D:3/8 D1:1" L:2.500" ISO:40 Only for registered users
BT40W-0500 D:1/2 D1:1.250" L:3" ISO:40 Only for registered users
KBT40W-1/2 D:1/2 D1:1.250" L:1.750" ISO:40 Only for registered users
BT40W-0625 D:5/8 D1:1.500" L:3" ISO:40 Only for registered users
KBT40W-5/8 D:5/8 D1:1.500" L:1.750" ISO:40 Only for registered users
BT40W-0750 D:3/4 D1:1.750" L:3" ISO:40 Only for registered users
KBT40W-3/4 D:3/4 D1:1.750" L:1.750" ISO:40 Only for registered users
BT40W-0750-M D:3/4 D1:1.750" L:3.500" ISO:40 Only for registered users
BT40W-1000 D:1 D1:2" L:3" ISO:40 Only for registered users
KBT40W-1 D:1 D1:2" L:1.750" ISO:40 Only for registered users
BT40W-1000-M D:1 D1:2" L:4" ISO:40 Only for registered users
BT40W-1250 D:1 1/4 D1:2.500" L:4.600" ISO:40 Only for registered users
KBT40W-1-1/4 D:1 1/4 D1:2.500" L:2.000" ISO:40 Only for registered users
BT40W-1500 D:1 1/2 D1:2.500" L:4" ISO:40 Only for registered users
KBT40W-1-1/2 D:1 1/2 D1:2.500" L:4.250" ISO:40 Only for registered users
