CNMG.78

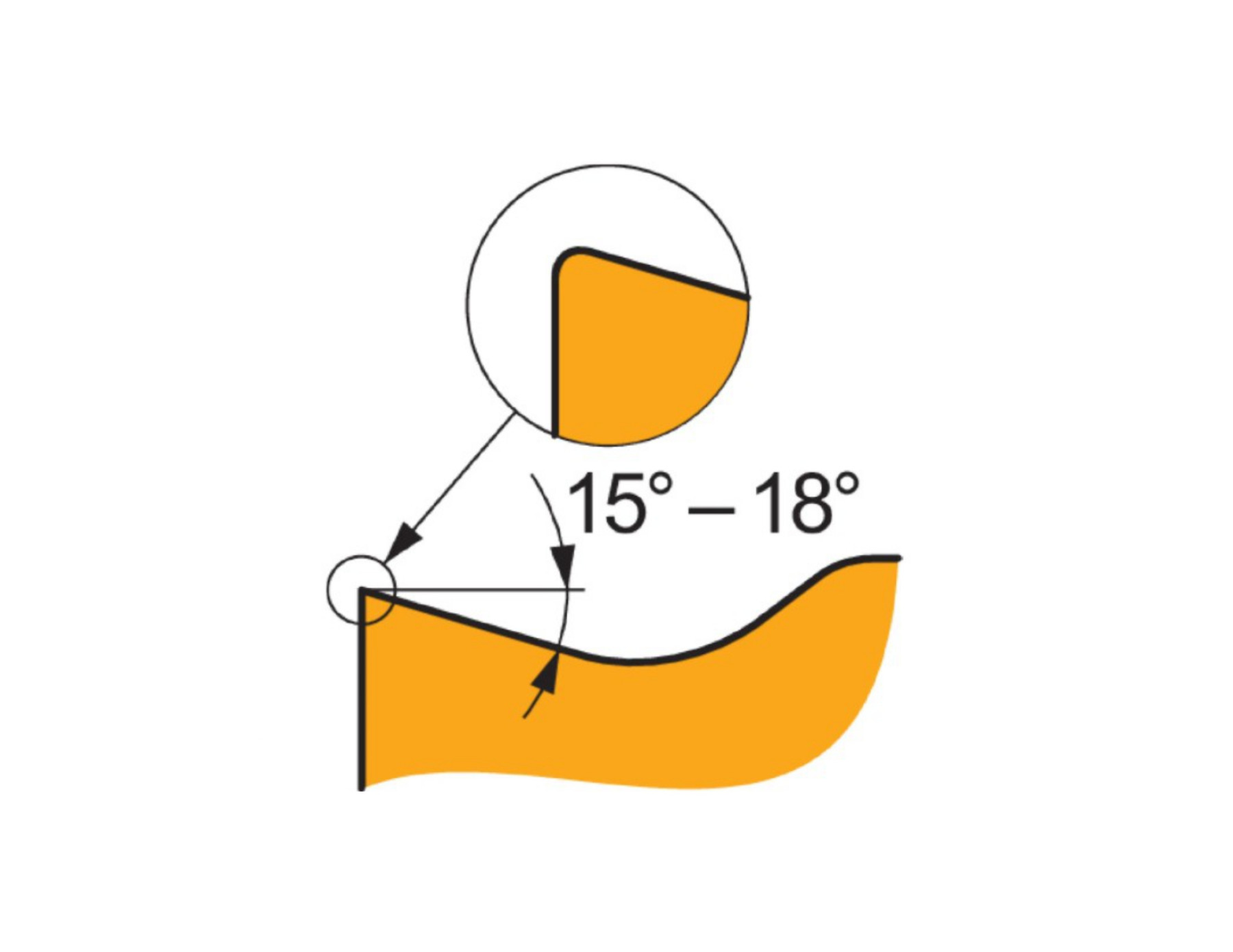

.78 chip breaker is sharp and designed for medium machining of Steels, Stainless steels. It features positive rake angle without T-land. It’s also conditionally suitable for Non-ferrous alloys and Super-alloys
These inserts can be right or left hand. If you use an external right hand holder you can use only a CNMG.78 ...R; instead in a right hand boring bar you have to mount CNMG.78...L.

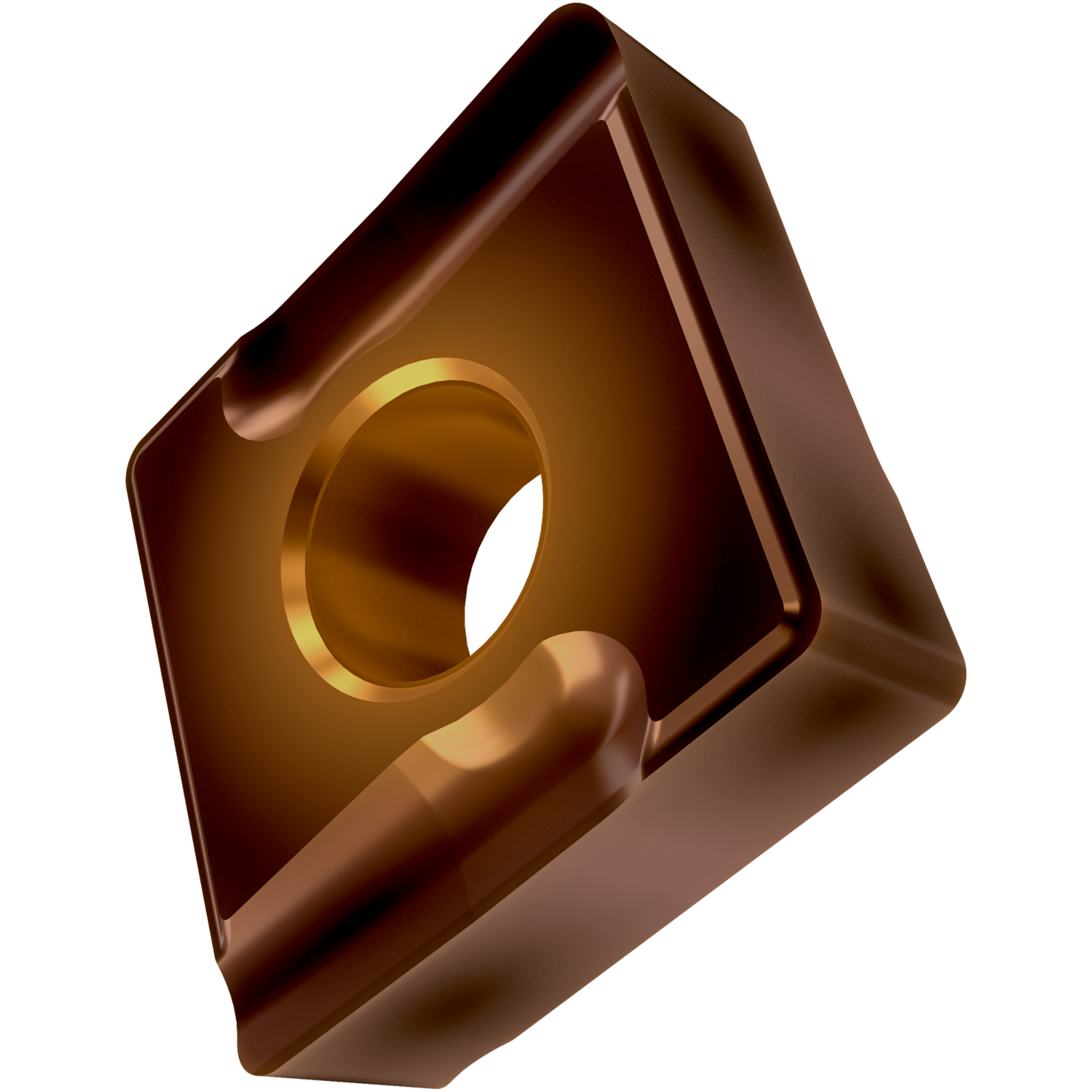

In the picture you can recognize a R(right) CNMG.78.

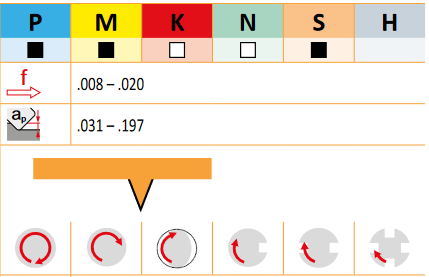

For Feed and Speed info please consult any single insert file below (SFM).
These inserts can be right or left hand. If you use an external right hand holder you can use only a CNMG.78 ...R; instead in a right hand boring bar you have to mount CNMG.78...L.
In the picture you can recognize a R(right) CNMG.78.
For Feed and Speed info please consult any single insert file below (SFM).
Note: This product is in a package of 10 Inserts. If you order 1, you will receive 10 Carbide Inserts CNMG.78.
The price you see in the table is the single item price.
The price you see in the table is the single item price.

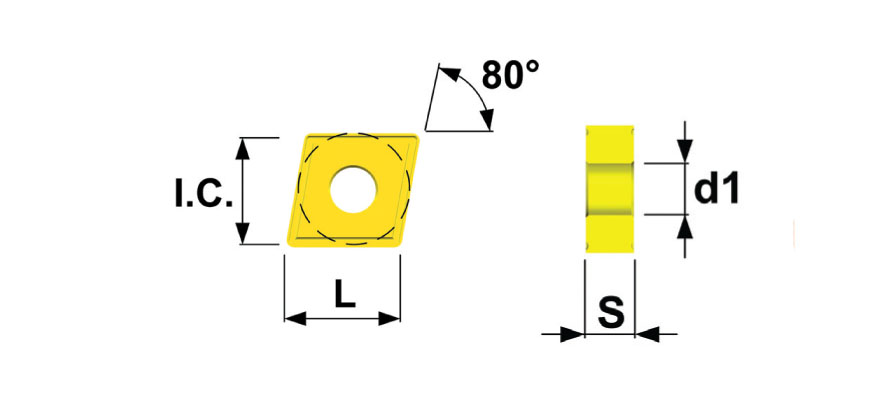

Product Name
I.C
L
α
S
D1
RADIUS
CNMG.78 431L Z9
I.C:.500
L:.508
α:0°
S:.187
D1:.203
RADIUS:.016
Only for registered users
Related Products
CNMG.78 431L Z5P
I.C:.500
L:.508
α:0°
S:.187
D1:.203
RADIUS:.016
Only for registered users
Related Products
CNMG.78 431R Z9
I.C:.500
L:.508
α:0°
S:.187
D1:.203
RADIUS:.016
Only for registered users
Related Products
CNMG.78 431R Z5P
I.C:.500
L:.508
α:0°
S:.187
D1:.203
RADIUS:.016
Only for registered users
Related Products
CNMG.78 432L Z9
I.C:.500
L:.508
α:0°
S:.187
D1:.203
RADIUS:.032
Only for registered users
Related Products
CNMG.78 432L Z5P
I.C:.500
L:.508
α:0°
S:.187
D1:.203
RADIUS:.032
Only for registered users
Related Products
CNMG.78 432R Z9
I.C:.500
L:.508
α:0°
S:.187
D1:.203
RADIUS:.032
Only for registered users
Related Products
CNMG.78 432R Z5P
I.C:.500
L:.508
α:0°
S:.187
D1:.203
RADIUS:.032
Only for registered users
Related Products
