CNMG.FM

CNMG.FM

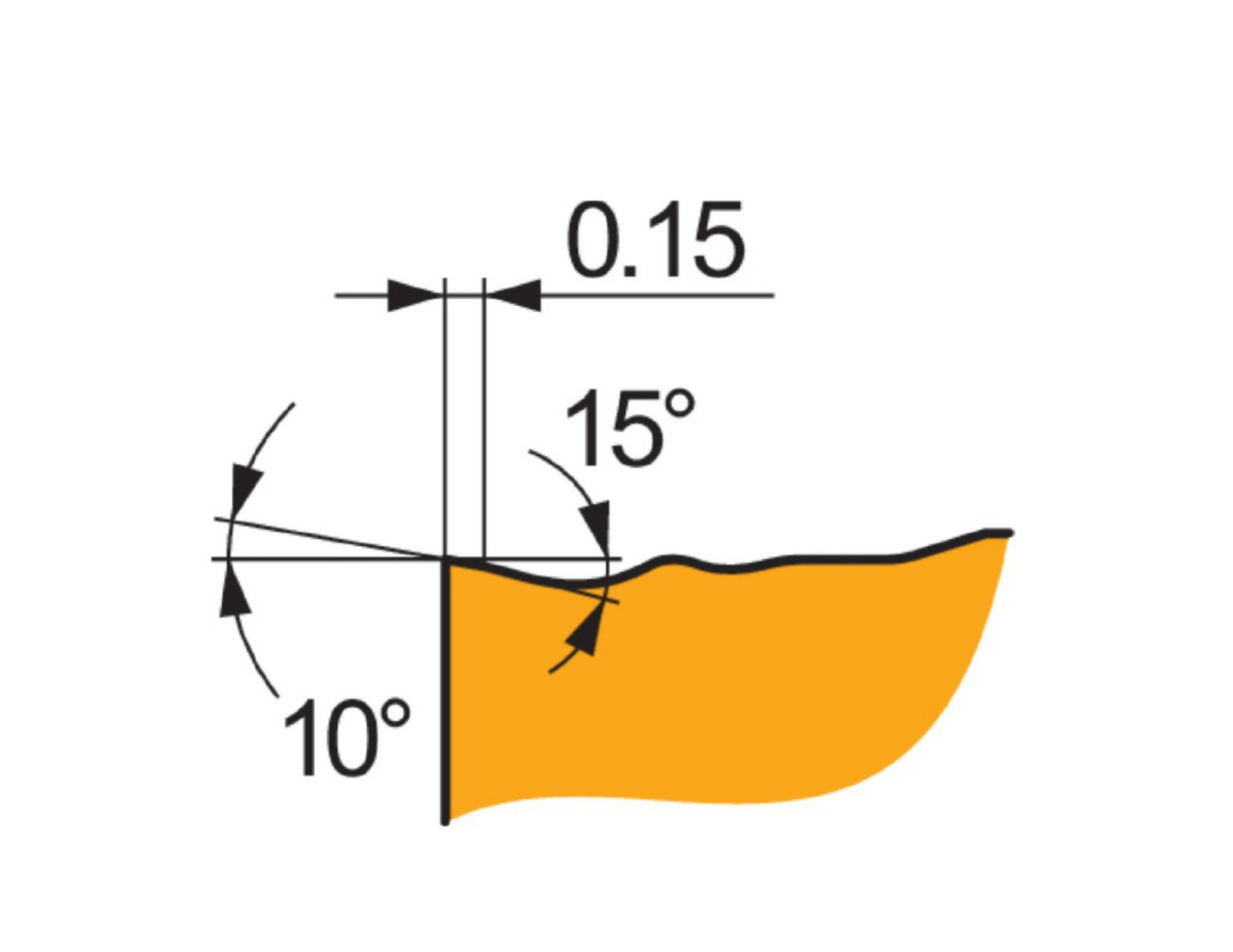

FM chip breaker is versatile and the first choice for finishing of Steels and Cast irons. It features slightly positive rake angle and positive, narrow T-land. It’s also conditionally suitable for Stainless steels and Super-alloys.
For Feed and Speed info please consult any single insert file below (SFM).
Note: This product is in a package of 10 Inserts. If you order 1, you will receive 10 Carbide Inserts CNMG.FM.
The price you see in the table is the single item price.

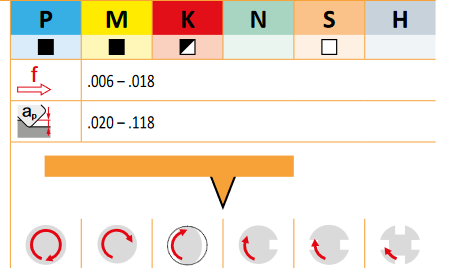

SPEED & FEED

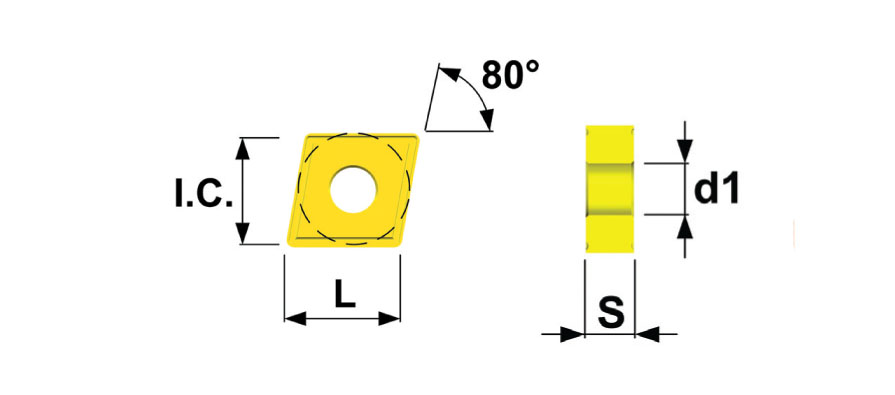

Product Name I.C L α S D1 RADIUS
CNMG.FM 321 Z25 I.C:.375 L:.382 α:0° S:.125 D1:.150 RADIUS:.016 Only for registered users
Related Products
CNMG.FM 321 Z9 I.C:.375 L:.382 α:0° S:.125 D1:.150 RADIUS:.016 Only for registered users
Related Products
CNMG.FM 321 Z5P I.C:.375 L:.382 α:0° S:.125 D1:.150 RADIUS:.016 Only for registered users
Related Products
CNMG.FM 322 Z25 I.C:.375 L:.382 α:0° S:.125 D1:.150 RADIUS:.032 Only for registered users
Related Products
CNMG.FM 322 Z9 I.C:.375 L:.382 α:0° S:.125 D1:.150 RADIUS:.032 Only for registered users
Related Products
CNMG.FM 322 Z5P I.C:.375 L:.382 α:0° S:.125 D1:.150 RADIUS:.032 Only for registered users
Related Products
CNMG.FM 431 Z15 I.C:.500 L:.508 α:0° S:.187 D1:.203 RADIUS:.016 Only for registered users
Related Products
CNMG.FM 431 Z25 I.C:.500 L:.508 α:0° S:.187 D1:.203 RADIUS:.016 Only for registered users
Related Products
CNMG.FM 431 Z9 I.C:.500 L:.508 α:0° S:.187 D1:.203 RADIUS:.016 Only for registered users
Related Products
CNMG.FM 431 Z5P I.C:.500 L:.508 α:0° S:.187 D1:.203 RADIUS:.016 Only for registered users
Related Products
CNMG.FM 432 Z15 I.C:.500 L:.508 α:0° S:.187 D1:.203 RADIUS:.032 Only for registered users
Related Products
CNMG.FM 432 Z11 I.C:.500 L:.508 α:0° S:.187 D1:.203 RADIUS:.032 Only for registered users
CNMG.FM 432 Z25 I.C:.500 L:.508 α:0° S:.187 D1:.203 RADIUS:.032 Only for registered users
Related Products
CNMG.FM 432 Zi9 I.C:.500 L:.508 α:0° S:.187 D1:.203 RADIUS:.032 Only for registered users
Related Products
CNMG.FM 432 Z9 I.C:.500 L:.508 α:0° S:.187 D1:.203 RADIUS:.032 Only for registered users
Related Products
CNMG.FM 432 Z5P I.C:.500 L:.508 α:0° S:.187 D1:.203 RADIUS:.032 Only for registered users
