CORY

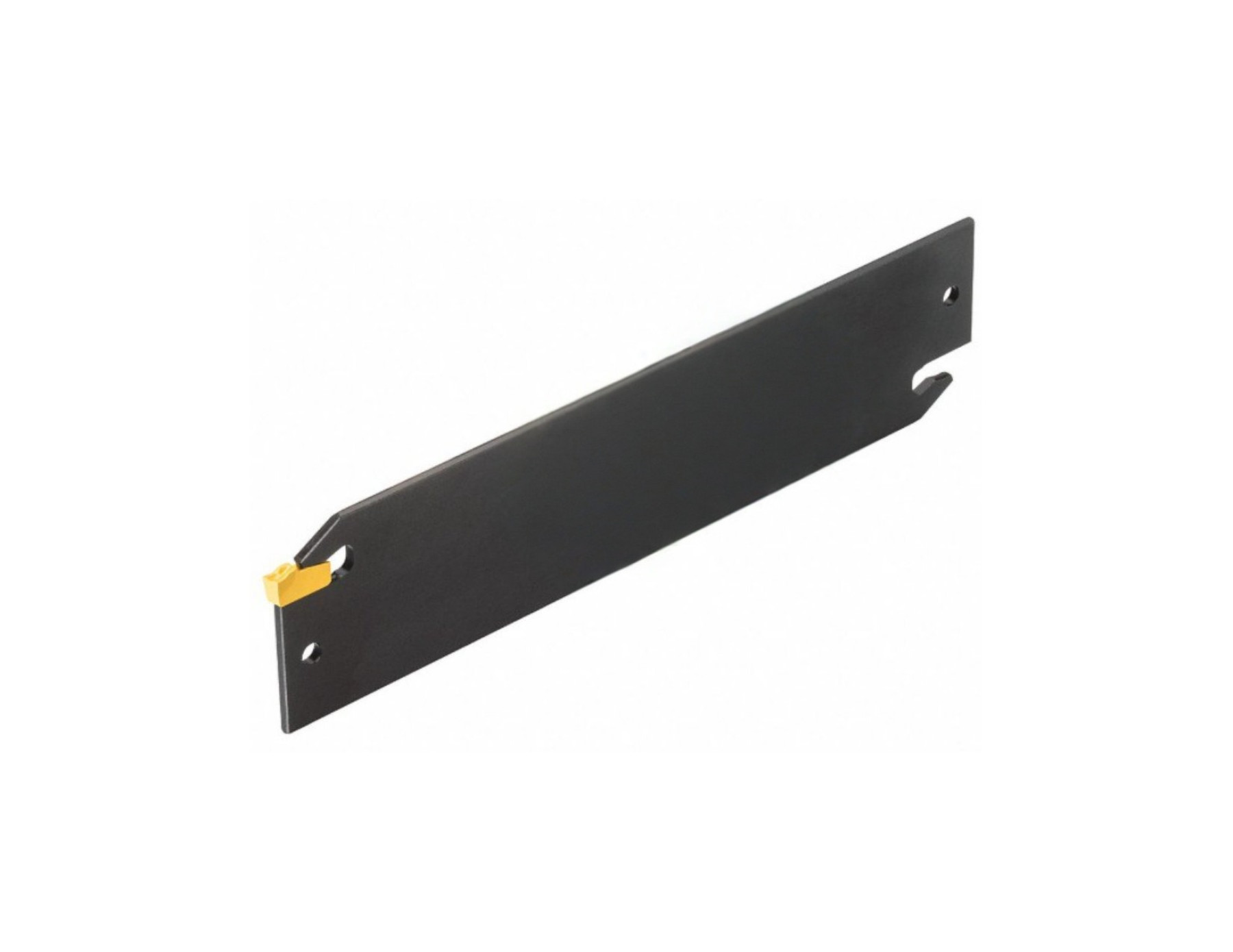

Cut-off blade made out of special tool steel suitable for all kind of standard and tough applications on conventional and CNC machines.
The particular shape of the upper part of the insert allows a strengthened clamping force for higher stability while machining.
CORY blades mount N.151 inserts interchangeable with Sandik inserts; for any size of blade thickness corresponds a specific size of insert; for example CORY 26-3 fits N151.300.
To extract the insert you can use SPECIAL extractor key.
In the correlation you can find all the tool blocks (TBN or TBX) that fit the related blade.
Notes: this product includes one extractor; inserts are not included.
The particular shape of the upper part of the insert allows a strengthened clamping force for higher stability while machining.
CORY blades mount N.151 inserts interchangeable with Sandik inserts; for any size of blade thickness corresponds a specific size of insert; for example CORY 26-3 fits N151.300.
To extract the insert you can use SPECIAL extractor key.
In the correlation you can find all the tool blocks (TBN or TBX) that fit the related blade.
Notes: this product includes one extractor; inserts are not included.

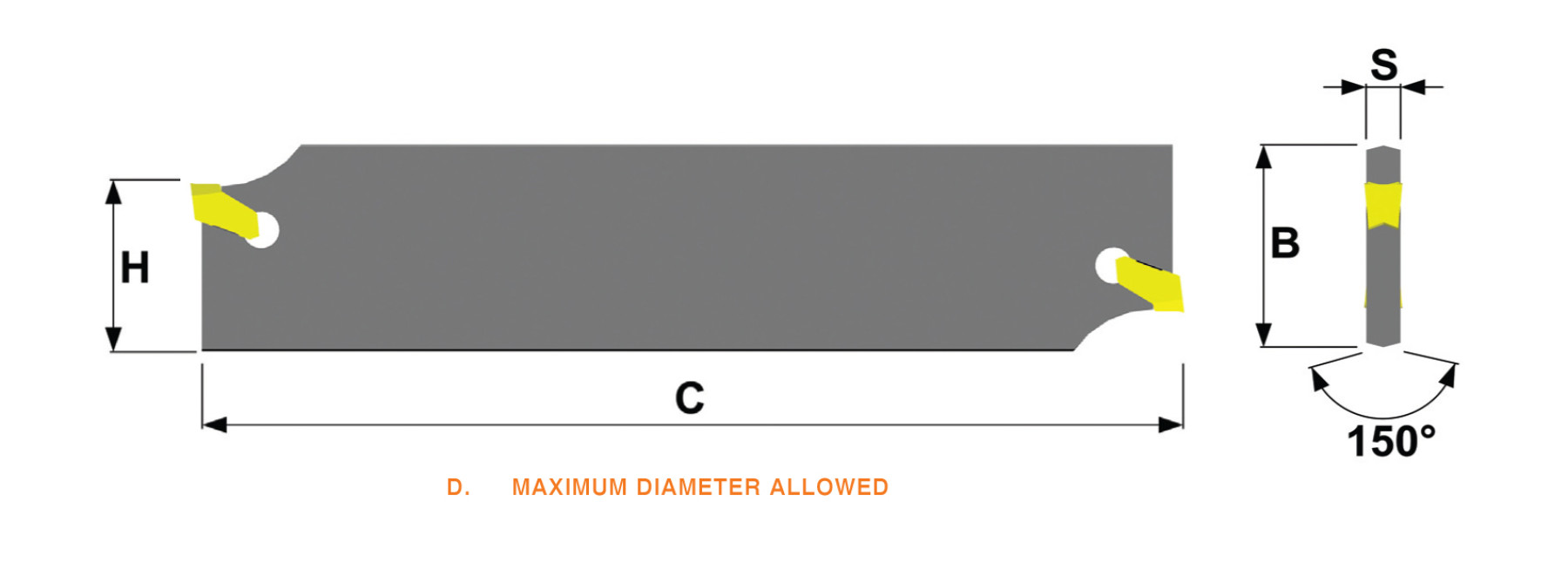

Product Name
S
D
B
C
H
SFM
