FGDP

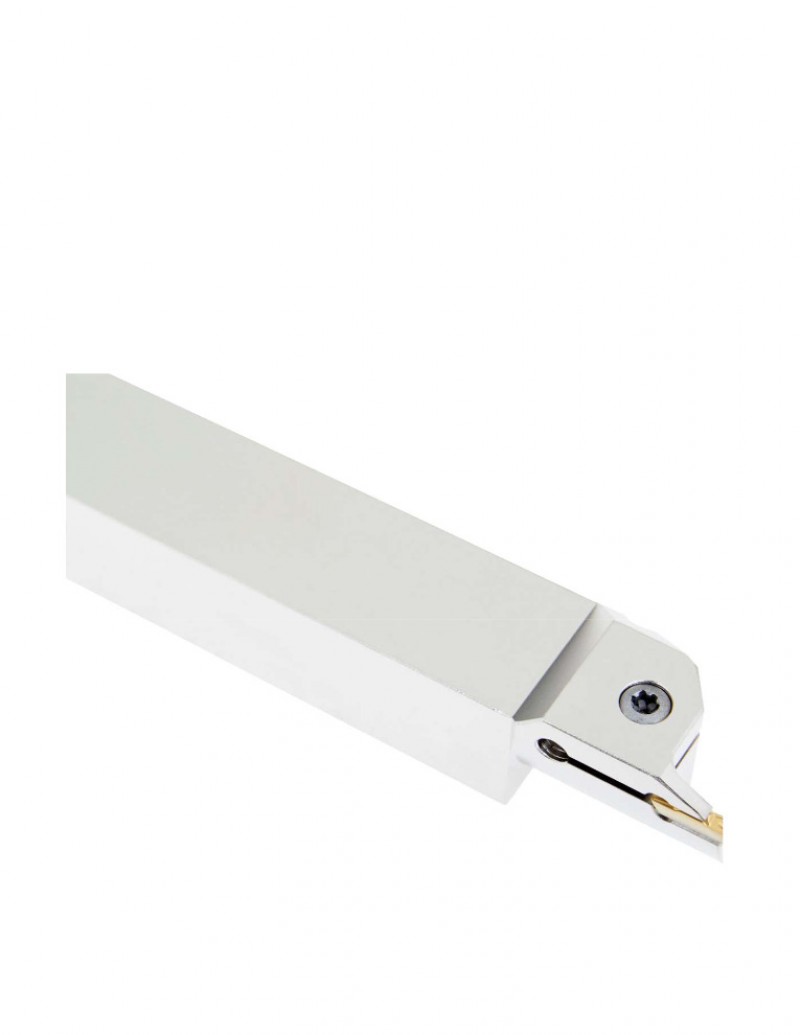

FGDP Solid face grooving tool holder with 2 different shapes suitable for concentric application on small diameters.

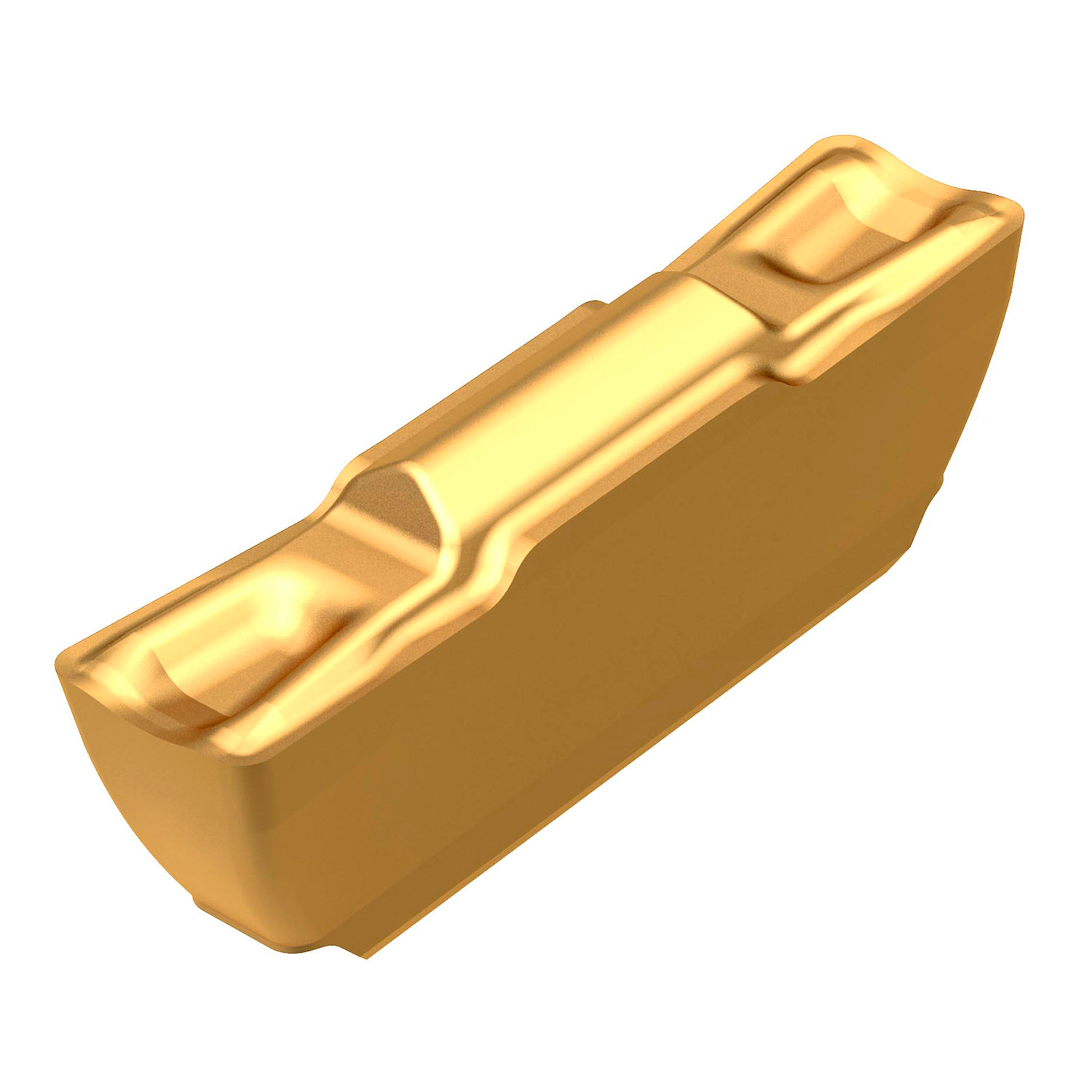

Grooving blade uses DPN or DPNS inserts with special base location that allows a concentric grooving and prevent shocking.
For any size of blade thickness corresponds a specific size of insert; for example FGDP 16-3D L3 1.18-.67 fits DPNS 3
This facing holder is independent from tool block
To extract the insert you can use TORX key.
Spare parts:
TX 50 (screw)
CT 20 (torx driver)
Notes: this product includes one extractor; inserts are not included.
Grooving blade uses DPN or DPNS inserts with special base location that allows a concentric grooving and prevent shocking.
For any size of blade thickness corresponds a specific size of insert; for example FGDP 16-3D L3 1.18-.67 fits DPNS 3
This facing holder is independent from tool block
To extract the insert you can use TORX key.
Spare parts:
TX 50 (screw)
CT 20 (torx driver)
Notes: this product includes one extractor; inserts are not included.
Product Name
S
H1
B
L
L1
Dmin
Dmax
SFM

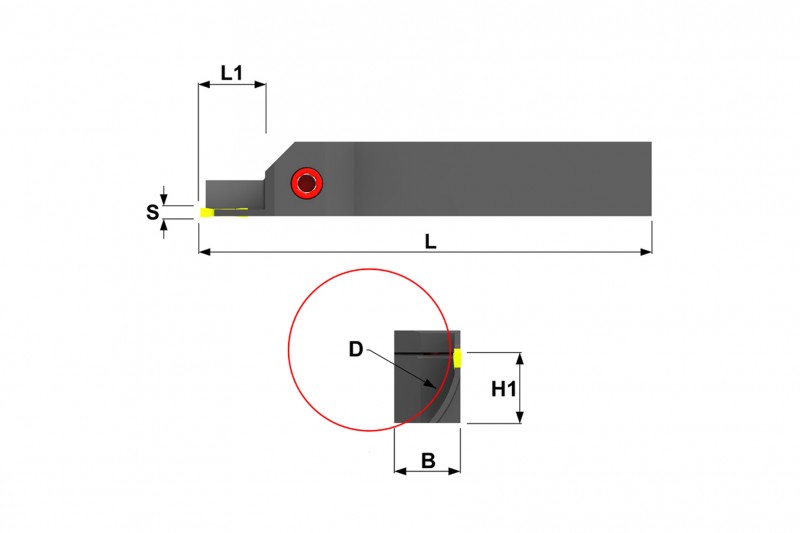

FGDP 16-3R 1.54-.94
S:.118
H1:1.000
B:1.000
L:6.000
L1:.255
Dmin:.940
Dmax:1.540
Only for registered users
Related Products
FGDP 16-3R 1.97-1.30
S:.118
H1:1.000
B:1.000
L:6.000
L1:.255
Dmin:1.300
Dmax:1.970
Only for registered users
Related Products
FGDP 16-3L 2.36-1.69
S:.118
H1:1.000
B:1.000
L:6.000
L1:.255
Dmin:1.690
Dmax:2.360
Only for registered users
Related Products
FGDP 16-3R 2.36-1.69
S:.118
H1:1.000
B:1.000
L:6.000
L1:.255
Dmin:1.690
Dmax:2.360
Only for registered users
Related Products
FGDP 16-3R 2.99-2.09
S:.118
H1:1.000
B:1.000
L:6.000
L1:.255
Dmin:2.090
Dmax:2.990
Only for registered users
Related Products
