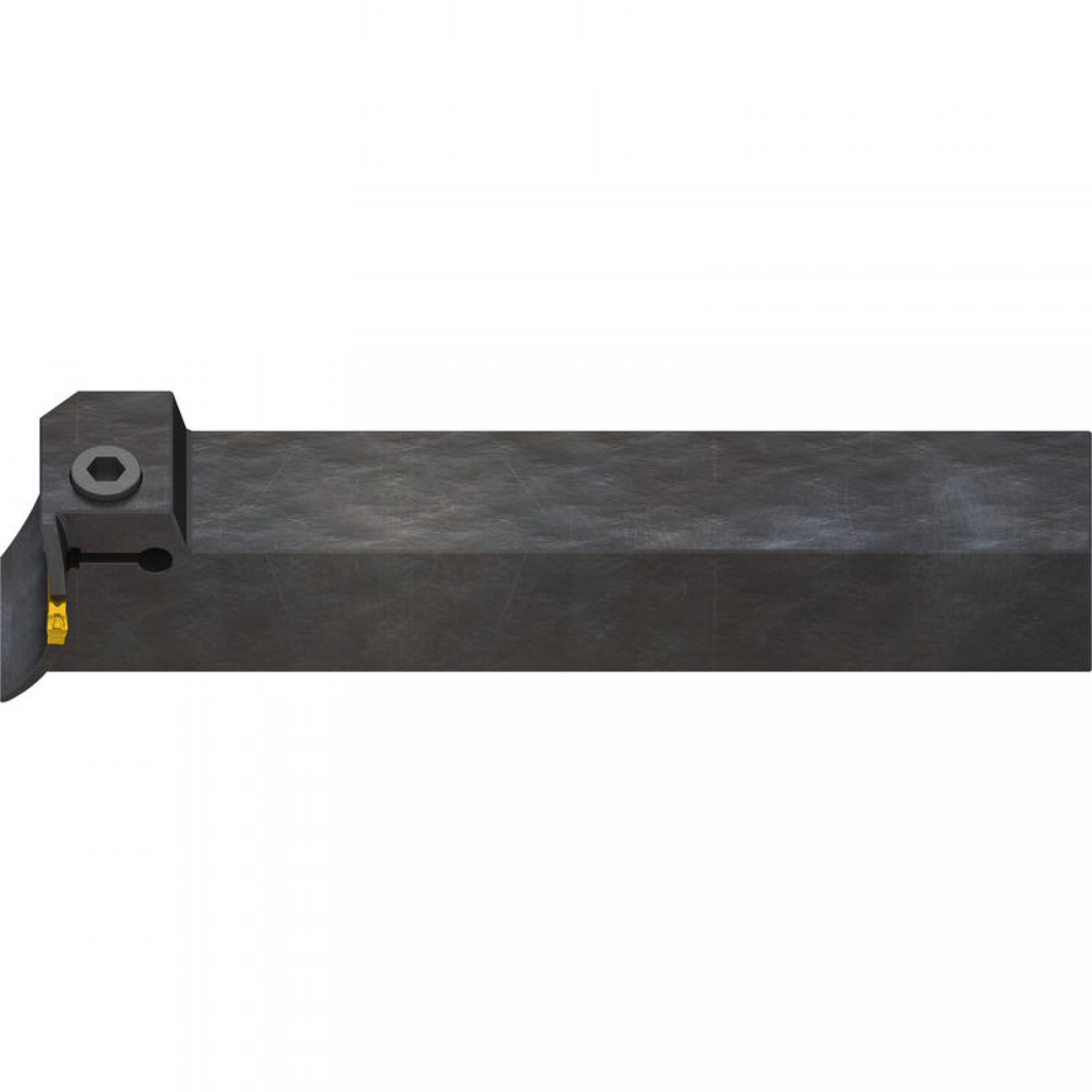

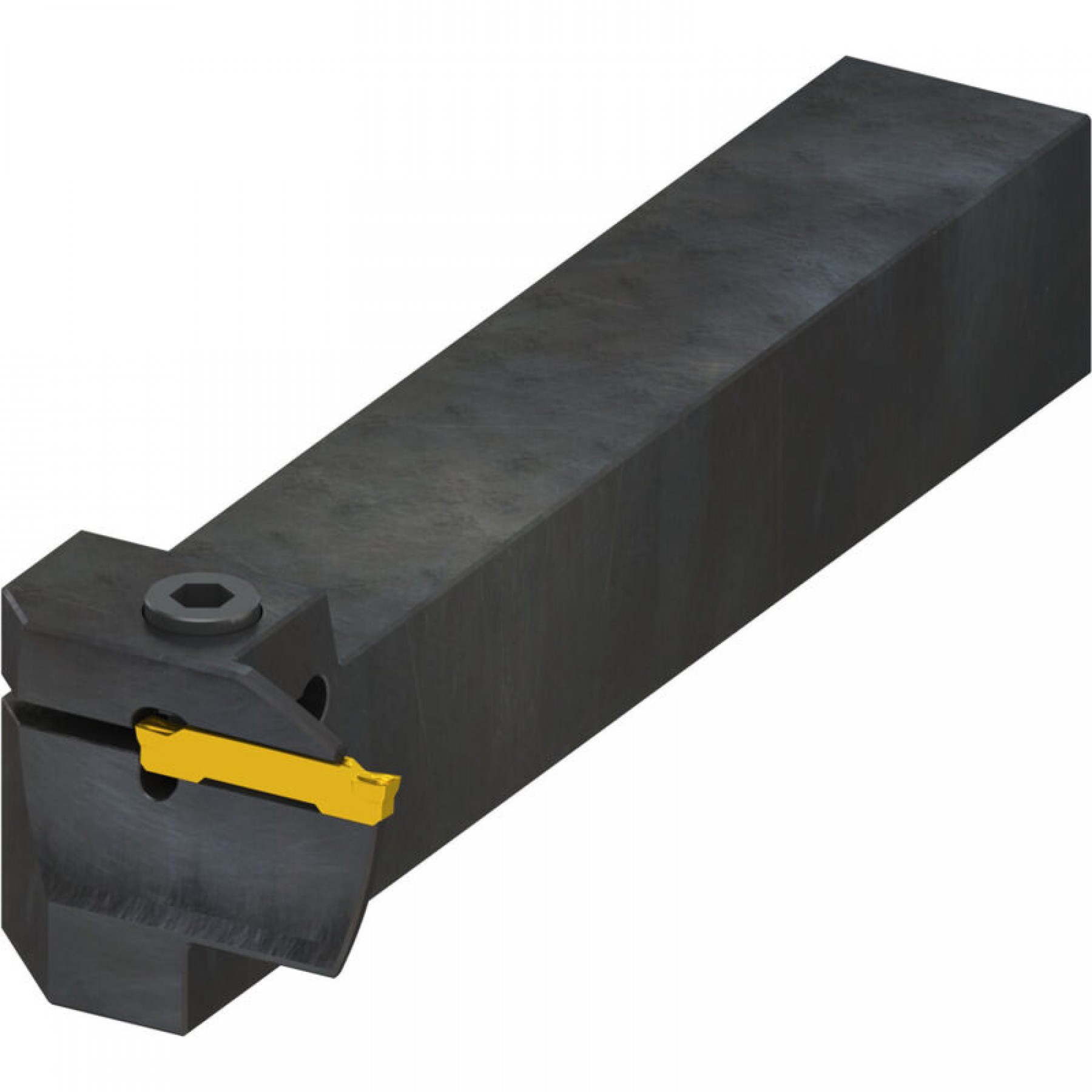

FGGP  Solid face grooving tool holder with 2 different shapes suitable for concentric application on small diameters.
          Grooving blade uses GPN inserts with special base location that allows a concentric grooving and prevent shocking.
          For any size of blade thickness corresponds a specific size of insert; for example FGGPR 2525-3 R044033 fits GPN 3 or GPS 3
          This facing holder is independent from tool block
          To extract the insert you can use TORX key.
          Spare parts:
          TX 50 (screw)
          CT 20 (torx driver)
          Notes: this product includes one extractor; inserts are not included.

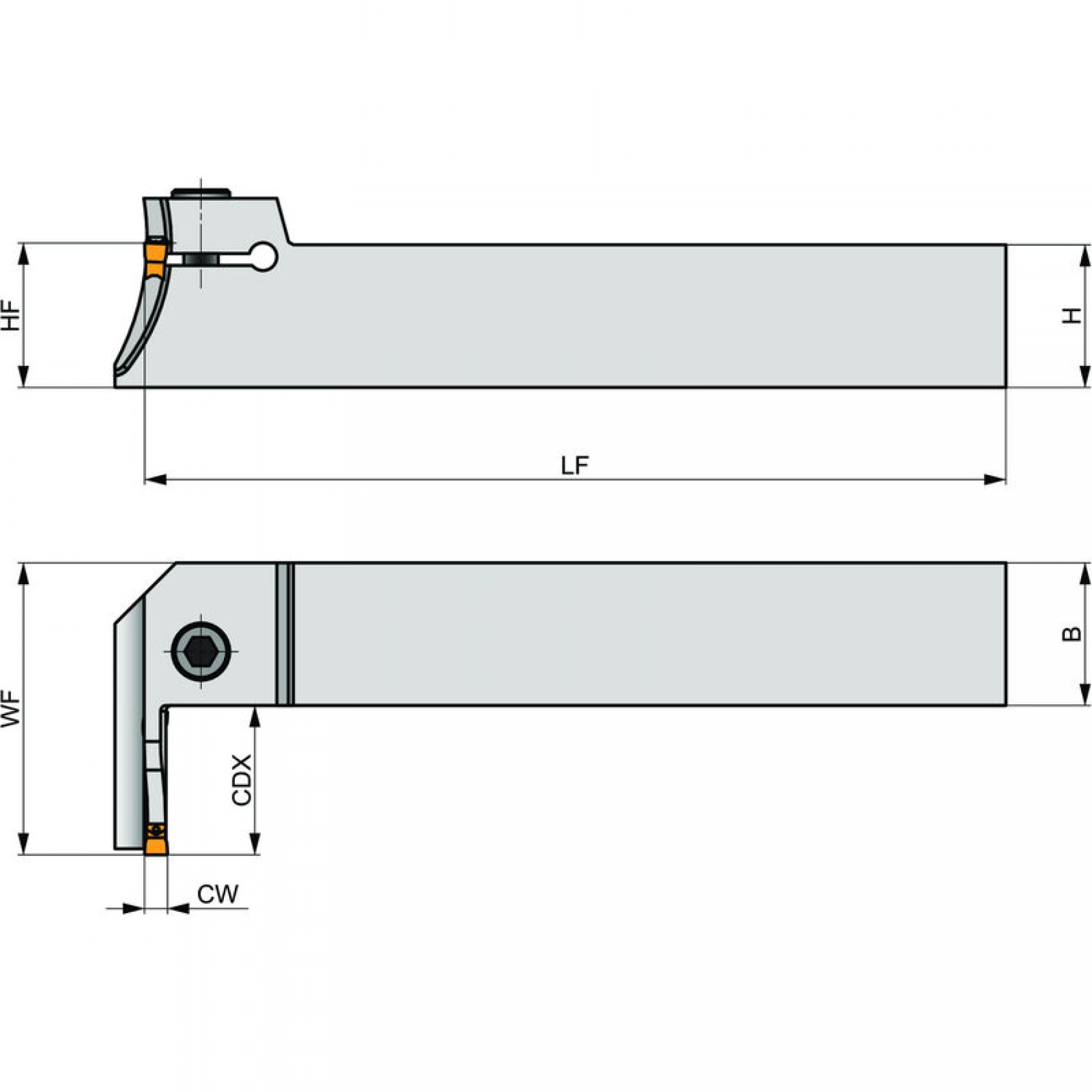

Product Name CW B=H WF LF CDX HF Dmin Dmax SFM
FGGPR 2525-3 R044033 CW:.118 B=H:.984 WF:1.610 LF:5.906 CDX:.591 HF:.984 Dmin:1.299 Dmax:1.732 Only for registered users
Related Products
FGGPR 2525-3 R055040 CW:.118 B=H:.984 WF:1.610 LF:5.906 CDX:.591 HF:.984 Dmin:1.575 Dmax:2.165 Only for registered users
Related Products
FGGPR 2525-3 R080051 CW:.118 B=H:.984 WF:1.807 LF:5.906 CDX:.787 HF:.984 Dmin:2.008 Dmax:3.150 Only for registered users
Related Products
FGGPR 2525-3 R110076 CW:.118 B=H:.984 WF:2.004 LF:5.906 CDX:.984 HF:.984 Dmin:2.992 Dmax:4.331 Only for registered users
Related Products
FGGPR 2525-4 R065050 CW:.157 B=H:.984 WF:1.811 LF:5.906 CDX:.787 HF:.984 Dmin:1.969 Dmax:2.559 Only for registered users
Related Products
FGGPR 2525-4 R095060 CW:.157 B=H:.984 WF:2.008 LF:5.906 CDX:.984 HF:.984 Dmin:2.362 Dmax:3.740 Only for registered users
Related Products
FGGPR 2525-4 R160090 CW:.157 B=H:.984 WF:2.008 LF:5.906 CDX:.984 HF:.984 Dmin:3.543 Dmax:6.229 Only for registered users
Related Products
FGGPR 2525-4 R400150 CW:.157 B=H:.984 WF:2.008 LF:5.906 CDX:.984 HF:.984 Dmin:5.906 Dmax:15.748 Only for registered users
