FGH BLADES

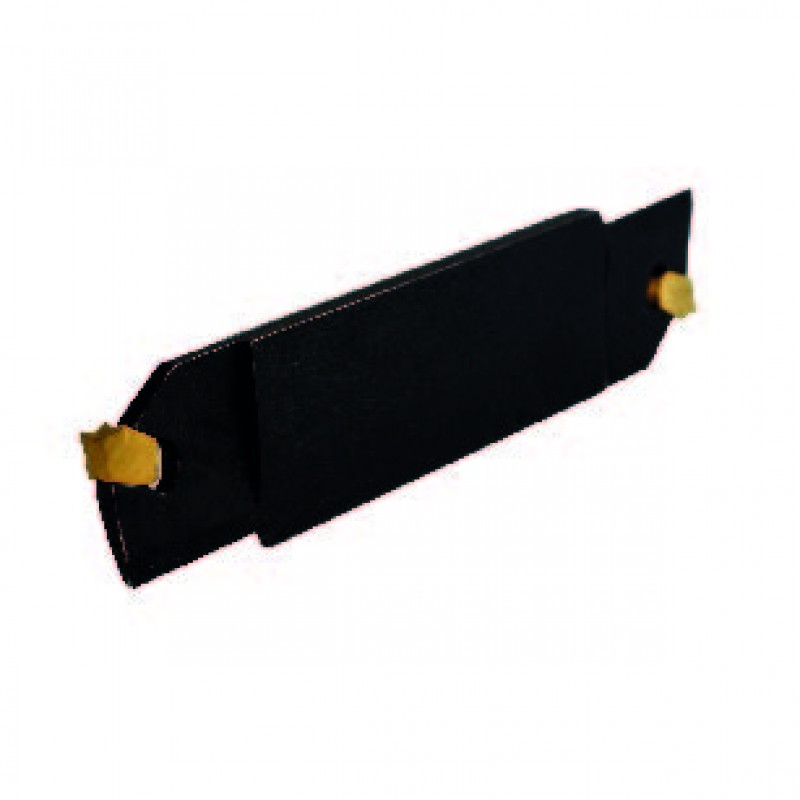

FGH Face grooving cut-off blade. The 3 different blades shapes give the possibility to concentric face groove in relation to multiple diameters .
Grooving blade uses GTFG left or right handed inserts with a special sharpening on the base of the insert for a concentric grooving and prevent shocking.
For any size of blade's thickness corresponds a specific size of insert; for example FGH 150 R3 fits GTFG 3R.
In the related products you can find the related tool block (TBN or TBX).)
To extract the insert you can use ESGT key.
Notes: this product includes one extractor; inserts are not included.
Grooving blade uses GTFG left or right handed inserts with a special sharpening on the base of the insert for a concentric grooving and prevent shocking.
For any size of blade's thickness corresponds a specific size of insert; for example FGH 150 R3 fits GTFG 3R.
In the related products you can find the related tool block (TBN or TBX).)
To extract the insert you can use ESGT key.
Notes: this product includes one extractor; inserts are not included.

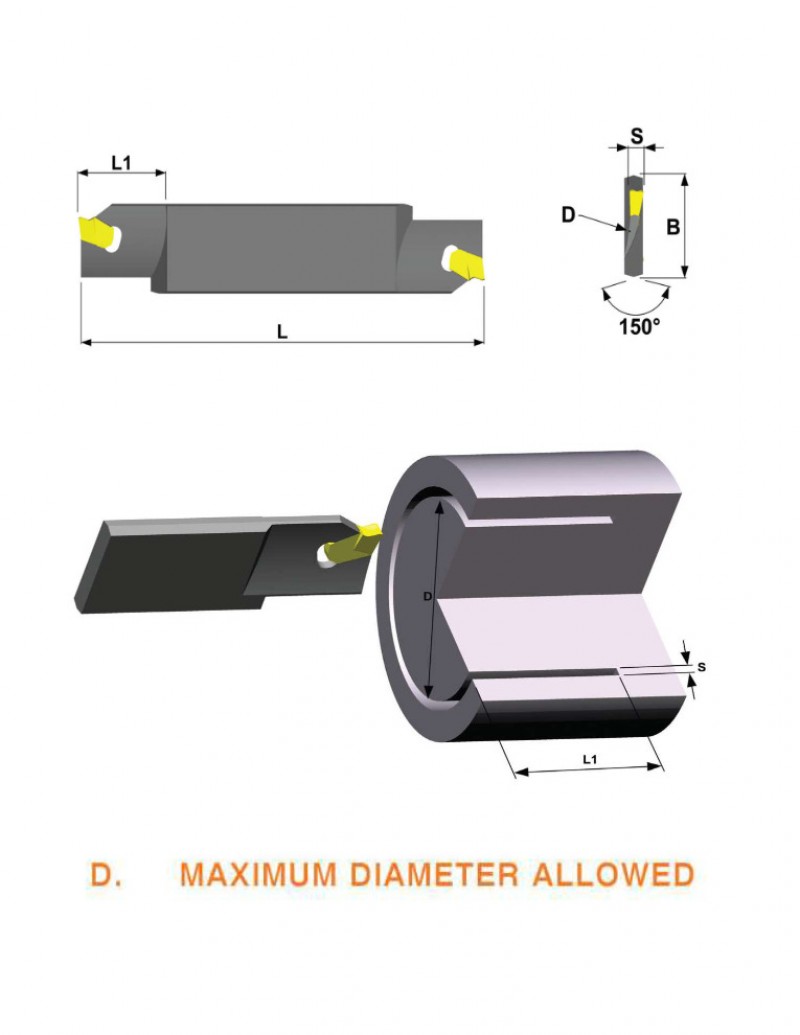

Product Name
S
B
L
L1
D
SFM
FGH 250 L3
S:.122
B:1.260
L:5.906
L1:1.181
D:9.843-&above
Only for registered users
Related Products
FGH 250 R3
S:.122
B:1.260
L:5.906
L1:1.181
D:9.843-&above
Only for registered users
Related Products
FGH 250 L4
S:.161
B:1.260
L:5.906
L1:1.181
D:9.843-&above
Only for registered users
Related Products
FGH 250 R4
S:.161
B:1.260
L:5.906
L1:1.181
D:9.843-&above
Only for registered users
Related Products
FGH 250 L5
S:.201
B:1.260
L:5.906
L1:1.181
D:9.843-&above
Only for registered users
Related Products
FGH 250 R5
S:.201
B:1.260
L:5.906
L1:1.181
D:9.843-&above
Only for registered users
