FGHP

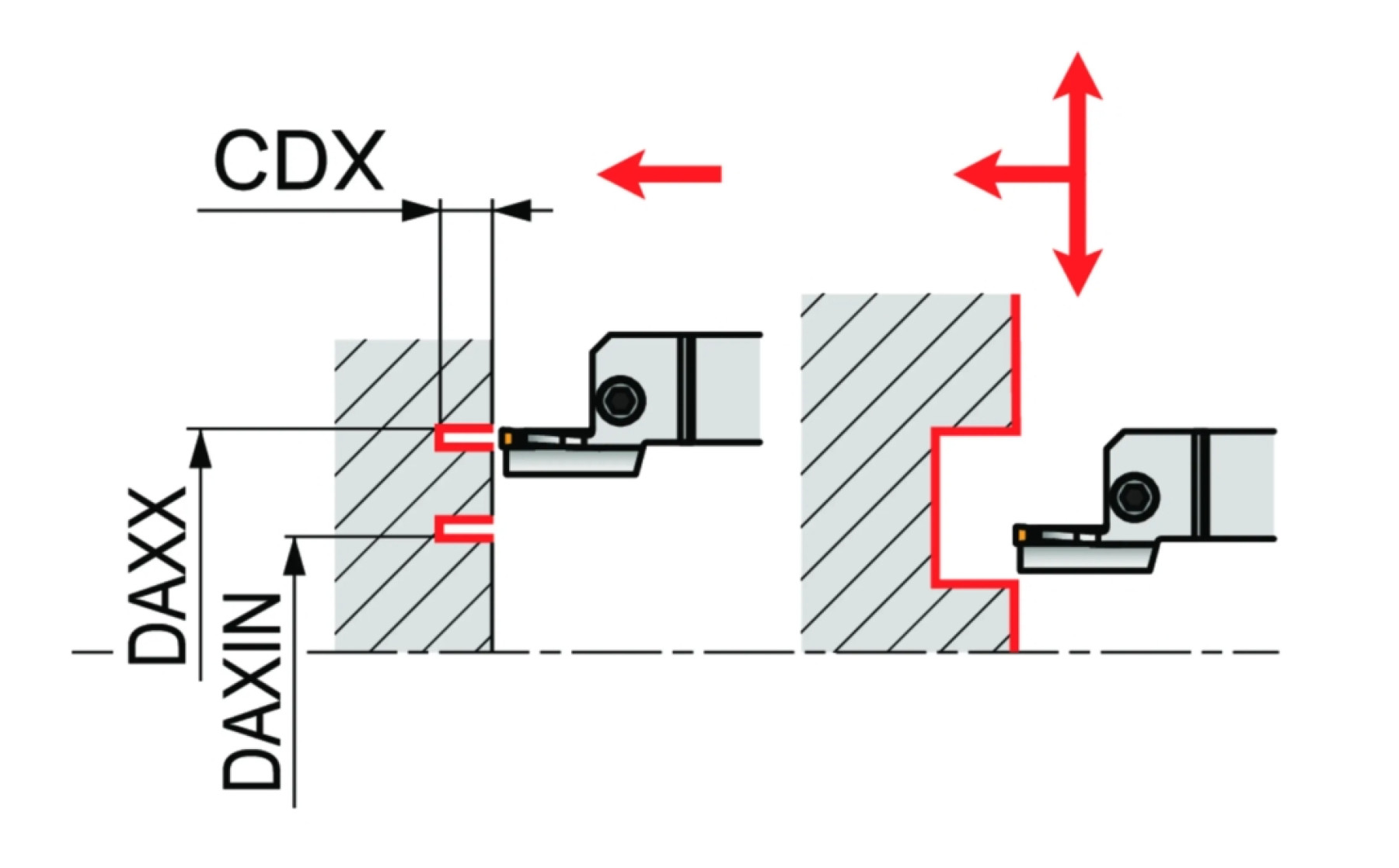

FGHP is right or left handed axial face grooving tool for GPN inserts. Suited for face grooving, turning and profiling applications. Body treated for longer tool life
Grooving blade uses GPN inserts with special base location that allows a concentric grooving and prevent shocking.
For any size of blade thickness corresponds a specific size of insert; for example FGHPR 16-3D R4.30-3.00 fits GPN 3 or GPS 3
This facing holder is independent from tool block
To extract the insert you can use TORX key.
Spare parts:
TX 50 (screw)
CT 20 (torx driver)

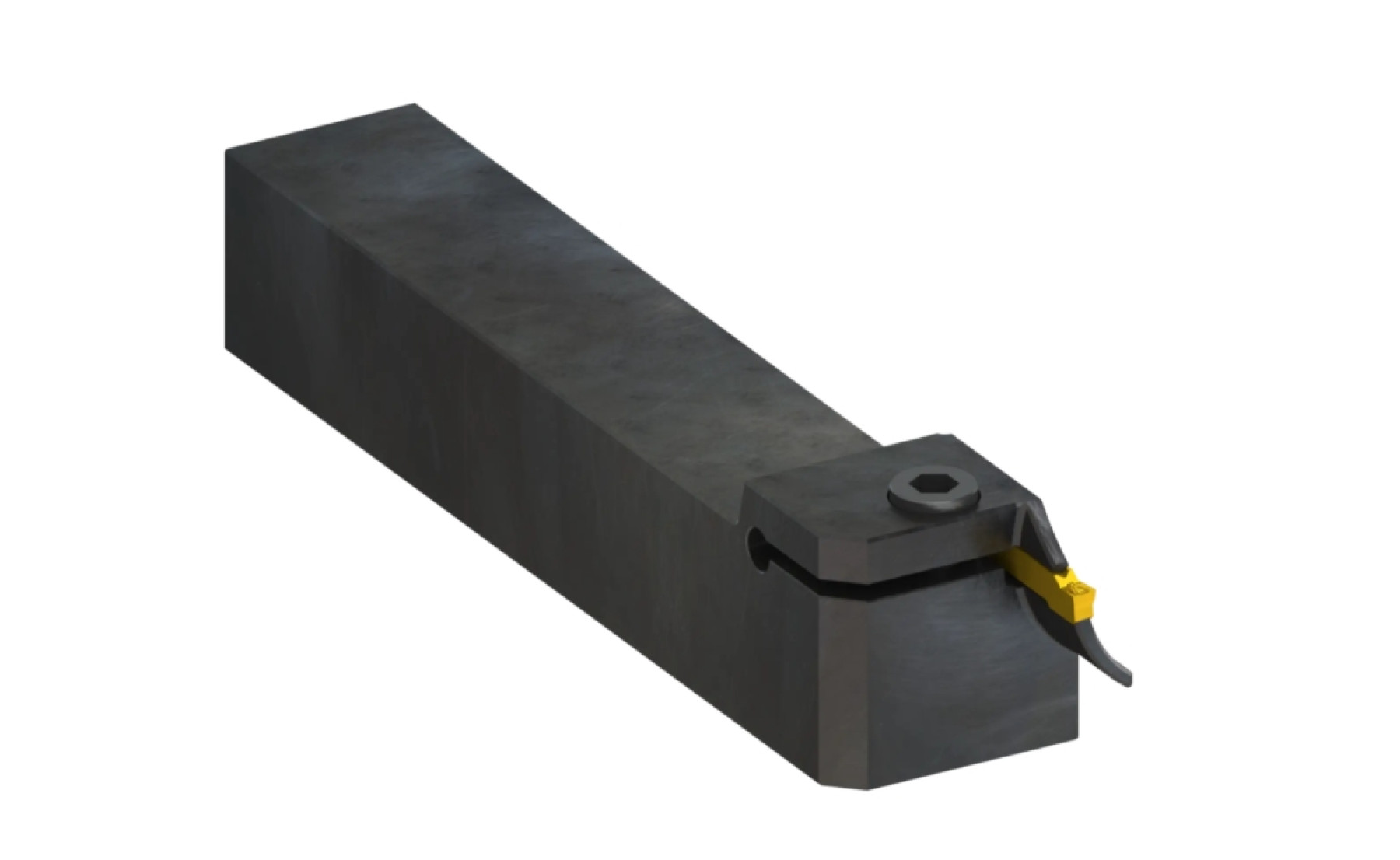

The showed picture is right handed (FGHPR..)
Notes: this product includes one extractor; inserts are not included.
Grooving blade uses GPN inserts with special base location that allows a concentric grooving and prevent shocking.
For any size of blade thickness corresponds a specific size of insert; for example FGHPR 16-3D R4.30-3.00 fits GPN 3 or GPS 3
This facing holder is independent from tool block
To extract the insert you can use TORX key.
Spare parts:
TX 50 (screw)
CT 20 (torx driver)
The showed picture is right handed (FGHPR..)
Notes: this product includes one extractor; inserts are not included.

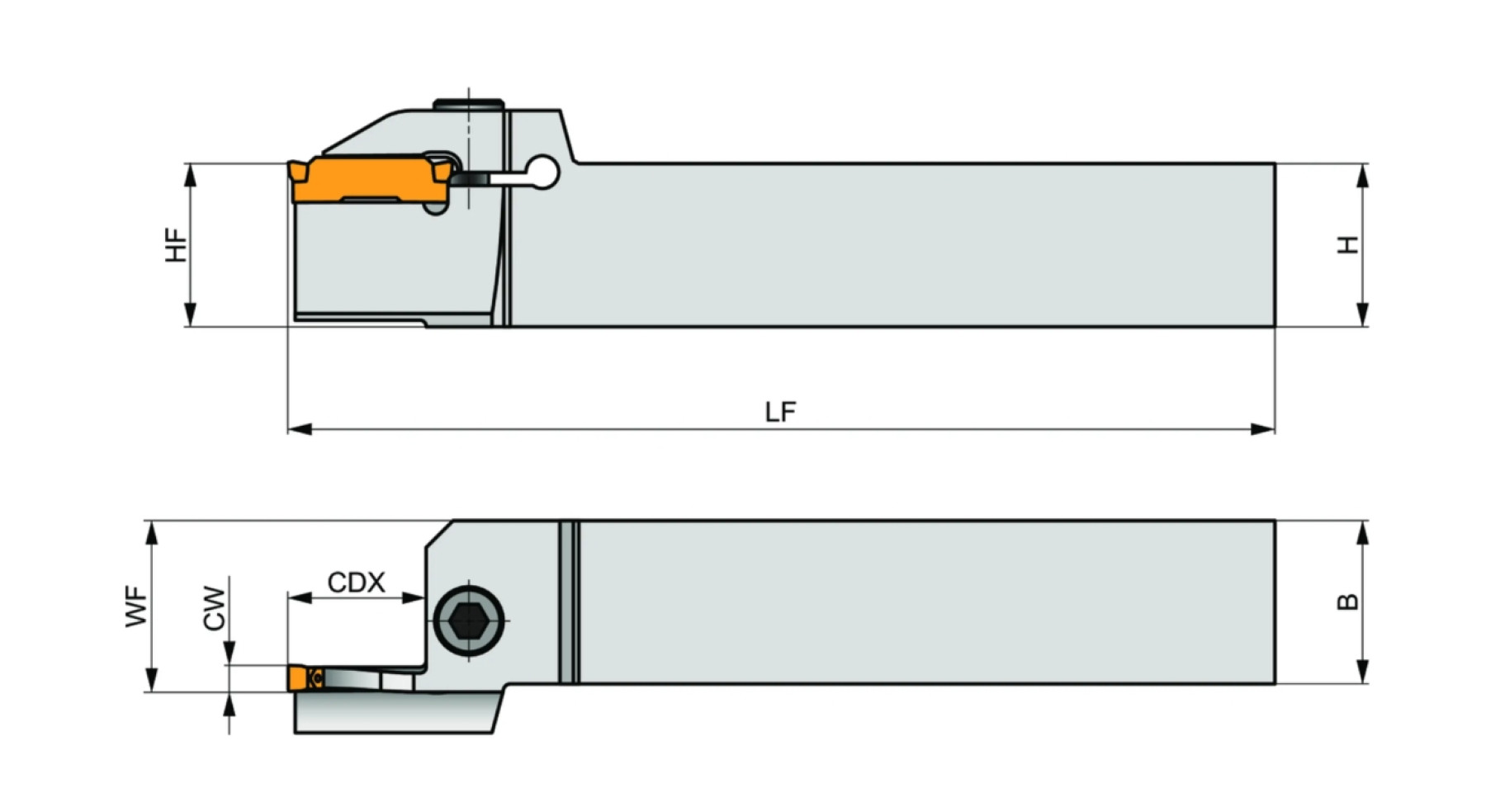

Product Name
CW
B=H
WF
LF
CDX
HF
Dmin
Dmax
SFM
FGHPR 16-3D R2.20-1.55
CW:.118
B=H:1.000
WF:1.040
LF:6.000
CDX:1.000
HF:1.000
Dmin:1.550
Dmax:2.200
Only for registered users
Related Products
FGHPL 16-3D R2.20-1.55
CW:.118
B=H:1.000
WF:1.040
LF:6.000
CDX:1.000
HF:1.000
Dmin:1.550
Dmax:2.200
Only for registered users
Related Products
FGHPR 16-3D R3.15-2.00
CW:.118
B=H:1.000
WF:1.040
LF:6.000
CDX:1.000
HF:1.000
Dmin:2.000
Dmax:3.150
Only for registered users
Related Products
FGHPL 16-3D R3.15-2.00
CW:.118
B=H:1.000
WF:1.040
LF:6.000
CDX:1.000
HF:1.000
Dmin:2.000
Dmax:3.150
Only for registered users
Related Products
FGHPR 16-3D R4.30-3.00
CW:.118
B=H:1.000
WF:1.040
LF:6.000
CDX:1.000
HF:1.000
Dmin:3.000
Dmax:4.300
Only for registered users
Related Products
FGHPL 16-3D R4.30-3.00
CW:.118
B=H:1.000
WF:1.040
LF:6.000
CDX:1.000
HF:1.000
Dmin:3.000
Dmax:4.300
Only for registered users
Related Products
FGHPR 16-3D R7.70-4.15
CW:.118
B=H:1.000
WF:1.040
LF:6.000
CDX:1.000
HF:1.000
Dmin:4.150
Dmax:7.700
Only for registered users
Related Products
FGHPL 16-3D R7.70-4.15
CW:.118
B=H:1.000
WF:1.040
LF:6.000
CDX:1.000
HF:1.000
Dmin:4.150
Dmax:7.700
Only for registered users
Related Products
FGHPR 16-3D R19.70-7.30
CW:.118
B=H:1.000
WF:1.040
LF:6.000
CDX:1.000
HF:1.000
Dmin:7.300
Dmax:19.700
Only for registered users
Related Products
FGHPL 16-3D R19.70-7.30
CW:.118
B=H:1.000
WF:1.040
LF:6.000
CDX:1.000
HF:1.000
Dmin:7.300
Dmax:19.700
Only for registered users
