Cut-Off & Grooving Tools
|
External Holders|Radial cut-off
|
THGPR / L

THGPR / L

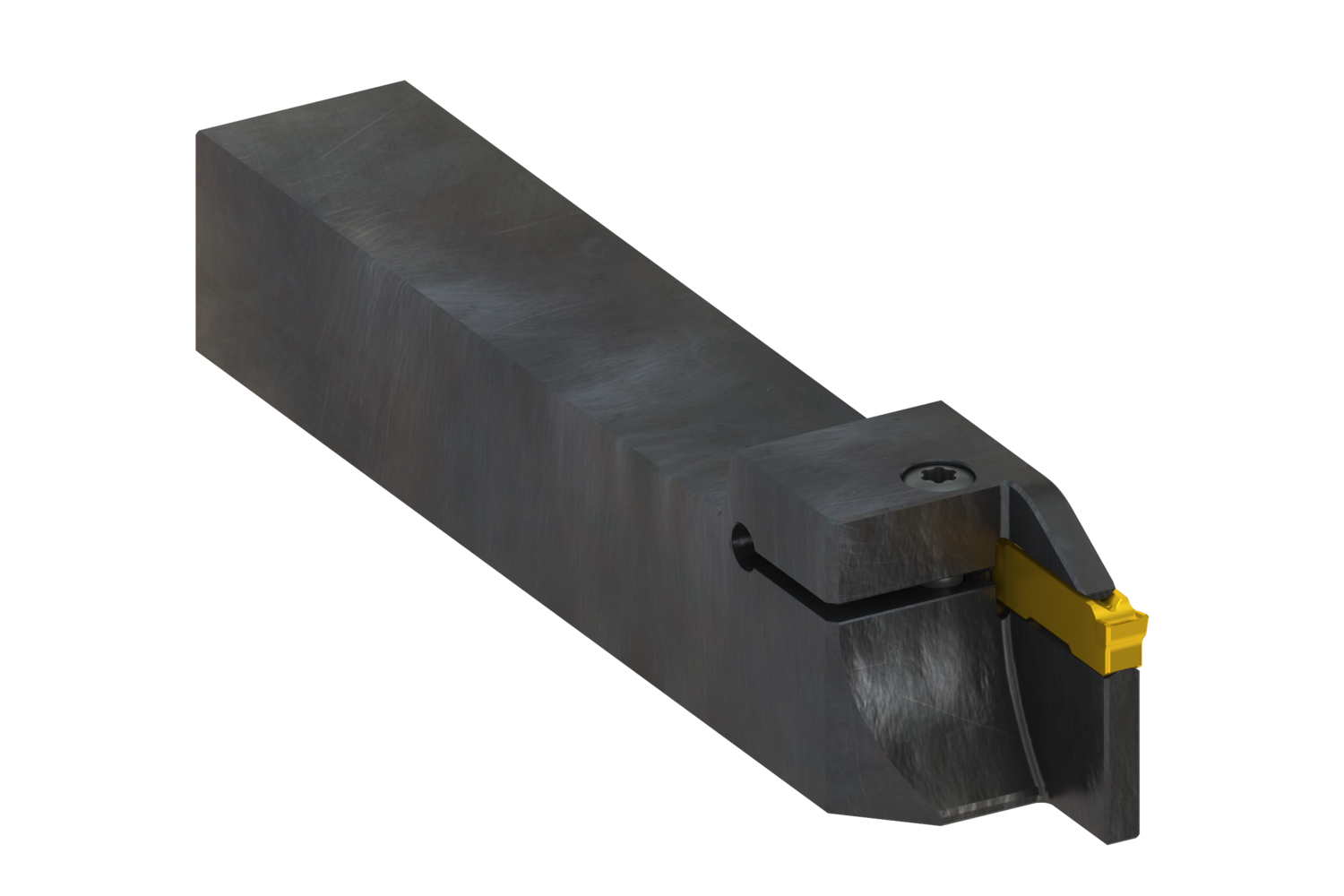

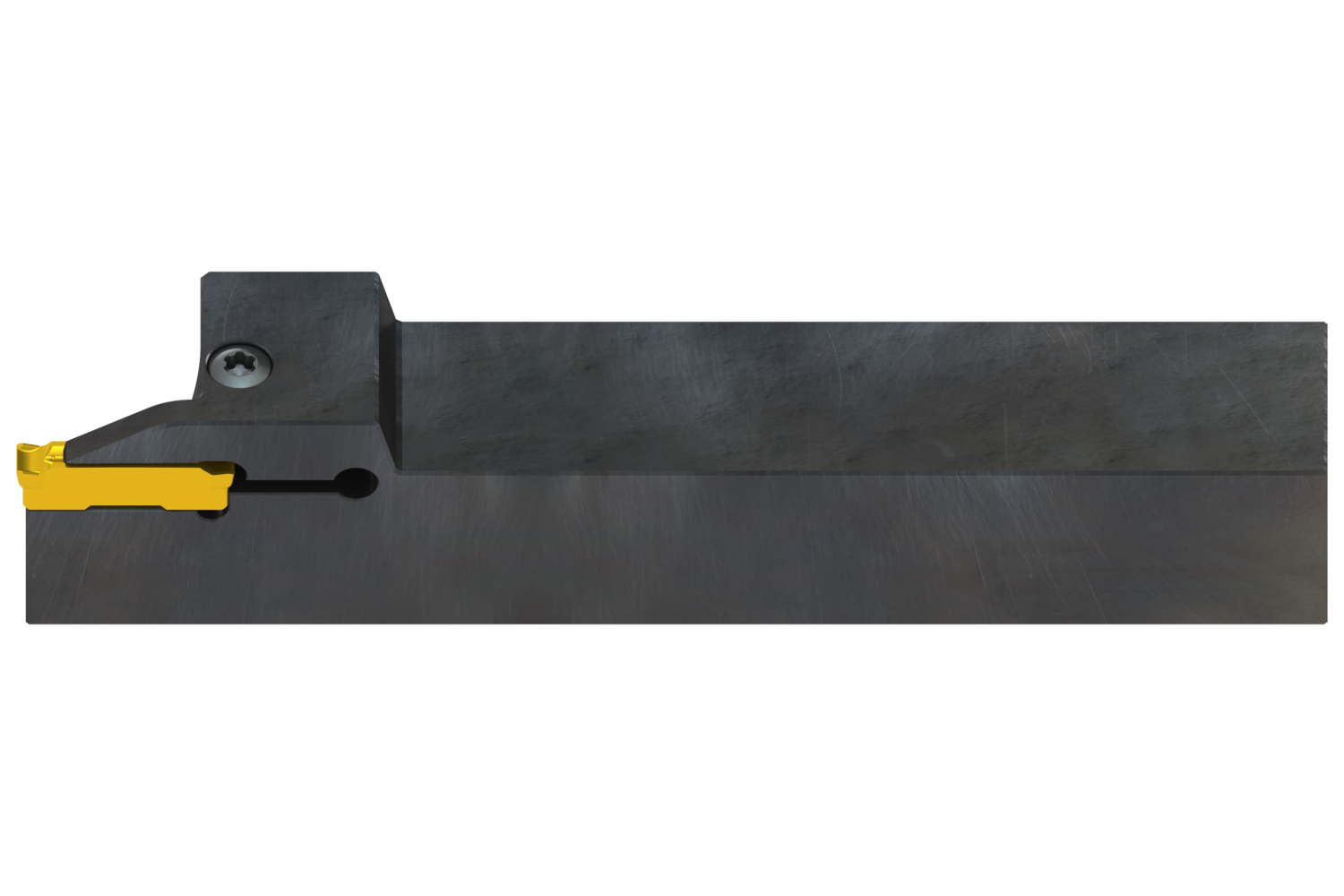

THGPR/L  Multi directional cut-off and grooving holder long series. Thanks to the long clamping system, it allows deeper applications than THDP.

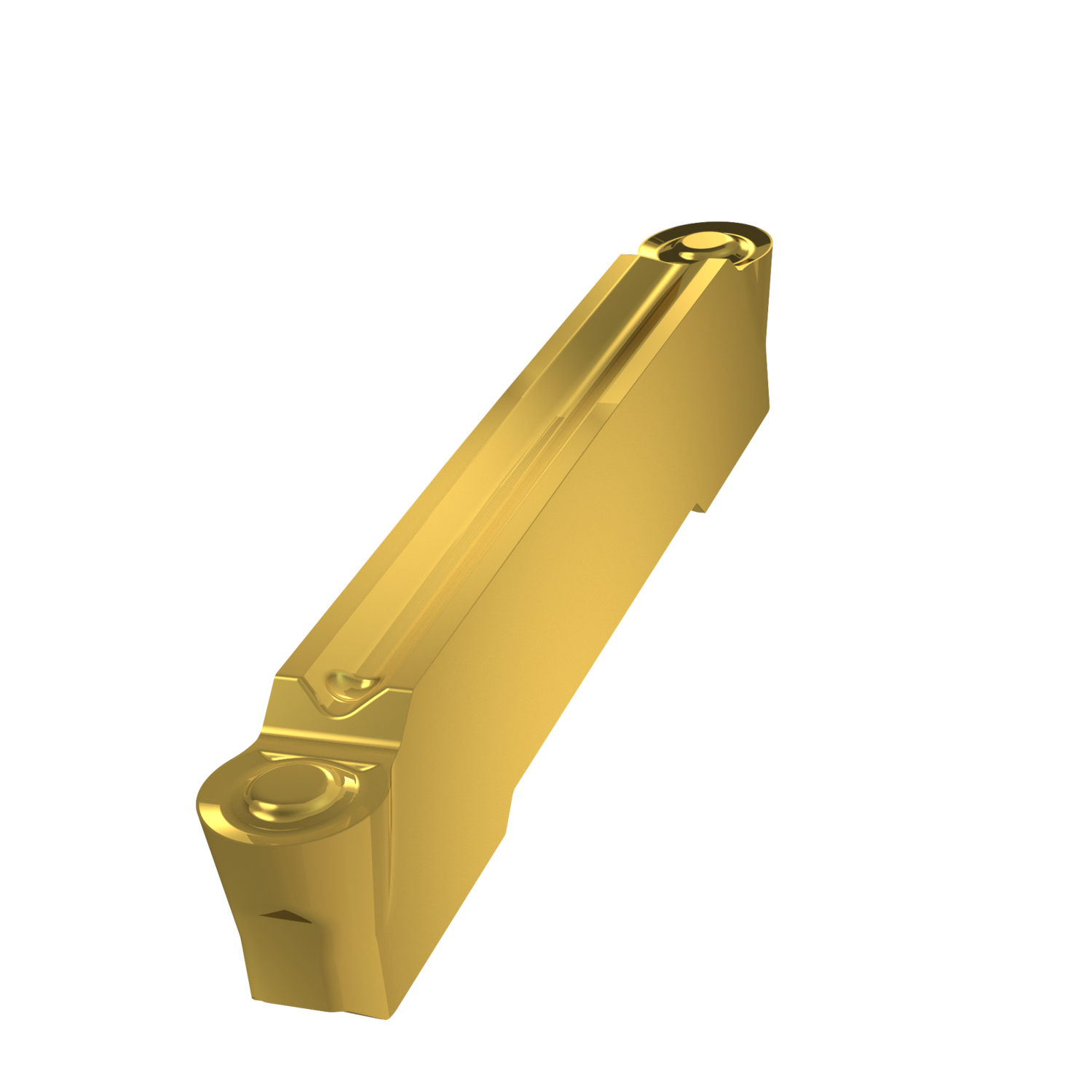

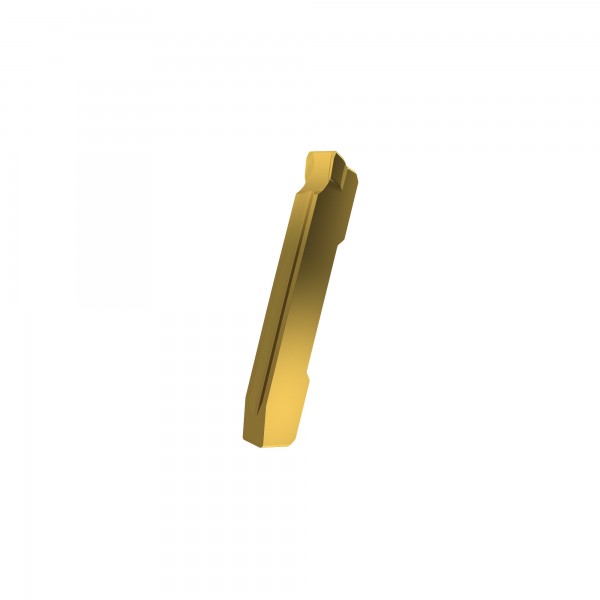

THGPR/L mounts GPN inserts; any thickness of the holder's blade fits a specific size of insert; for example THGPR 16-4 fits GPN 4 or GPR 4 inserts.
 D means the maximum diameter that the holder can parting.

 Spare Parts:
  - TX 50GP (screw clamp)
  - CT 20 (allen key)

Notes: this product contains  screw clamp and a screwdriver; inserts are not included.

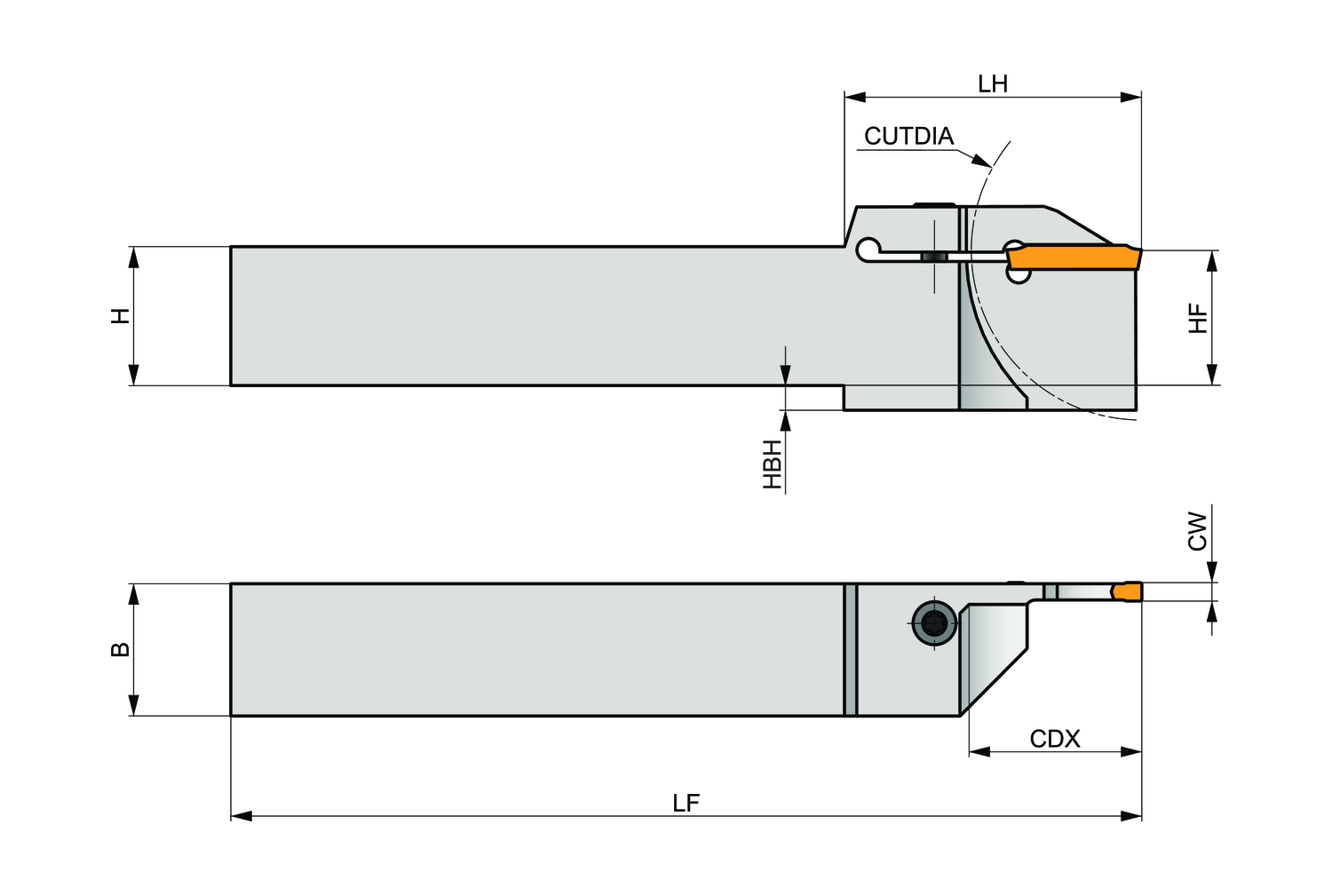

Product Name CW HF B=H LF HBH CDX CUTDIA SFM
THGPL 08-2A CW:.079 HF:.500 B=H:.500 LF:4.000 HBH:.118 CDX:.470 CUTDIA:1.570 Only for registered users
Related Products
THGPR 08-2A CW:.079 HF:.500 B=H:.500 LF:4.000 HBH:.118 CDX:.470 CUTDIA:1.570 Only for registered users
Related Products
THGPL 08-3A CW:.118 HF:.500 B=H:.500 LF:4.000 HBH:.118 CDX:.470 CUTDIA:1.570 Only for registered users
Related Products
THGPR 08-3A CW:.118 HF:.500 B=H:.500 LF:4.000 HBH:.118 CDX:.470 CUTDIA:1.570 Only for registered users
Related Products
THGPL 10-2C CW:.079 HF:.625 B=H:.624 LF:5.000 HBH:.118 CDX:.630 CUTDIA:1.780 Only for registered users
Related Products
THGPR 10-2C CW:.079 HF:.625 B=H:.624 LF:5.000 HBH:.118 CDX:.630 CUTDIA:1.780 Only for registered users
Related Products
THGPL 10-3C CW:.118 HF:.625 B=H:.624 LF:5.000 HBH:.118 CDX:.630 CUTDIA:1.780 Only for registered users
Related Products
THGPR 10-3C CW:.118 HF:.625 B=H:.624 LF:5.000 HBH:.118 CDX:.630 CUTDIA:1.780 Only for registered users
Related Products
THGPL 10-4C CW:.157 HF:.625 B=H:.625 LF:5.000 HBH:.118 CDX:.630 CUTDIA:1.780 Only for registered users
Related Products
THGPR 10-4C CW:.157 HF:.625 B=H:.625 LF:5.000 HBH:.118 CDX:.630 CUTDIA:1.780 Only for registered users
Related Products
THGPL 12-2S CW:.079 HF:.750 B=H:.750 LF:5.000 HBH:  CDX:.390 CUTDIA:.780 Only for registered users
Related Products
THGPR 12-2S CW:.079 HF:.750 B=H:.750 LF:5.000 HBH:  CDX:.390 CUTDIA:.780 Only for registered users
Related Products
THGPL 12-2C CW:.079 HF:.750 B=H:.750 LF:5.000 HBH:  CDX:.790 CUTDIA:3.150 Only for registered users
Related Products
THGPR 12-2C CW:.079 HF:.750 B=H:.750 LF:5.000 HBH:  CDX:.790 CUTDIA:3.150 Only for registered users
Related Products
THGPL 12-2D CW:.079 HF:.750 B=H:.750 LF:5.000 HBH:  CDX:.940 CUTDIA:3.150 Only for registered users
Related Products
THGPR 12-2D CW:.079 HF:.750 B=H:.750 LF:5.000 HBH:  CDX:.940 CUTDIA:3.150 Only for registered users
Related Products
THGPL 12-3S CW:.118 HF:.750 B=H:.750 LF:5.000 HBH:  CDX:.390 CUTDIA:.780 Only for registered users
Related Products
THGPR 12-3S CW:.118 HF:.750 B=H:.750 LF:5.000 HBH:  CDX:.390 CUTDIA:.780 Only for registered users
Related Products
THGPL 12-3C CW:.118 HF:.750 B=H:.750 LF:5.000 HBH:  CDX:.790 CUTDIA:3.150 Only for registered users
Related Products
THGPR 12-3C CW:.118 HF:.750 B=H:.750 LF:5.000 HBH:  CDX:.790 CUTDIA:3.150 Only for registered users
Related Products
THGPL 12-3D CW:.118 HF:.750 B=H:.750 LF:5.000 HBH:  CDX:.940 CUTDIA:3.150 Only for registered users
Related Products
THGPR 12-3D CW:.118 HF:.750 B=H:.750 LF:5.000 HBH:  CDX:.940 CUTDIA:3.150 Only for registered users
Related Products
THGPL 12-4C CW:.157 HF:.750 B=H:.750 LF:5.000 HBH:  CDX:.790 CUTDIA:3.150 Only for registered users
Related Products
THGPR 12-4C CW:.157 HF:.750 B=H:.750 LF:5.000 HBH:  CDX:.790 CUTDIA:3.150 Only for registered users
Related Products
THGPL 12-4D CW:.157 HF:.750 B=H:.750 LF:5.000 HBH:  CDX:.940 CUTDIA:3.150 Only for registered users
Related Products
THGPR 12-4D CW:.157 HF:.750 B=H:.750 LF:5.000 HBH:  CDX:.940 CUTDIA:3.150 Only for registered users
Related Products
THGPL 12-5C CW:.197 HF:.750 B=H:.750 LF:5.000 HBH:  CDX:.790 CUTDIA:3.150 Only for registered users
Related Products
THGPR 12-5C CW:.197 HF:.750 B=H:.750 LF:5.000 HBH:  CDX:.790 CUTDIA:3.150 Only for registered users
Related Products
THGPL 12-6C CW:.236 HF:.750 B=H:.750 LF:5.000 HBH:  CDX:.790 CUTDIA:3.150 Only for registered users
Related Products
THGPR 12-6C CW:.236 HF:.750 B=H:.750 LF:5.000 HBH:  CDX:.790 CUTDIA:1.580 Only for registered users
Related Products
THGPL 16-2S CW:.079 HF:1.000 B=H:1.000 LF:6.000 HBH:- CDX:.390 CUTDIA:.780 Only for registered users
Related Products
THGPR 16-2S CW:.079 HF:1.000 B=H:1.000 LF:6.000 HBH:- CDX:.390 CUTDIA:.780 Only for registered users
Related Products
THGPL 16-2D CW:.079 HF:1.000 B=H:1.000 LF:6.000 HBH:- CDX:.790 CUTDIA:3.150 Only for registered users
Related Products
THGPR 16-2D CW:.079 HF:1.000 B=H:1.000 LF:6.000 HBH:- CDX:.790 CUTDIA:3.150 Only for registered users
Related Products
THGPL 16-2E CW:.079 HF:1.000 B=H:1.000 LF:7.000 HBH:- CDX:.940 CUTDIA:3.150 Only for registered users
Related Products
THGPR 16-2E CW:.079 HF:1.000 B=H:1.000 LF:7.000 HBH:- CDX:.940 CUTDIA:3.150 Only for registered users
Related Products
THGPL 16-3S CW:.118 HF:1.000 B=H:1.000 LF:6.000 HBH:- CDX:.390 CUTDIA:.780 Only for registered users
Related Products
THGPR 16-3S CW:.118 HF:1.000 B=H:1.000 LF:6.000 HBH:- CDX:.390 CUTDIA:.780 Only for registered users
Related Products
THGPL 16-3D CW:.118 HF:1.000 B=H:1.000 LF:6.000 HBH:- CDX:.790 CUTDIA:3.150 Only for registered users
Related Products
THGPR 16-3D CW:.118 HF:1.000 B=H:1.000 LF:6.000 HBH:- CDX:.790 CUTDIA:3.150 Only for registered users
Related Products
THGPL 16-3E CW:.118 HF:1.000 B=H:1.000 LF:7.000 HBH:.197 CDX:1.260 CUTDIA:3.150 Only for registered users
Related Products
THGPR 16-3E CW:.118 HF:1.000 B=H:1.000 LF:7.000 HBH:.197 CDX:1.260 CUTDIA:3.150 Only for registered users
Related Products
THGPL 16-4D CW:.157 HF:1.000 B=H:1.000 LF:6.000 HBH:- CDX:.790 CUTDIA:3.150 Only for registered users
Related Products
THGPR 16-4D CW:.157 HF:1.000 B=H:1.000 LF:6.000 HBH:- CDX:.790 CUTDIA:3.150 Only for registered users
Related Products
THGPL 16-4E CW:.157 HF:1.000 B=H:1.000 LF:7.000 HBH:.197 CDX:1.260 CUTDIA:3.150 Only for registered users
Related Products
THGPR 16-4E CW:.157 HF:1.000 B=H:1.000 LF:7.000 HBH:.197 CDX:1.260 CUTDIA:3.150 Only for registered users
Related Products
THGPL 16-5D CW:.197 HF:1.000 B=H:1.000 LF:6.000 HBH:- CDX:.790 CUTDIA:3.150 Only for registered users
Related Products
THGPR 16-5D CW:.197 HF:1.000 B=H:1.000 LF:6.000 HBH:- CDX:.790 CUTDIA:3.150 Only for registered users
Related Products
THGPL 16-5E CW:.197 HF:1.000 B=H:1.000 LF:7.000 HBH:.197 CDX:1.260 CUTDIA:3.150 Only for registered users
Related Products
THGPR 16-5E CW:.197 HF:1.000 B=H:1.000 LF:7.000 HBH:.197 CDX:1.260 CUTDIA:3.150 Only for registered users
Related Products
THGPL 16-6D CW:.236 HF:1.000 B=H:1.000 LF:6.000 HBH:- CDX:.790 CUTDIA:3.150 Only for registered users
Related Products
THGPR 16-6D CW:.236 HF:1.000 B=H:1.000 LF:6.000 HBH:- CDX:.790 CUTDIA:3.150 Only for registered users
Related Products
THGPR 16-6E CW:.236 HF:1.000 B=H:1.000 LF:7.000 HBH:.197 CDX:1.260 CUTDIA:3.150 Only for registered users
Related Products
THGPL 16-6E CW:.236 HF:1.000 B=H:1.000 LF:7.000 HBH:.197 CDX:1.260 CUTDIA:3.150 Only for registered users
