GPH

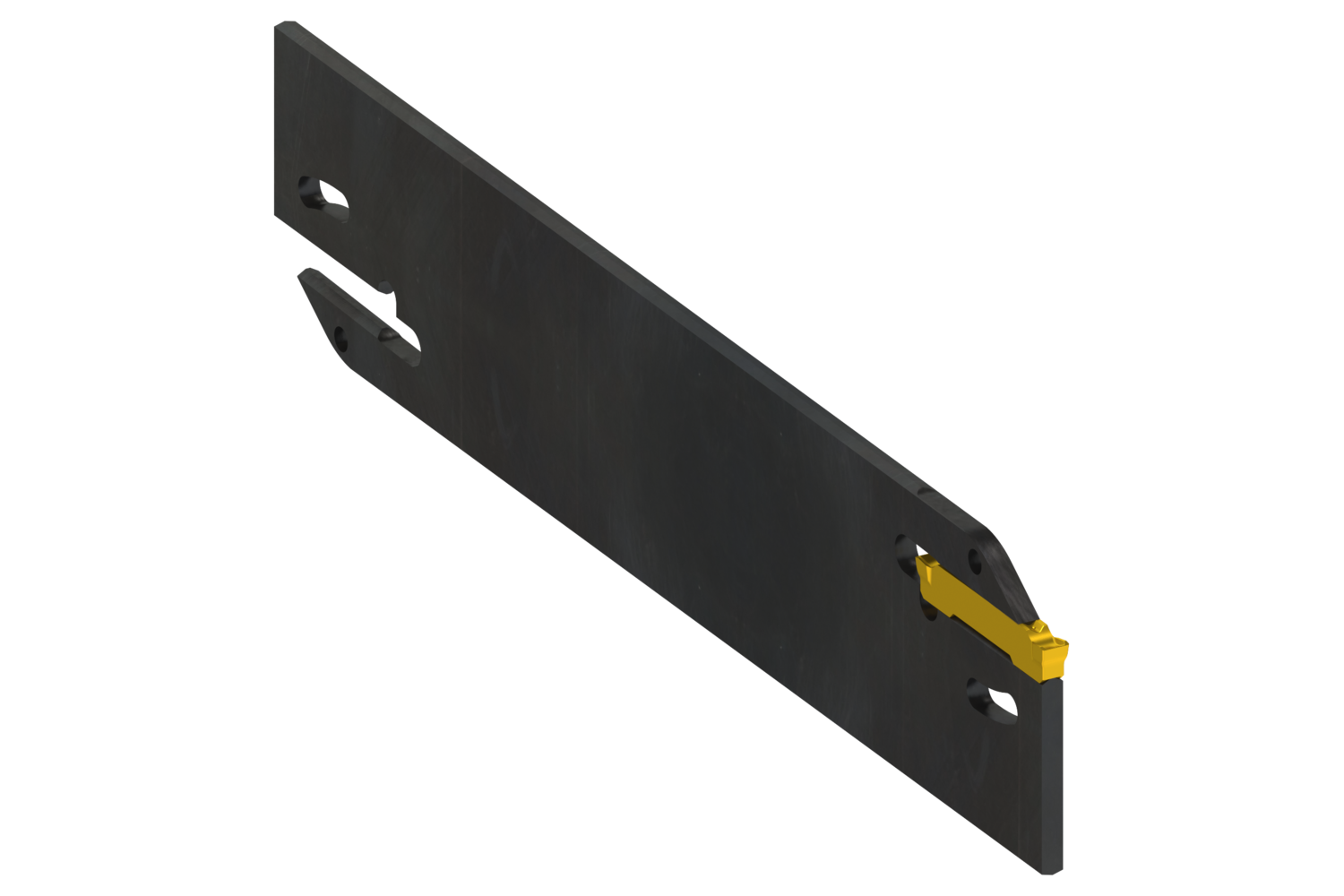

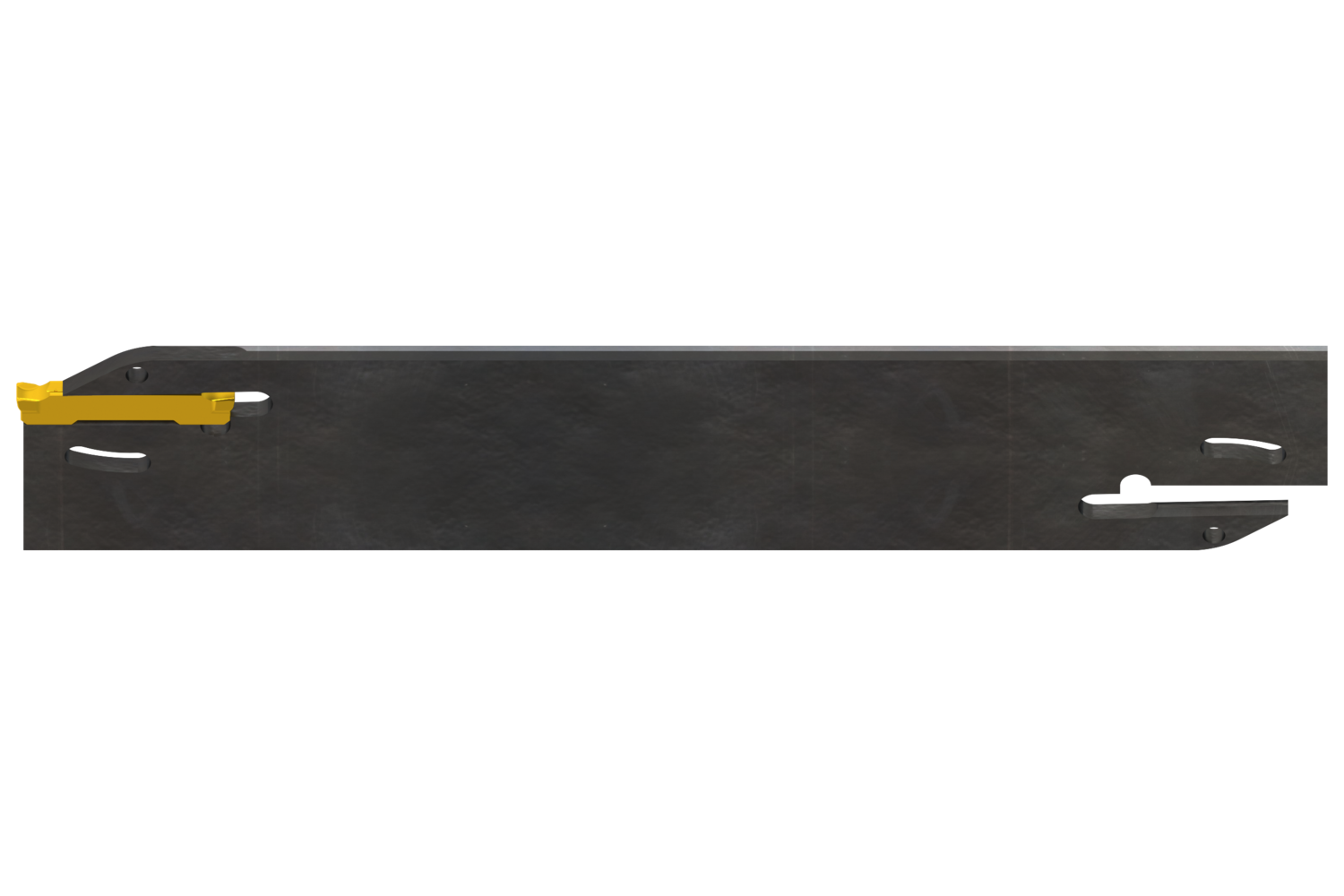

Cut-off blade made out of special tool steel suitable for all kind of standard and tough applications on conventional and CNC machines.
The particular shape of the upper part of the DOUBLE SIDE insert allows a strengthened clamping force for higher stability while machining.
GPH blades mount GPN inserts; for any size of blade thickness corresponds a specific size of insert; for example GPH 26-3 fits GPN. 3, or GPR 3 or GPL 3, or GPS 3
To extract the insert you have to use the correlated extractor key.
In the correlation you can find all the tool blocks (TBN or TBX) that fit the related blades.
Notes: this product includes one extractor key; inserts are not included.
The particular shape of the upper part of the DOUBLE SIDE insert allows a strengthened clamping force for higher stability while machining.
GPH blades mount GPN inserts; for any size of blade thickness corresponds a specific size of insert; for example GPH 26-3 fits GPN. 3, or GPR 3 or GPL 3, or GPS 3
To extract the insert you have to use the correlated extractor key.
In the correlation you can find all the tool blocks (TBN or TBX) that fit the related blades.
Notes: this product includes one extractor key; inserts are not included.

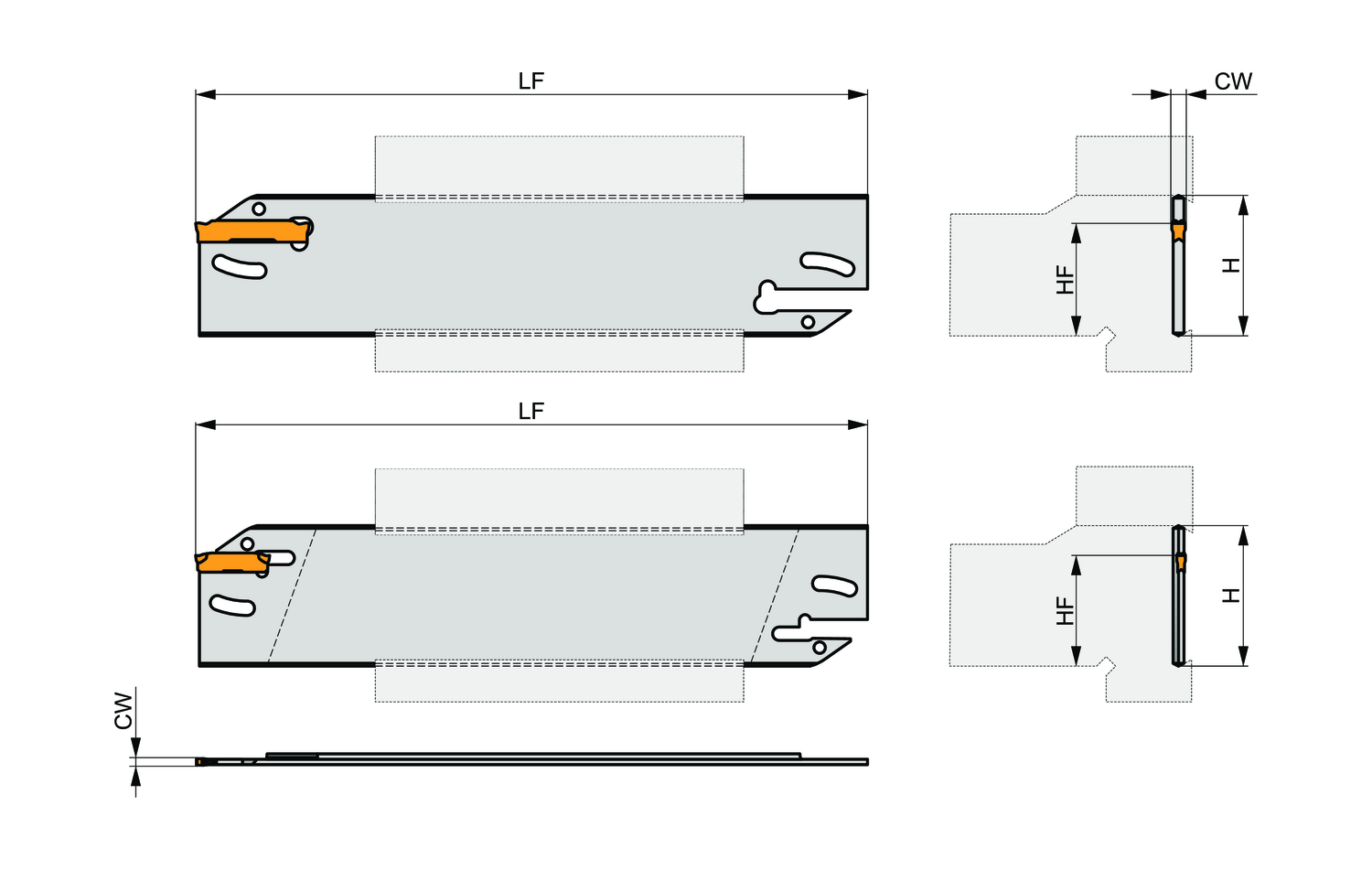

Product Name
CW
LF
HF
H
SFM
