KIT 924 LARGE (AP10)
KIT 924 LARGE consists of shoulder end milling cutters that utilize standard inserts:
- APKT 1003
- APET 1003

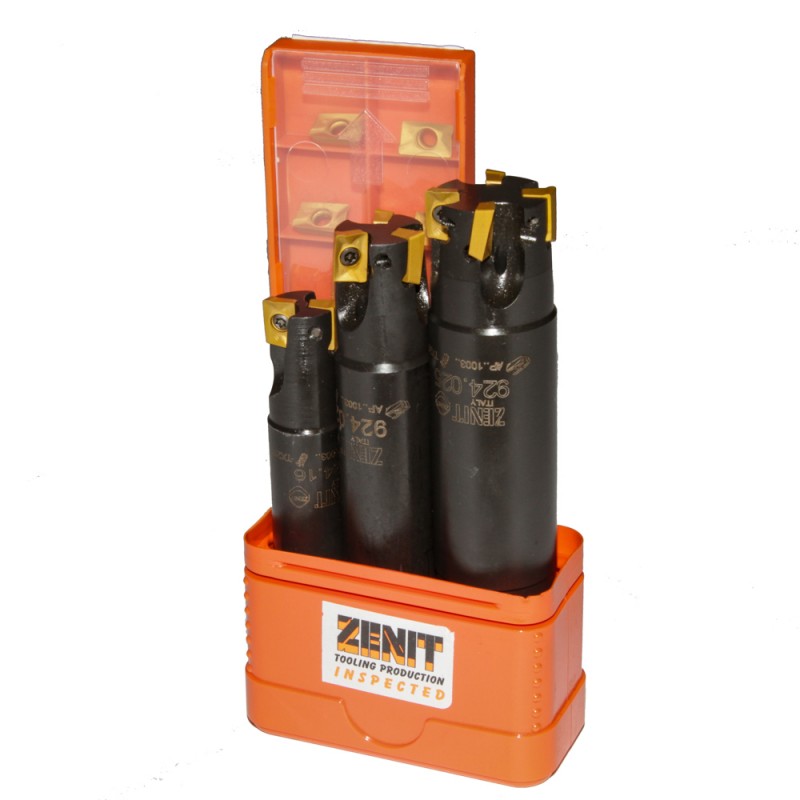

The 924 KIT LARGE consists of 924.06(5/8"), 924.07(3/4"), 924.10(1") and 10 pcs of APKT.VM 1003 Z5.
It has 90° approach angle and 11° relief angle to reduce tool pressure.
It is suggested for face milling, slotting, shouldering, helical, ramping and general purpose milling.
Spare parts:
- TX 25C (screws)
- CT 08 (screwdriver)
Notes: These set include screws and one screwdriver. One box of 10 APKT 1003 TIALN inserts is already included.
- APKT 1003
- APET 1003
The 924 KIT LARGE consists of 924.06(5/8"), 924.07(3/4"), 924.10(1") and 10 pcs of APKT.VM 1003 Z5.
It has 90° approach angle and 11° relief angle to reduce tool pressure.
It is suggested for face milling, slotting, shouldering, helical, ramping and general purpose milling.
Spare parts:
- TX 25C (screws)
- CT 08 (screwdriver)
Notes: These set include screws and one screwdriver. One box of 10 APKT 1003 TIALN inserts is already included.
Product Name
#1
#2
#3
#4
INSERTS
SFM
924 KIT LARGE
#1:924.06.i
#2:924.07.i
#3:924.10.i
#4:
INSERTS:+ 10 APKT.M 1003 Z5
