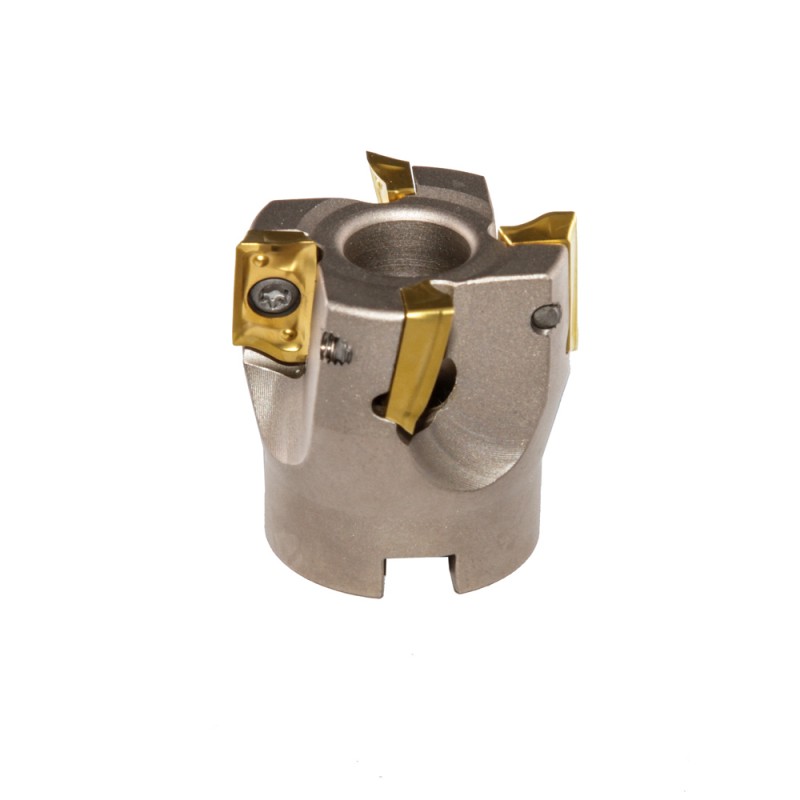

MAXY 17(APMT 1704..)
MAXY17 Shoulder shell milling cutter utilizes standard inserts:
- APMT 170408
It has 90° approach angle and 11° relief angle to reduce tool pressure. This particular shape of insert allows high depth of cut while getting a good
finishing with a massive chip evacuation due to the new insert design.
It is suggested for face milling, slotting, shouldering, ramping and helical operations.
Spare parts:
- TX 40G (screws)
- CT 15 (screwdriver)
Notes: This product includes screws and the screwdriver. Inserts are not included.
- APMT 170408
It has 90° approach angle and 11° relief angle to reduce tool pressure. This particular shape of insert allows high depth of cut while getting a good
finishing with a massive chip evacuation due to the new insert design.
It is suggested for face milling, slotting, shouldering, ramping and helical operations.
Spare parts:
- TX 40G (screws)
- CT 15 (screwdriver)
Notes: This product includes screws and the screwdriver. Inserts are not included.
Product Name
D.
T
A
B
C
F
G
H
SFM
MAXY17.20.i
D.:2.000
T:5
A:1.875
B:.750
C:.313
F:.415
G:.600
H:1.625
Only for registered users
Related Products
MAXY17.25.i
D.:2.500
T:5
A:2.375
B:1.000
C:.375
F:.539
G:.787
H:2.000
Only for registered users
Related Products
MAXY17.30.i
D.:3.000
T:7
A:2.874
B:1.250
C:.500
F:.669
G:1.024
H:2.500
Only for registered users
Related Products
MAXY17.40.i
D.:4.000
T:8
A:3.799
B:1.500
C:.625
F:.787
G:1.181
H:2.500
Only for registered users
