MCLNR / L

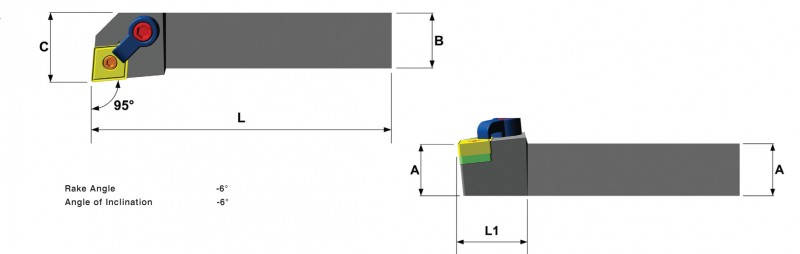

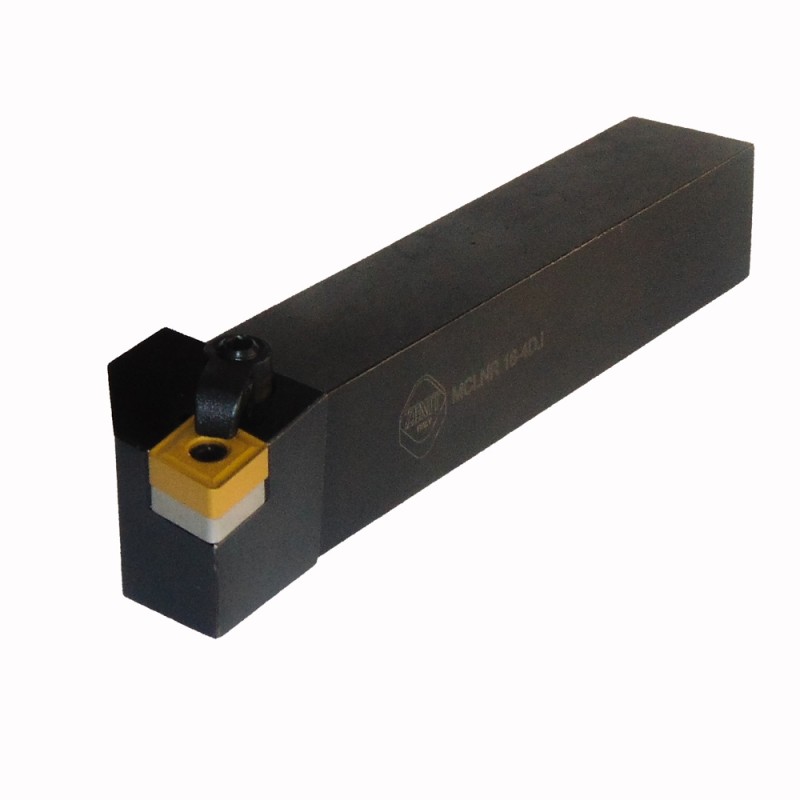

MCLNR/L External holder for turning application. It is used on CNC and manual lathe. It can be right (R) and left (L) hand.

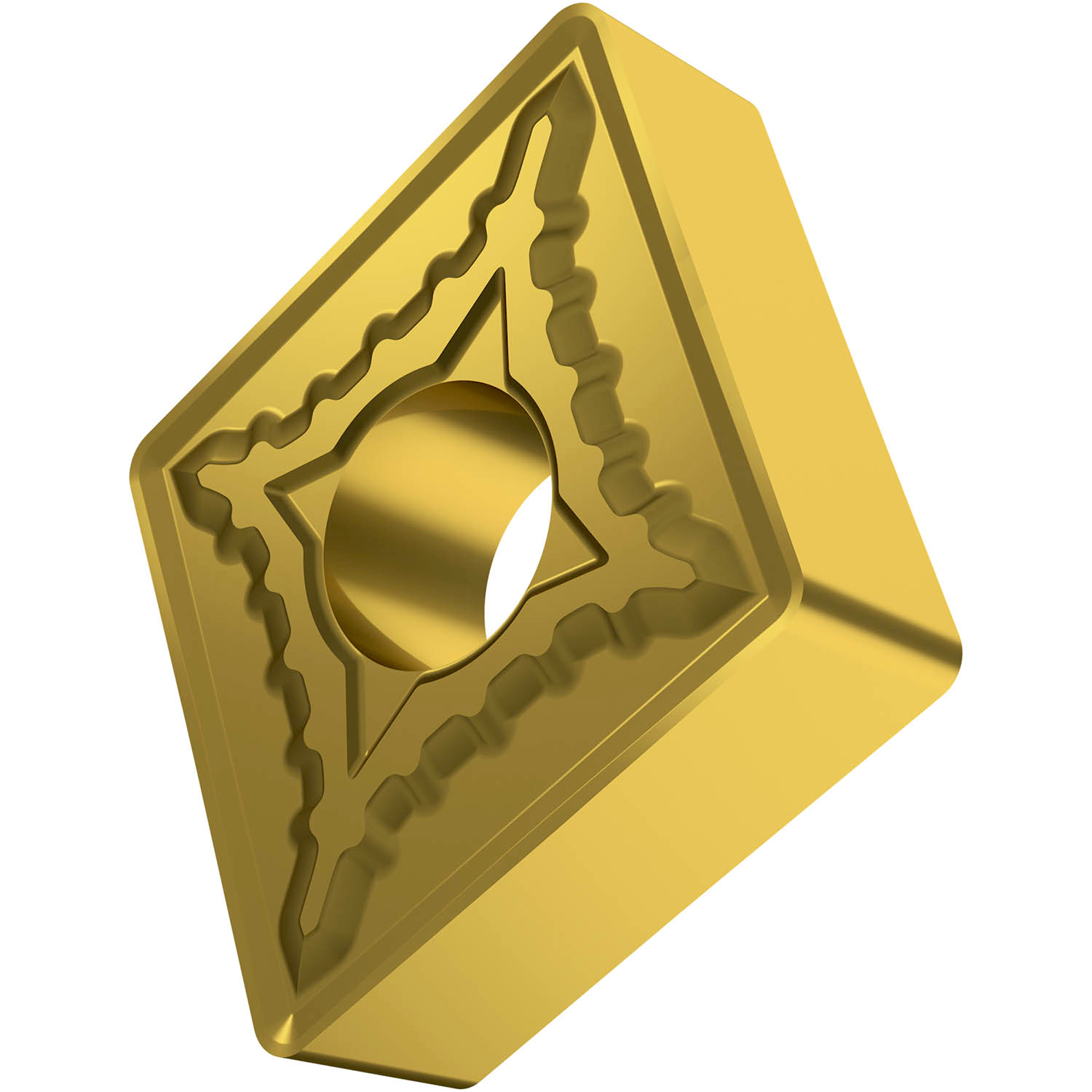

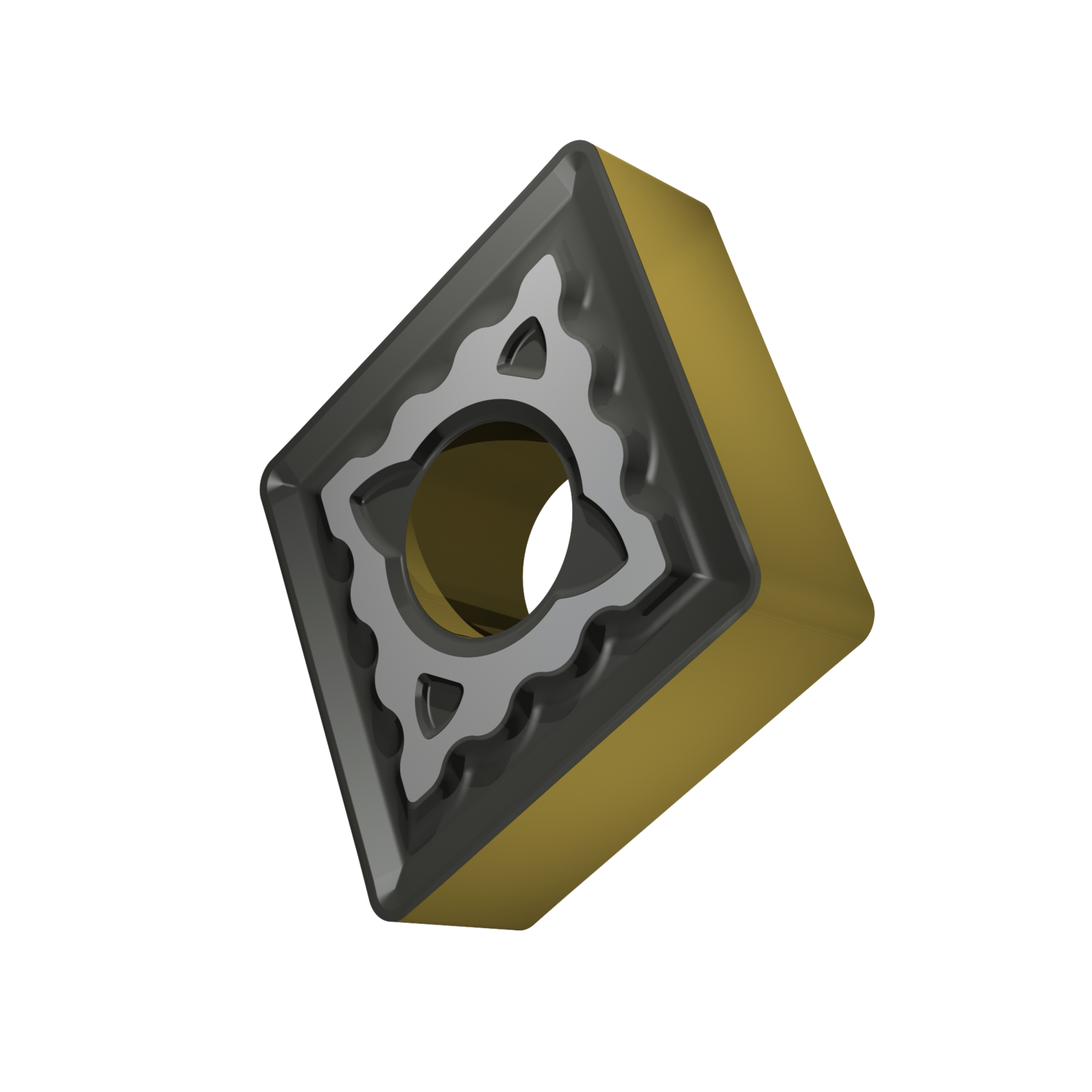

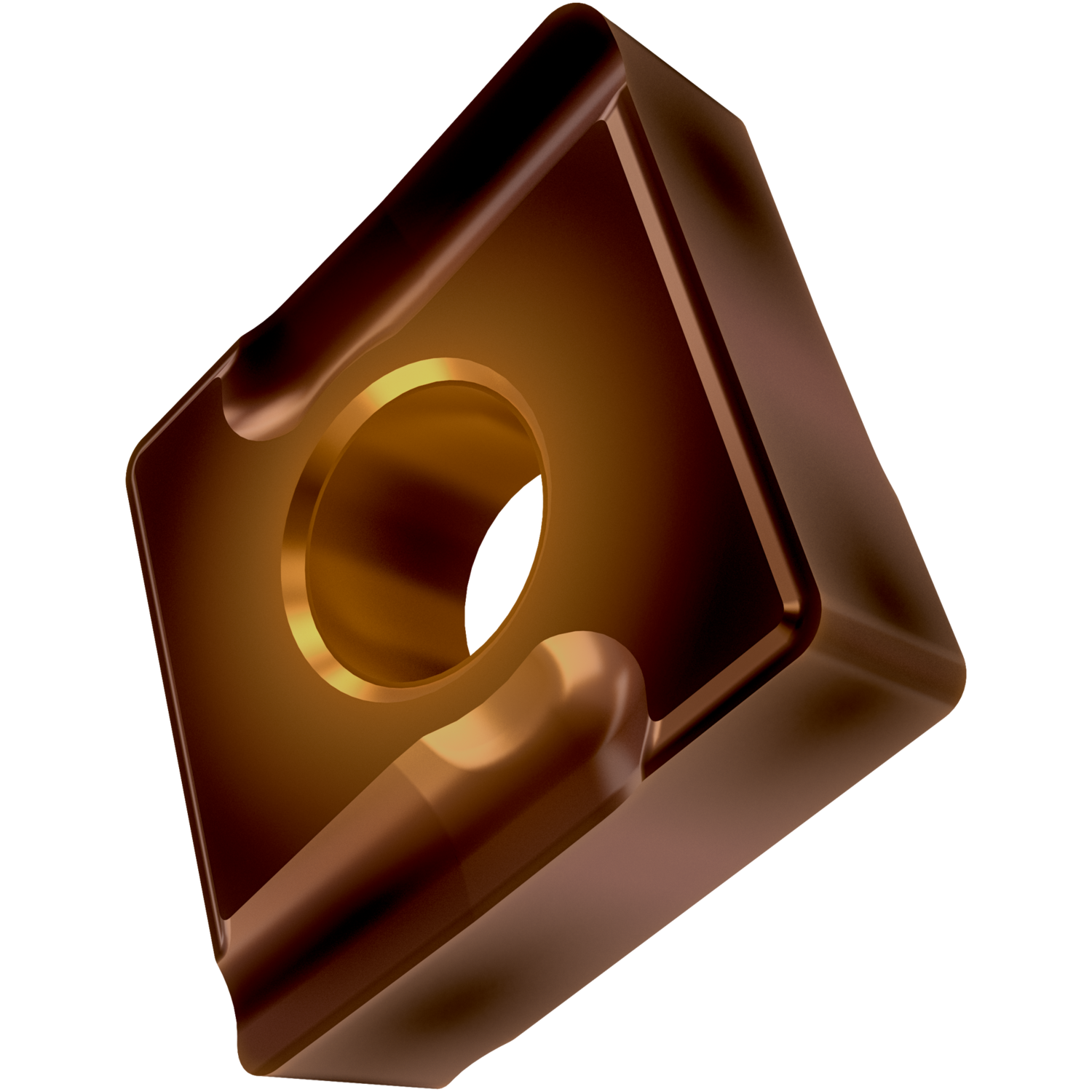

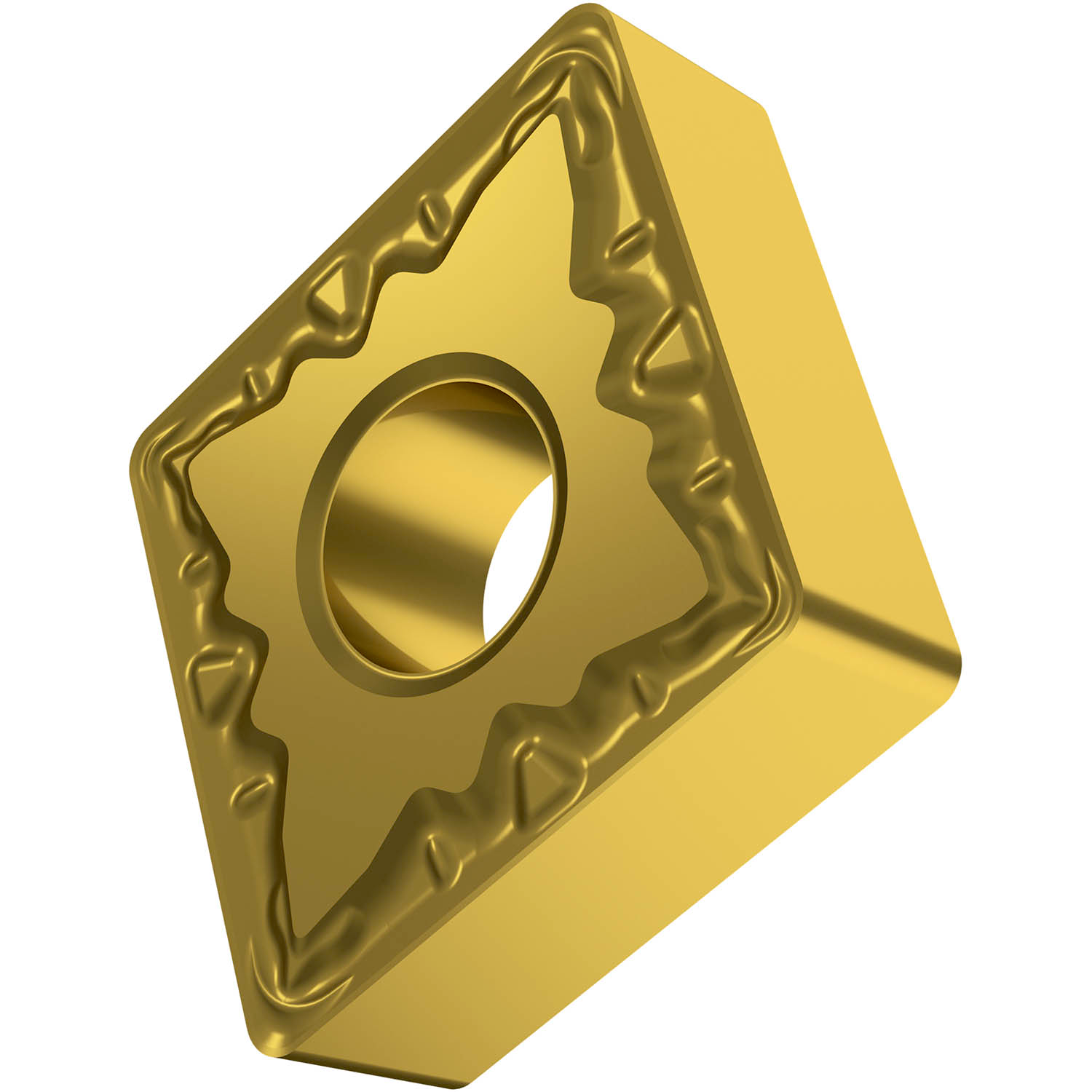

This holder can mount the following inserts styles:

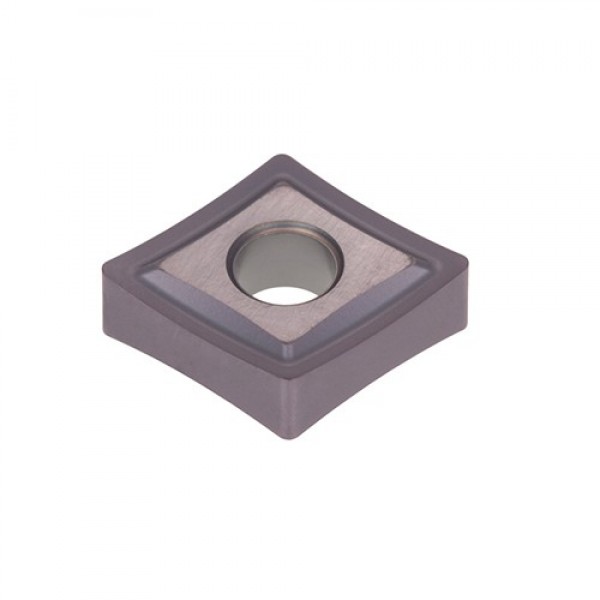

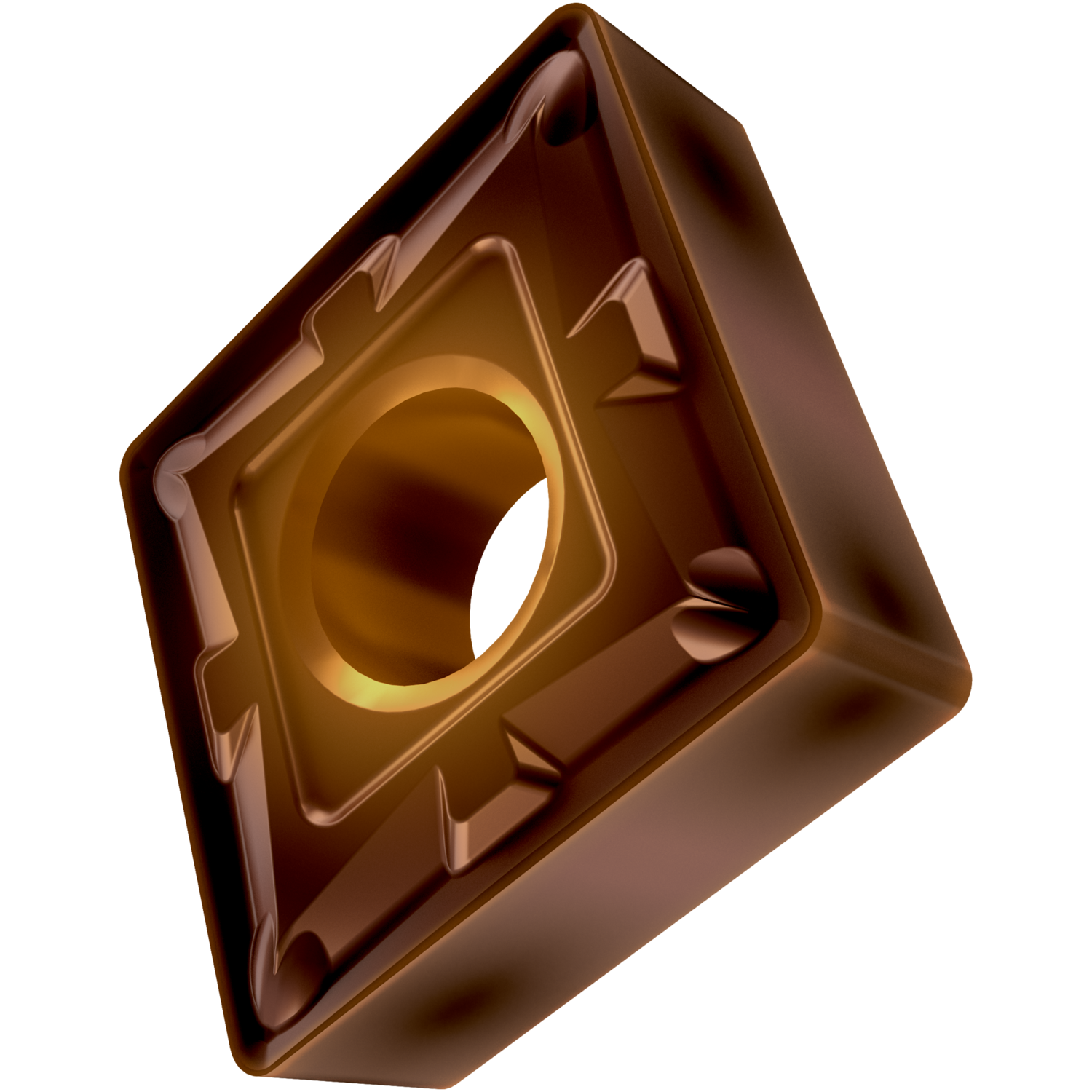

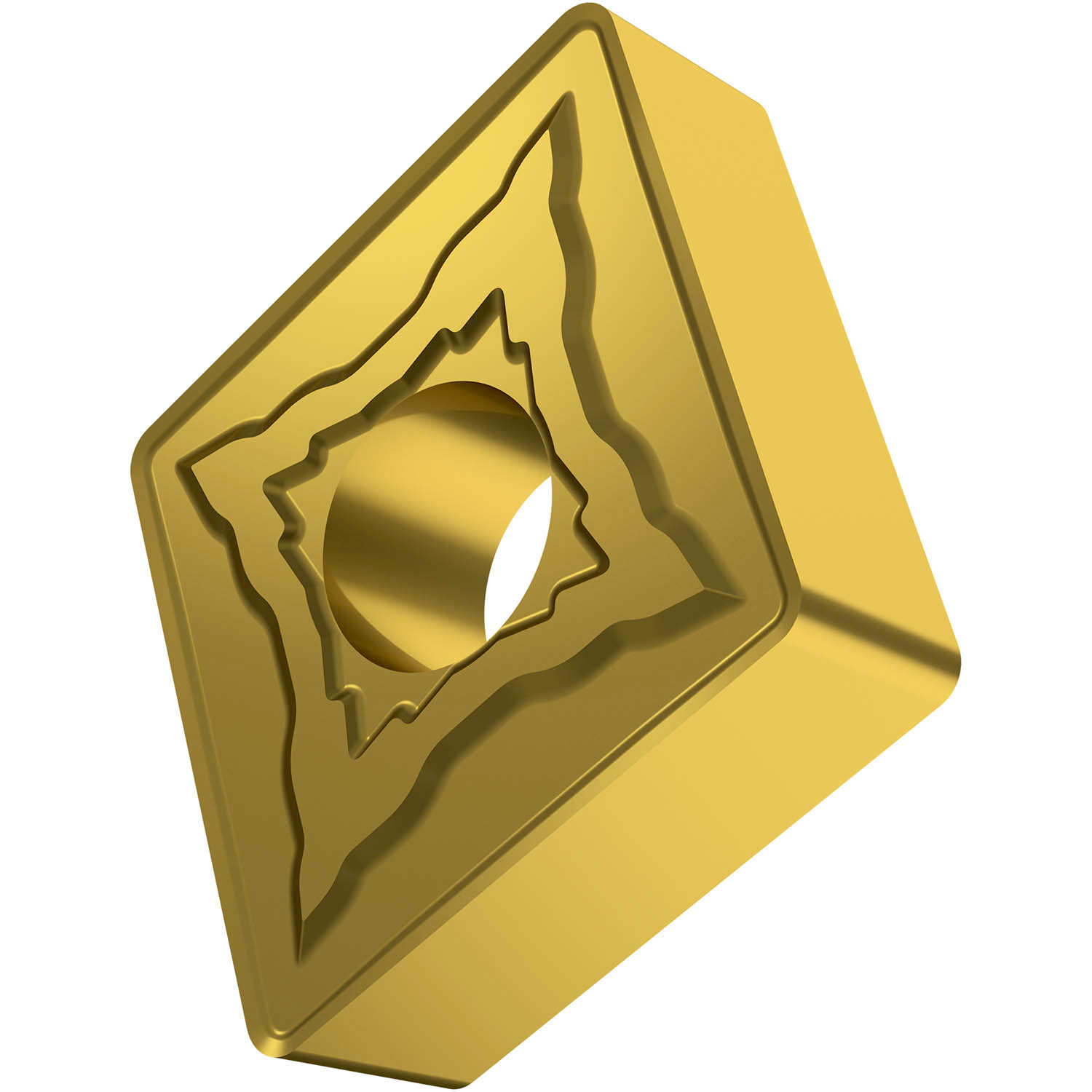

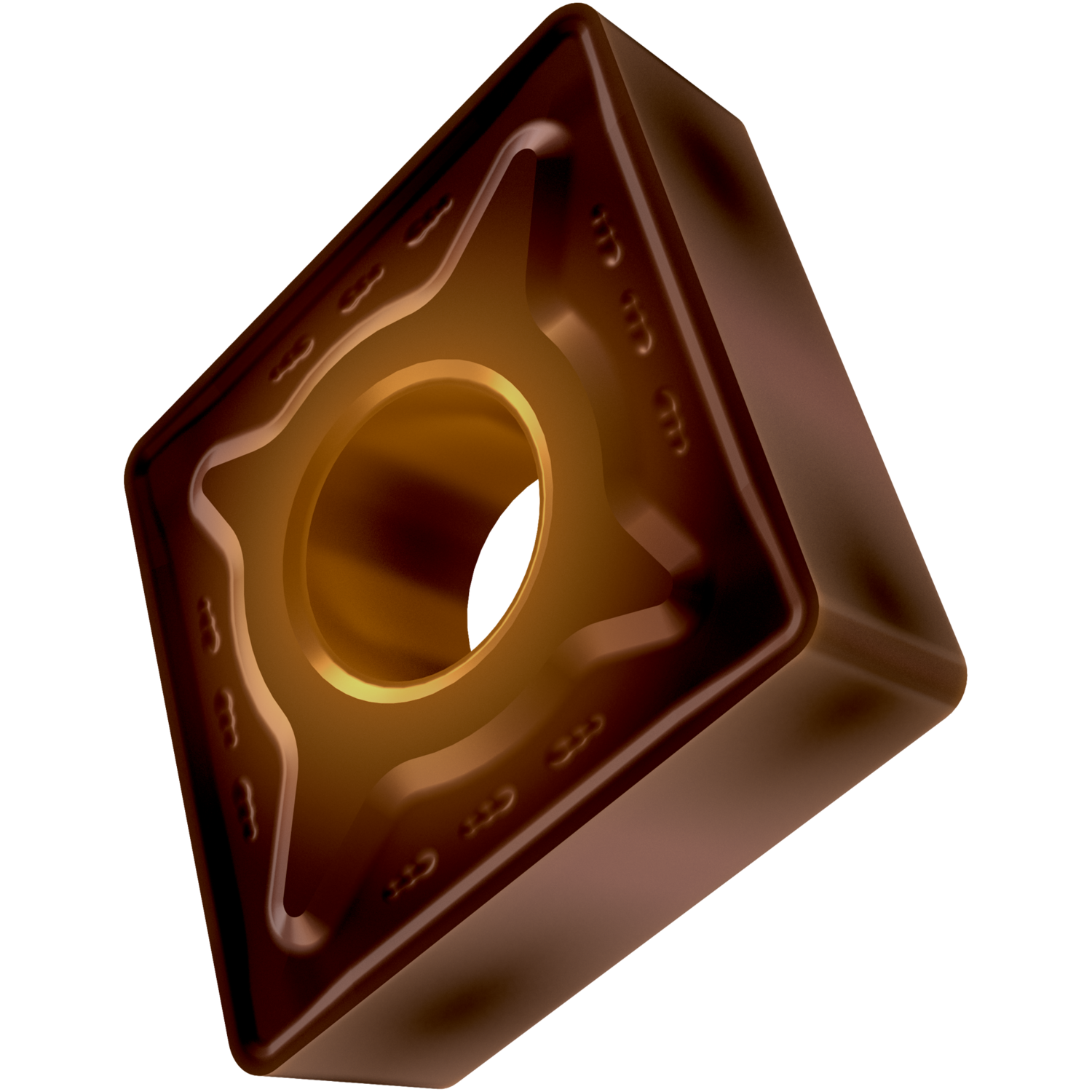

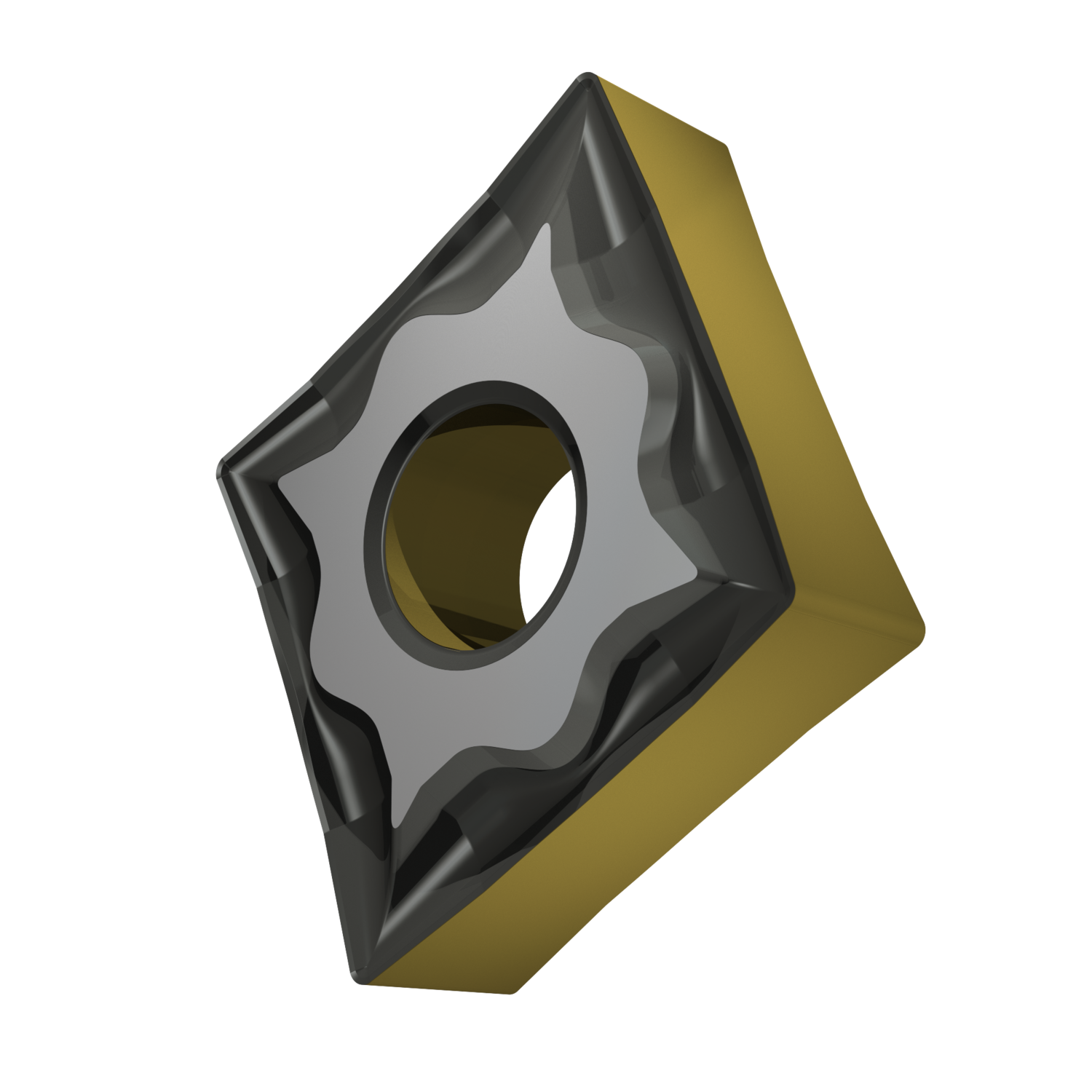

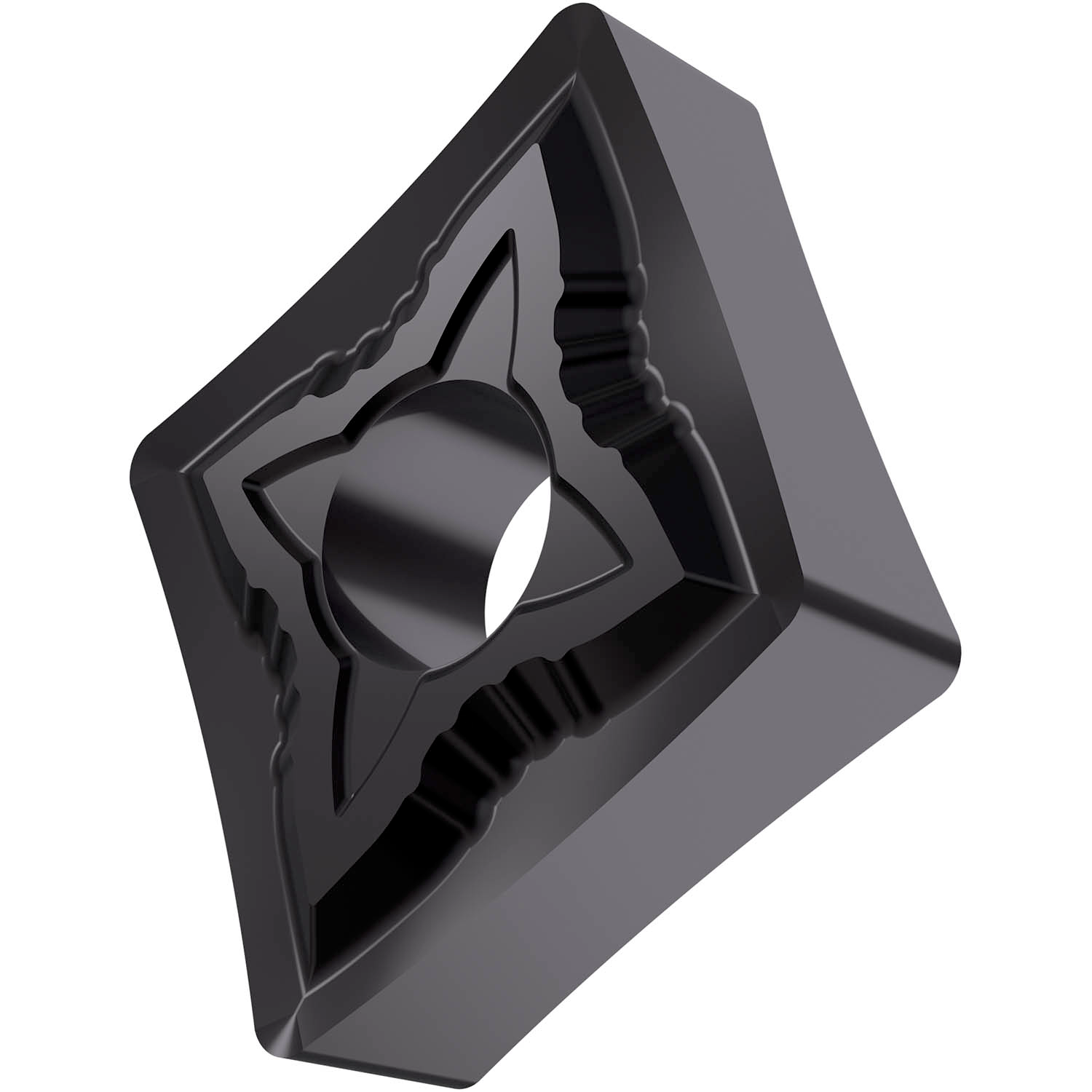

- CNMG

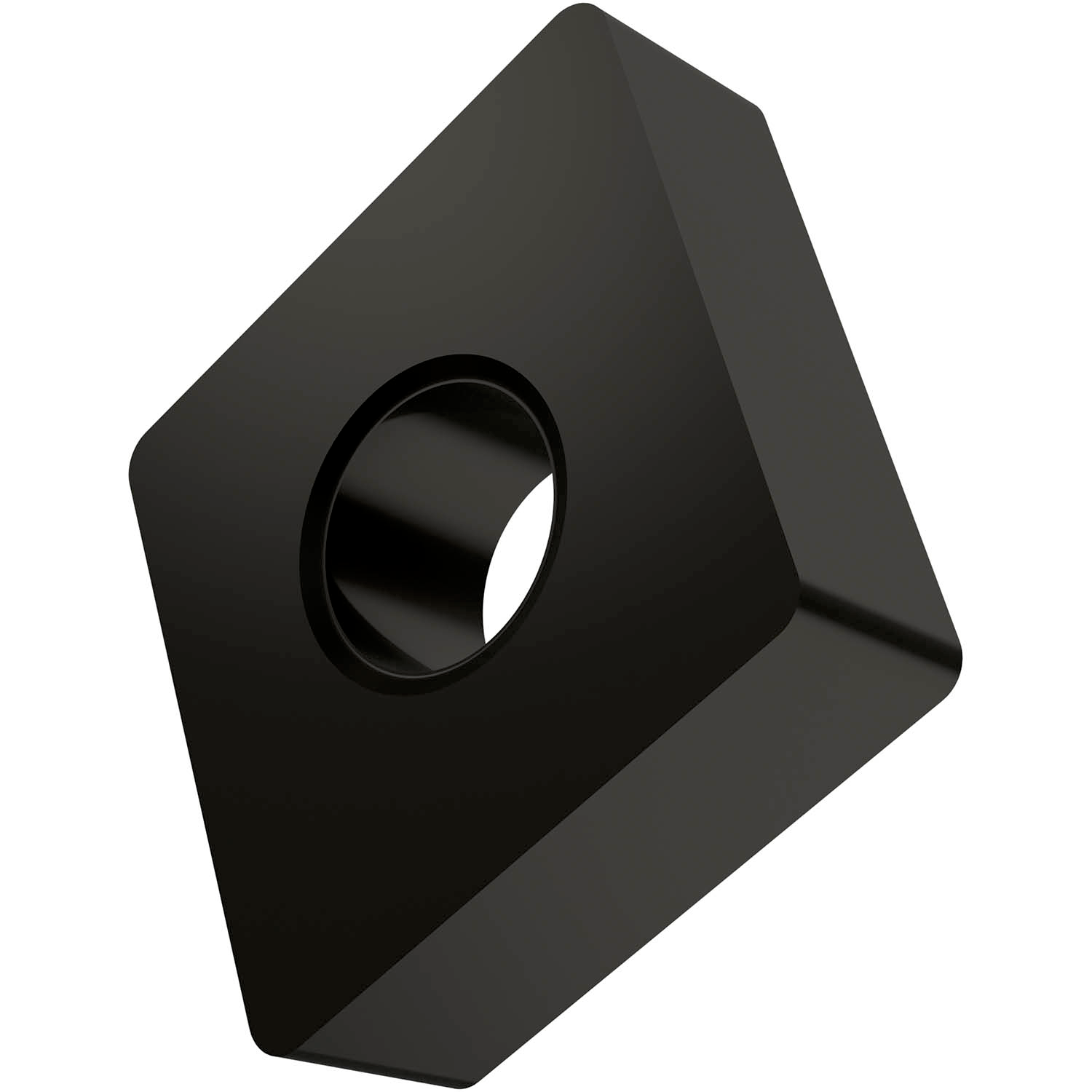

- CNMA

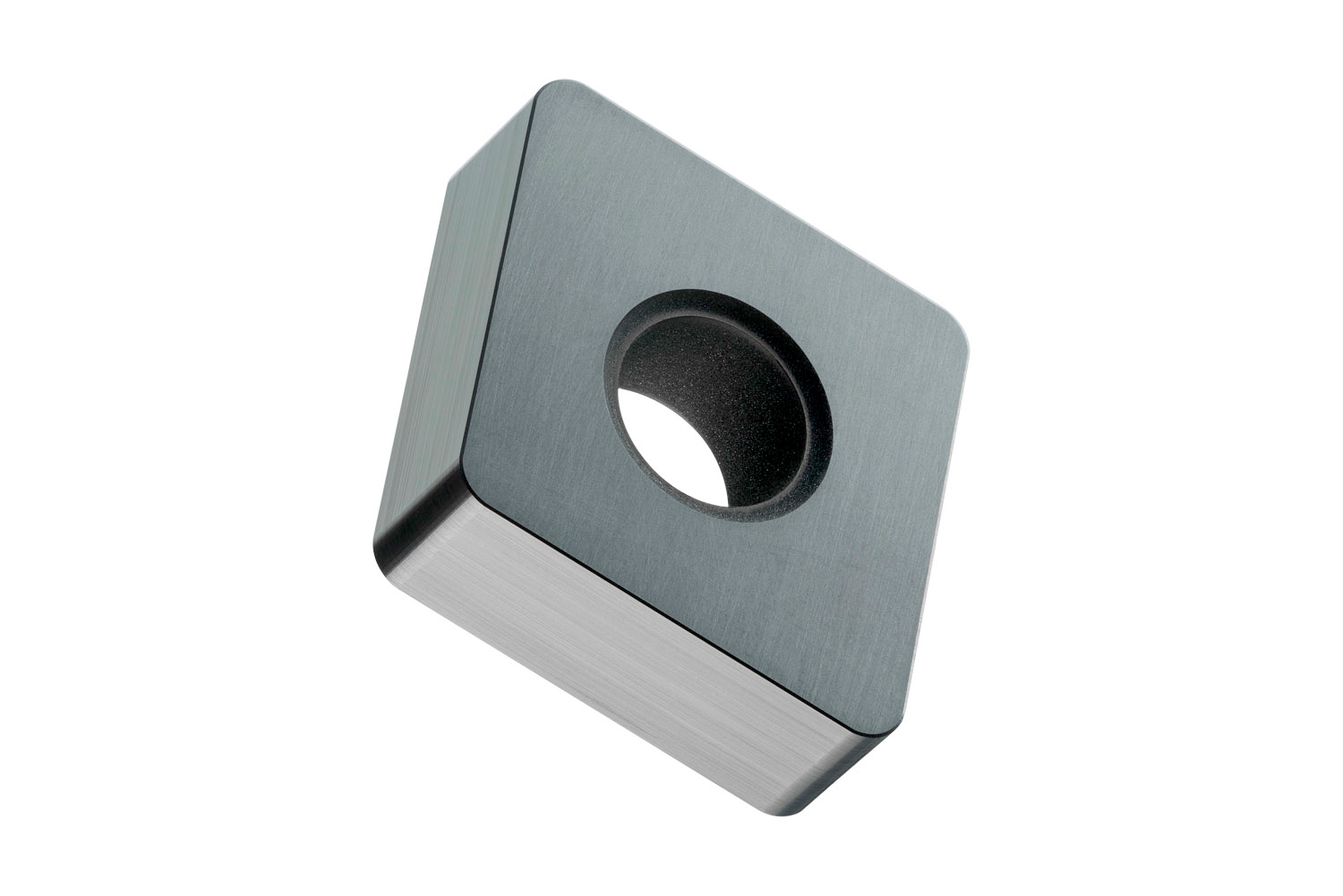

- CNGA
Spare Parts:
CNMG 32. insert: - ICSN 3223 (shim), CL 6 (clamp), XNS-37 (screw clamp), NL 34L (lock pin), CH 5/64 (allen key), CH 3/32 (allen key);
CN.. 43. insert: - ICSN 433 (shim), CL 20 (clamp), XNS-48 (screw clamp), NL 46 (lock pin), CH 1/8 (allen key), CH 3/32 (allen key);
CN.. 54. insert: - ICSN 533 (shim), CL 12 (clamp), XNS-510 (screw clamp), NL 58 (lock pin), CH 1/8 (allen key), CH 5/32 (allen key);
CN.. 64. insert: - ICSN 633 (shim), CL 12 (clamp), XNS-510 (screw clamp), NL 68 (lock pin), CH 9/64 (allen key), CH 5/32 (allen key);
Notes: this product includes shim, clamp group, lock pin and 2 allen keys; inserts are not included.
This holder can mount the following inserts styles:
- CNMG
- CNMA
- CNGA
Spare Parts:
CNMG 32. insert: - ICSN 3223 (shim), CL 6 (clamp), XNS-37 (screw clamp), NL 34L (lock pin), CH 5/64 (allen key), CH 3/32 (allen key);
CN.. 43. insert: - ICSN 433 (shim), CL 20 (clamp), XNS-48 (screw clamp), NL 46 (lock pin), CH 1/8 (allen key), CH 3/32 (allen key);
CN.. 54. insert: - ICSN 533 (shim), CL 12 (clamp), XNS-510 (screw clamp), NL 58 (lock pin), CH 1/8 (allen key), CH 5/32 (allen key);
CN.. 64. insert: - ICSN 633 (shim), CL 12 (clamp), XNS-510 (screw clamp), NL 68 (lock pin), CH 9/64 (allen key), CH 5/32 (allen key);
Notes: this product includes shim, clamp group, lock pin and 2 allen keys; inserts are not included.
Product Name
A
B
L
C
L1
SFM
