MDJNR / L

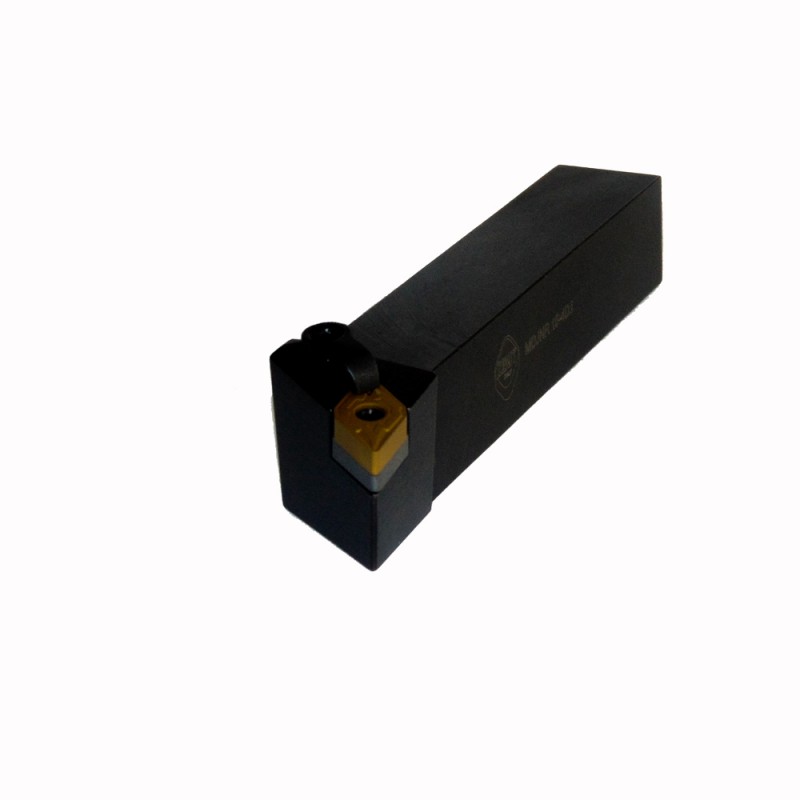

MDJNR/L External holder for turning application. It is used on CNC and manual lathe. It can be right (R) and left (L) hand.

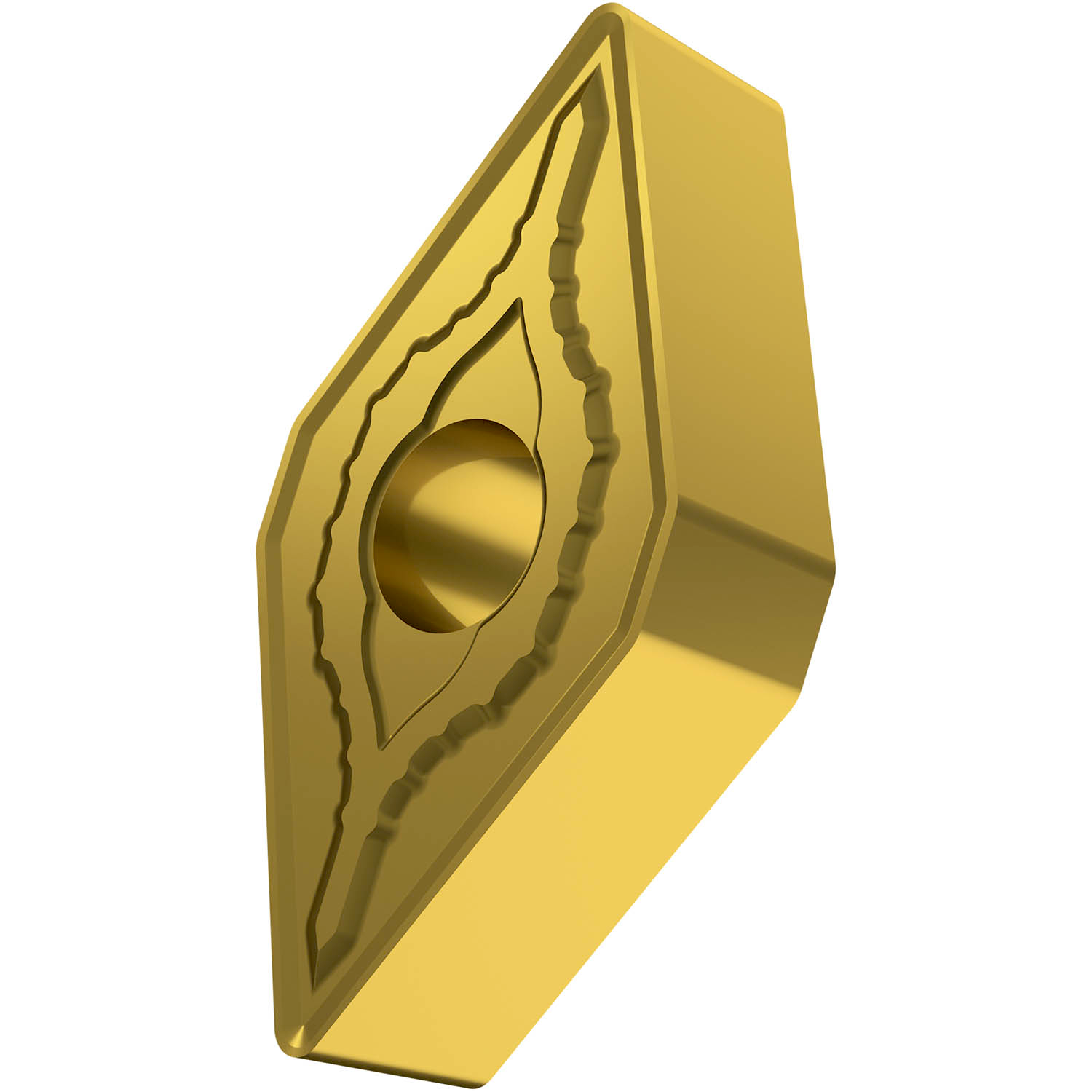

This holder can mount the following inserts:
- DNMG
- DNMA
- DNGA
Spare Parts:
DNMG 33. insert: - IDSN 322 (shim), CL 7 (clamp), XNS-37 (screw clamp), NL 34L (lock pin), CH 5/64 (allen key), CH 3/32 (allen key);
DN.. 43. insert: - IDSN 433 (shim), CL 20 (clamp), XNS-48(screw clamp), NL 46 (lock pin), CH 1/8 (allen key), CH 3/32 (allen key);
Notes: this product includes shim, clamp group, lock pin and 2 allen keys; inserts are not included.
This holder can mount the following inserts:
- DNMG
- DNMA
- DNGA
Spare Parts:
DNMG 33. insert: - IDSN 322 (shim), CL 7 (clamp), XNS-37 (screw clamp), NL 34L (lock pin), CH 5/64 (allen key), CH 3/32 (allen key);
DN.. 43. insert: - IDSN 433 (shim), CL 20 (clamp), XNS-48(screw clamp), NL 46 (lock pin), CH 1/8 (allen key), CH 3/32 (allen key);
Notes: this product includes shim, clamp group, lock pin and 2 allen keys; inserts are not included.

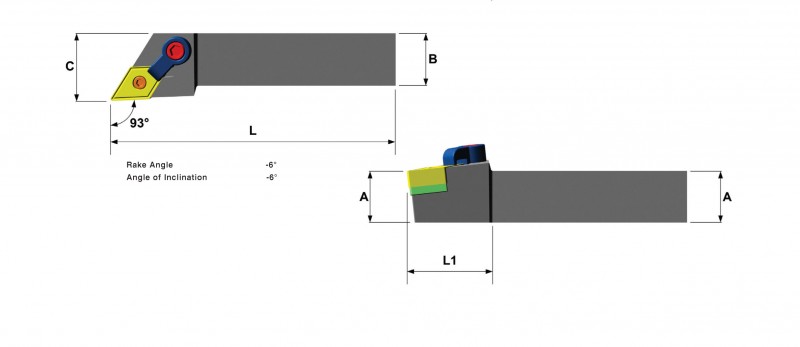

Product Name
A
B
L
C
L1
SFM
