MFLSR / L

MFLSR / L

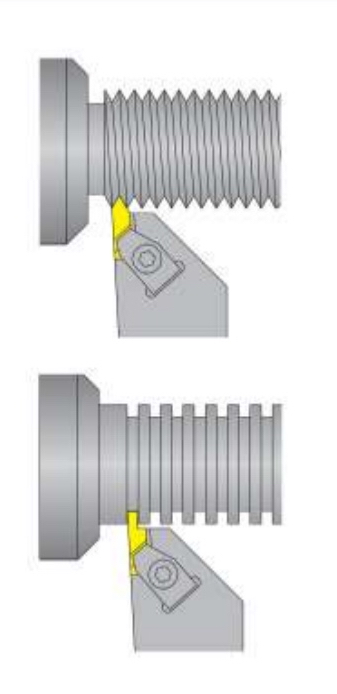

MFLSR/L External holder for threading and grooving application. It mounts Top Notch style inserts. Right Holder(R) mounts Right Top Notch inserts(R);
               Left Holder(L) mounts Left Top Notch inserts (L).
              Spare Parts:

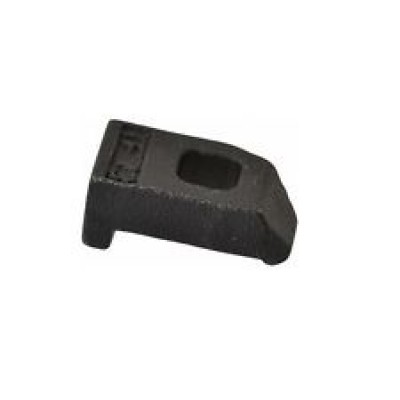

              - CM (clamp);          Correlations: 2R CM....CM74; 2L ...CM75; 3R and 4r.... CM72; 3L and 4L ....CM73.

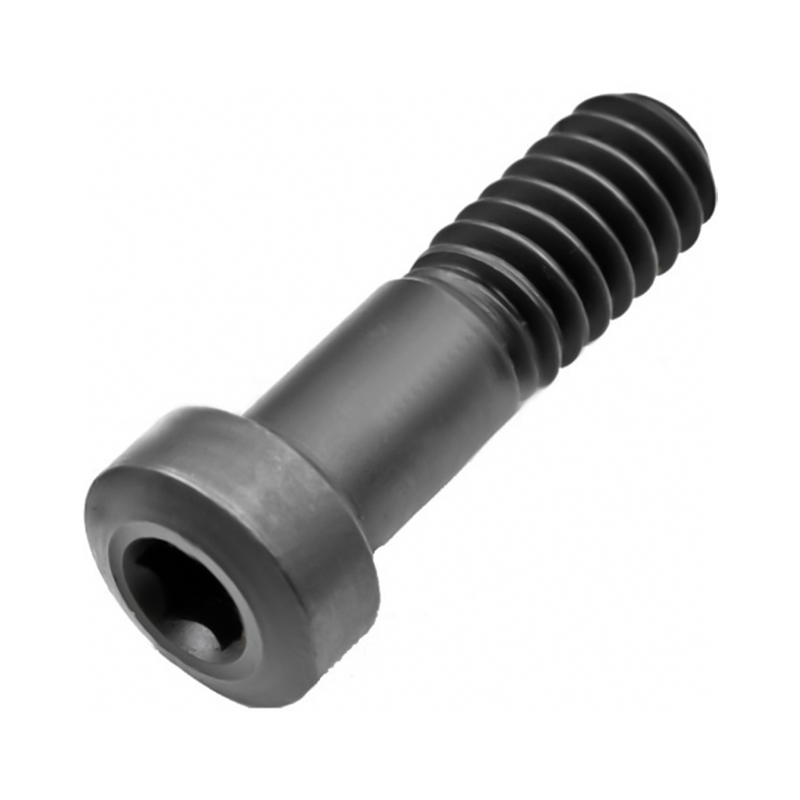

              - S- (screw clamp)   Correlations: CM74 and CM75...S-310; CM72 and CM73 .....S-412.
              - CH (allen key)       Correlations: S-310...CH 2,5;  S-412...CH 5/32.
              This holder can mount the following inserts:

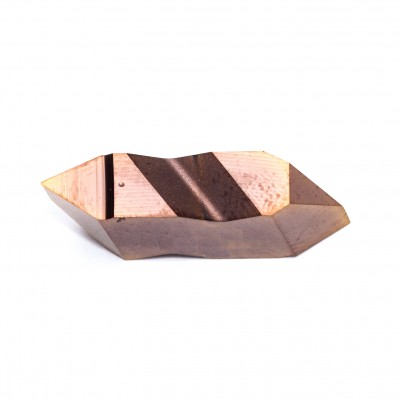

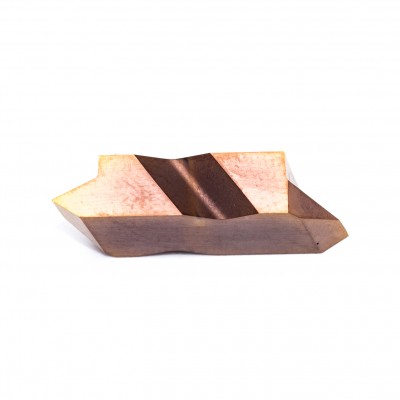

              - ZNT (threading)

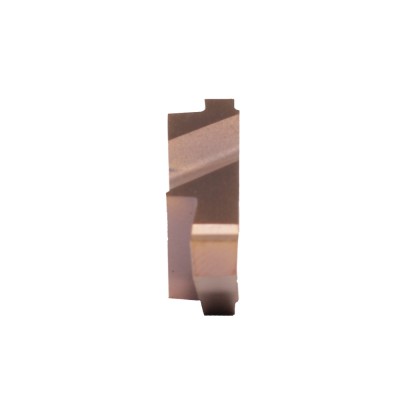

              - ZNG (grooving)

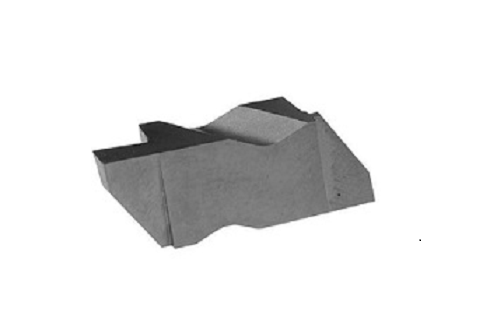

              - ZNR  (full radius)
              Notes: this product includes clamp, screw clamp and an allen key; inserts are not included.


Tech Data File

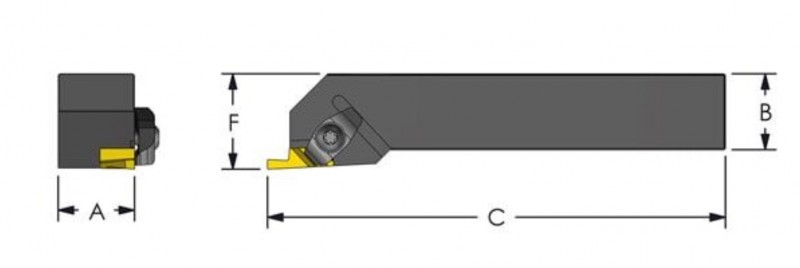

Product Name B A C L1 E F SFM
MFLSL 10-2B B:.625 A:.625 C:4.500 L1:.138 E:.750 F:.875 Only for registered users
Related Products
MFLSR 10-2B B:.625 A:.625 C:4.500 L1:.138 E:.750 F:.875 Only for registered users
Related Products
MFLSL 12-2B B:.750 A:.750 C:4.500 L1:.138 E:.750 F:1.000 Only for registered users
Related Products
MFLSR 12-2B B:.750 A:.750 C:4.500 L1:.138 E:.750 F:1.000 Only for registered users
Related Products
MFLSL 16-2D B:1.000 A:1.000 C:6.000 L1:.138 E:.750 F:1.250 Only for registered users
Related Products
MFLSR 16-2D B:1.000 A:1.000 C:6.000 L1:.138 E:.750 F:1.250 Only for registered users
Related Products
MFLSL 12-3B B:.750 A:.750 C:4.500 L1:.210 E:1.250 F:1.000 Only for registered users
Related Products
MFLSR 12-3B B:.750 A:.750 C:4.500 L1:.210 E:1.250 F:1.000 Only for registered users
Related Products
MFLSL 16-3D B:1.000 A:1.000 C:6.000 L1:.210 E:1.250 F:1.250 Only for registered users
Related Products
MFLSR 16-3D B:1.000 A:1.000 C:6.000 L1:.210 E:1.250 F:1.250 Only for registered users
Related Products
MFLSL 20-3D B:1.250 A:1.250 C:6.000 L1:.210 E:1.250 F:1.500 Only for registered users
Related Products
MFLSR 20-3D B:1.250 A:1.250 C:6.000 L1:.210 E:1.250 F:1.500 Only for registered users
Related Products
MFLSL 16-4D B:1.000 A:1.000 C:6.000 L1:.294 E:1.380 F:1.250 Only for registered users
Related Products
MFLSR 16-4D B:1.000 A:1.000 C:6.000 L1:.294 E:1.380 F:1.250 Only for registered users
Related Products
MFLSL 20-4D B:1.250 A:1.250 C:6.000 L1:.294 E:1.380 F:1.500 Only for registered users
Related Products
MFLSR 20-4D B:1.250 A:1.250 C:6.000 L1:.294 E:1.380 F:1.500 Only for registered users
