Turning Holders / Negative External Holder / RN INSERT / MRGNR / L

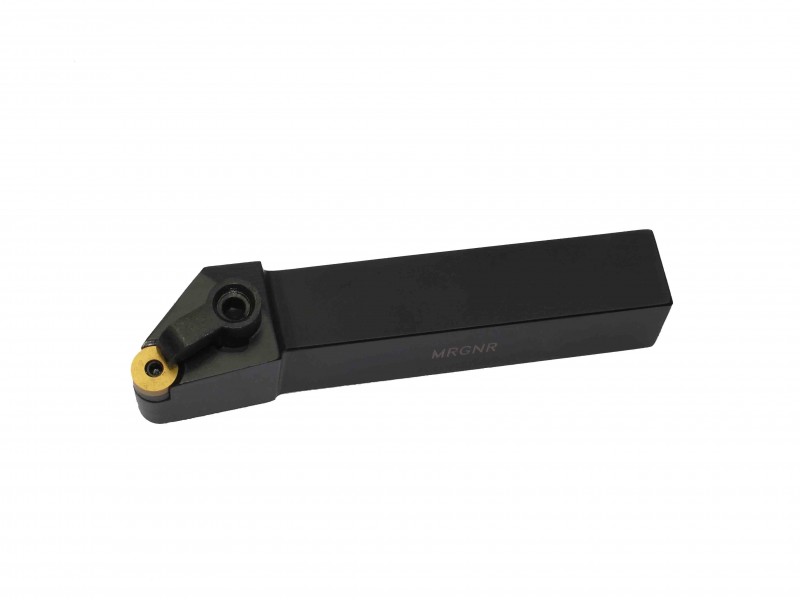

MRGNR/L  External holder for turning application. It is used  on CNC and manual lathe. It can be right (R) and left (L) hand.
                 We suggest this holder to profiling and roundfacing.
                This holder can mount the following inserts:
                - RNMA
                - RNMG
                - RNMM
               Spare Parts:

  RN.. 32. insert:  - NL-33 (lock pin), CL-6 (clamp), XNS-36 (screw clamp), CH 5/64 (allen key), CH 3/32 (allen key);

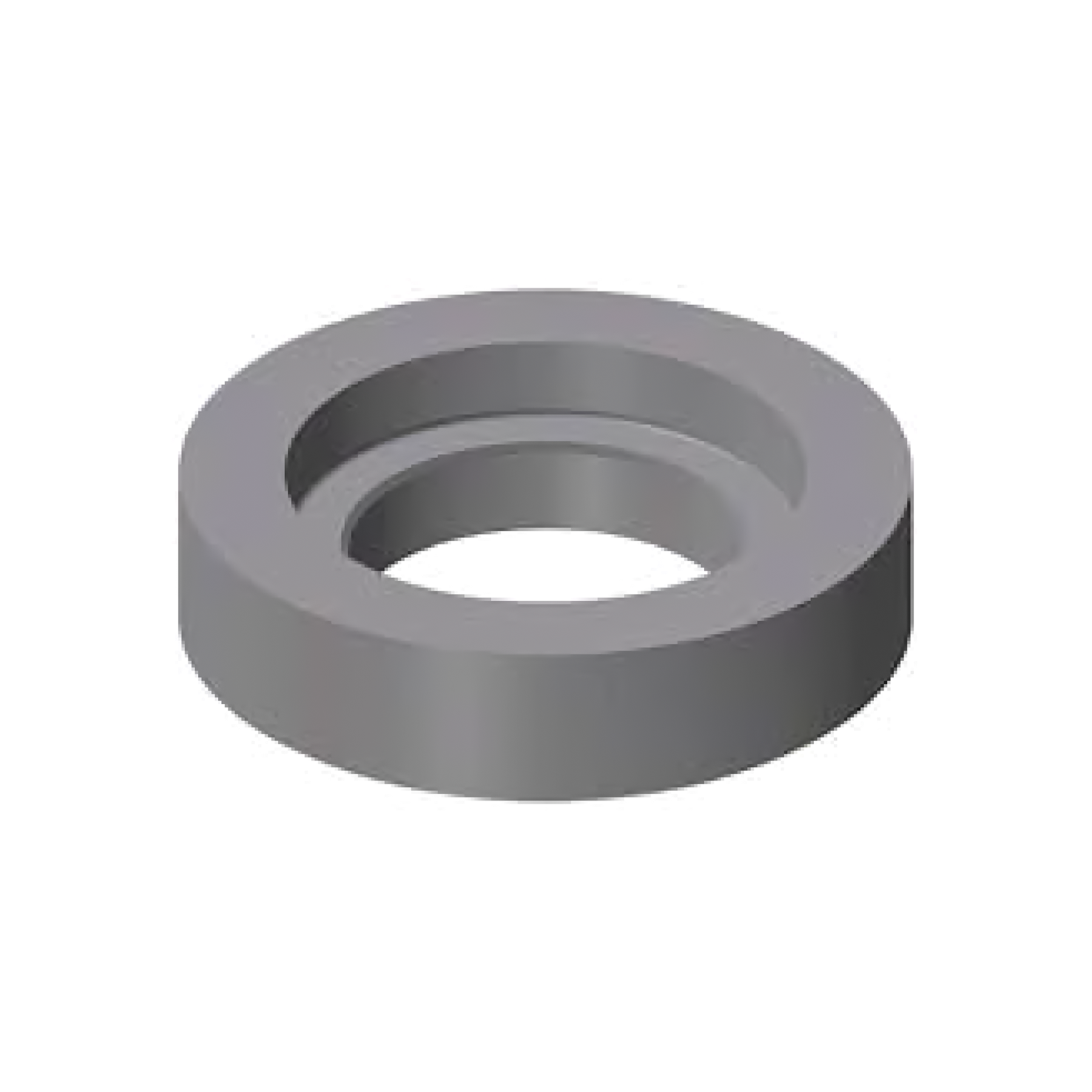

               RN.. 43. insert:  - IRSN 43 (shim), NL-46 (lock pin), CL-20 (clamp), XNS-48 (screw clamp), CH 3/32 (allen key), CH 1/8 (allen key);

               Notes: this product includes shim, clamp group, lock pin and 2 allen keys; inserts are not included.
Variants A B L C L1
MRGNL 12-3B.i
Related Products
.750 .750 4.500 1.000 1.142 Only for registered users
MRGNR 12-3B.i
Related Products
.750 .750 4.500 1.000 1.142 Only for registered users
MRGNL 12-4B.i
Related Products
.750 .750 4.500 1.000 1.142 Only for registered users
MRGNR 12-4B.i
Related Products
.750 .750 4.500 1.000 1.142 Only for registered users
MRGNL 16-4D.i
Related Products
1.000 1.000 6.000 1.250 1.142 Only for registered users
MRGNR 16-4D.i
Related Products
1.000 1.000 6.000 1.250 1.142 Only for registered users
MRGNL 20-4D.i
Related Products
1.250 1.250 6.000 1.500 1.496 Only for registered users
MRGNR 20-4D.i
Related Products
1.250 1.250 6.000 1.500 1.496 Only for registered users
Product available - Product NOT available
