MWLNR / L
MWLNR External holder for turning application. It is used on CNC and manual lathe. It can be only right or left hand.
We suggest this holder for facing.

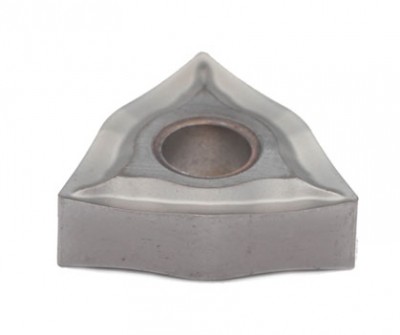

This holder can mount the following inserts:
- WNMA

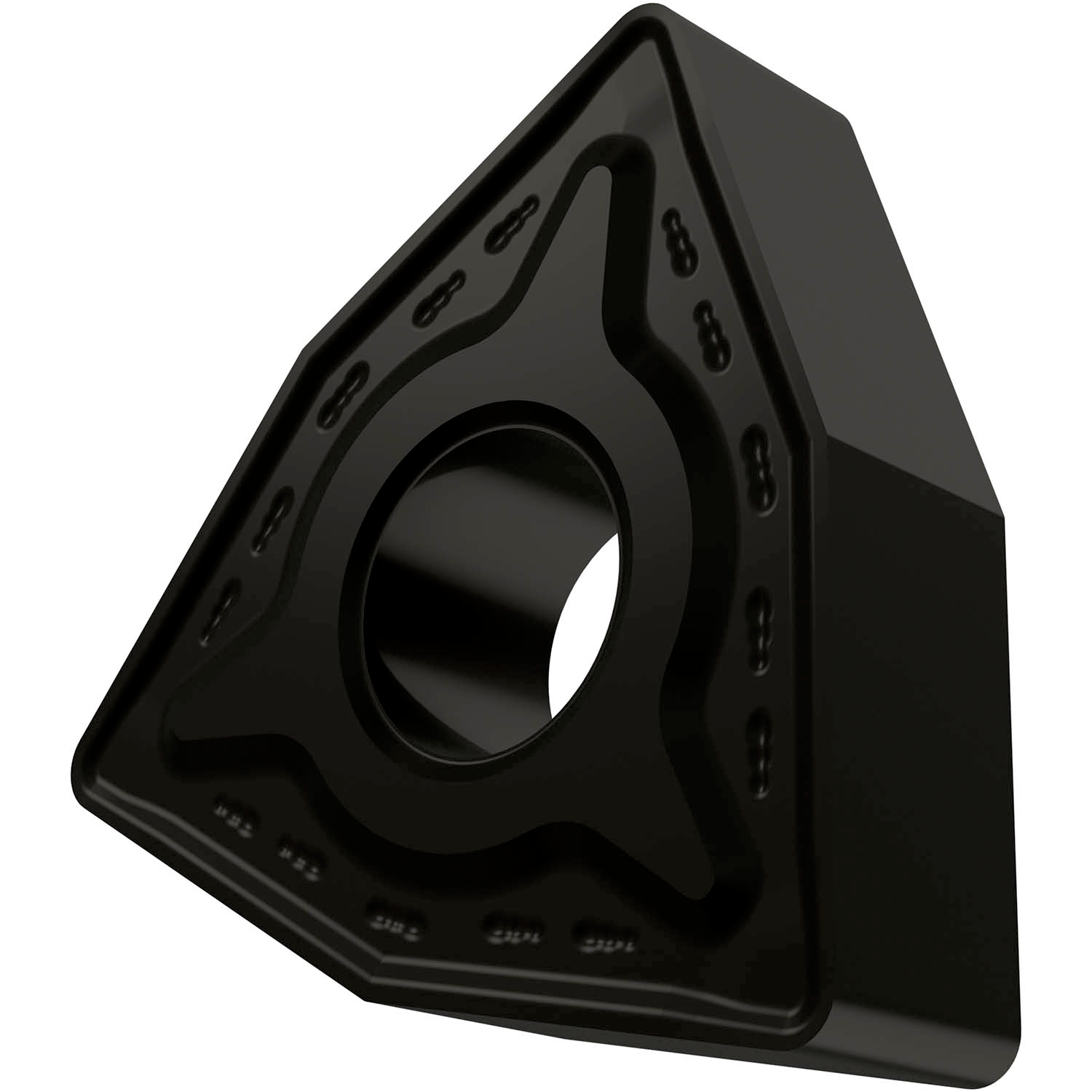

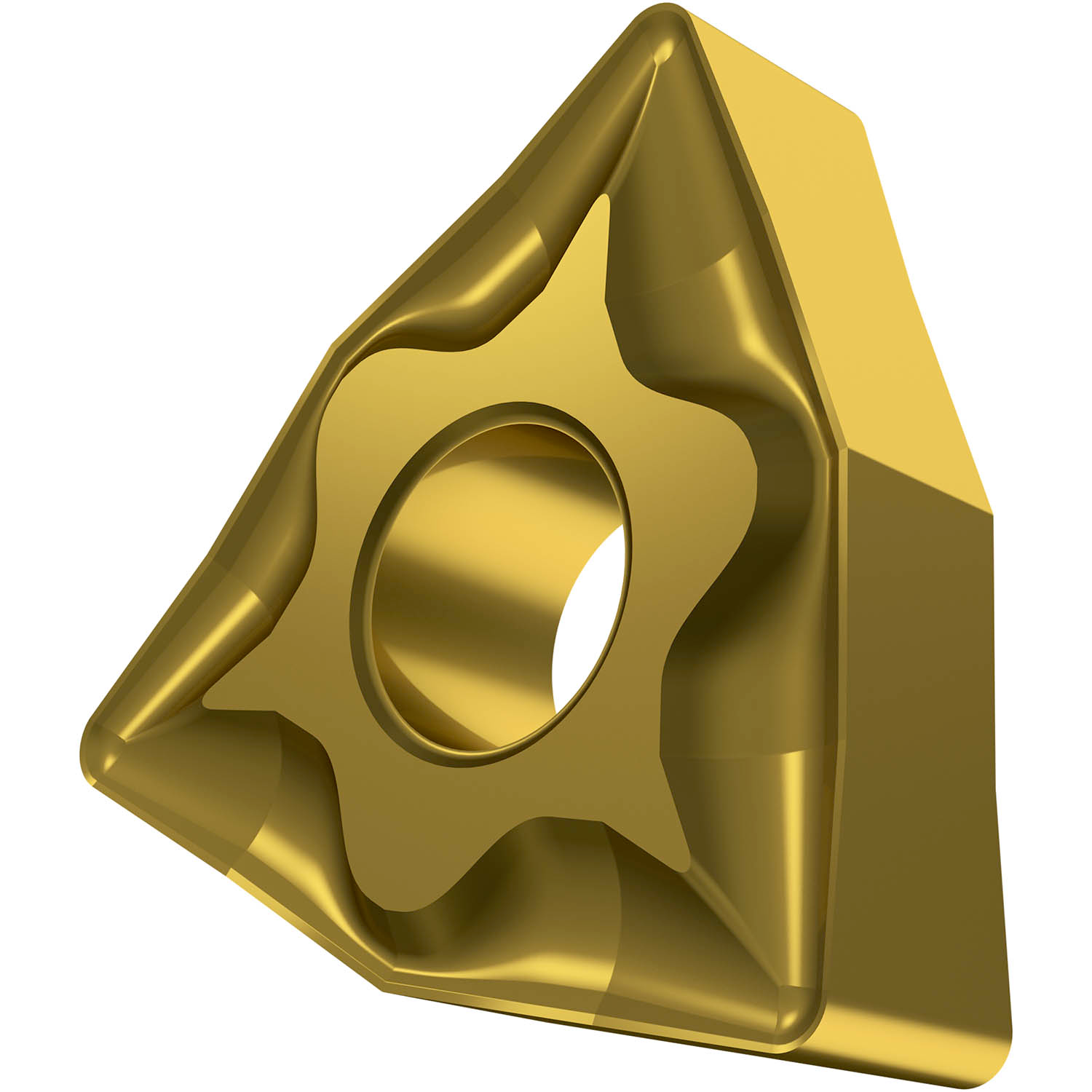

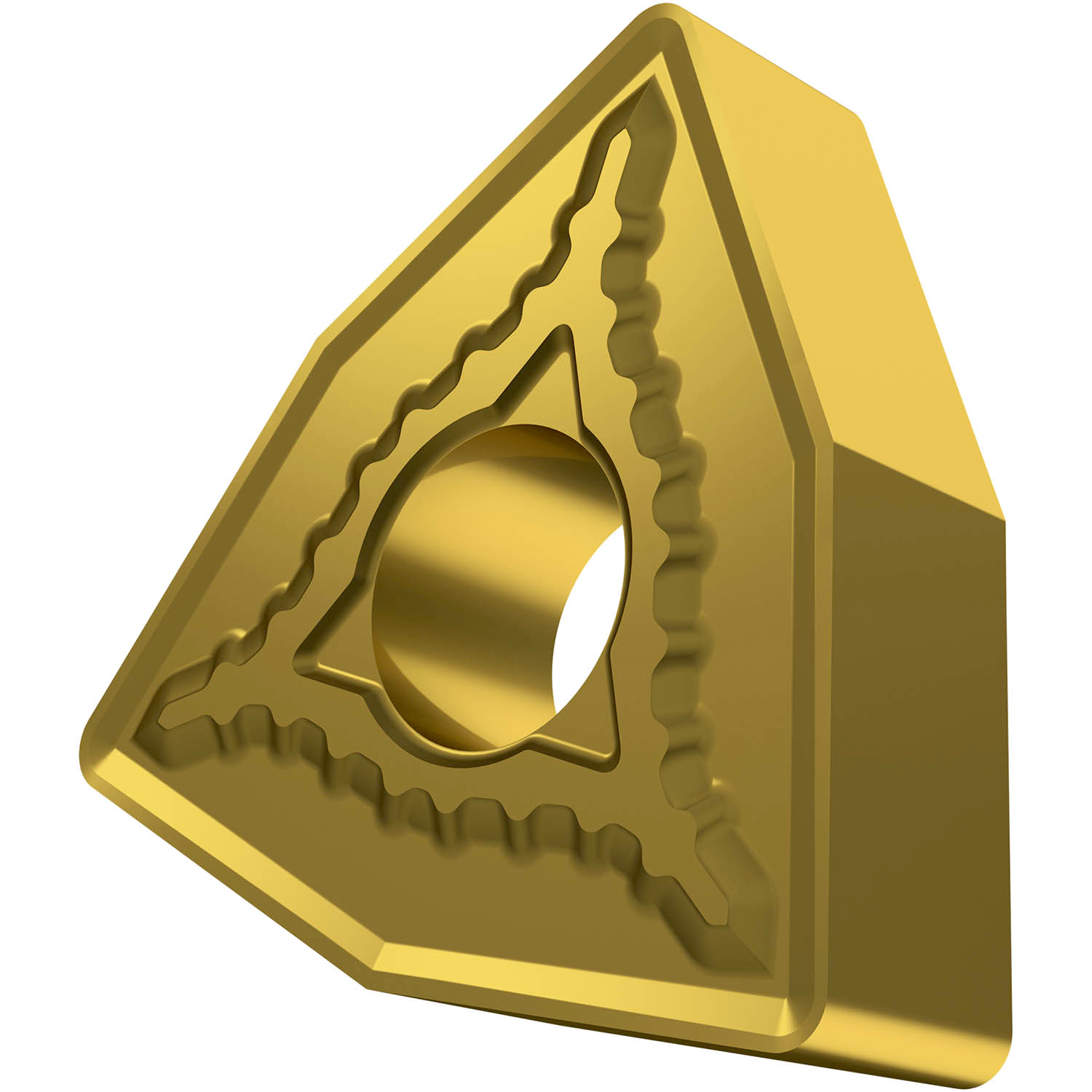

- WNMG
- WNMM
Spare Parts:
WN.. 32. insert: - IWSN 322 (shim), NL-34L (lock pin), CL-6 (clamp), XNS-37 (screw clamp), CH 5/64 (allen key), CH 3/32 (allen key);
WN.. 43. insert: - IWSN 433 (shim), NL-46 (lock pin), CL-12 (clamp), XNS-510 (screw clamp), CH 3/32 (allen key), CH 5/32 (allen key);
Notes: this product includes shim, clamp group, lock pin and 2 allen keys; inserts are not included
We suggest this holder for facing.
This holder can mount the following inserts:
- WNMA
- WNMG
- WNMM
Spare Parts:
WN.. 32. insert: - IWSN 322 (shim), NL-34L (lock pin), CL-6 (clamp), XNS-37 (screw clamp), CH 5/64 (allen key), CH 3/32 (allen key);
WN.. 43. insert: - IWSN 433 (shim), NL-46 (lock pin), CL-12 (clamp), XNS-510 (screw clamp), CH 3/32 (allen key), CH 5/32 (allen key);
Notes: this product includes shim, clamp group, lock pin and 2 allen keys; inserts are not included

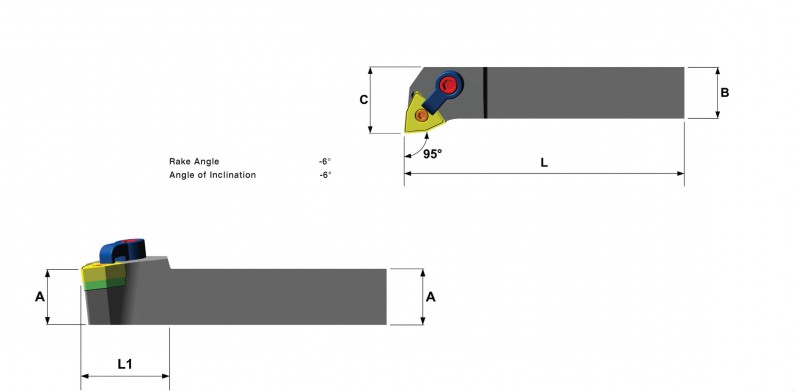

Product Name
A
B
L
C
L1
SFM
