S.. MTFNR / L

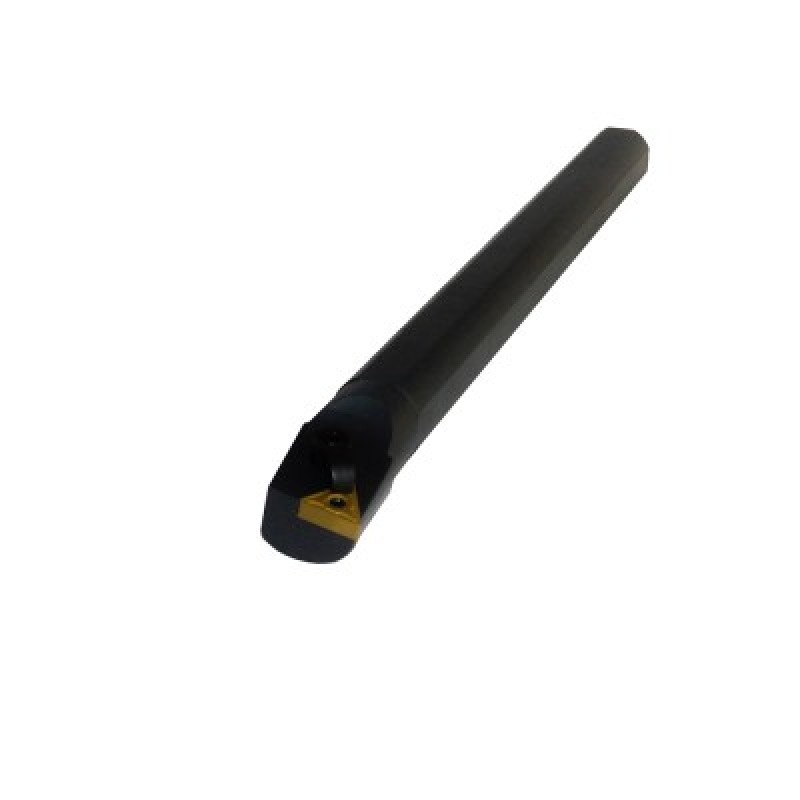

S..MTFNR/L Boring bars for turning application. It is used on CNC and manual lathe. It can be right or left hand.
We suggest this holder for internal finishing turning operations.
This holder can mount the following inserts:
- TNMA
- TNMG
- TNMM
Spare Parts:
S16T.. 33. insert: - NL-34L (lock pin), CL-20 (clamp), XNS-48 (screw clamp), CH 5/64 (allen key), CH 1/8 (allen key);
TN.. 33. insert: - ITSN-322 (shim), NL-34L (lock pin), CL-20 (clamp), XNS-48 (screw clamp), CH 5/64 (allen key), CH 1/8 (allen key);
Notes: this product includes shim, clamp group, lock pin and 2 allen keys; inserts are not included
We suggest this holder for internal finishing turning operations.
This holder can mount the following inserts:
- TNMA
- TNMG
- TNMM
Spare Parts:
S16T.. 33. insert: - NL-34L (lock pin), CL-20 (clamp), XNS-48 (screw clamp), CH 5/64 (allen key), CH 1/8 (allen key);
TN.. 33. insert: - ITSN-322 (shim), NL-34L (lock pin), CL-20 (clamp), XNS-48 (screw clamp), CH 5/64 (allen key), CH 1/8 (allen key);
Notes: this product includes shim, clamp group, lock pin and 2 allen keys; inserts are not included
Product Name
D
L
C
F
α
SFM
