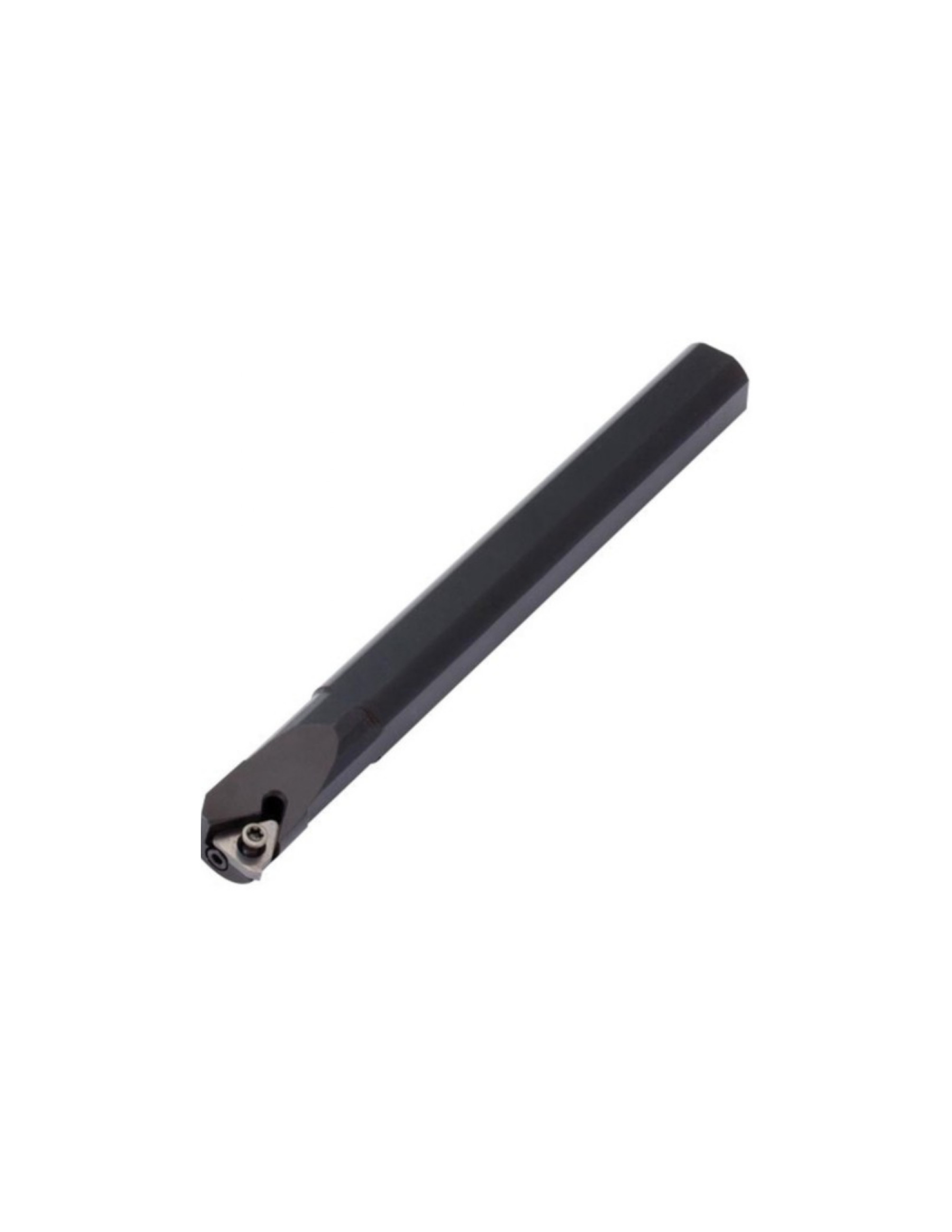

S.. ZSNR/L Internal lay down holder for threading application. The right bar(R) mounts NR style inserts.
The left bar(L) mounts NL style inserts.

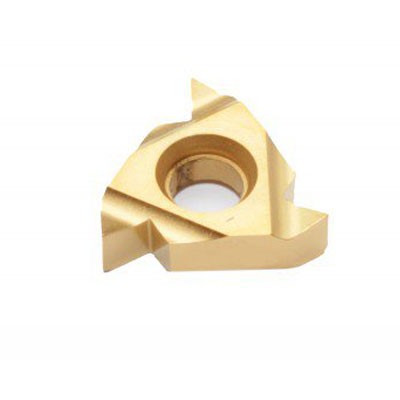

This holder can mount the following inserts:
- Z11NR/NL (2)
- Z16NR/NL (3)
- Z22NR/NL (4)
Spare Parts:
Z11NR/NL - TS-25.4-6M2 (screw);
- CT 08 (screwdriver) for TS-25.4-6M2;
Z16NR/NL - TS-16 (screw);
- CT 10 (screwdriver) for TS-16;
Z22NR/NL - TS-22 (screw);
- CT 20 (screwdriver) for TS-22
Notes: this product includes one screw and a screwdriver; inserts are not included.
The left bar(L) mounts NL style inserts.
This holder can mount the following inserts:
- Z11NR/NL (2)
- Z16NR/NL (3)
- Z22NR/NL (4)
Spare Parts:
Z11NR/NL - TS-25.4-6M2 (screw);
- CT 08 (screwdriver) for TS-25.4-6M2;
Z16NR/NL - TS-16 (screw);
- CT 10 (screwdriver) for TS-16;
Z22NR/NL - TS-22 (screw);
- CT 20 (screwdriver) for TS-22
Notes: this product includes one screw and a screwdriver; inserts are not included.

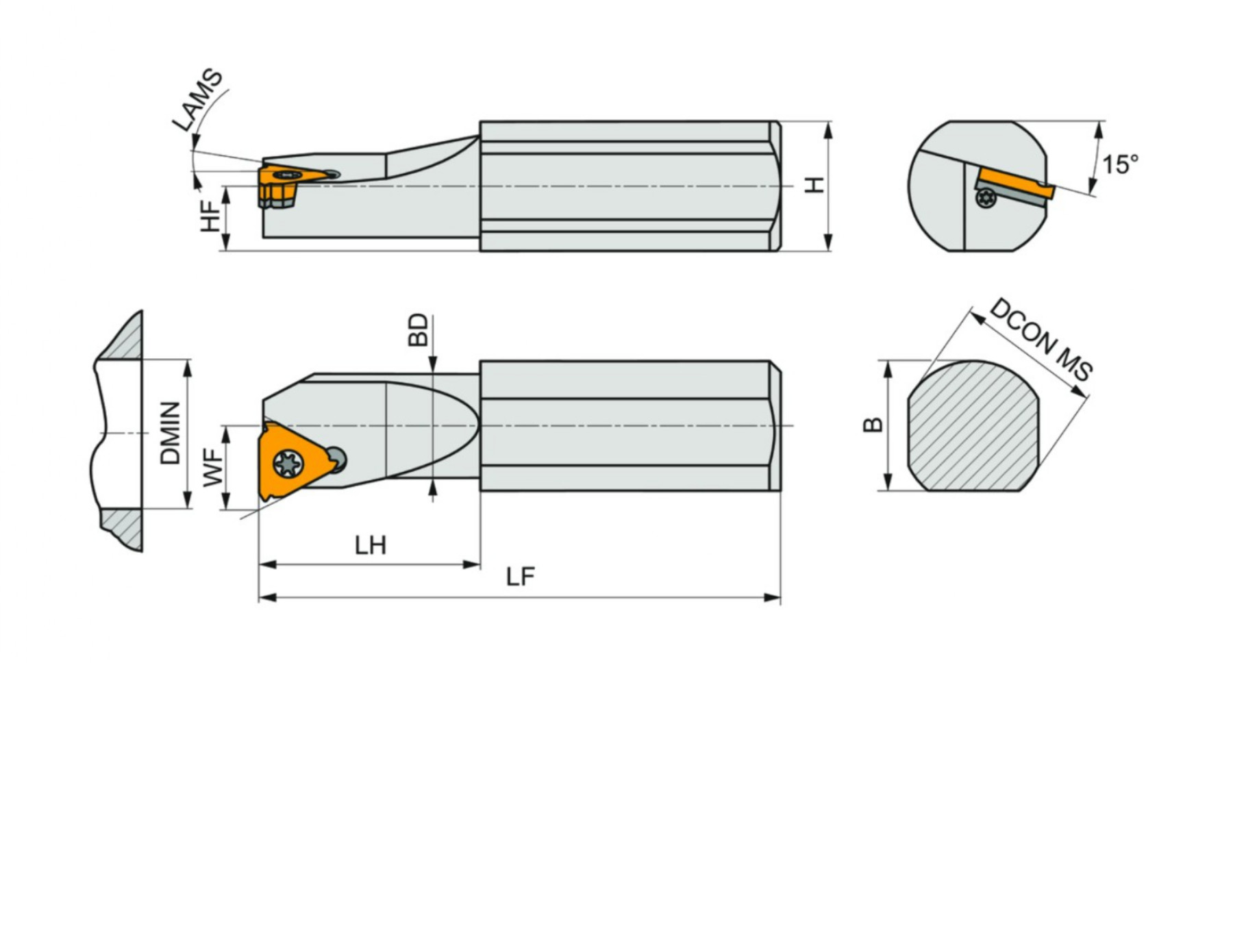

Product Name
D
d1
F
L1
L
Dmin
SFM
S06K ZSNL 2
D:.625
d1:.380
F:.295
L1:1.000
L:5.000
Dmin:.500
Only for registered users
Related Products
S06K ZSNR 2
D:.625
d1:.380
F:.295
L1:1.000
L:5.000
Dmin:.500
Only for registered users
Related Products
S08M ZSNL 2
D:.625
d1:.500
F:.550
L1:1.250
L:6.000
Dmin:.630
Only for registered users
Related Products
S08M ZSNR 2
D:.625
d1:.500
F:.550
L1:1.250
L:6.000
Dmin:.630
Only for registered users
Related Products
S20S ZSNL 3
D:1.250
d1:-
F:1.000
L1:-
L:10.000
Dmin:1.400
Only for registered users
Related Products
S20S ZSNL 4
D:1.250
d1:-
F:1.000
L1:-
L:10.000
Dmin:1.450
Only for registered users
Related Products
S20S ZSNR 3
D:1.250
d1:-
F:1.000
L1:-
L:10.000
Dmin:1.400
Only for registered users
Related Products
S20S ZSNR 4
D:1.250
d1:-
F:1.000
L1:-
L:10.000
Dmin:1.450
Only for registered users
Related Products
S24T ZSNL 4
D:1.500
d1:-
F:1.450
L1:-
L:12.000
Dmin:1.750
Only for registered users
Related Products
S24T ZSNR 4
D:1.500
d1:-
F:1.450
L1:-
L:12.000
Dmin:1.750
Only for registered users
Related Products
