SUPER 6 (TNGX 1606..)

SUPER 6 (TNGX 1606..)

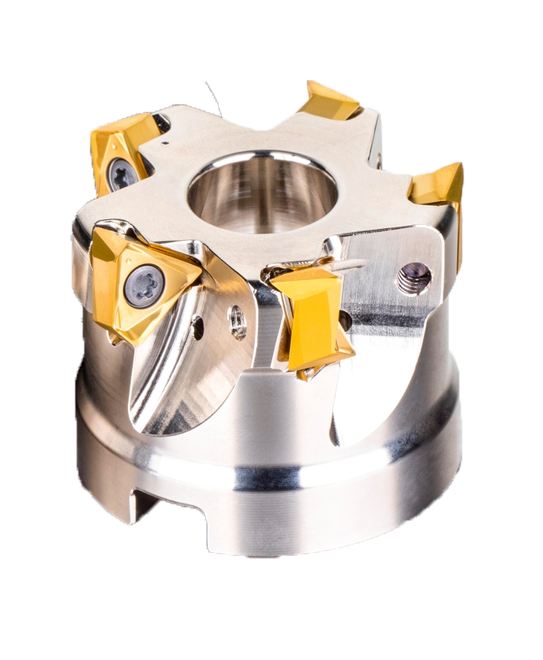

SUPER 6 Shoulder shell mill with double negative geometry which utilises
                  - TNGX 1606..
                  It has 90° approach angle, through coolant and differential pitch for face milling, shallow shoulder milling, shallow slot milling and helical milling in pre-machined holes

DOWNLOAD the .STP file in the SFM column of every size

                  Spare parts:
                  - TX 40G (screws)
                  - CT 15 (screwdriver)
                 Notes: This product includes screws and the screwdriver. Inserts are not included.
Product Name D T C E L1 B F SFM
SUPER6.15.16.4.SM D:1.500 T:4 C:.500 E:.260 L1:1.575 B:.409 F:.165
File SFM
Only for registered users
Related Products
SUPER6.20.16.4.SM D:2.000 T:4 C:.750 E:.323 L1:1.575 B:.630 F:.193
File SFM
Only for registered users
Related Products
SUPER6.20.16.5.SM D:2.000 T:5 C:.750 E:.323 L1:1.575 B:.630 F:.193
File SFM
Only for registered users
Related Products
SUPER6.25.16.4.SM D:2.500 T:4 C:.750 E:.323 L1:1.575 B:.630 F:.193
File SFM
Only for registered users
Related Products
SUPER6.25.16.5.SM D:2.500 T:5 C:.750 E:.323 L1:1.575 B:.630 F:.193
File SFM
Only for registered users
Related Products
SUPER6.30.16.5.SM D:3.000 T:5 C:1.000 E:.382 L1:1.969 B:.827 F:.224
File SFM
Only for registered users
Related Products
SUPER6.30.16.7.SM D:3.000 T:7 C:1.000 E:.382 L1:1.969 B:.827 F:.224
File SFM
Only for registered users
Related Products
SUPER6.40.16.6.SM D:4.000 T:6 C:1.500 E:.634 L1:1.969 B:1.417 F:.382
File SFM
Only for registered users
