SUPER 6W (TNGX 1606)

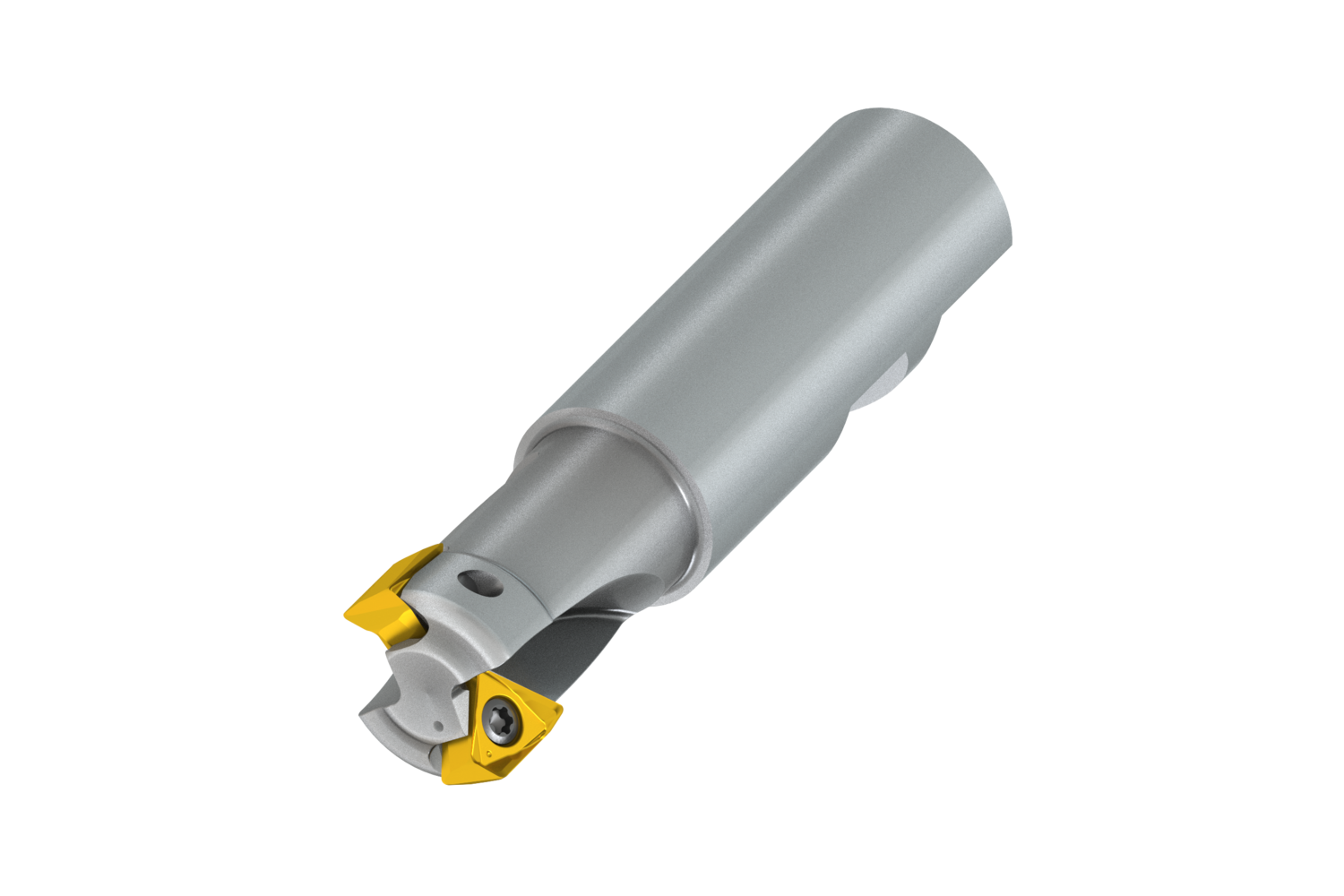

SUPER 6W Shoulder end mill with double negative geometry which utilises

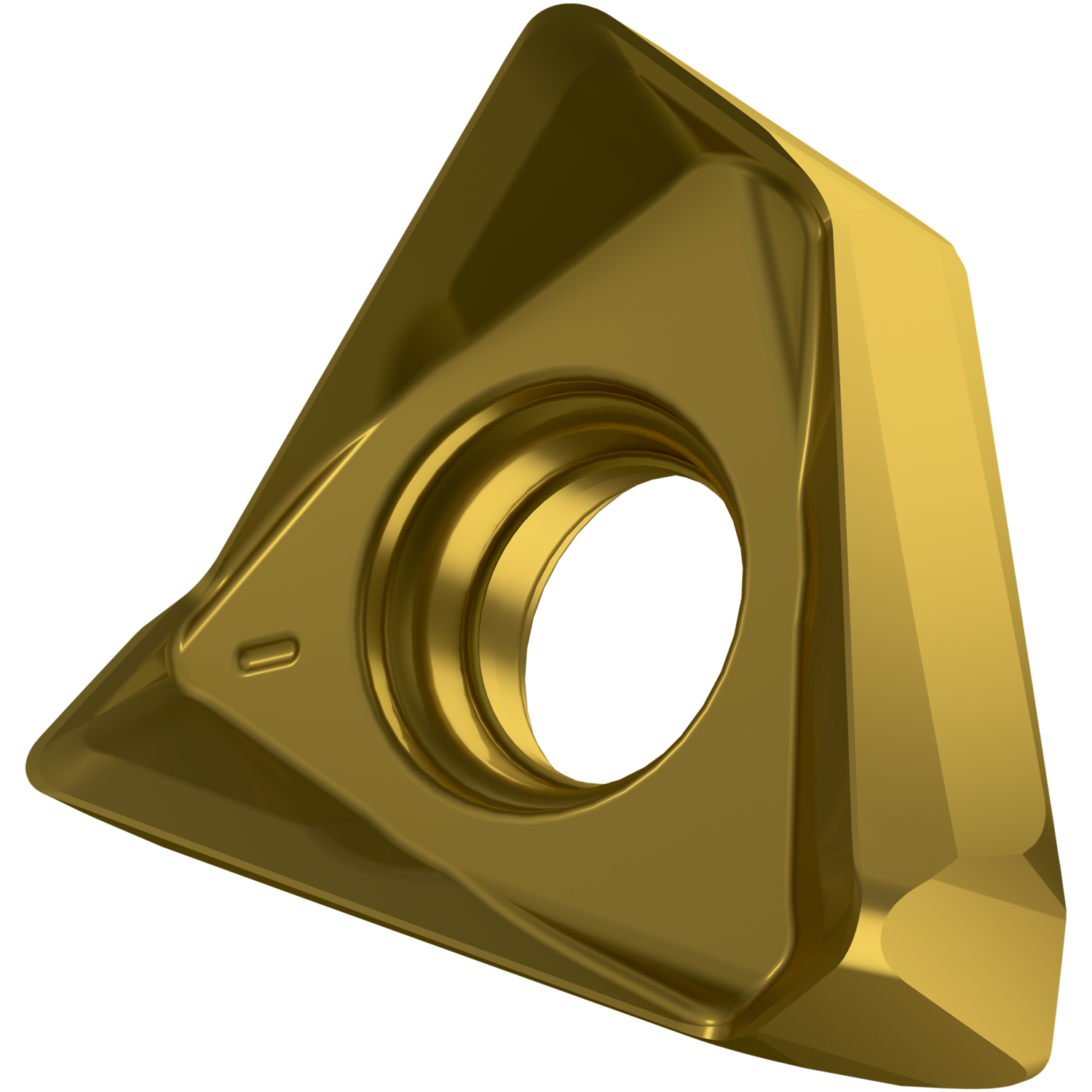

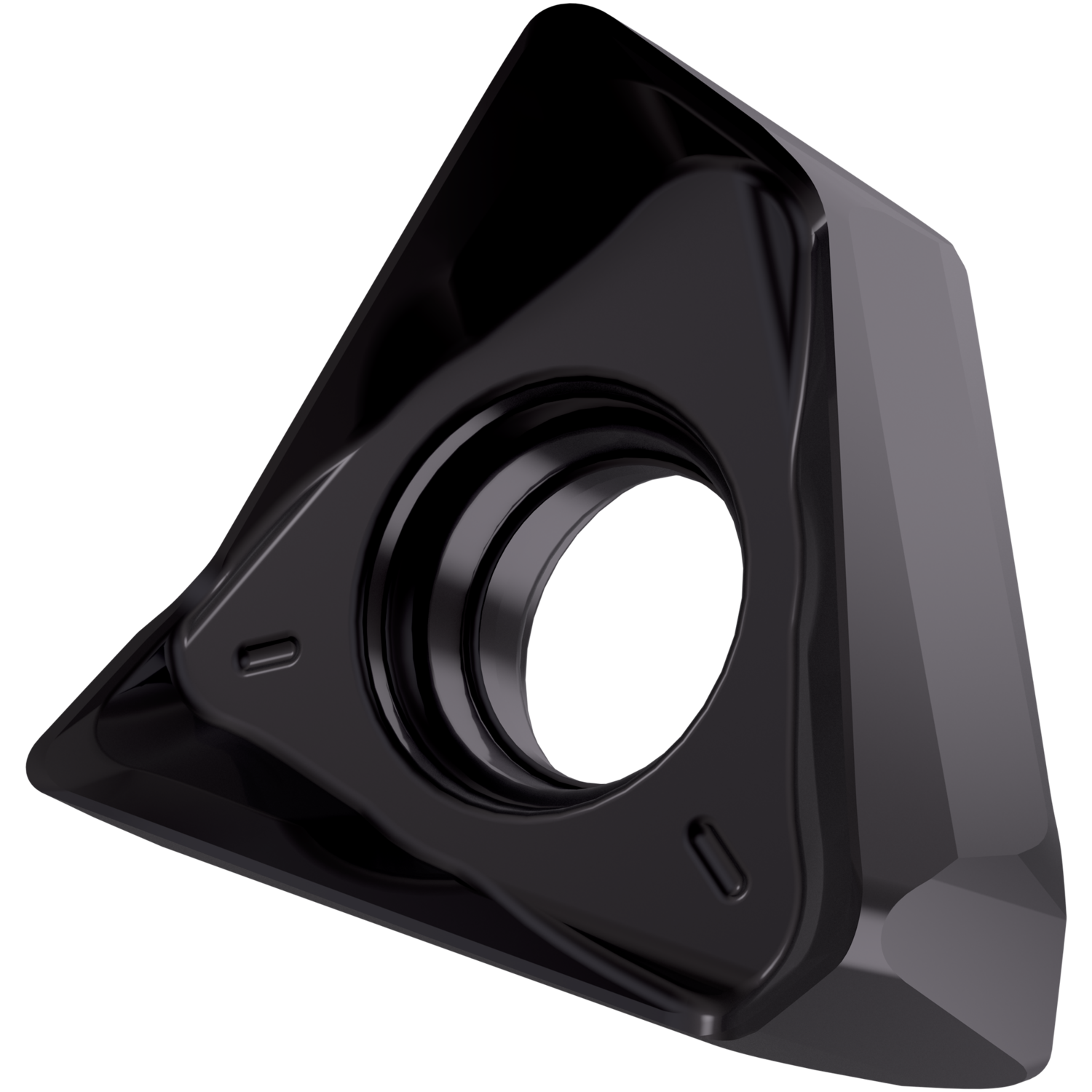

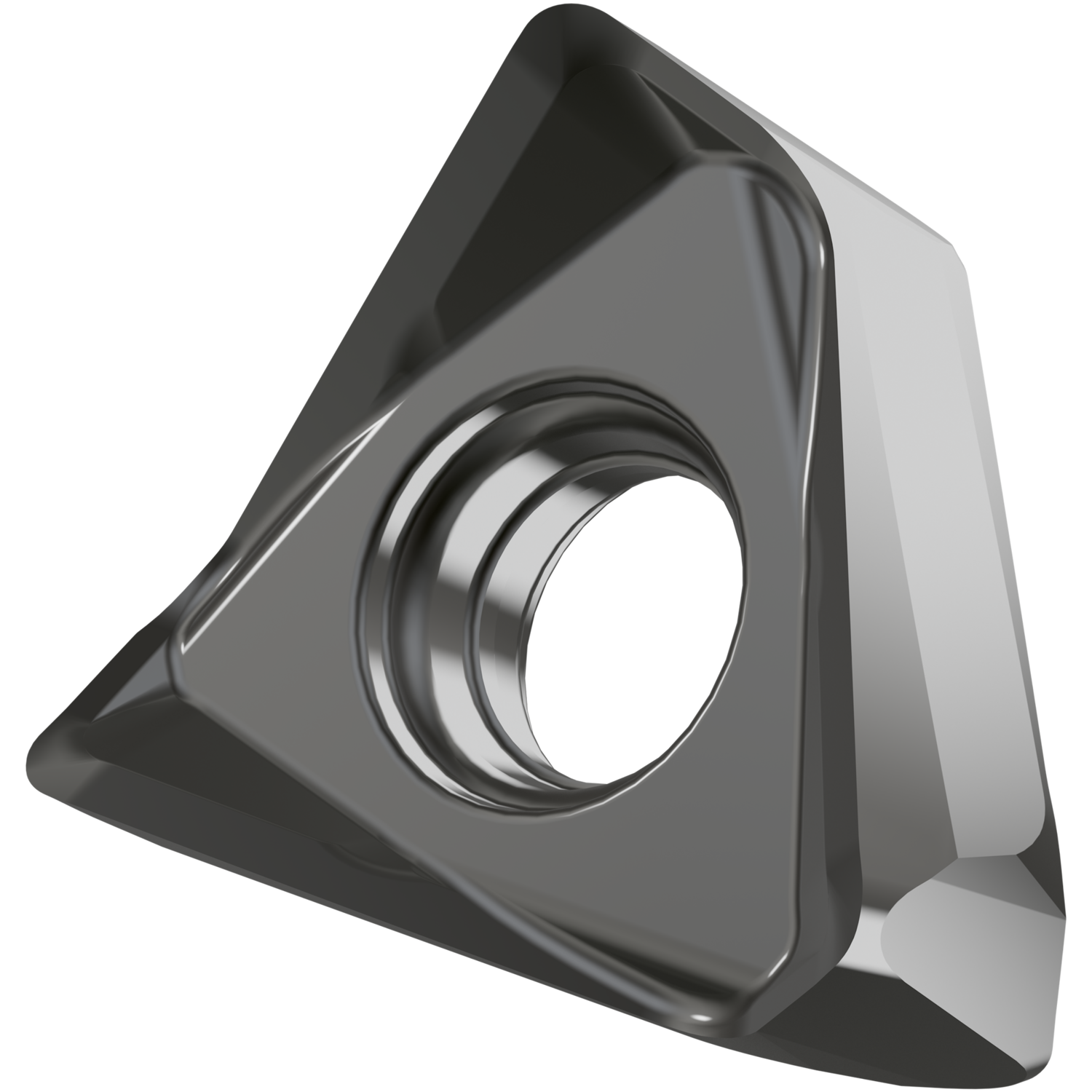

- TNGX 1606..
It has 90° approach angle, through coolant and differential pitch for face milling, shallow shoulder milling, shallow slot milling and helical milling in pre-machined holes
DOWNLOAD the .STP file in the SFM column of every size
Spare parts:
- TX 40G (screws)
- CT 15 (screwdriver)
Notes: This product includes screws and the screwdriver. Inserts are not included.
- TNGX 1606..
It has 90° approach angle, through coolant and differential pitch for face milling, shallow shoulder milling, shallow slot milling and helical milling in pre-machined holes
DOWNLOAD the .STP file in the SFM column of every size
Spare parts:
- TX 40G (screws)
- CT 15 (screwdriver)
Notes: This product includes screws and the screwdriver. Inserts are not included.
Product Name
DC
T
DCON MS
OAL
LU
SFM
SUPER6.10.16.W
DC:1.000
T:2
DCON MS:1.654
OAL:4.000
LU:1.654
File SFM
Only for registered users
Related Products
SUPER6.10.16.L.W
DC:1.000
T:2
DCON MS:1.000
OAL:6.000
LU:1.654
File SFM
Only for registered users
Related Products
SUPER6.12.16.W
DC:1.250
T:3
DCON MS:1.000
OAL:4.500
LU:1.654
File SFM
Only for registered users
Related Products
SUPER6.15.16.W
DC:1.500
T:4
DCON MS:1.250
OAL:5.000
LU:1.969
File SFM
Only for registered users
Related Products
