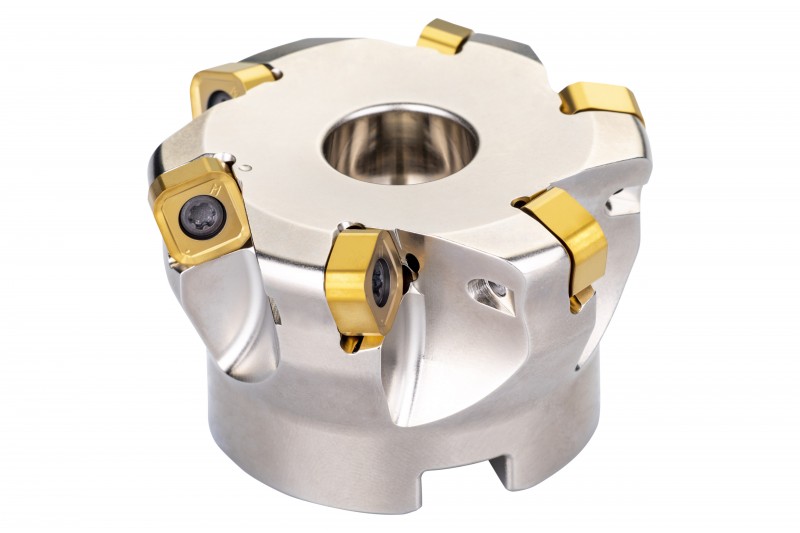

SUPER8 (SNGX 110416)
SUPER8 It is suggested for surface milling with very high feed, mounts a double sided insert with 8 edges. Suggested for roughing application.
This milling body can mount the following inserts:

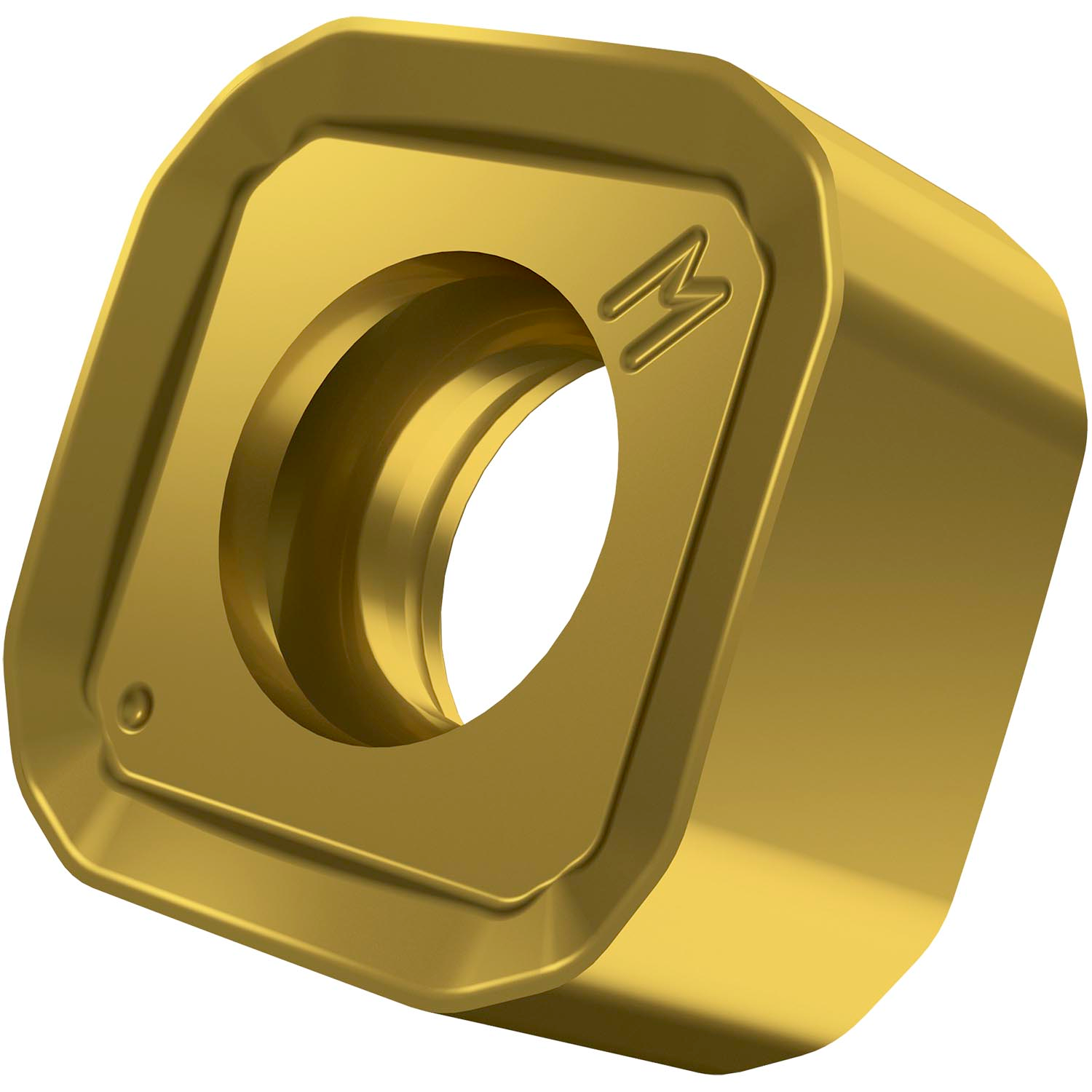

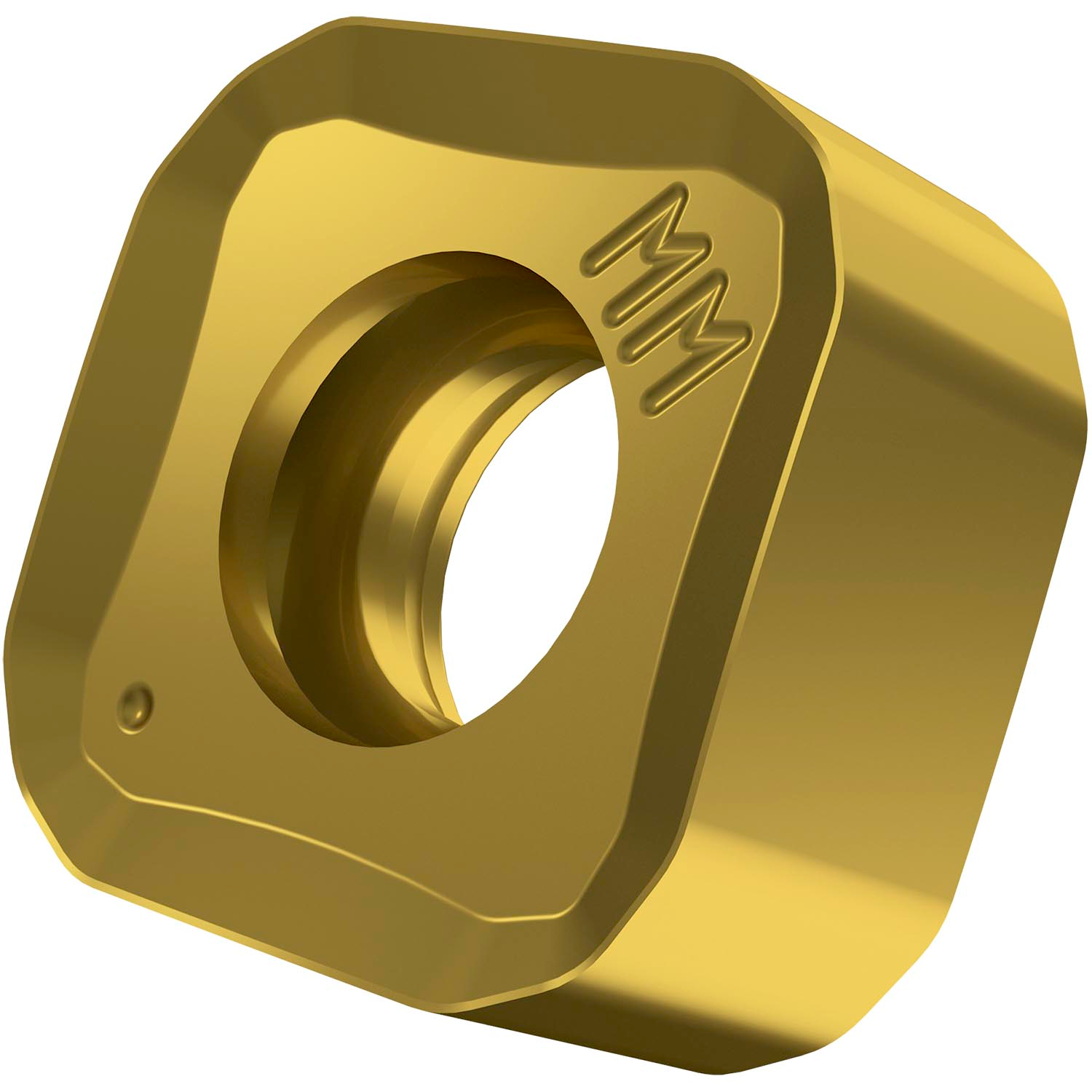

-SNGX 110416
Spare Parts:
SNGX insert: - TX 40G (screw), CT 15 (screw driver);
*DOWNLOAD the .STP file in the SFM column of every size*
Notes: this product includes screws and a screw driver; inserts are not included
This milling body can mount the following inserts:
-SNGX 110416
Spare Parts:
SNGX insert: - TX 40G (screw), CT 15 (screw driver);
*DOWNLOAD the .STP file in the SFM column of every size*
Notes: this product includes screws and a screw driver; inserts are not included
Product Name
D
T
C
B
L1
G
F
SFM
SUPER8.15.11.SM
D:1.500
T:4
C:.500
B:.957
L1:1.575
G:.409
F:.258
File SFM
Only for registered users
Related Products
SUPER8.20.11.SM
D:2.000
T:5
C:.750
B:1.453
L1:1.575
G:.630
F:.321
File SFM
Only for registered users
Related Products
SUPER8.25.11.SM
D:2.500
T:6
C:.750
B:1.953
L1:1.575
G:.630
F:.321
File SFM
Only for registered users
Related Products
SUPER8.30.11.SM
D:3.000
T:7
C:1.000
B:2.453
L1:1.969
G:.827
F:.382
File SFM
Only for registered users
Related Products
SUPER8.40.11.SM
D:4.000
T:8
C:1.500
B:3.453
L1:1.969
G:1.417
F:.630
File SFM
Only for registered users
Related Products
