Cut-Off & Grooving Tools
|
External Holders|Radial cut-off
|
THDPR / L

THDPR / L

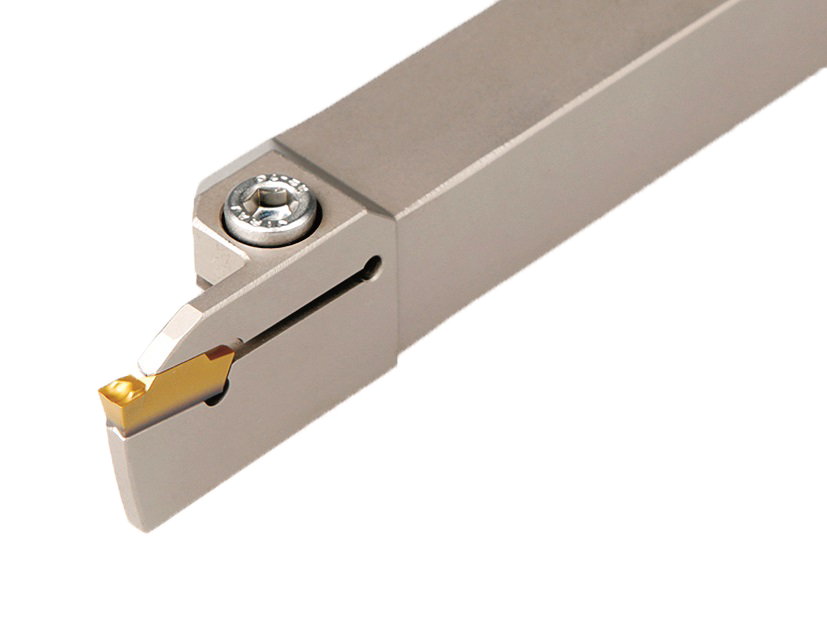

THDPR/L  Multi directional cut-off and grooving holder with Double sided insert.
             One of these holders can replace several standard and special tools required for a job.
             Important savings can be achieved through fewer changes and reduced tool stock.
             Rigid clamping system for multi applications as cut-off, grooving and turning with safe cut.

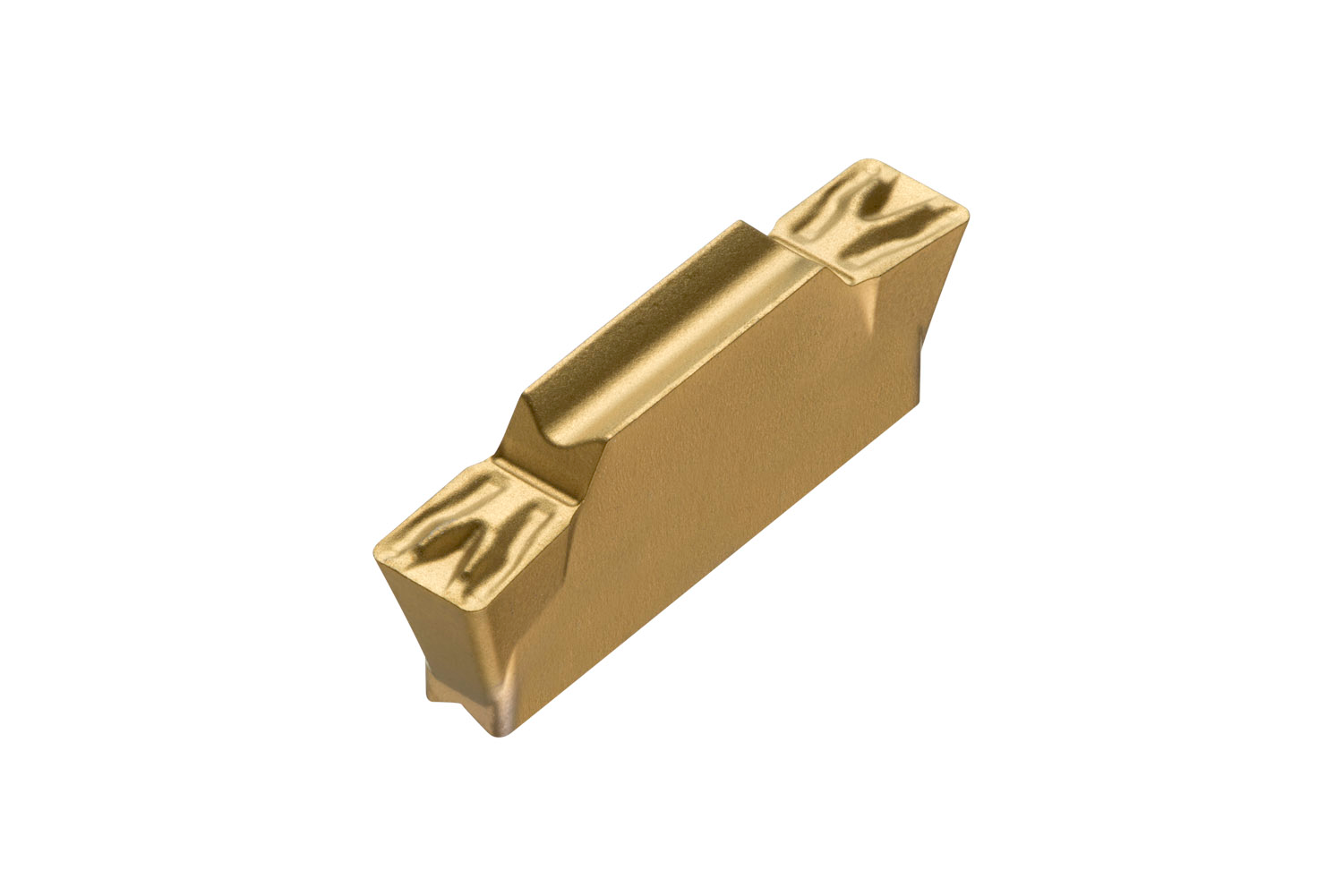

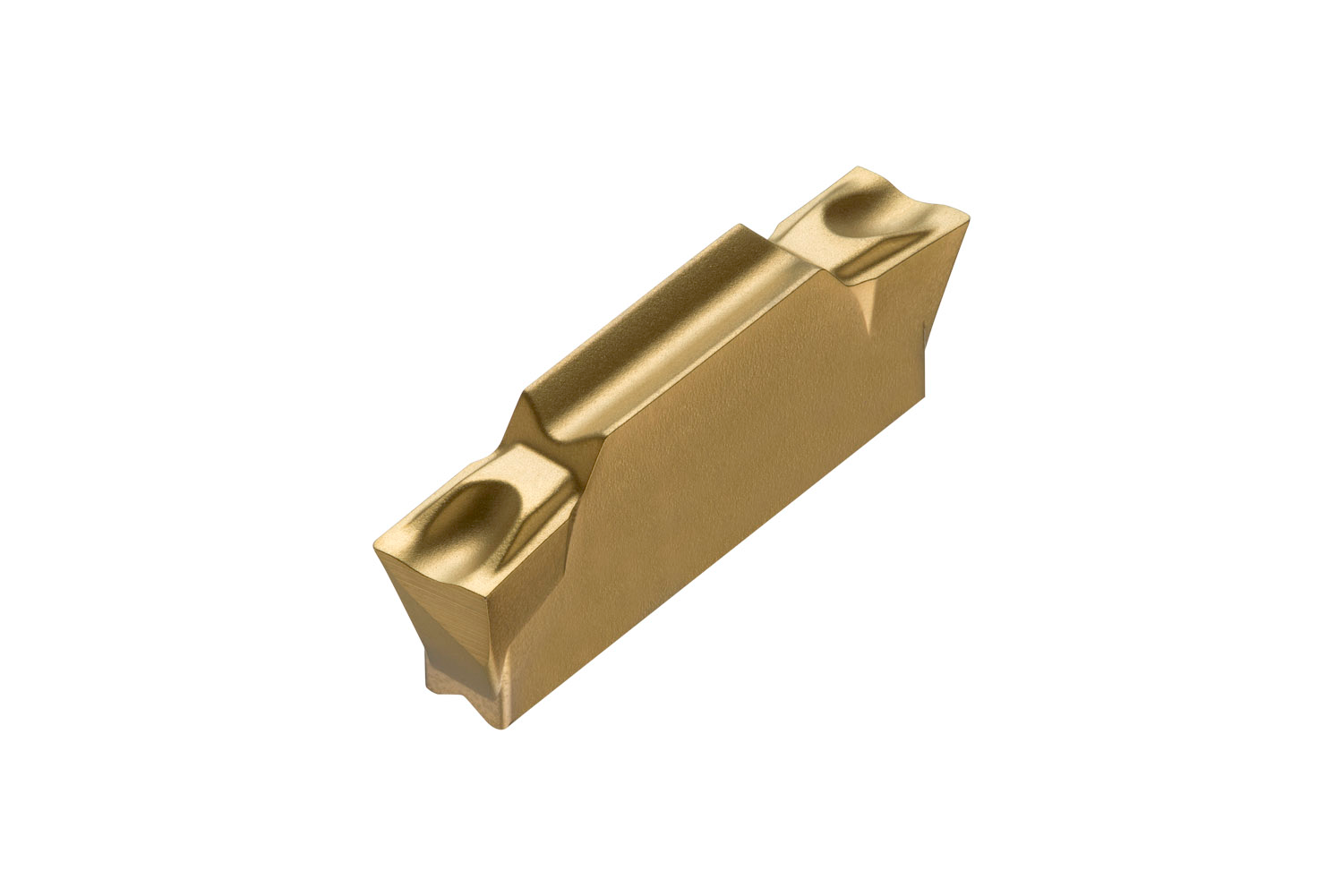

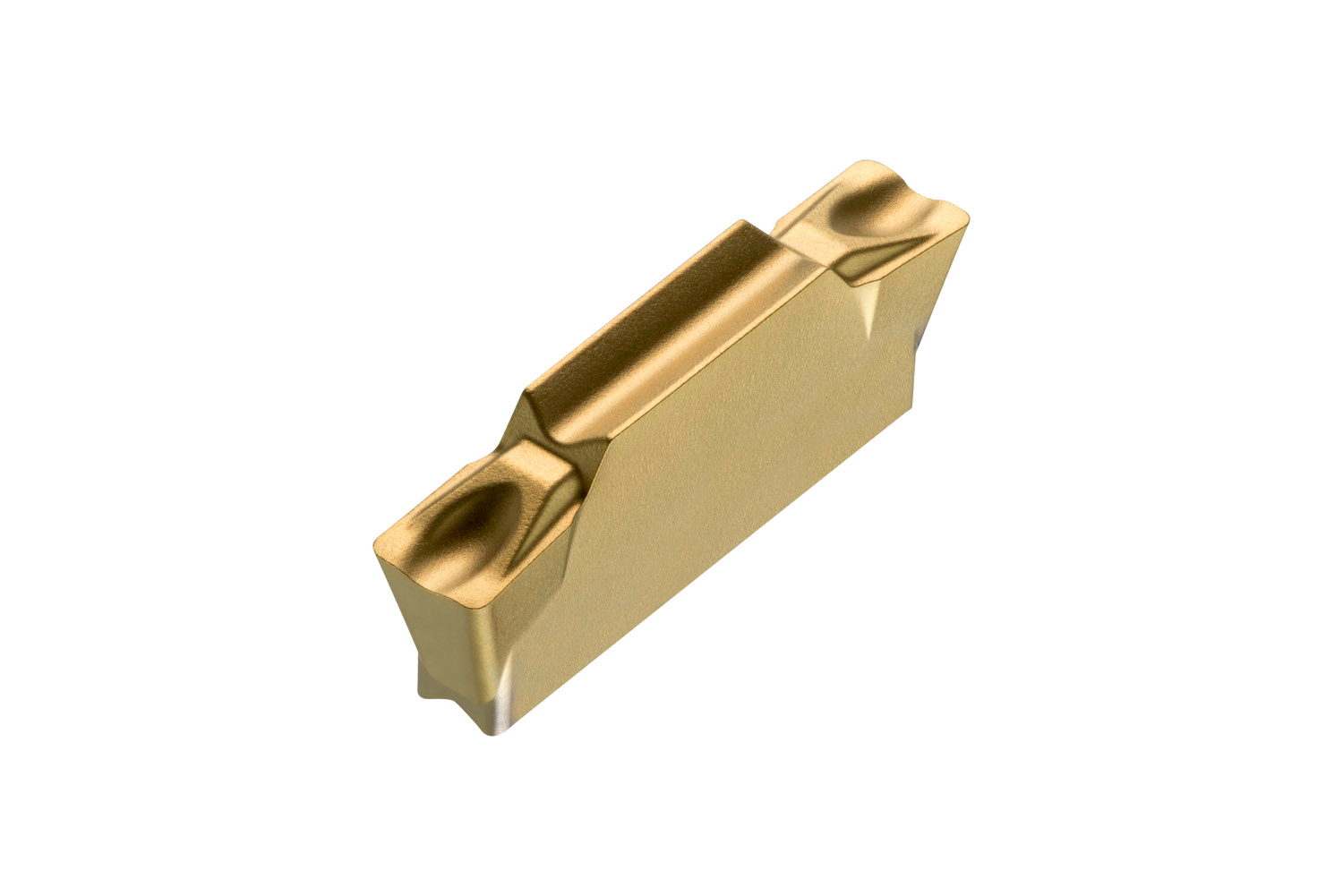

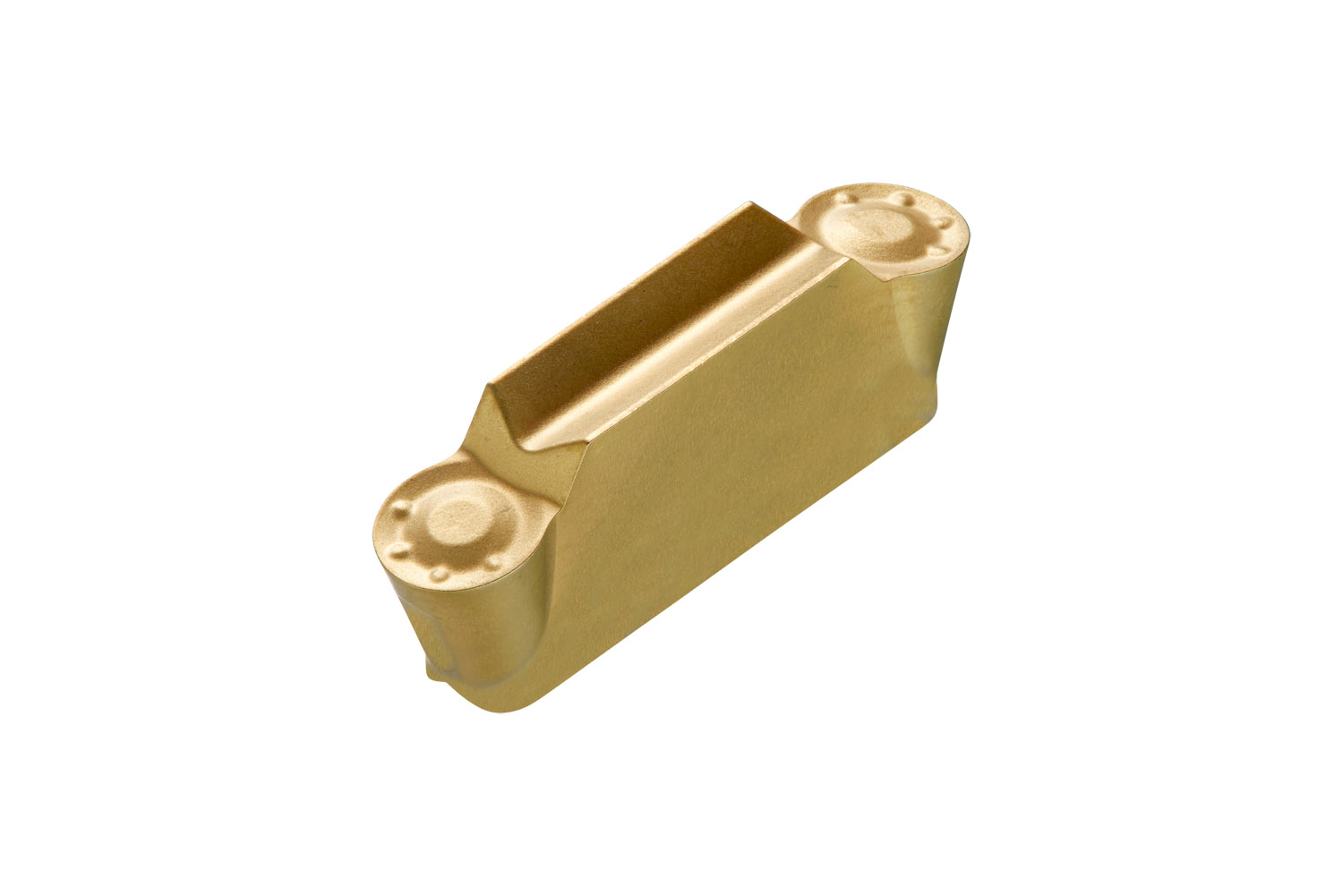

             THDPR/L mounts DPN inserts; any thickness of the holder's blade fits a specific size of insert; for example THDPR 16-4 fits DPN 4 inserts.

             Spare Parts:
             - VS 6 (screw clamp)
             - VS 10 (screw clamp)
             - CH 5 (allen key)
             - CH 6 (allen key)

             Notes: this product contains  screw clamp and an allen key; inserts are not included.

THIS LINE WILL BE DISCONTINUED SOON AND WILL BE REPLACED FROM GHDPR/L LINE.
Product Name S H B L1 H1 Dmax SFM
THDPL 10-2A S:.079 H:.625 B:.625 L1:4.000 H1:.625 Dmax:1.259 Only for registered users
Related Products
THDPR 10-2A S:.079 H:.625 B:.625 L1:4.000 H1:.625 Dmax:1.259 Only for registered users
Related Products
THDPL 12-2C S:.079 H:.750 B:.750 L1:5.000 H1:.750 Dmax:1.259 Only for registered users
Related Products
THDPR 12-2C S:.079 H:.750 B:.750 L1:5.000 H1:.750 Dmax:1.259 Only for registered users
Related Products
THDPL 10-3A S:.118 H:.625 B:.625 L1:4.000 H1:.625 Dmax:.708 Only for registered users
Related Products
THDPL 12-3C S:.118 H:.750 B:.750 L1:5.000 H1:.750 Dmax:1.181 Only for registered users
Related Products
THDPL 16-3D S:.118 H:1.000 B:1.000 L1:6.000 H1:1.000 Dmax:1.181 Only for registered users
Related Products
THDPR 16-3D S:.118 H:1.000 B:1.000 L1:6.000 H1:1.000 Dmax:1.181 Only for registered users
Related Products
THDPL 16-5D S:.197 H:1.000 B:1.000 L1:6.000 H1:1.000 Dmax:1.969 Only for registered users
