THR / L

THR / L

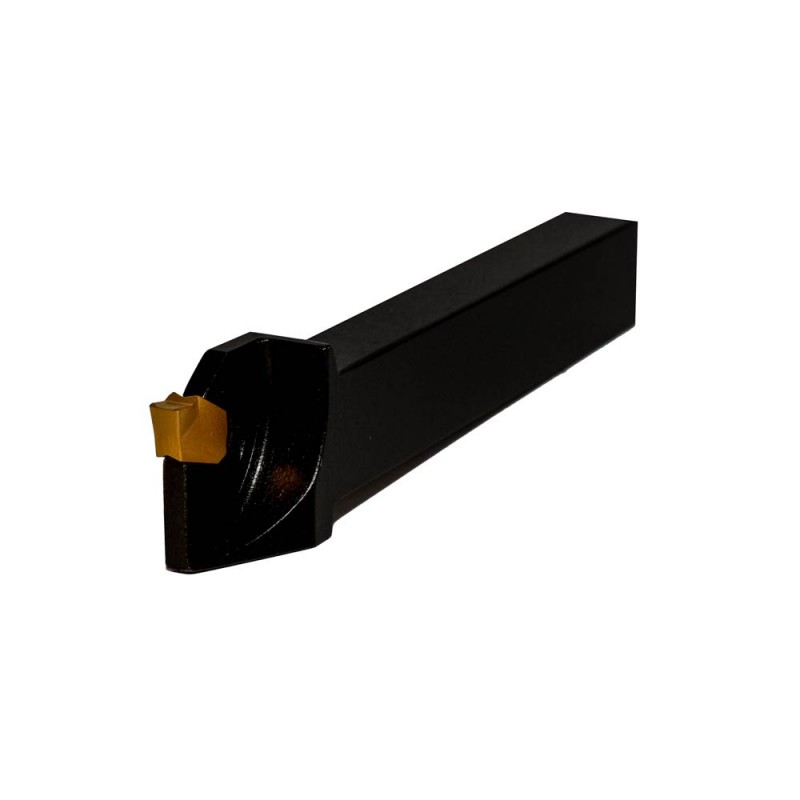

THR/L  Standard cut-off and grooving holder for all kind of applications on CNC machines.
             THR/L mounts GTN inserts; any thickness of the holder's blade fits a specific size of insert; for example THR 16-4 fits GTN 4 or GTR 4 inserts.
             Spare Parts:
             - ESGT ( extractor )
             Notes: this product contains one extractor; inserts are not included.

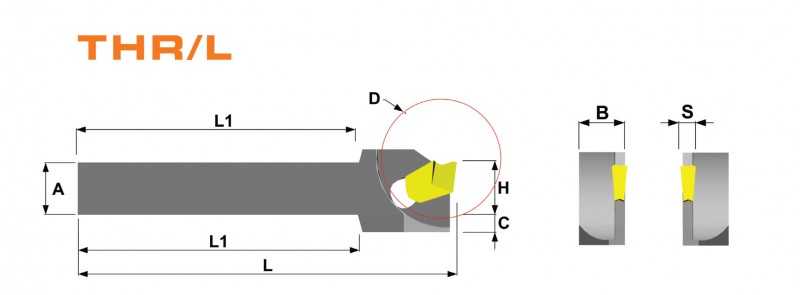

Product Name S A=H C B L L1 D SFM
THL 9.5-2 S:.087 A=H:.375 C:.250 B:.375 L:3.386 L1:2.756 D:1.102 Only for registered users
Related Products
THR 9.5-2 S:.087 A=H:.375 C:.250 B:.375 L:3.386 L1:2.756 D:1.102 Only for registered users
Related Products
THR 9.5-3 S:.122 A=H:.375 C:.250 B:.375 L:4.331 L1:3.543 D:1.102 Only for registered users
Related Products
THL 9.5-3 S:.122 A=H:.375 C:.250 B:.375 L:4.331 L1:3.543 D:1.102 Only for registered users
Related Products
THL 12.7-2 S:.087 A=H:.500 C:.140 B:.500 L:4.331 L1:3.543 D:1.181 Only for registered users
Related Products
THR 12.7-2 S:.087 A=H:.500 C:.140 B:.500 L:4.331 L1:3.543 D:1.181 Only for registered users
Related Products
THL 12.7-3 S:.122 A=H:.500 C:.170 B:.500 L:4.331 L1:3.543 D:1.181 Only for registered users
Related Products
THR 12.7-3 S:.122 A=H:.500 C:.170 B:.500 L:4.331 L1:3.543 D:1.181 Only for registered users
Related Products
THL 16-2 S:.087 A=H:.625 C:  B:.500 L:4.331 L1:3.543 D:1.181 Only for registered users
Related Products
THR 16-2 S:.087 A=H:.625 C:  B:.500 L:4.331 L1:3.543 D:1.181 Only for registered users
Related Products
THL 16-3 S:.122 A=H:.625 C:.160 B:.500 L:4.331 L1:3.543 D:1.260 Only for registered users
Related Products
THR 16-3 S:.122 A=H:.625 C:.160 B:.500 L:4.331 L1:3.543 D:1.260 Only for registered users
Related Products
THL 16-4 S:.161 A=H:.625 C:.160 B:.500 L:4.331 L1:3.543 D:1.339 Only for registered users
Related Products
THR 16-4 S:.161 A=H:.625 C:.160 B:.500 L:4.331 L1:3.543 D:1.339 Only for registered users
Related Products
THL 19-3 S:.122 A=H:.750 C:  B:.500 L:4.331 L1:3.543 D:1.417 Only for registered users
Related Products
THR 19-3 S:.122 A=H:.750 C:  B:.500 L:4.331 L1:3.543 D:1.417 Only for registered users
Related Products
THL 19-4 S:.161 A=H:.750 C:  B:.500 L:4.331 L1:3.543 D:1.417 Only for registered users
Related Products
THR 19-4 S:.161 A=H:.750 C:  B:.500 L:4.331 L1:3.543 D:1.417 Only for registered users
Related Products
THL 19-5 S:.201 A=H:.750 C:  B:.500 L:4.331 L1:3.543 D:1.417 Only for registered users
Related Products
THR 19-5 S:.201 A=H:.750 C:  B:.500 L:4.331 L1:3.543 D:1.417 Only for registered users
Related Products
