THSR / L

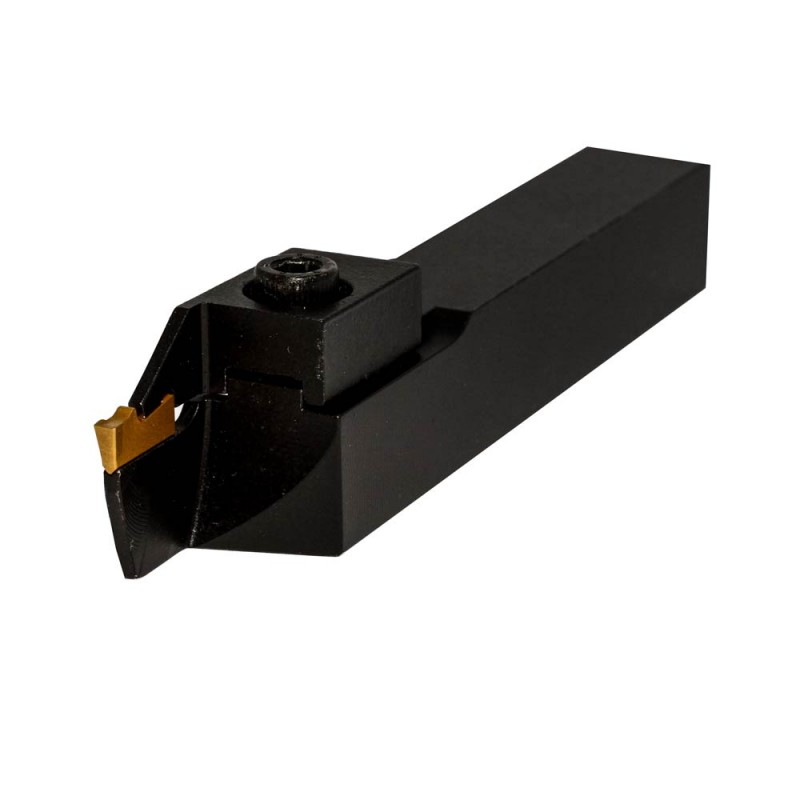

Multi directional cut-off and grooving holder with safe clamping system ZETA CUT.
One of these holders can replace several standard and special tools required for a job.
Important savings can be achieved through fewer changes and reduced tool stock.
Rigid clamping system for multi applications as cut-off, grooving and turning with safe cut. Suitable for interrupted cut.
THSR/L mounts TSN inserts; for any thickness of the holder corresponds a specific size of insert; for example THSR 16-4 fits TSN 4 or TSR 4 inserts.
There is an exception: THSR...-5 and THSL....-5 can fit also TSN 6.
Spare Parts:

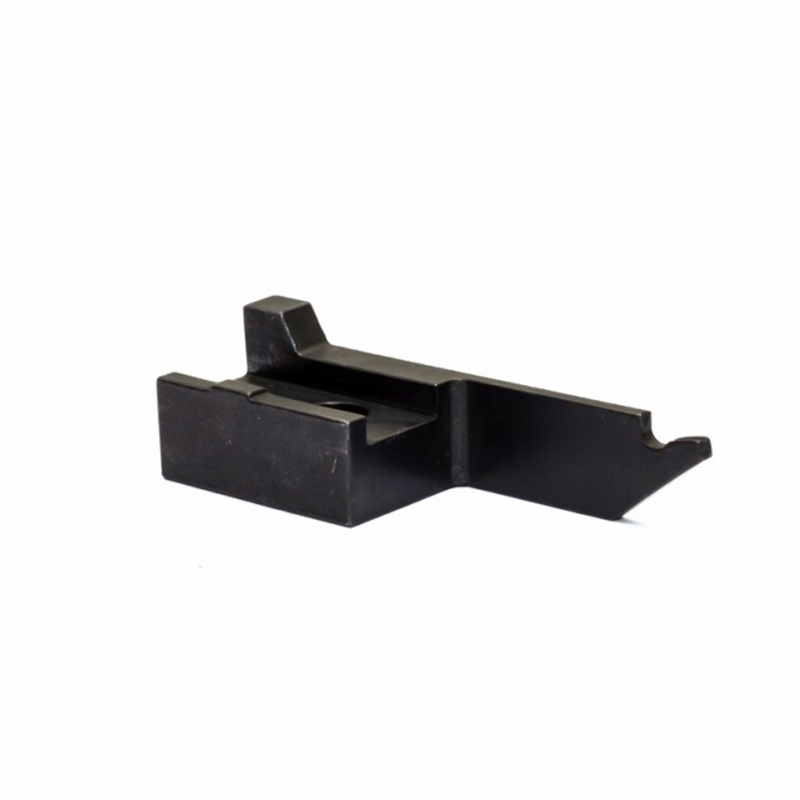

- Clamps: SGR (right holder) or SGL (left holder).
- VS 6 (screw clamp)
- CH 5 (allen key)
Notes: this product contains clamp, screw clamp and an allen key; inserts are not included.
THIS OBSOLETE ITEM CAN BE REPLACED FROM THDPR/L OR GDHPR/L. PLEASE CONSULT OUR ITEM LIST
One of these holders can replace several standard and special tools required for a job.
Important savings can be achieved through fewer changes and reduced tool stock.
Rigid clamping system for multi applications as cut-off, grooving and turning with safe cut. Suitable for interrupted cut.
THSR/L mounts TSN inserts; for any thickness of the holder corresponds a specific size of insert; for example THSR 16-4 fits TSN 4 or TSR 4 inserts.
There is an exception: THSR...-5 and THSL....-5 can fit also TSN 6.
Spare Parts:
- Clamps: SGR (right holder) or SGL (left holder).
- VS 6 (screw clamp)
- CH 5 (allen key)
Notes: this product contains clamp, screw clamp and an allen key; inserts are not included.
THIS OBSOLETE ITEM CAN BE REPLACED FROM THDPR/L OR GDHPR/L. PLEASE CONSULT OUR ITEM LIST

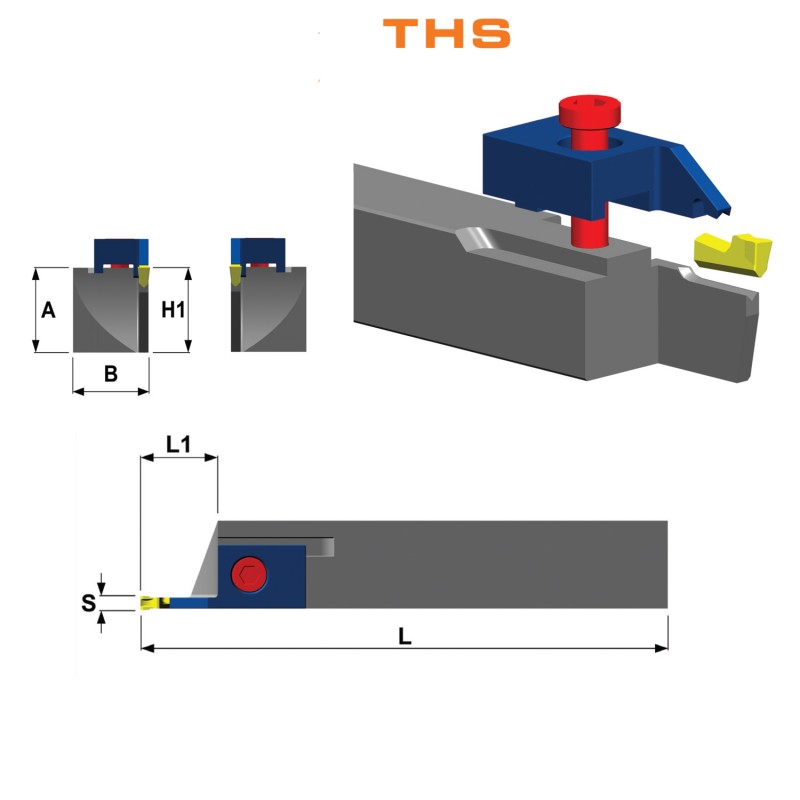

Product Name
S
A
B
L
L1
H1
D
SFM
THSL 10-2
S:.083
A:.625
B:.750
L:4.921
L1:.787
H1:.625
D:1.575
Only for registered users
Related Products
.png){kind=small}
THSL 12-3
S:.122
A:.750
B:.750
L:5.709
L1:.787
H1:.750
D:1.575
Only for registered users
Related Products
THSL 12-4
S:.161
A:.750
B:.750
L:5.709
L1:.787
H1:.750
D:1.575
Only for registered users
Related Products
THSR 12-4
S:.161
A:.750
B:.750
L:5.709
L1:.787
H1:.750
D:1.575
Only for registered users
Related Products
THSL 12-5
S:.201-.240
A:.750
B:.750
L:5.709
L1:.787
H1:.750
D:1.575
Only for registered users
Related Products
THSL 16-3
S:.122
A:1.000
B:1.000
L:6.693
L1:.787
H1:1.000
D:1.575
Only for registered users
Related Products
THSL 16-4
S:.161
A:1.000
B:1.000
L:6.693
L1:.787
H1:1.000
D:1.575
Only for registered users
Related Products
THSR 16-4
S:.161
A:1.000
B:1.000
L:6.693
L1:.787
H1:1.000
D:1.575
Only for registered users
Related Products
THSL 16-5
S:.201-.240
A:1.000
B:1.000
L:6.693
L1:.787
H1:1.000
D:1.575
Only for registered users
Related Products
THSR 16-5
S:.201-.240
A:1.000
B:1.000
L:6.693
L1:.787
H1:1.000
D:1.575
Only for registered users
