Cut-Off & Grooving Tools
|
External Holders|Radial cut-off
|
THXR / L

THXR / L

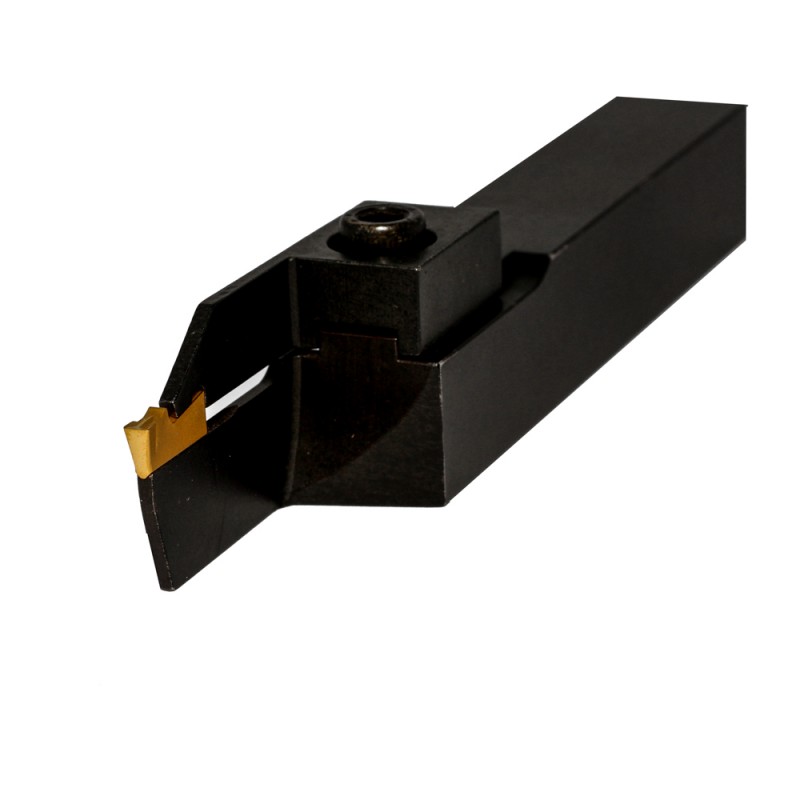

THXR/L  Multi directional cut-off and grooving holder long series. Thanks to the long clamping system, it allows deeper applications and higher depth of cut than
             the ZETA CUT THS.
             THXR/L mounts TSN inserts; for any thickness of the holder corresponds a specific size of insert; for example THXR 16-4 fits TSN 4 or TSR 4 inserts.
             There is an exception: THXR....-5 and THXL....-5 can fit also TSN 6.
             Spare Parts:

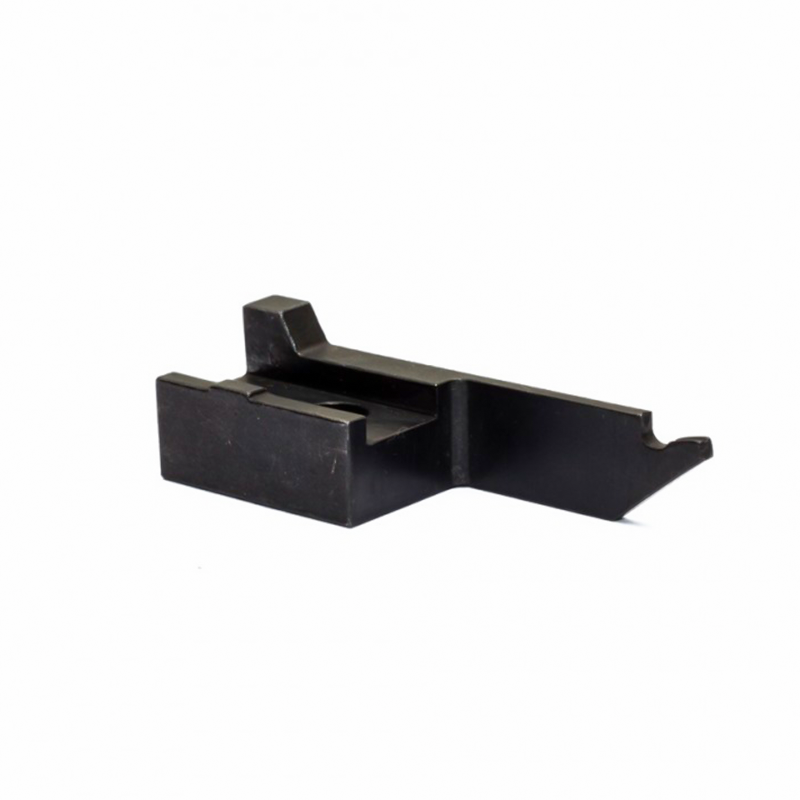

             - Clamps: SXR (right holder) or  SXL (left holder).
             - VS 6(screw clamp)
             - CH 5 (allen key)
             Notes: this product contains clamp, screw clamp and an allen key; inserts are not included.
THIS OBSOLETE ITEM CAN BE REPLACED FROM THDPR/L OR GDHPR/L. PLEASE CONSULT OUR ITEM LIST

Tech Data File

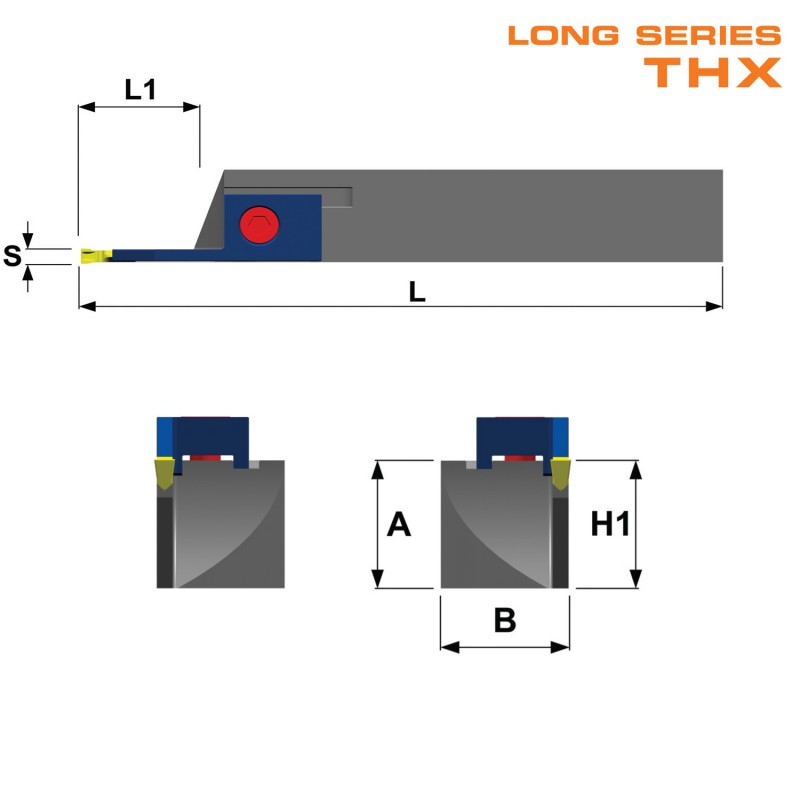

Product Name S A B L L1 H1 D SFM
THXL 12-3 S:.122 A:.750 B:.750 L:5.709 L1:1.378 H1:.750 D:2.756 Only for registered users
Related Products
THXR 12-3 S:.122 A:.750 B:.750 L:5.709 L1:1.378 H1:.750 D:2.756 Only for registered users
Related Products
THXL 12-4 S:.161 A:.750 B:.750 L:5.709 L1:1.378 H1:.750 D:2.756 Only for registered users
Related Products
THXR 12-4 S:.161 A:.750 B:.750 L:5.709 L1:1.378 H1:.750 D:2.756 Only for registered users
Related Products
THXL 12-5 S:.201-.240 A:.750 B:.750 L:5.709 L1:1.378 H1:.750 D:2.756 Only for registered users
Related Products
THXR 12-5 S:.201-.240 A:.750 B:.750 L:5.709 L1:1.378 H1:.750 D:2.756 Only for registered users
Related Products
THXL 16-3 S:.122 A:1.000 B:1.000 L:6.693 L1:1.378 H1:1.000 D:2.756 Only for registered users
Related Products
THXL 16-4 S:.161 A:1.000 B:1.000 L:6.693 L1:1.378 H1:1.000 D:2.756 Only for registered users
Related Products
