Rotary Tool Holder
|
Er Collet Chucks|ISO 40 ER
|
V40ER

V40ER

V40ER

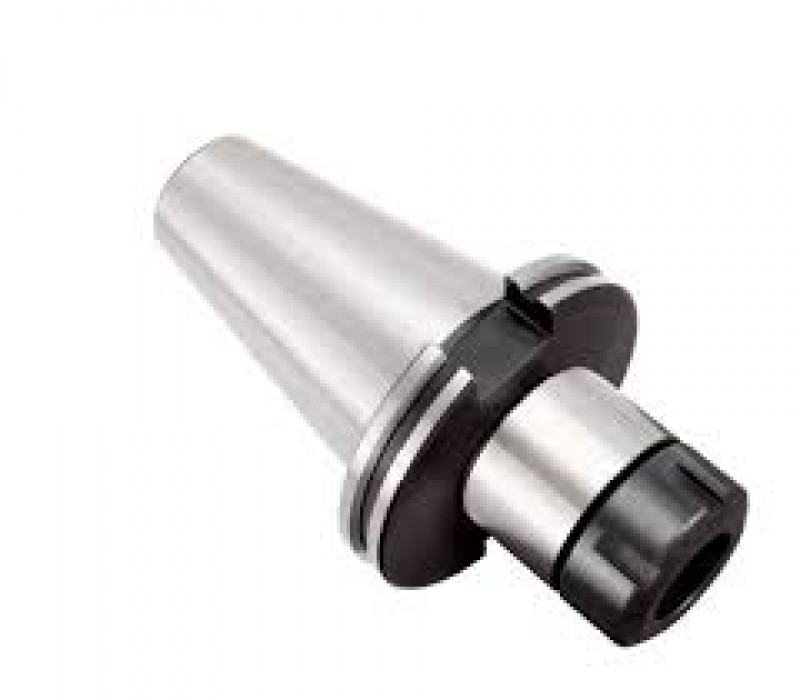

CAT 40 collet chucks are balanced to 25,000 RPM at G2.5, have a maximum T.I.R. of 0.0001″  measured from taper to collet pocket, and include our exclusive power coat nut that increases holding power on the tool shank by 75%.
Product Name L D ER MAX SHANK ISO SFM
V40ER-16-S L:2.760 D:1.08 ER:ER 16 MAX SHANK:.406 ISO:40 Only for registered users
KV40ER-16 L:3.000 D:1.08 ER:ER 16 MAX SHANK:.406 ISO:40 Only for registered users
V40ER-16-M L:4.000 D:1.08 ER:ER 16 MAX SHANK:.406 ISO:40 Only for registered users
V40ER-16-L L:6.000 D:1.08 ER:ER 16 MAX SHANK:.406 ISO:40 Only for registered users
V40ER-16-XL L:8.000 D:1.08 ER:ER 16 MAX SHANK:.406 ISO:40 Only for registered users
V40ER-20-S L:2.760 D:1.34 ER:ER 20 MAX SHANK:.512 ISO:40 Only for registered users
KV40ER-20 L:2.550 D:1.34 ER:ER 20 MAX SHANK:.512 ISO:40 Only for registered users
V40ER-20-M L:4.000 D:1.34 ER:ER 20 MAX SHANK:.512 ISO:40 Only for registered users
V40ER-20-L L:6.000 D:1.34 ER:ER 20 MAX SHANK:.512 ISO:40 Only for registered users
V40ER-25-S L:2.760 D:1.65 ER:ER 25 MAX SHANK:.630 ISO:40 Only for registered users
KV40ER-25 L:2.500 D:1.65 ER:ER 25 MAX SHANK:.630 ISO:40 Only for registered users
V40ER-25-M L:4.000 D:1.65 ER:ER 25 MAX SHANK:.630 ISO:40 Only for registered users
V40ER-25-L L:6.000 D:1.65 ER:ER 25 MAX SHANK:.630 ISO:40 Only for registered users
V40ER-32-S L:2.760 D:1.97 ER:ER 32 MAX SHANK:.788 ISO:40 Only for registered users
KV40ER-32 L:2.700 D:1.97 ER:ER 32 MAX SHANK:.788 ISO:40 Only for registered users
V40ER-32-M L:4.000 D:1.97 ER:ER 32 MAX SHANK:.788 ISO:40 Only for registered users
V40ER-32-L L:6.000 D:1.97 ER:ER 32 MAX SHANK:.788 ISO:40 Only for registered users
V40ER-40-S L:3.150 D:2.48 ER:ER 40 MAX SHANK:1.023 ISO:40 Only for registered users
KV40ER-40 L:4.000 D:2.48 ER:ER 40 MAX SHANK:1.023 ISO:40 Only for registered users
V40ER-40-M L:4.000 D:2.48 ER:ER 40 MAX SHANK:1.023 ISO:40 Only for registered users
V40ER-40-L L:6.000 D:2.48 ER:ER 40 MAX SHANK:1.023 ISO:40 Only for registered users
