Z16E METRIC

Z16E METRIC

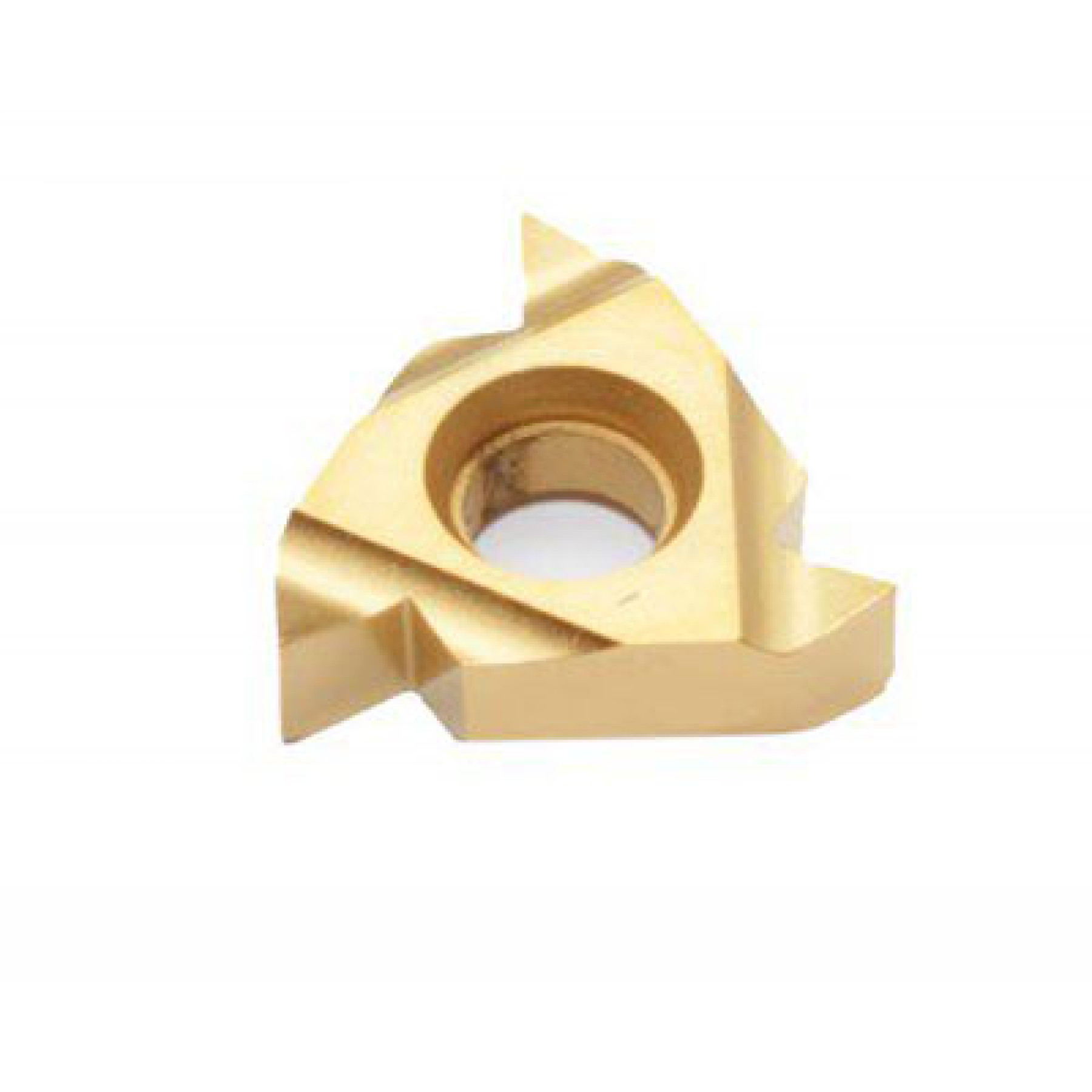

Single-sided threading insert, triangular with an inscribed circle diameter of .375 inch, for lay down cutting of ISO-metric external threads with different MM pitch, Z6P PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P40/M20-M35 and K20-K40 for machining of steel, stainless-steel and cast-iron

Note: This product is in a package of 10 Inserts. If you order 1, you will receive 10 Carbide Inserts Z16E METRIC.
The price you see in the table is the single item price.

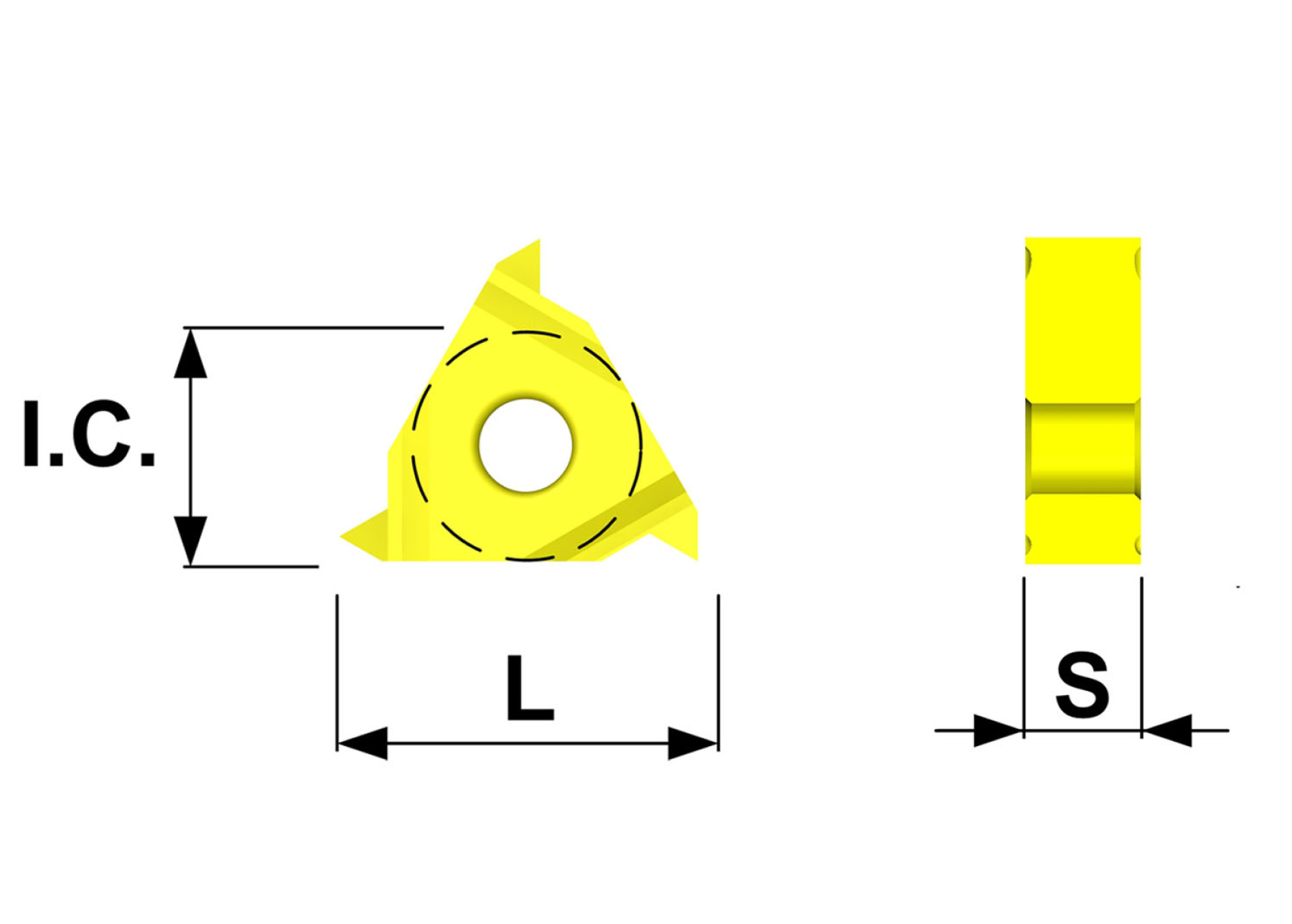

Product Name PITCH I.C. l s x R/L SFM
Z16ER 0.50MM Z6P PITCH:0.50mm I.C.:.375 l:.494 s:.136 x:.060 R/L:R Only for registered users
Z16ER 0.75MM Z6P PITCH:0.75mm I.C.:.375 l:.494 s:.136 x:.060 R/L:R Only for registered users
Z16ER 0.80MM Z6P PITCH:0.80mm I.C.:.375 l:.494 s:.136 x:.060 R/L:R Only for registered users
Z16ER 1.00MM Z6P PITCH:1.00mm I.C.:.375 l:.494 s:.136 x:.060 R/L:R Only for registered users
Z16ER 1.25MM Z6P PITCH:1.25mm I.C.:.375 l:.494 s:.136 x:.060 R/L:R Only for registered users
Z16ER 1.50MM Z6P PITCH:1.50mm I.C.:.375 l:.494 s:.136 x:.060 R/L:R Only for registered users
Z16ER 1.75MM Z6P PITCH:1.75mm I.C.:.375 l:.494 s:.136 x:.060 R/L:R Only for registered users
Z16ER 2.00MM Z6P PITCH:2.00mm I.C.:.375 l:.494 s:.136 x:.060 R/L:R Only for registered users
Z16ER 3.00MM Z6P PITCH:3.00mm I.C.:.375 l:.494 s:.136 x:.060 R/L:R Only for registered users
Z16ER 3.50MM Z6P PITCH:3.50mm I.C.:.375 l:.494 s:.136 x:.060 R/L:R Only for registered users
