Z16E_G

Z16E_G

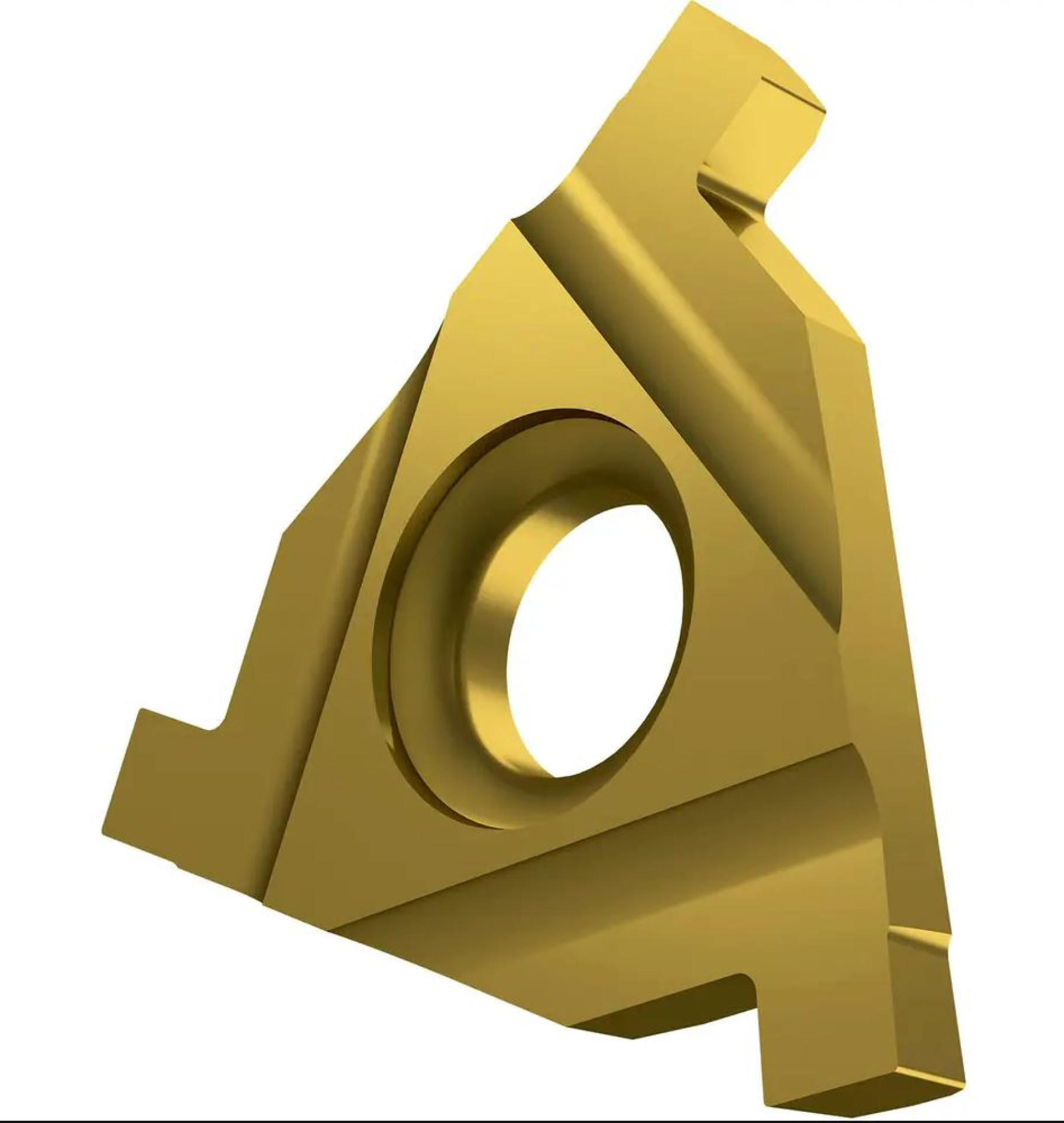

Lay down carbide inserts used on external holder for grooving. It is available in grades Z6P grade(tin).
Note: This product is in a package of 10 Inserts. If you order 1, you will receive 10 Carbide Inserts Z16E_G.
The price you see in the table is the single item price.

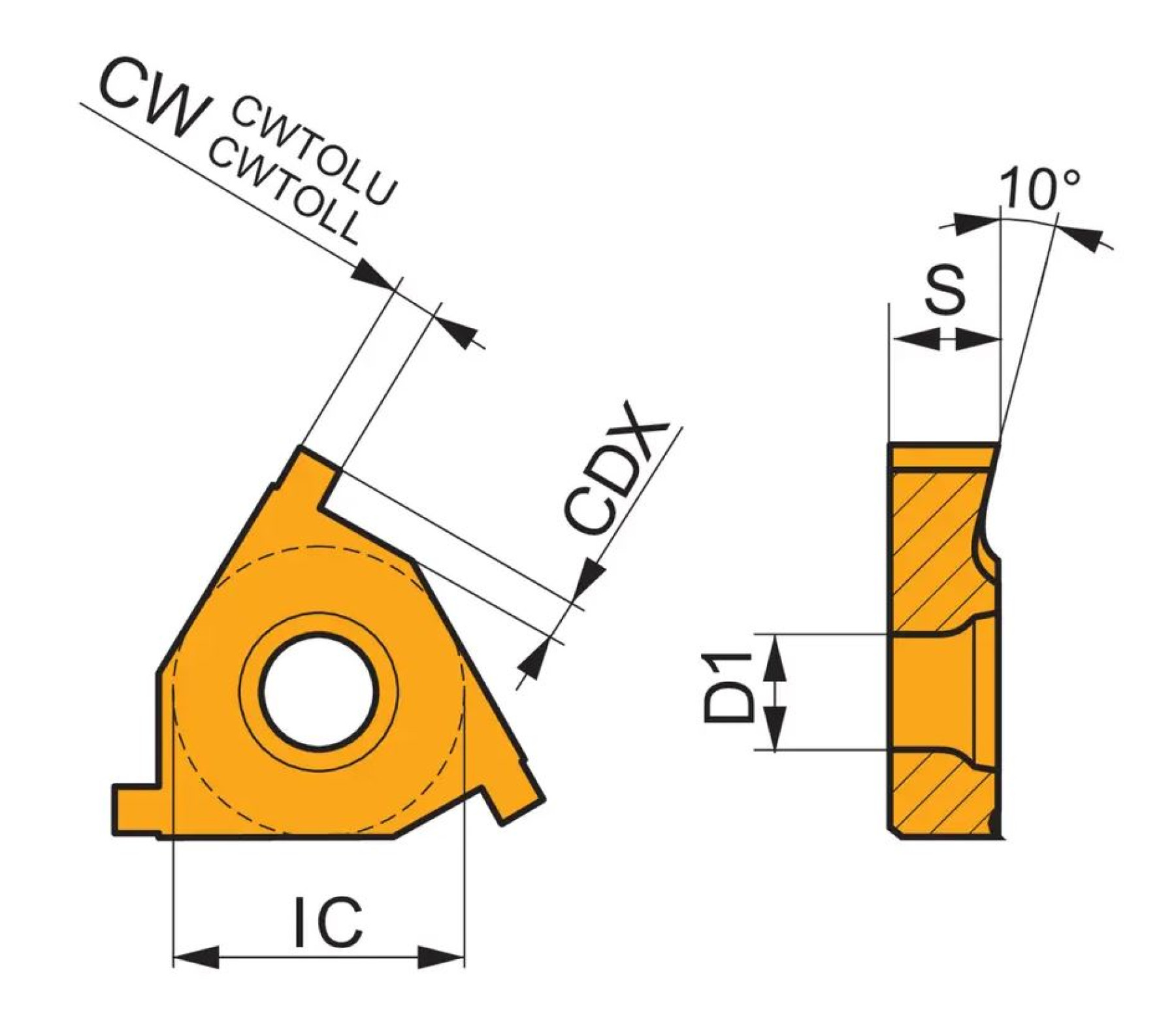

Product Name CW I.C. CDX S D1 SFM
Z16ERG 090MM Z6P CW:0.035" I.C.:0.375 CDX:0.035 S:0.134 D1:0.154 Only for registered users
Z16ERG 110MM Z6P CW:0.043" I.C.:0.375 CDX:0.035 S:0.134 D1:0.154 Only for registered users
Z16ERG 130MM Z6P CW:0.051" I.C.:0.375 CDX:0.035 S:0.134 D1:0.154 Only for registered users
Z16ERG 160MM Z6P CW:0.063" I.C.:0.375 CDX:0.035 S:0.134 D1:0.154 Only for registered users
Z16ERG 185MM Z6P CW:0.073" I.C.:0.375 CDX:0.035 S:0.134 D1:0.154 Only for registered users
Z16ERG 215MM Z6P CW:0.085" I.C.:0.375 CDX:0.035 S:0.134 D1:0.154 Only for registered users
Z16ERG 265MM Z6P CW:0.104" I.C.:0.375 CDX:0.035 S:0.134 D1:0.154 Only for registered users
