Carbide Inserts
|
Lay Down|Grooving
|
Z16N_G

Z16N_G

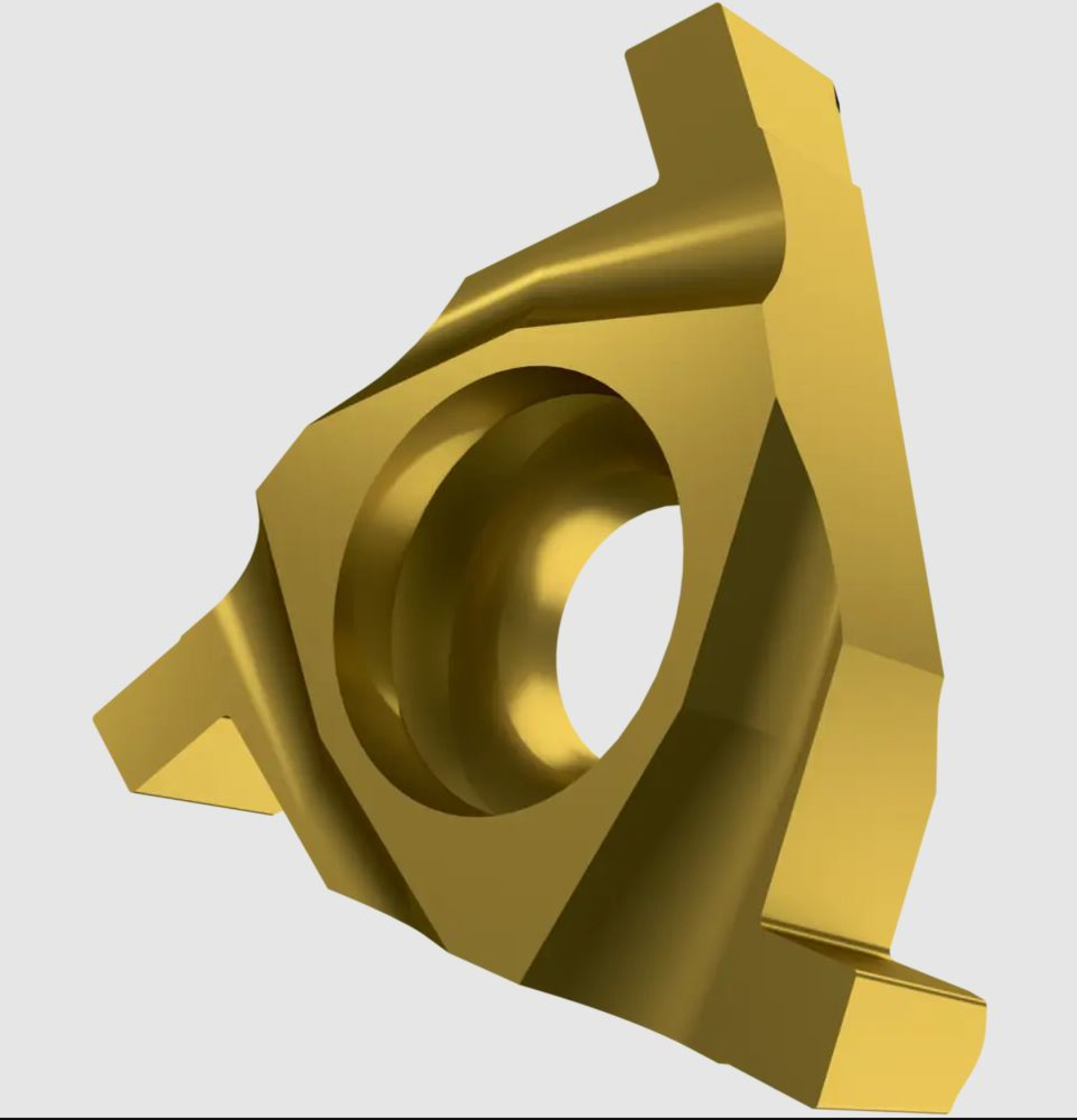

Lay down carbide inserts used on internal boring bars for grooving. It is available in grades Z6P grade(tin).
Note: This product is in a package of 10 Inserts. If you order 1, you will receive 10 Carbide Inserts Z16N_G.
The price you see in the table is the single item price.

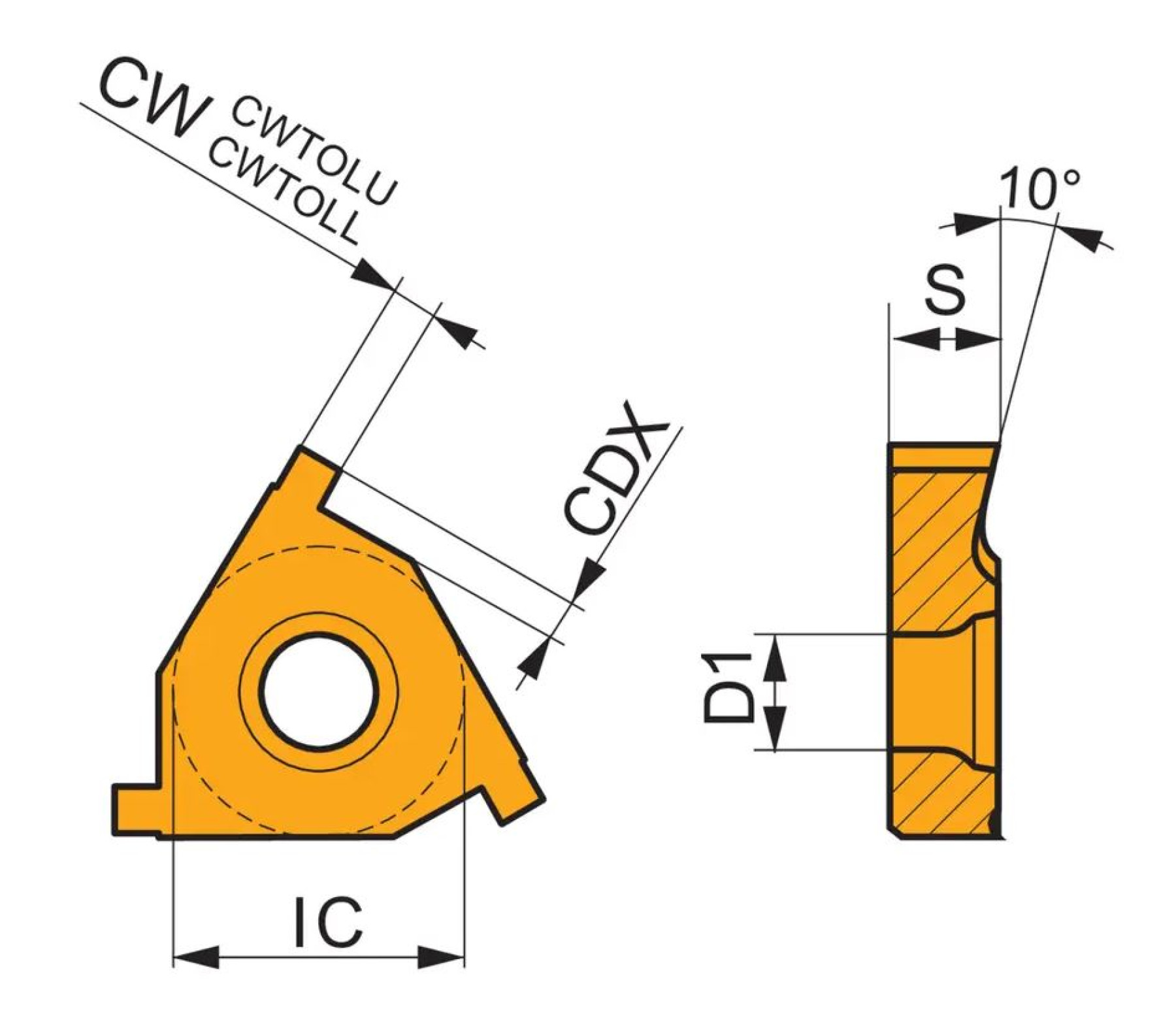

Product Name CW I.C. CDX S D1 SFM
Z16NRG 090MM Z6P CW:0.035" I.C.:0.375 CDX:0.035 S:0.134 D1:0.154 Only for registered users
Z16NRG 110MM Z6P CW:0.043" I.C.:0.375 CDX:0.035 S:0.134 D1:0.154 Only for registered users
Z16NRG 130MM Z6P CW:0.051" I.C.:0.375 CDX:0.035 S:0.134 D1:0.154 Only for registered users
Z16NRG 160MM Z6P CW:0.063" I.C.:0.375 CDX:0.035 S:0.134 D1:0.154 Only for registered users
Z16NRG 185MM Z6P CW:0.073" I.C.:0.375 CDX:0.035 S:0.134 D1:0.154 Only for registered users
Z16NRG 215MM Z6P CW:0.085" I.C.:0.375 CDX:0.035 S:0.134 D1:0.154 Only for registered users
Z16NRG 265MM Z6P CW:0.104" I.C.:0.375 CDX:0.035 S:0.134 D1:0.154 Only for registered users
