ZIGDP

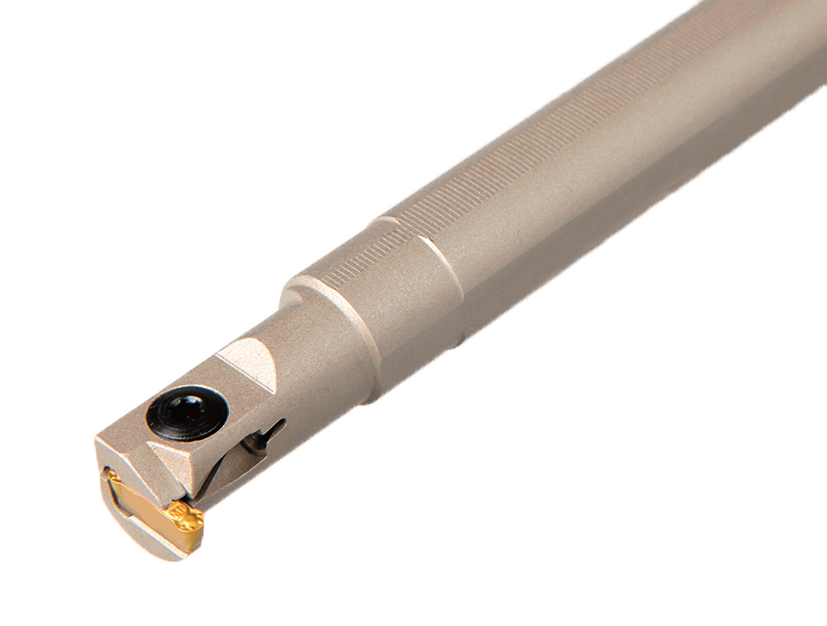

ZIGDP Solid bar for internal grooving with coolant through. Insert's pocket manufactured directly into the solid bar. Depth of cut is limited to the lenght of the insert to ensure great stability and precision.

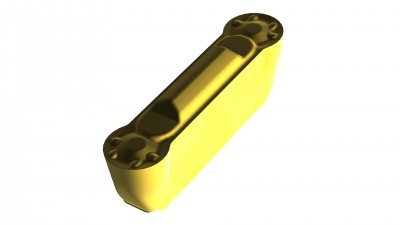

It mounts DPNS inserts.
For A12R ZIGDP R3 you can mount DPNS 3R;
To extract the insert you can use TORX key.
Spare parts:
TX 50DP (screw)
CT 15 (screw driver)
Notes: this product includes one extractor; inserts are not included.
It mounts DPNS inserts.
For A12R ZIGDP R3 you can mount DPNS 3R;
To extract the insert you can use TORX key.
Spare parts:
TX 50DP (screw)
CT 15 (screw driver)
Notes: this product includes one extractor; inserts are not included.
Product Name
Dmin
d
L1
L2
a
tmax
SFM
A10Q ZIGDPL 3
Dmin:.630
d:.625
L1:7.000
L2:.984
a:.118
tmax:.118
Only for registered users
Related Products
A10Q ZIGDPR 3
Dmin:.630
d:.625
L1:7.000
L2:.984
a:.118
tmax:.118
Only for registered users
Related Products
A12R ZIGDPR 3
Dmin:.787
d:.750
L1:8.000
L2:1.181
a:.118
tmax:.177
Only for registered users
Related Products
A16S ZIGDPR 3
Dmin:.984
d:1.000
L1:10.000
L2:1.575
a:.118
tmax:.295
Only for registered users
Related Products
A16S ZIGDPR 4
Dmin:.984
d:1.000
L1:10.000
L2:1.575
a:.158
tmax:.413
Only for registered users
Related Products
A20T ZIGDPR 4
Dmin:1.260
d:1.250
L1:12.000
L2:1.969
a:.158
tmax:.413
