ZIGGP

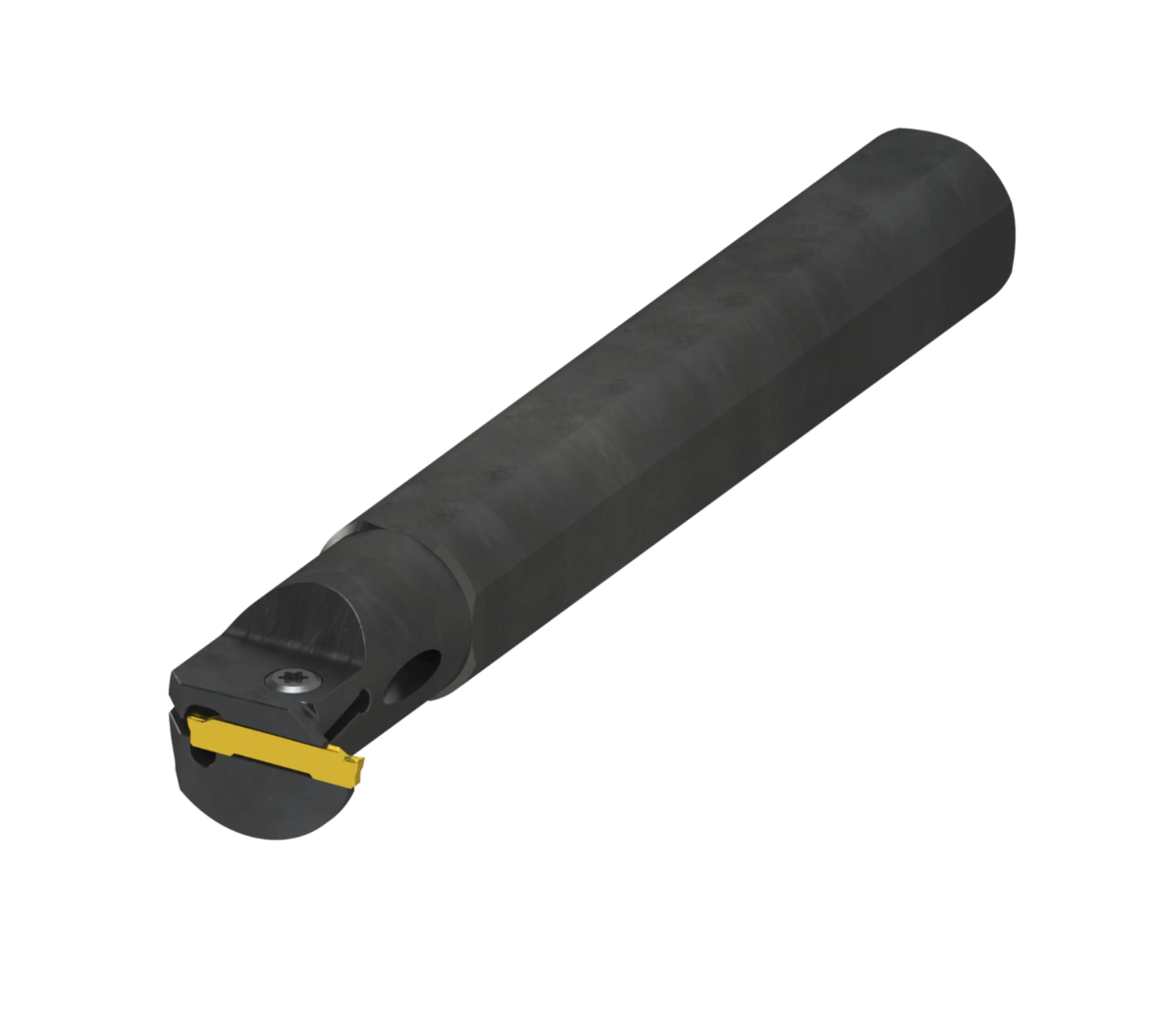

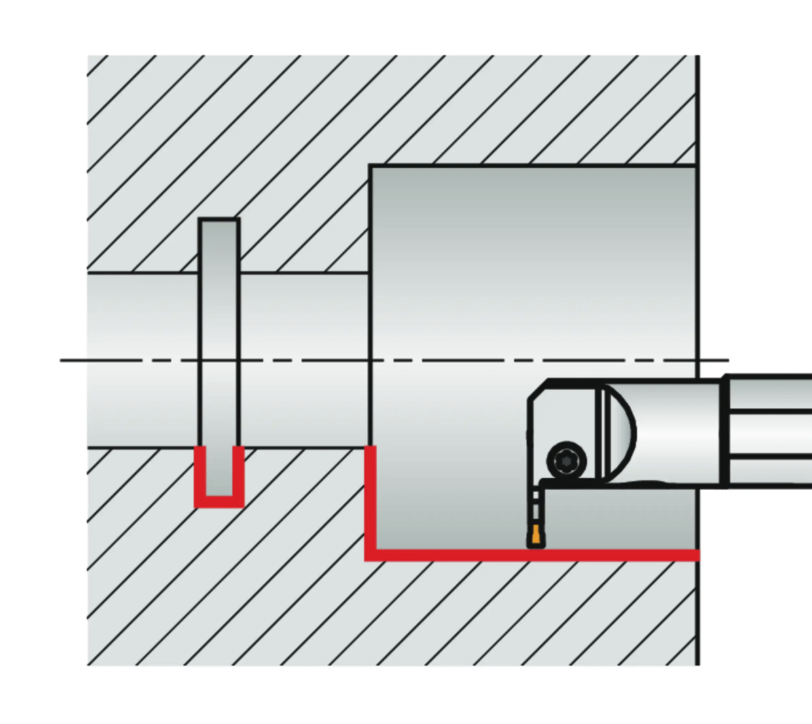

ZIGGP Solid bar for internal grooving with coolant through. Insert's pocket manufactured directly into the solid bar. Depth of cut is limited to the lenght of the insert to ensure great stability and precision.
It mounts GPN inserts.
For A16S ZIGGP R2 you can mount GPN 2;
To extract the insert you can use TORX key.
Spare parts:
TX 50DP (screw)
CT 15 (screw driver)
Notes: this product includes one extractor; inserts are not included.
It mounts GPN inserts.
For A16S ZIGGP R2 you can mount GPN 2;
To extract the insert you can use TORX key.
Spare parts:
TX 50DP (screw)
CT 15 (screw driver)
Notes: this product includes one extractor; inserts are not included.

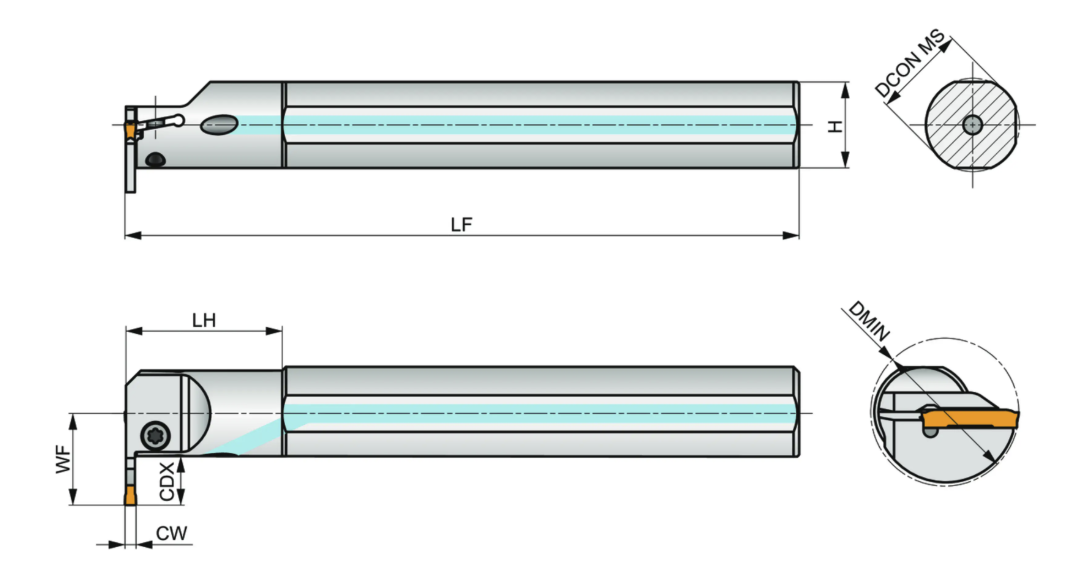

Product Name
Dmin
CW
CDX
DCON
LF
WF
LH
SFM
A16Q ZIGGPR 2
Dmin:1.500
CW:0.079
CDX:0.400
DCON:1.000
LF:7.250
WF:0.900
LH:1.660
Only for registered users
Related Products
A16Q ZIGGPRS 3
Dmin:1.250
CW:0.118
CDX:0.250
DCON:1.000
LF:7.250
WF:.748
LH:1.693
Only for registered users
Related Products
A16Q ZIGGPR 3
Dmin:1.500
CW:0.118
CDX:0.500
DCON:1.000
LF:7.250
WF:1.000
LH:1.693
Only for registered users
Related Products
A20S ZIGGPR 3
Dmin:1.800
CW:0.118
CDX:0.500
DCON:1.250
LF:10.000
WF:1.125
LH:2.030
Only for registered users
Related Products
A20S ZIGGPR 4
Dmin:1.800
CW:0.157
CDX:0.500
DCON:1.250
LF:10.000
WF:1.125
LH:2.060
Only for registered users
Related Products
A24S ZIGGPRS 4
Dmin:2.200
CW:0.157
CDX:0.500
DCON:1.500
LF:12.000
WF:1.250
LH:2.110
Only for registered users
Related Products
A24S ZIGGPR 4
Dmin:2.450
CW:0.157
CDX:0.800
DCON:1.500
LF:12.000
WF:1.550
LH:2.110
Only for registered users
