ZKR full radius grooving bar
       Solid carbide shank boring bar with coolant through.
Tech Data File

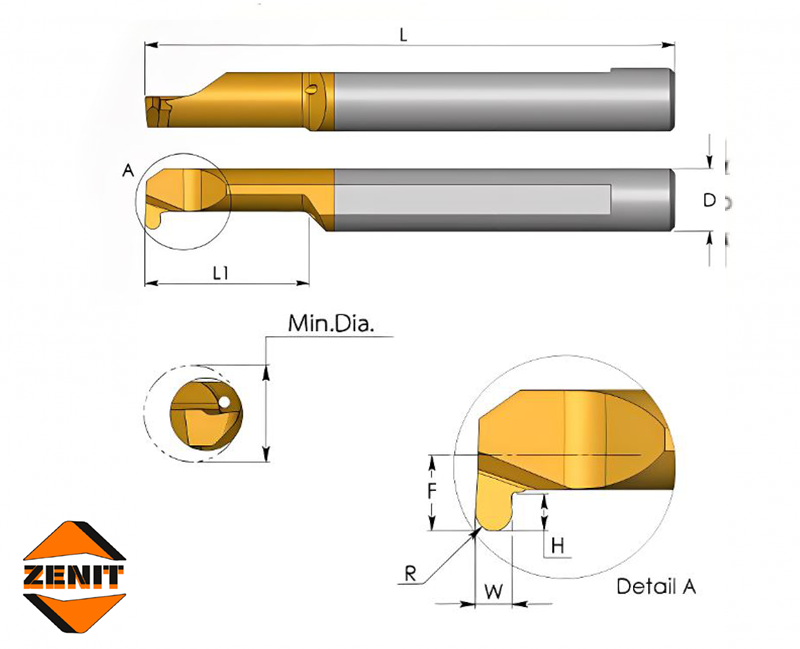

Product Name D L L1 R W H F D.min SFM
ZKR 04.5.10 D:4mm L:51mm L1:10mm R:0,50 W:1mm H:1mm F:1,7mm D.min:4,1mm Only for registered users
ZKR 04.7.10 D:4mm L:51mm L1:10mm R:0,75 W:1,5mm H:1mm F:1,7mm D.min:4,1mm Only for registered users
ZKR 05.5.15 D:5mm L:51mm L1:15mm R:0,50 W:1mm H:1,2mm F:2,3mm D.min:5,1mm Only for registered users
ZKR 05.7.15 D:5mm L:51mm L1:15mm R:0,75 W:1,5mm H:1,2mm F:2,3mm D.min:5,1mm Only for registered users
ZKR 05.10.15 D:5mm L:51mm L1:15mm R:1 W:2mm H:1,2mm F:2,3mm D.min:5,1mm Only for registered users
ZKR 06.5.15 D:6mm L:51mm L1:15mm R:0,50 W:1mm H:1,6mm F:2,8mm D.min:6,1mm Only for registered users
ZKR 06.7.15 D:6mm L:51mm L1:15mm R:0,75 W:1,5mm H:1,6mm F:2,8mm D.min:6,1mm Only for registered users
ZKR 06.10.15 D:6mm L:51mm L1:15mm R:1 W:2mm H:1,6mm F:2,8mm D.min:6,1mm Only for registered users
ZKR 07.5.22 D:7mm L:62mm L1:22mm R:0,50 W:1mm H:2,5mm F:3,3mm D.min:7,1mm Only for registered users
ZKR 07.7.22 D:7mm L:62mm L1:22mm R:0,75 W:1,5mm H:2,5mm F:3,3mm D.min:7,1mm Only for registered users
ZKR 07.10.22 D:7mm L:62mm L1:22mm R:1 W:2mm H:2,5mm F:3,3mm D.min:7,1mm Only for registered users
