MINI CARBIDE BARS|MINI-SOLID-CARBIDE-BARS
|
ZUR

ZUR

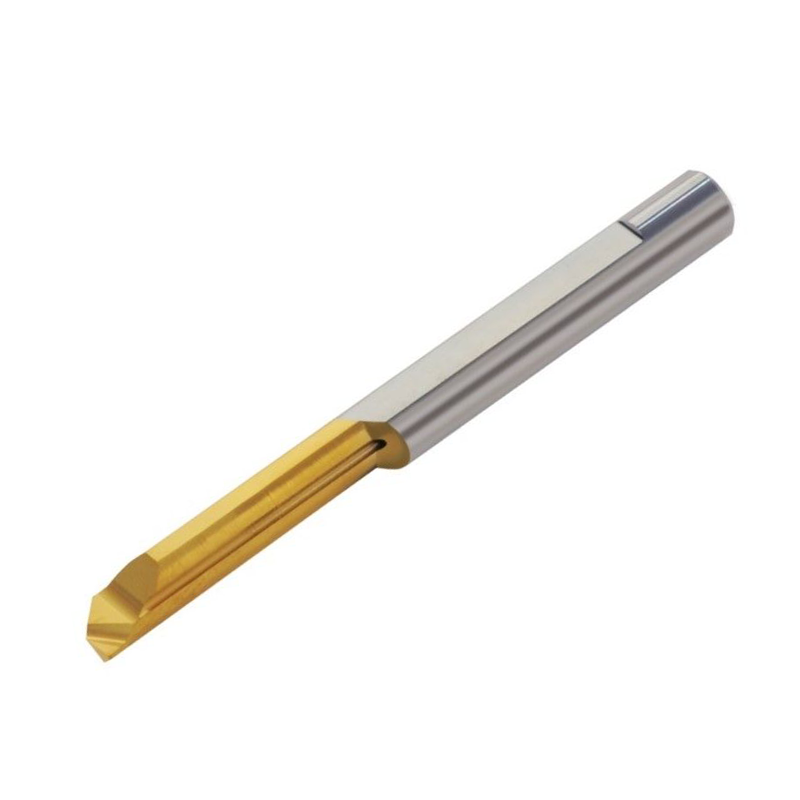

ZUR profiling, 90Ëš face cutting bar
       Solid carbide shank boring bar with coolant through.

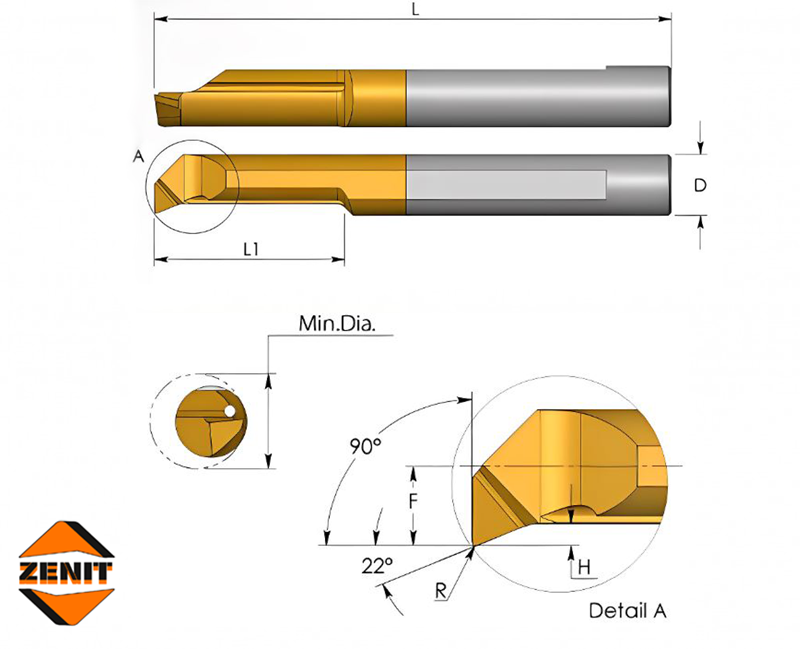

Tech Data File
Product Name D L L1 R H F D.min SFM
ZUR 03.05.10 D:3mm L:39mm L1:10mm R:.002" H:0,4mm F:1,3mm D.min:3,1mm Only for registered users
ZUR 03.05.15 D:3mm L:39mm L1:15mm R:.002" H:0,4mm F:1,3mm D.min:3,1mm Only for registered users
ZUR 04.1.10 D:4mm L:51mm L1:10mm R:.004" H:0,5mm F:1,7mm D.min:4,1mm Only for registered users
ZUR 04.1.15 D:4mm L:51mm L1:15mm R:.004" H:0,5mm F:1,7mm D.min:4,1mm Only for registered users
ZUR 05.15.15 D:5mm L:51mm L1:15mm R:.006" H:0,7mm F:2,1mm D.min:5,1mm Only for registered users
ZUR 05.15.22 D:5mm L:51mm L1:22mm R:.006" H:0,7mm F:2,1mm D.min:5,1mm Only for registered users
ZUR 06.15.15 D:6mm L:51mm L1:15mm R:.006" H:0,9mm F:2,8mm D.min:6,1mm Only for registered users
ZUR 06.15.22 D:6mm L:51mm L1:22mm R:.006" H:0,9mm F:2,8mm D.min:6,1mm Only for registered users
ZUR 08.2.22 D:8mm L:64mm L1:22mm R:.008" H:1,1mm F:3,8mm D.min:8,1mm Only for registered users
