MINI CARBIDE BARS|MINI-SOLID-CARBIDE-BARS
|
ZZL

ZZL

ZZL left hand roung face grooving bar.
       Solid carbide shank boring bar with coolant through.
Tech Data File

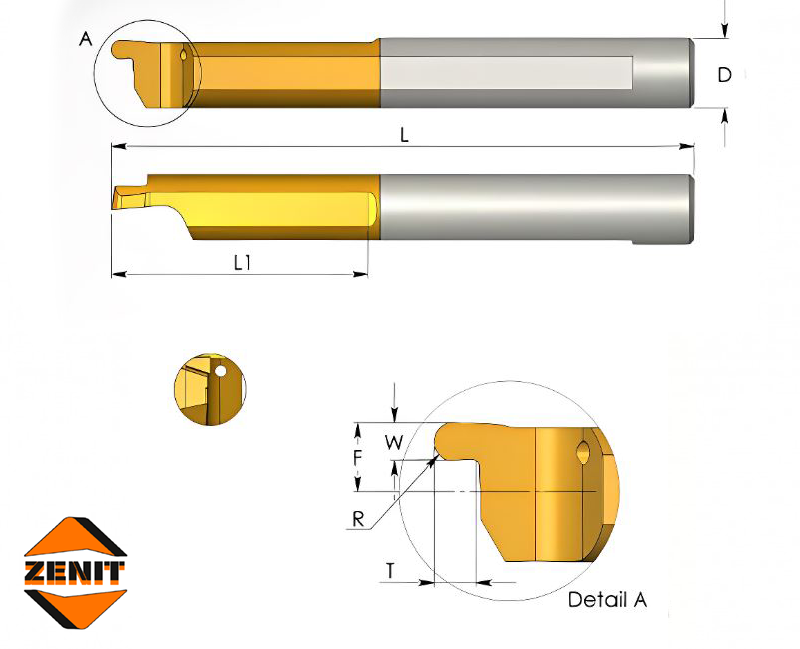

Product Name D L L1 R W T F D.min SFM
ZZL 04.5.15 D:4mm L:51mm L1:15mm R:0,50mm W:1mm T:1,2mm F:1,75mm D.min:5mm Only for registered users
ZZL 04.7.15 D:4mm L:51mm L1:15mm R:0,75mm W:1,5mm T:1,5mm F:1,75mm D.min:5mm Only for registered users
ZZL 05.5.22 D:5mm L:51mm L1:22mm R:0,50mm W:1mm T:1,2mm F:2,25mm D.min:6mm Only for registered users
ZZL 05.7.22 D:5mm L:51mm L1:22mm R:0,75mm W:1,5mm T:1,5mm F:2,25mm D.min:6mm Only for registered users
ZZL 05.10.22 D:5mm L:51mm L1:22mm R:1mm W:2mm T:2,5mm F:2,25mm D.min:6mm Only for registered users
ZZL 06.5.22 D:6mm L:51mm L1:22mm R:0,50mm W:1mm T:1,2mm F:2,75mm D.min:8mm Only for registered users
ZZL 06.7.22 D:6mm L:51mm L1:22mm R:0,75mm W:1,5mm T:1,5mm F:2,75mm D.min:8mm Only for registered users
ZZL 06.10.22 D:6mm L:51mm L1:22mm R:1mm W:2mm T:2,5mm F:2,75mm D.min:8mm Only for registered users
