CNMG.FF
These carbide inserts are used in machining stainless steels.

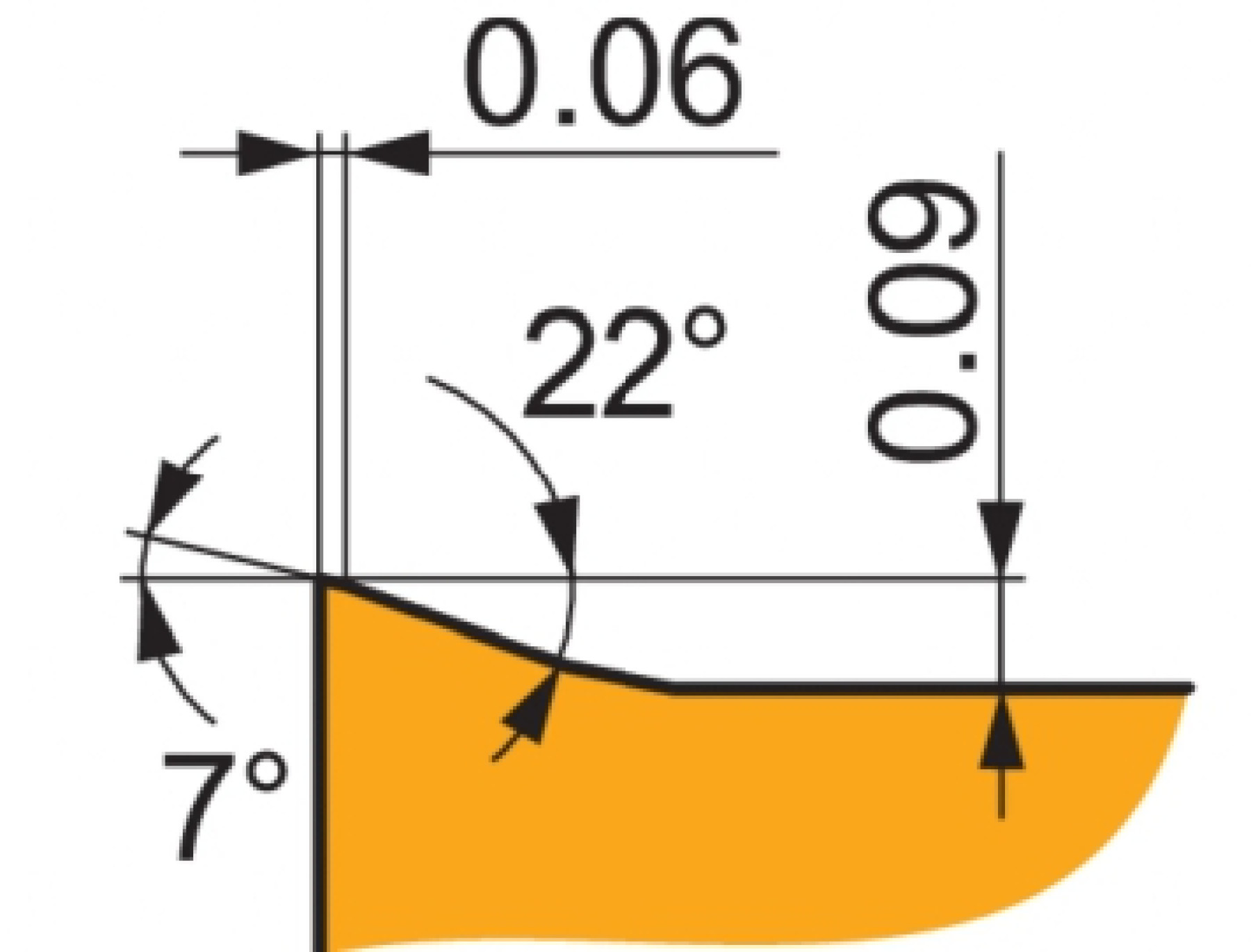

This chipbreaker is recommended for finishing machining operations.
For Feed and Speed info please consult any single insert file below (SFM).
This chipbreaker is recommended for finishing machining operations.
For Feed and Speed info please consult any single insert file below (SFM).
Note: This product is in a package of 10 Inserts. If you order 1, you will receive 10 Carbide Inserts CNMG.FF.
The price you see in the table is the single item price.
The price you see in the table is the single item price.

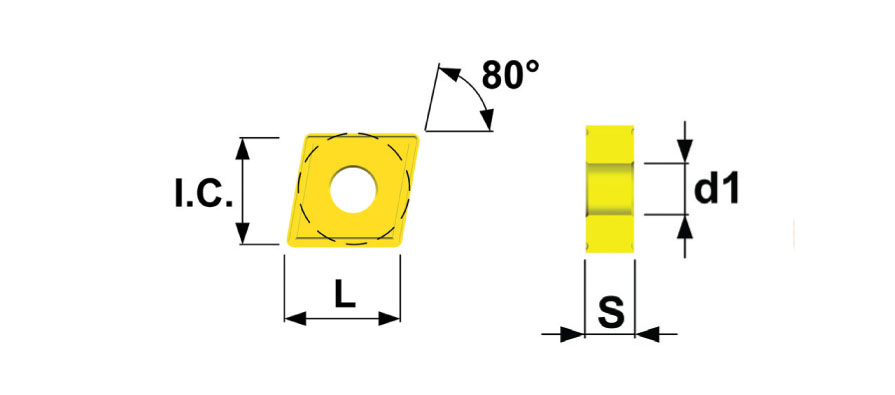

Product Name
I.C.
L
α
S
D1
RADIUS
SFM
CNMG.FF 431 Z12P
I.C.:.500
L:.508
α:0°
S:.187
D1:.203
RADIUS:.016
File SFM
Only for registered users
CNMG.FF 432 Z12P
I.C.:.500
L:.508
α:0°
S:.187
D1:.203
RADIUS:.032
File SFM
Only for registered users
